OFS 50W Bronze Outdoor Selectable LED Flood Light
Introducing the OFS Flood Light, a pinnacle of high-performance illumination that redefines outdoor lighting. With a sleek and compact form, it offers high efficiency with improved aesthetic design features. It’s constructed using the latest in LED technology, providing Selectable wattage and color …
Introducing the OFS Flood Light, a pinnacle of high-performance illumination that redefines outdoor lighting. With a sleek and compact form, it offers high efficiency with improved aesthetic design features. It’s constructed using the latest in LED technology, providing Selectable wattage and color temperature options via an integrated switch located on the backside. The OFS features a die-cast aluminum housing with a UV-stabilized powder-coat finish, and stainless-steel hardware for protection against the elements, ensuring long-lasting durability. The impact-resistant polycarbonate lens provides further protection while maintaining uniform light dispersion, enhanced by the 7H7V beam distribution pattern and a high CRI value for vivid clarity. The OFS includes both a knuckle mount (pre-installed) and a yoke mount to suit your installation preference, for added versatility. Effortlessly improve landscapes, signage, facades, pathways, and open spaces with the OFS, where superior lighting and style converge.
- Three selectable color temperatures (3000K/4000K/5000K)
- Two selectable wattage settings (Low/High)
- Uniform illumination with 80 CRI and 7H7V beam distribution
- Impact-resistant polycarbonate lens for even light dispersion
- Die-cast aluminum housing, UV powder coat, and stainless hardware
- Knuckle or yoke mount with 0° to 180° adjustability
- 0-10V dimming and integral photocell for automated on/off control
Color Options:
Ordering information
Downloads
Specifications
-
Lumens4445 - 7150 lm -
Wattage35, 50
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing routes heat away from electrical components
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Impact-resistant polycarbonate lens creates uniform light distribution
- 7H7V distribution pattern
- Beam angle of 110°
- 80 CRI
Electrical

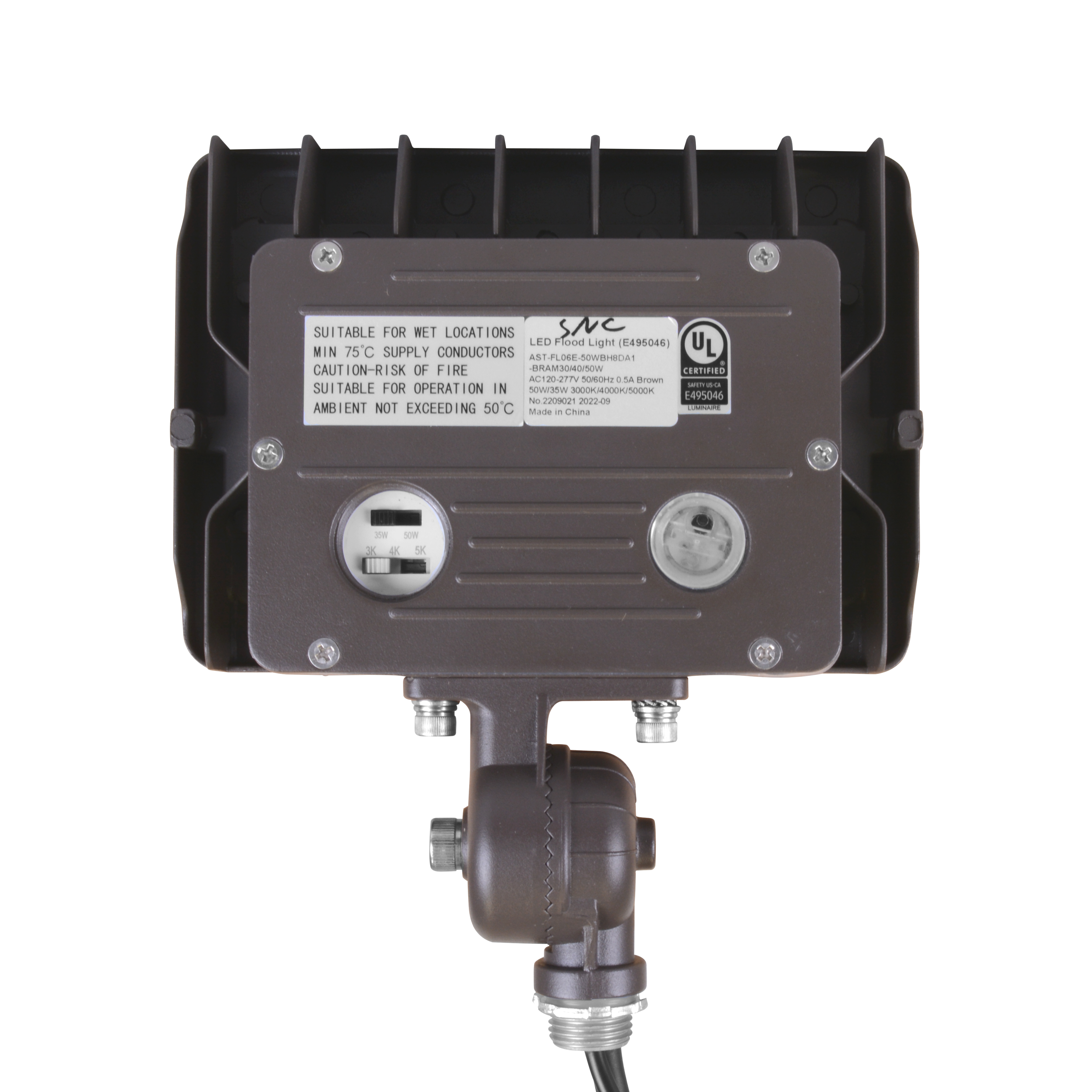

- Color Temperature and Wattage Selectable options; selector switches located on the backside of the fixture.
- 3CCT Select: 3000K-4000K-5000K
- 2W Select: 35W/4500lm-50W/6500lm
- Input voltage of 120-277VAC, 50/60Hz
- Power factor: ≥0.9
- THD ≤ 20%
- 0-10V dimming standard
- Operating temperature range: -22°F to 113°F (-30°C to 45°C)
- Photocell is a standard feature (can be disabled in field)
Installations
- Knuckle and Yoke Mount included standard on all models
- Knuckle: 1/2” threaded connector with locking nut and adjustment range of 0° to ±90°
- Yoke: Configured for a variety of mounting patterns with adjustment range of 0° to 180°
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 5.1 Premium Listed
- IP65 rated
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70 life >46,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
