OLS Series
Black Selectable LED Outdoor Security Flood Light
Product description

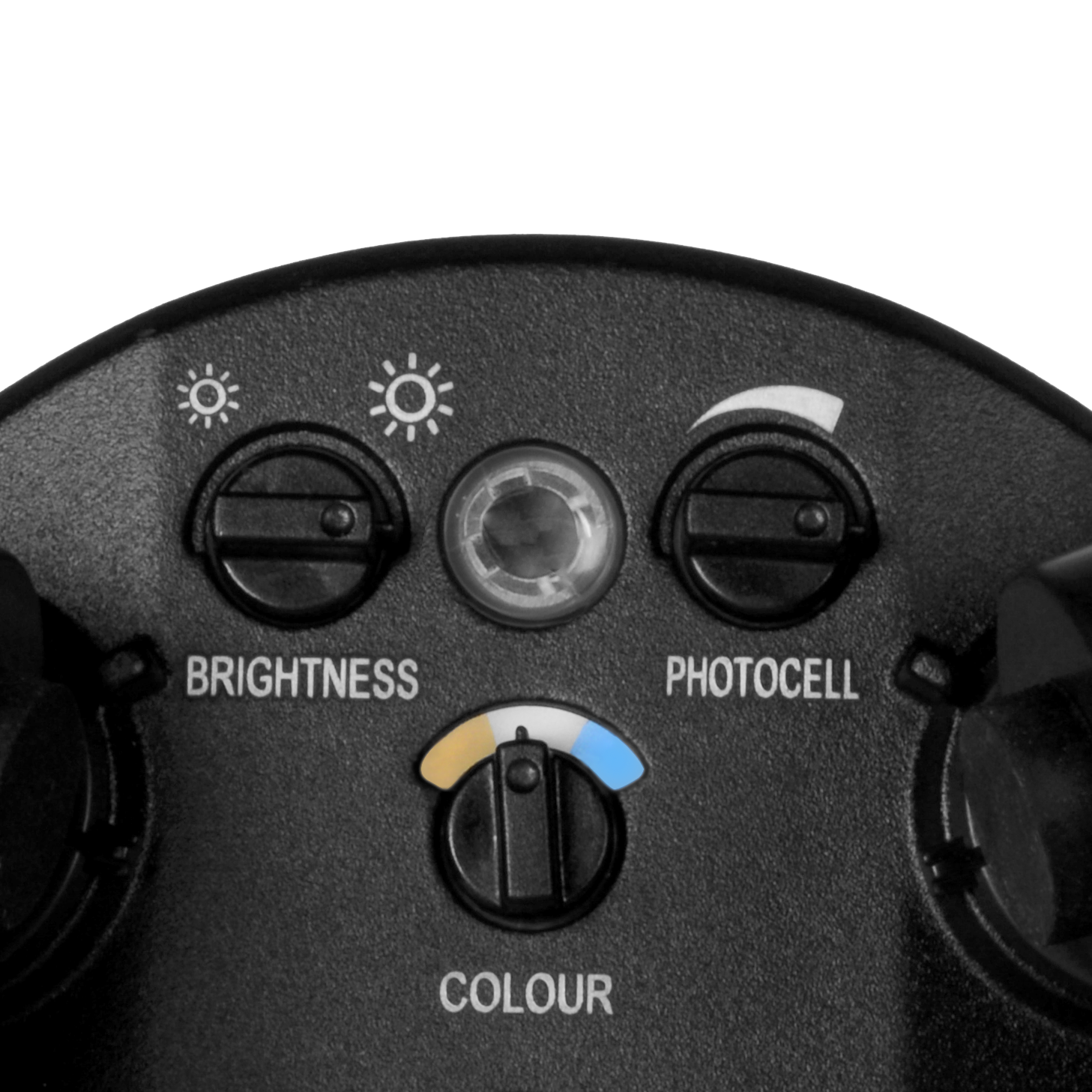

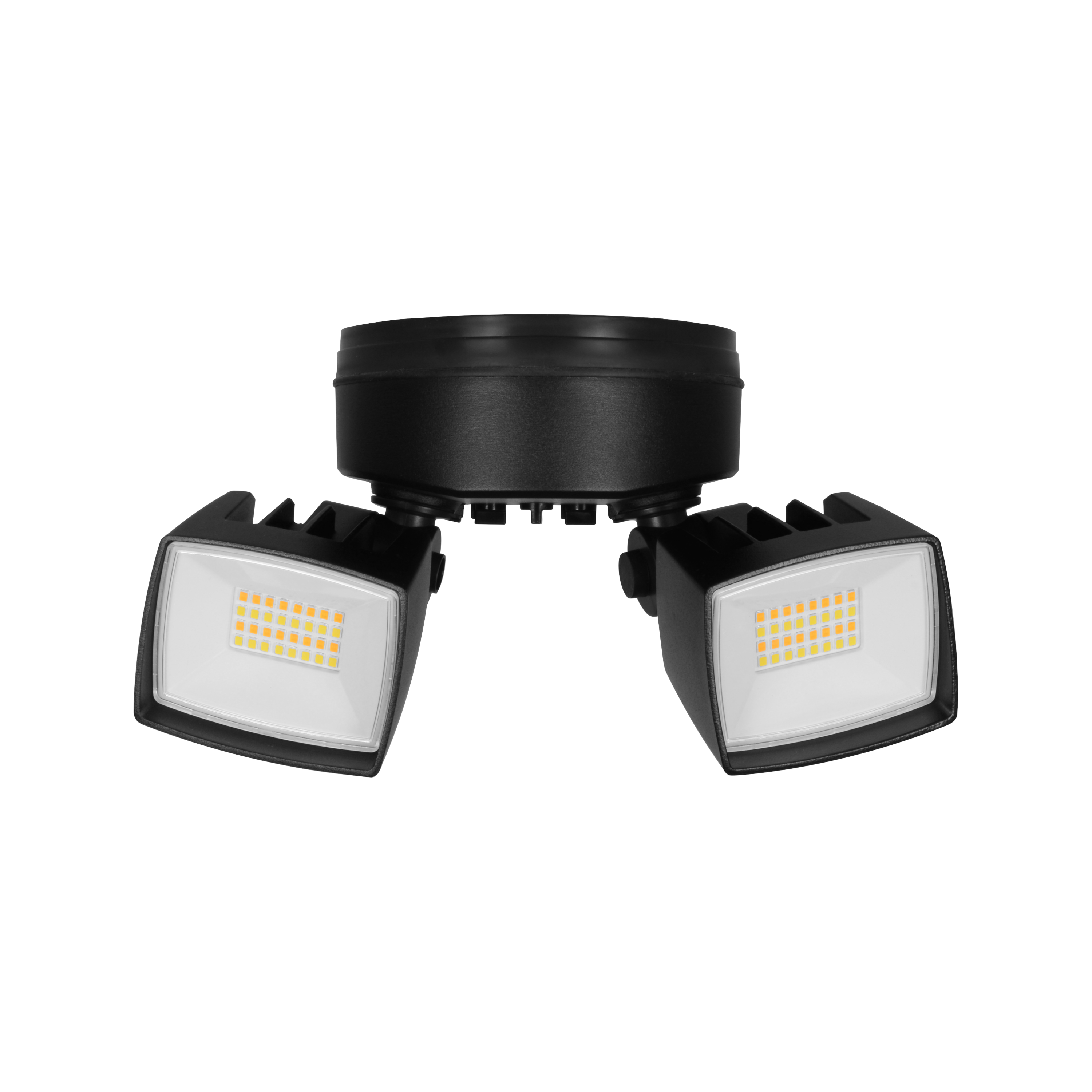

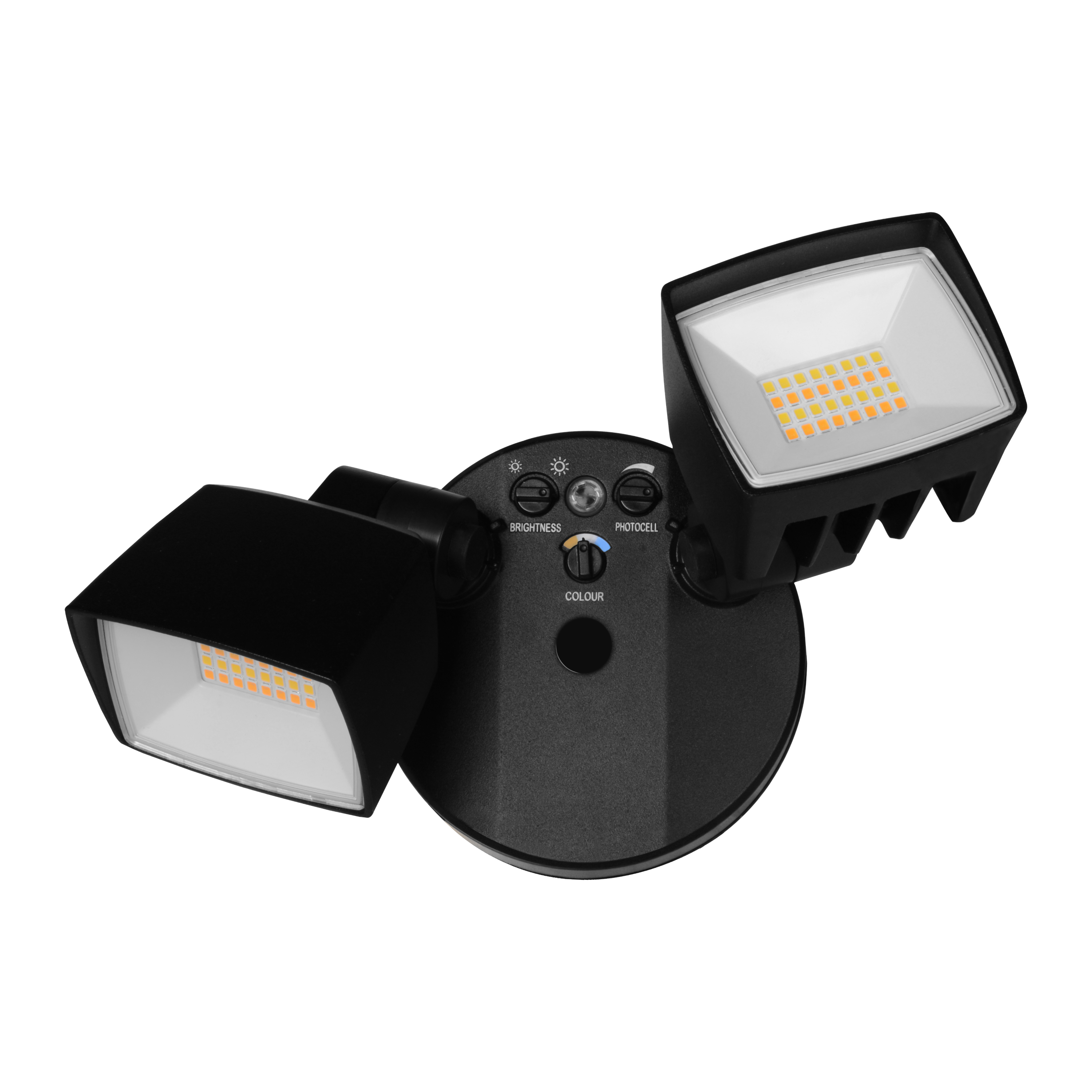

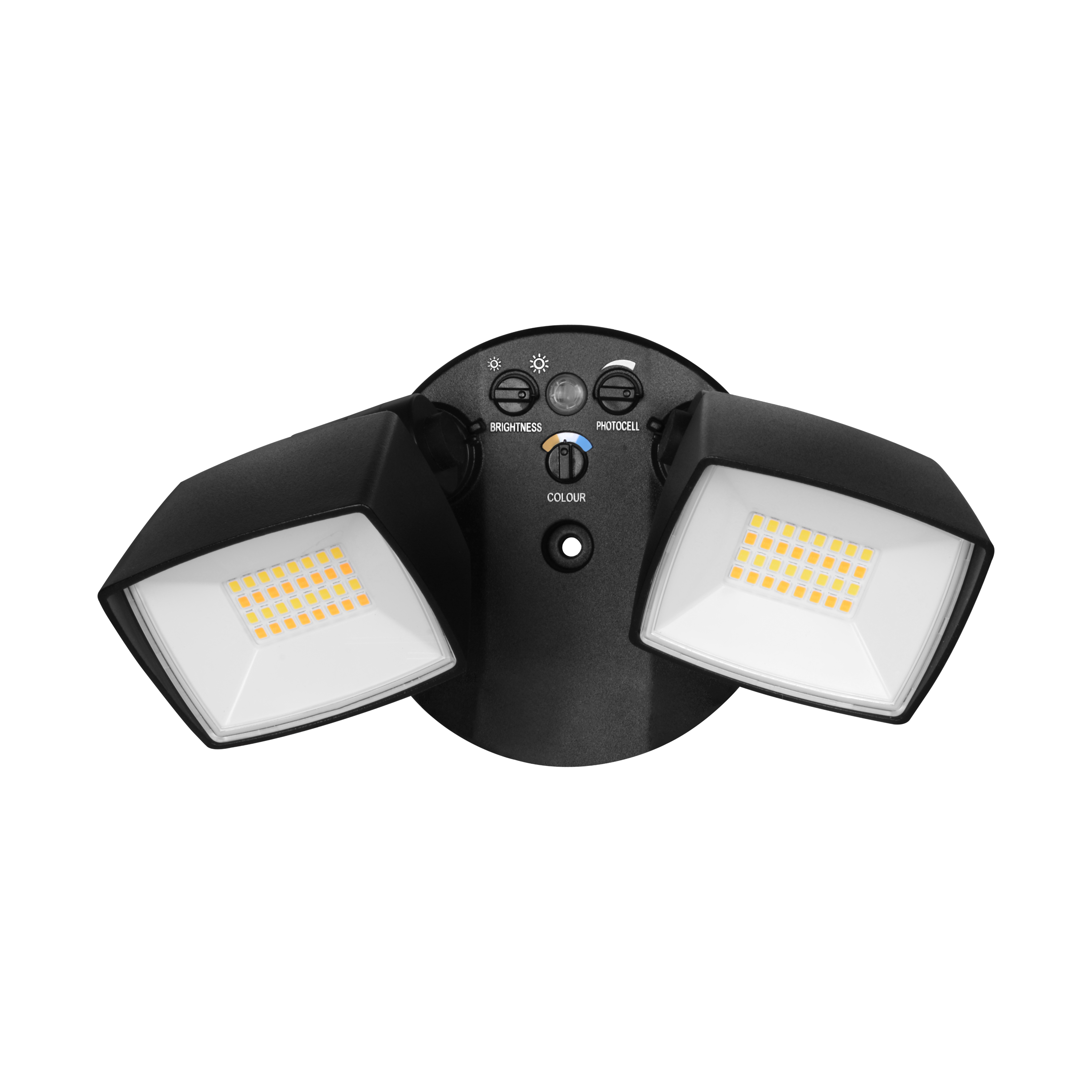

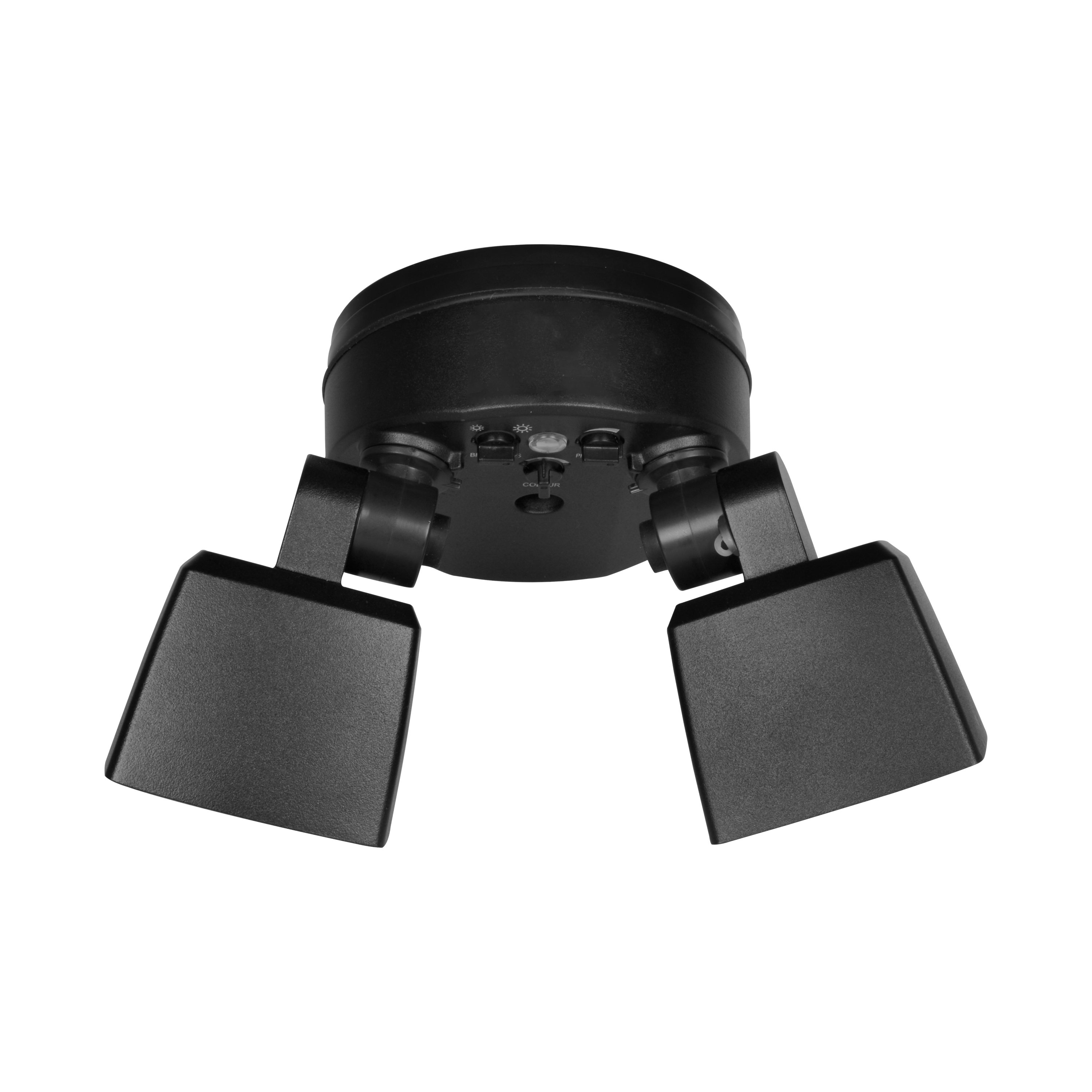

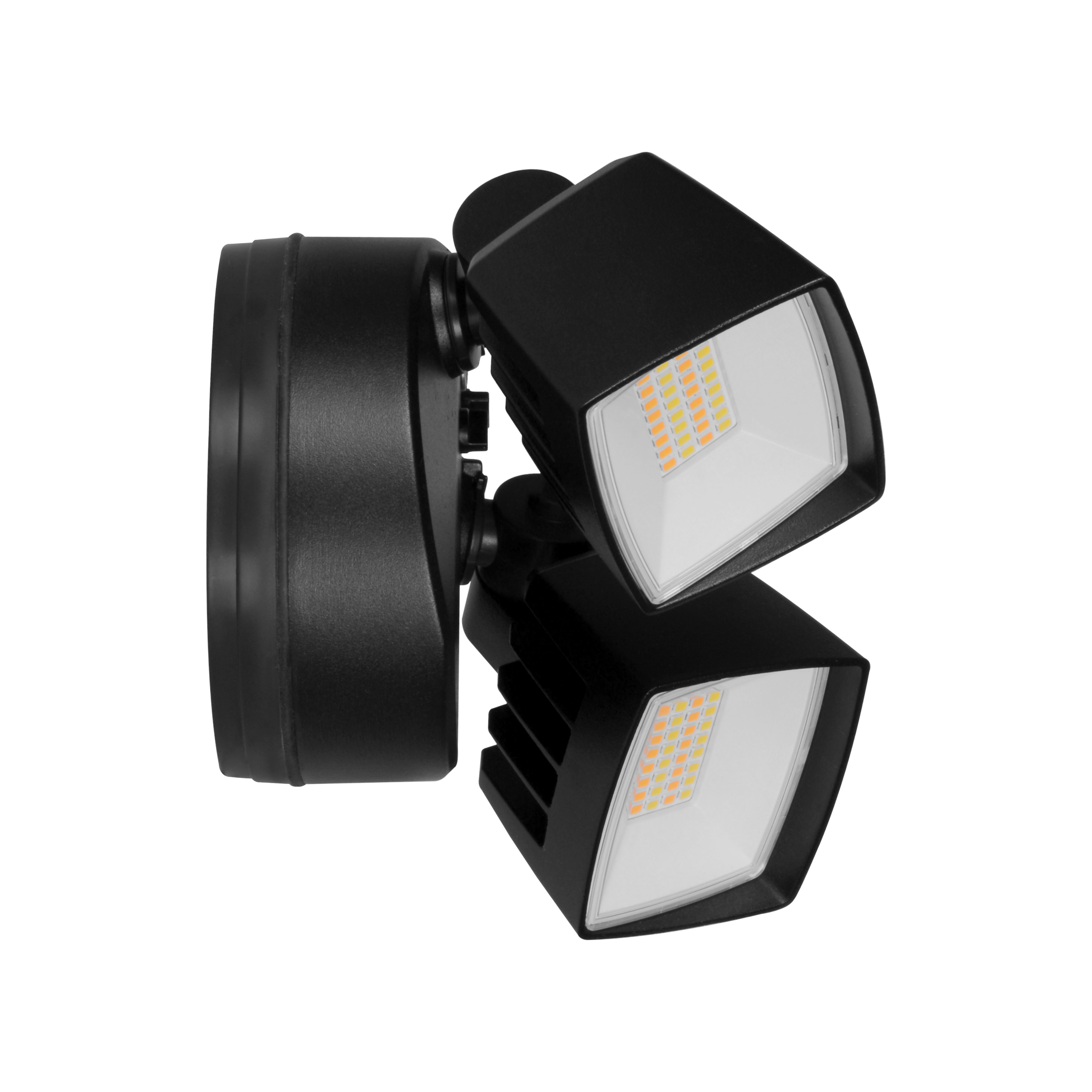

The OLS security flood light features two sleek, rotatable LED heads with over 1,500 lumens each. It is easy to install on walls or directly on a J-Box with its mounting bracket. Easily accessible switches offer the ability to adjust the CCT, wattage, night light function, photocell sensitivity, and…
The OLS security flood light features two sleek, rotatable LED heads with over 1,500 lumens each. It is easy to install on walls or directly on a J-Box with its mounting bracket. Easily accessible switches offer the ability to adjust the CCT, wattage, night light function, photocell sensitivity, and motion sensor sensitivity. The OLS is suitable for outdoor perimeter lighting as well as interior walkways.
- Adjustable lamp heads (360° rotation and 180° tilt) for precise light direction
- Three selectable color temperatures (3000K/4000K/5000K)
- Motion and dusk-to-dawn sensors with on/off controls
- Built-in 108-lumen ambient night light option available
- Available in black, white, and bronze finishes
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens108 - 3352 lm
-
Wattage16, 25
Listings & certifications
Listings & Certifications
- UL Certified
- RoHS Compliant
- FCC Class B
- IP65 Ingress Protection
- Wet-Location (UL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat finish
- 360° head rotation
- 180° head tilt
Optical System
- Beam angle of 100°
- CCT selection of 3000K, 4000K, and 5000K
- >80 CRI to improve safety and color definition in public places
Electrical
- Input voltage of 120VAC
- Selectable Wattage (25W/16W)
- >120Lm/W efficiency
- Power Factor ≥0.9
- THD ≤20%
- Operating temperature rating of -22°F to 122°F (-30°C to 50°C)
Installations

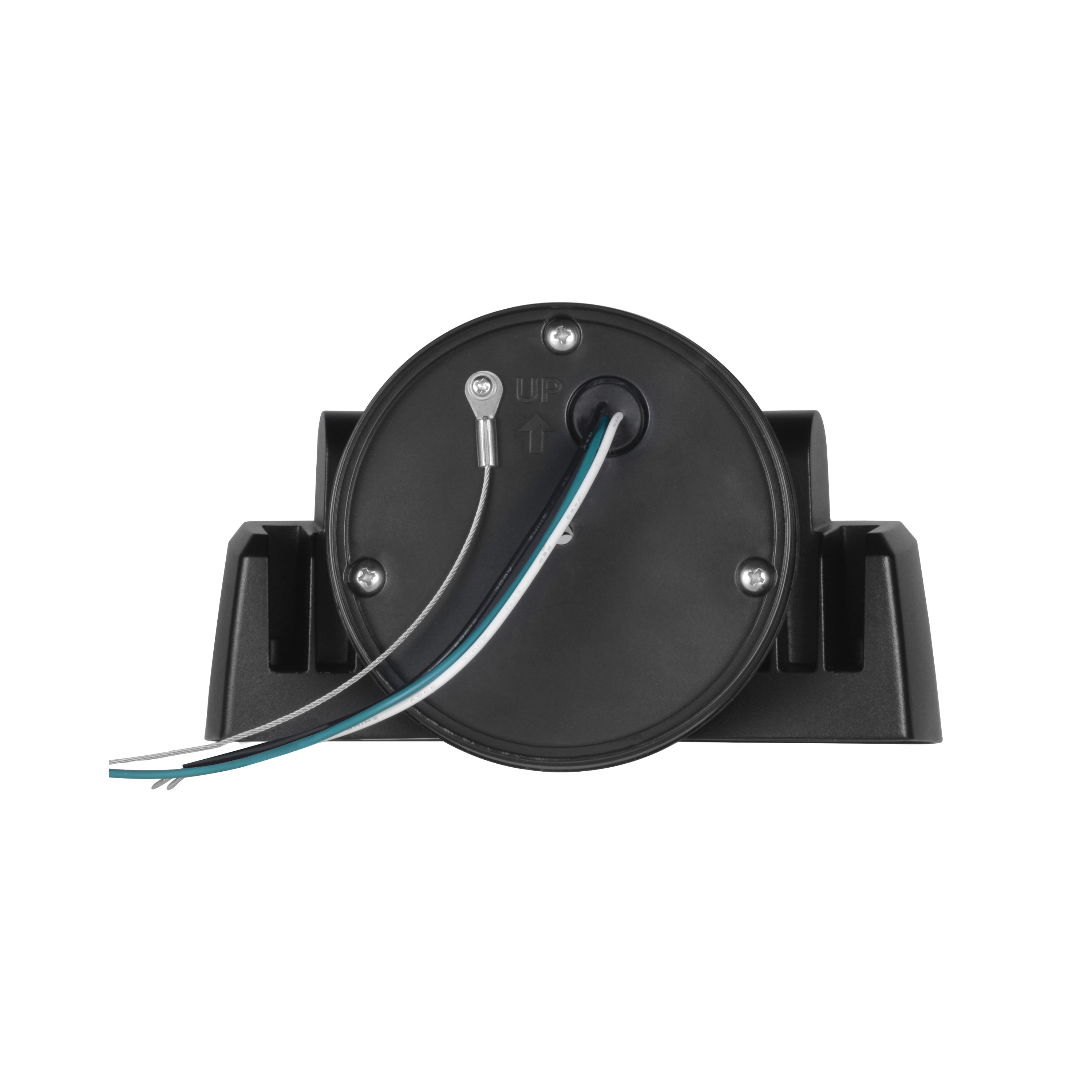

- Mounts to J-box using supplied mounting plate
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- RoHS Compliant
- TM-21 Reported L70(9k) life >54,000 hours, L90(9k) life >54,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
