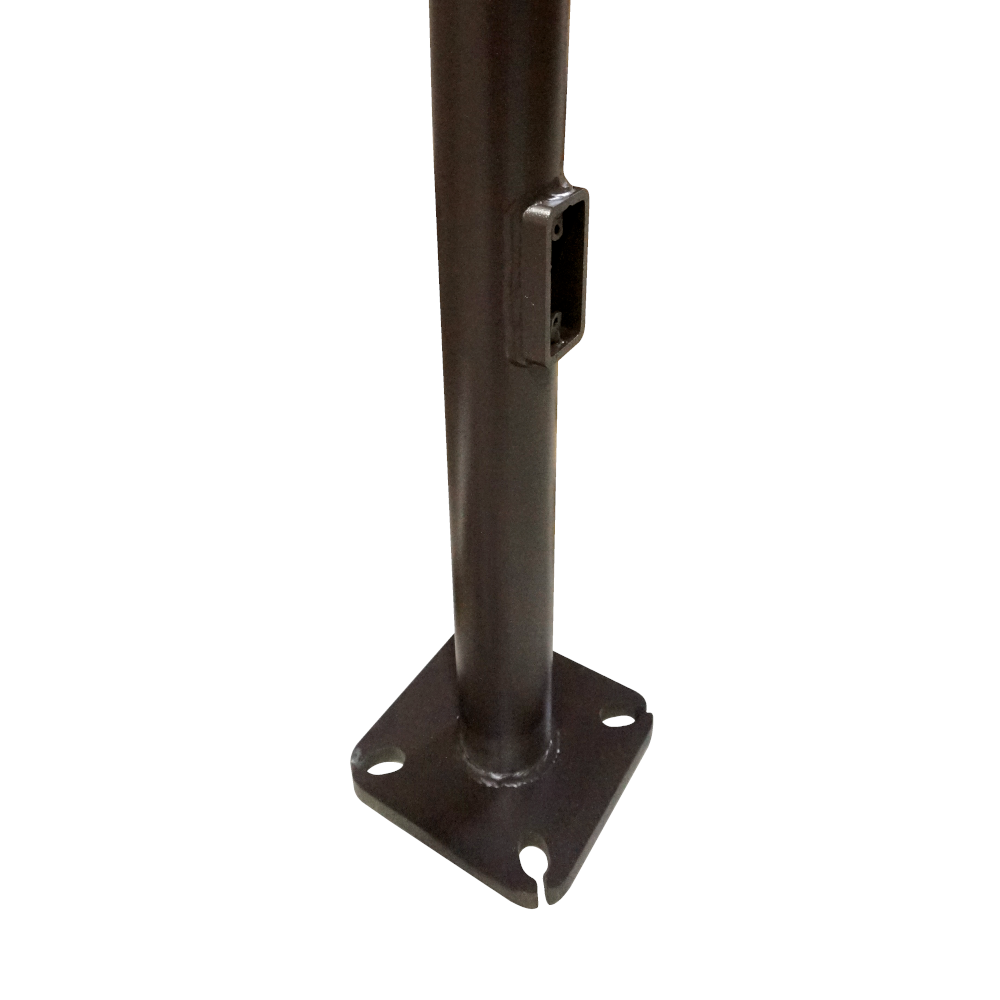

OPL3v1 Series
10-Foot Round Bronze Pole for Pollus LED Outdoor Pole Top Light
Product description
Poles for the Pollus line of fixtures.
- Straight steel with 3” diameter
- Round steel general purpose pole for up to 12’ mounting heights
- In lengths of 8’, 10’ and 12’
- Pole shaft is from weldable grade cold rolled, commerical quality carbon steel tubing conforming to ASTM-A500 grade B 11 guage
- All welds conform to AWS D1.2 using ER70s-6 electrodes
Color Options:
Downloads
Specifications
Features
Construction
- Straight steel with 3” diameter
- Round steel general purpose pole for up to 12’ mounting heights
- In lengths of 8’, 10’ and 12’
- Pole shaft is from weldable grade cold rolled, commerical quality carbon steel tubing conforming to ASTM-A500 grade B 11 guage
- All welds conform to AWS D1.2 using ER70s-6 electrodes
- Reinforced 2”x4” hand-hole with cover 1.5’ off base
- Stainless steel screws and back-bar
- Grounding Provision incorporating a tapped 0.5”-13NC hole welded to frame
- Fine powder coat finish
- Available in Bronze, and White
Installations
- Easy installation with anchor bolts and the Pollus light fixtures
- Mounting types:
- • Tenon mount available in 2.375”x3” tenon length
- • Mounting heights of 8’, 10’ and 12’
- Anchorage:
- • (4) L-shaped steel anchor bolts, conformed to AASHTO M314-90 Grade 55 with 10” of threaded end galvanized per ASTM A153
- • Galvanized steel hardware pack including:
- ◈ (8) Hex nuts
- ◈ (4) Lock washers
- ◈ (8) Flat washers
Warranty
- 5-year limited system warranty standard

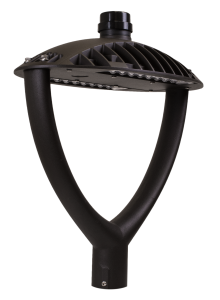

Related Products
