OPL4v2 Series
OPL Series Galvanized L-Shaped Anchor Bolt Kit (0.75 x 30 x 3)
Product description
The OPL4 Series Anchor Bolt Kit provides a secure foundation for pole-mounted lighting systems. Featuring galvanized ASTM F1554 Grade 55 steel construction, the heavy-duty L-shaped anchor bolts deliver reliable structural support and corrosion resistance for demanding outdoor applications.

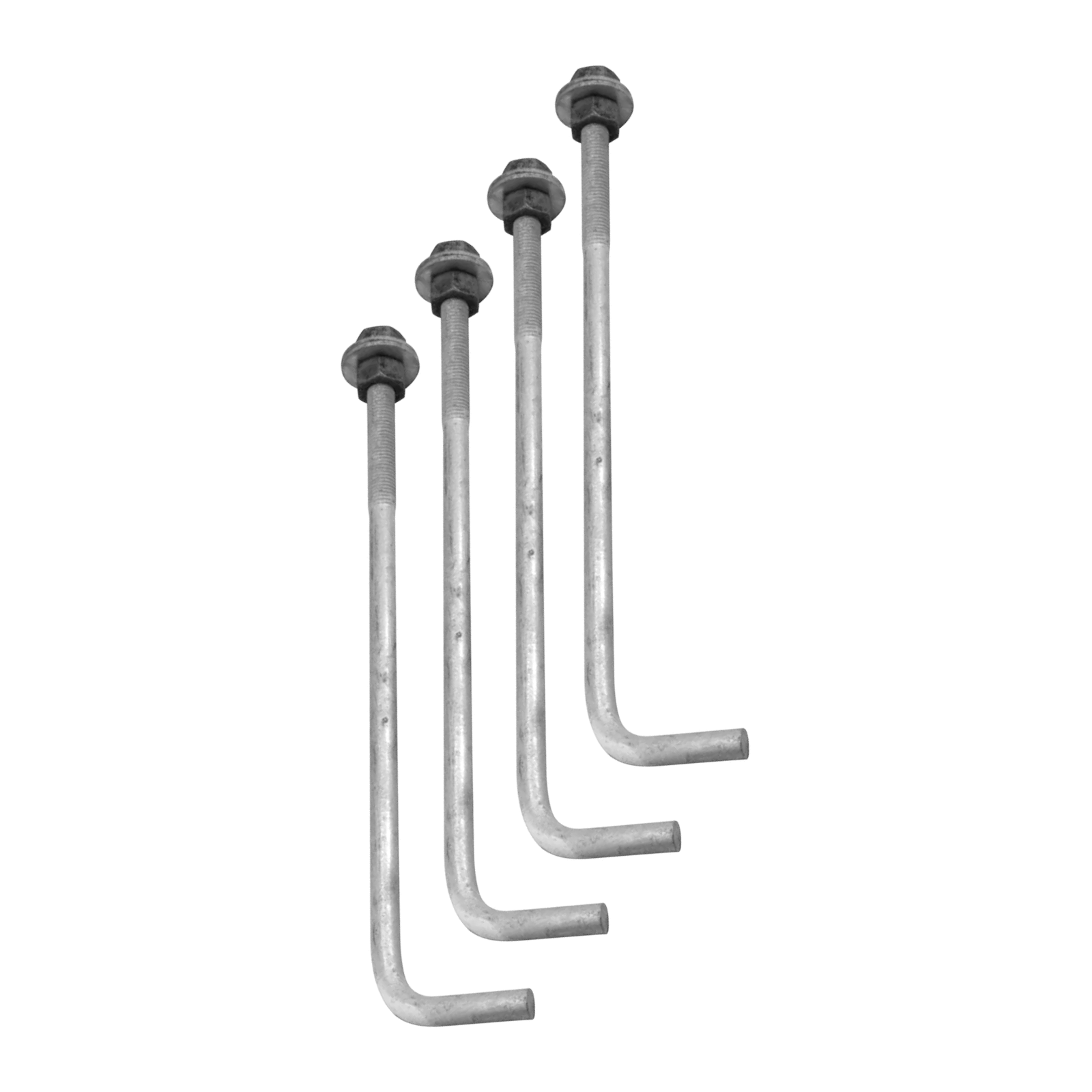

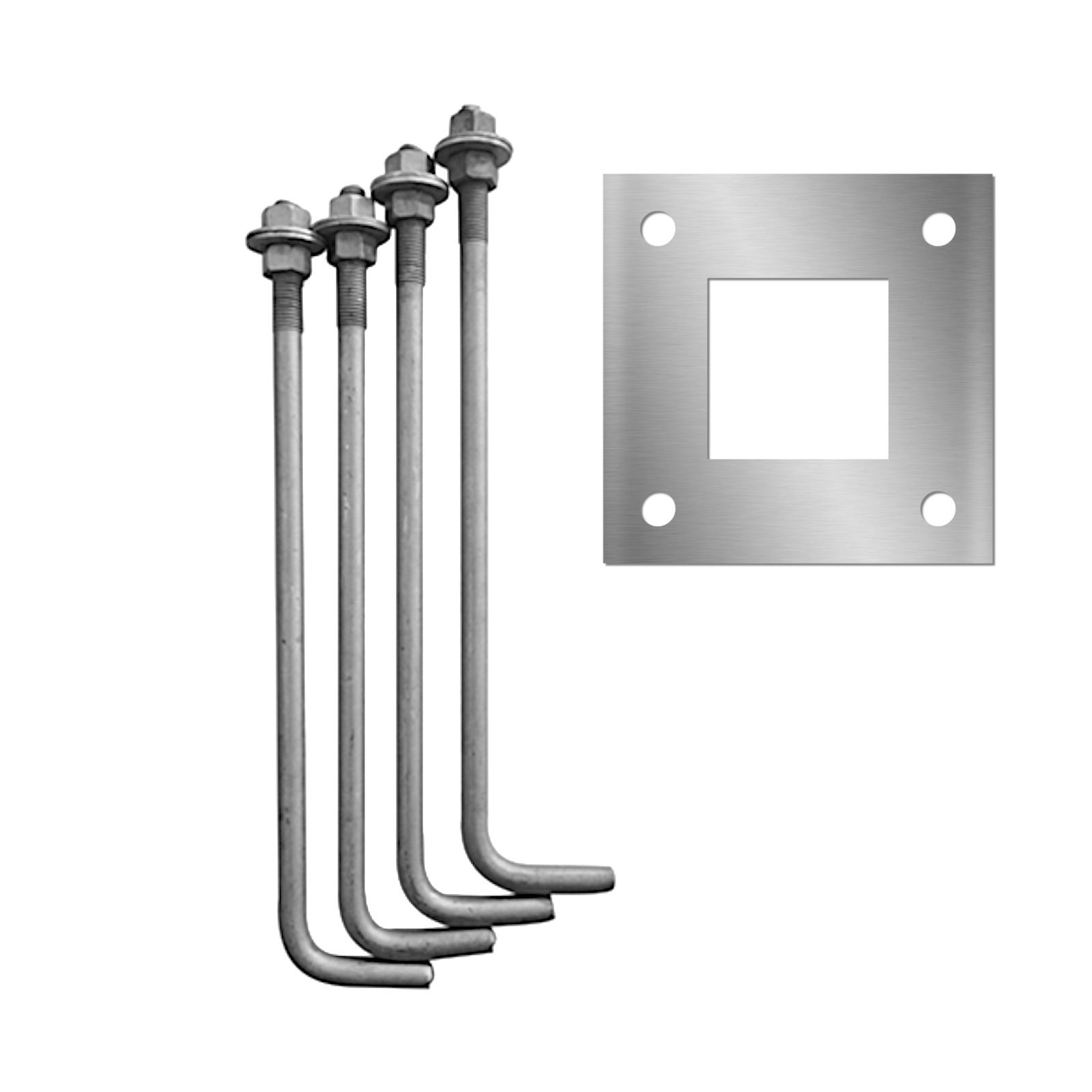

- Includes four galvanized L-shaped anchor bolts (0.75 x 30 x 3) for secure pole mounting
- Manufactured to ASTM F1554 Grade 55 specifications for structural reliability

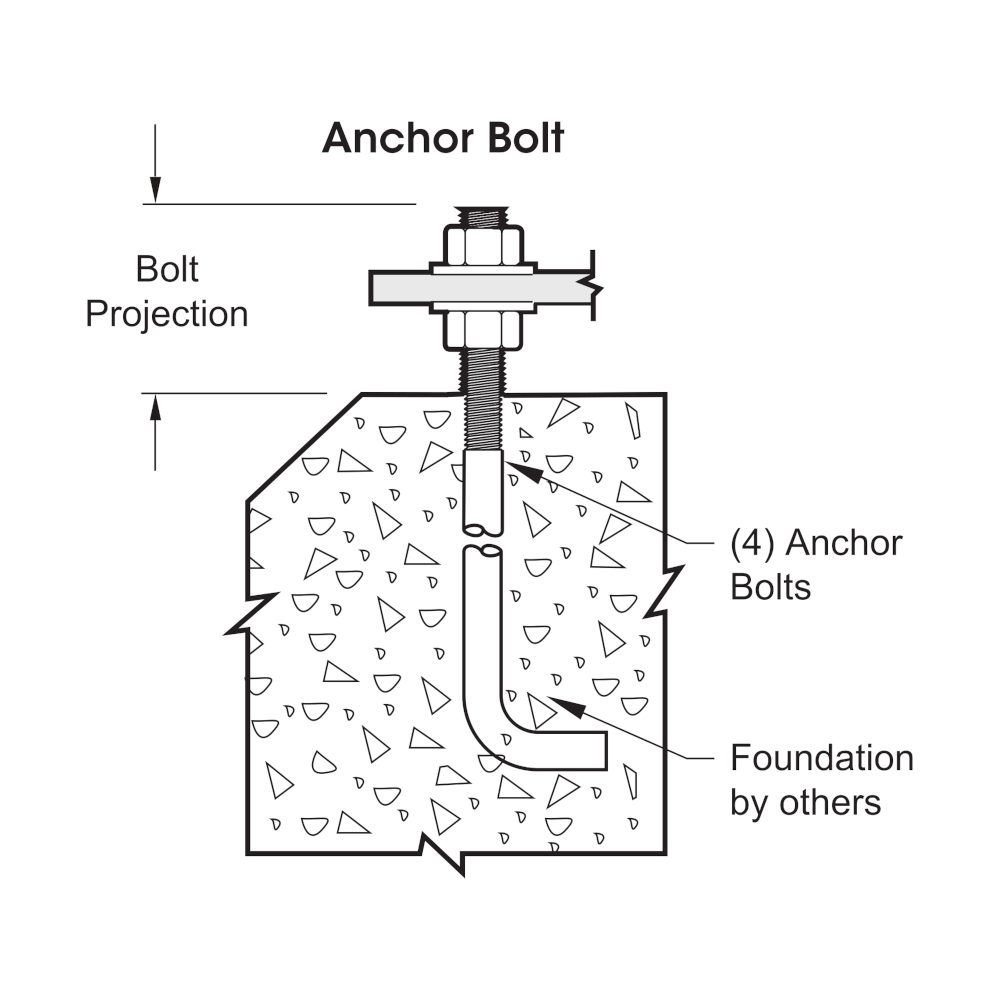

- Designed for use with the pole’s 4-bolt mounting base configuration
- Galvanized finish enhances corrosion resistance in outdoor applications
- Compatible with OPL4 series pole installations and foundation systems
Color Options:
Architectural BronzeOrdering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- ASTM F1554 Grade 55 Steel
Features
Construction

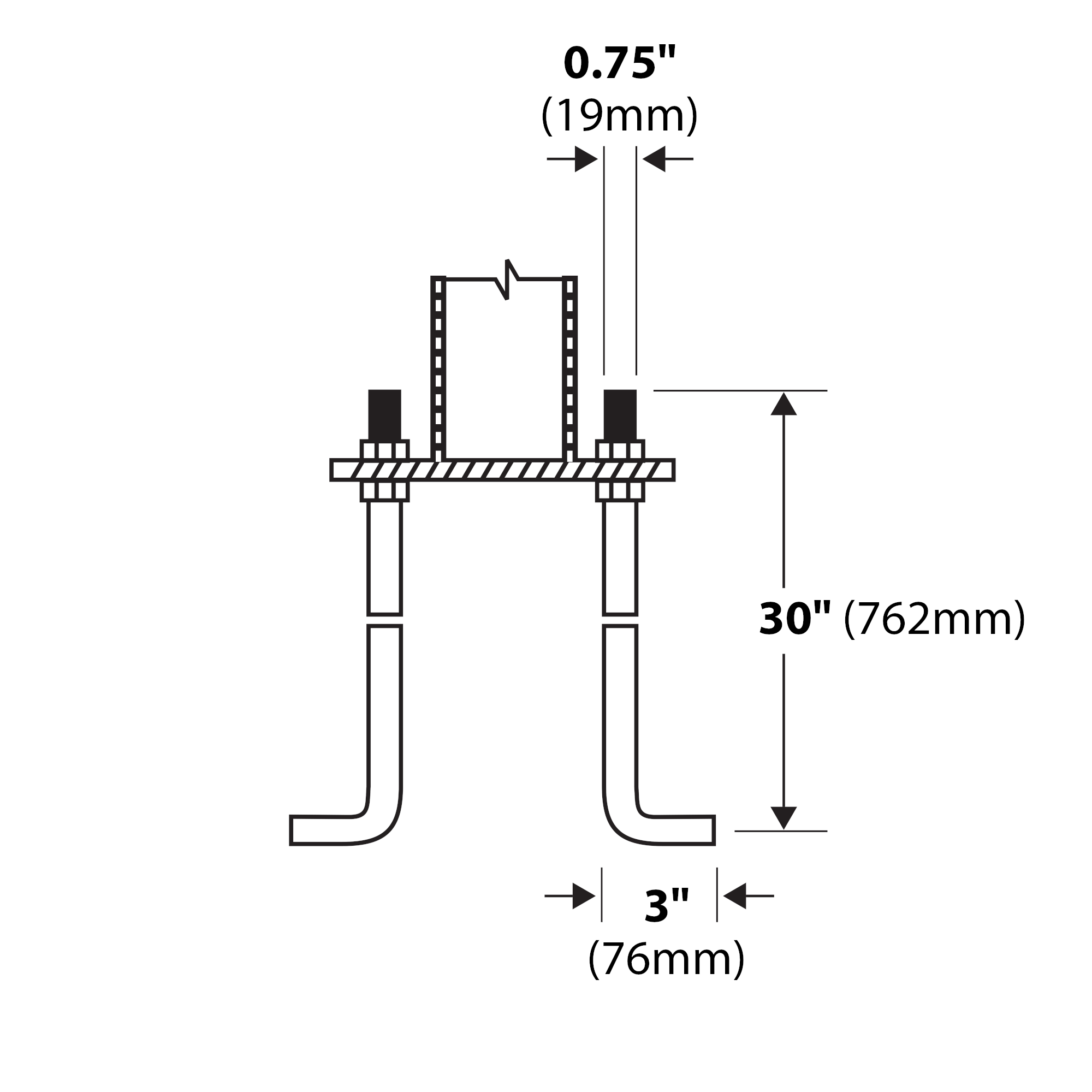

- Four galvanized L-shaped anchor bolts (0.75 x 30 x 3)
Electrical
- Standard 4-90 drilling configurations
Installations
- Compatible with NICOR OPL4v2 Series Poles

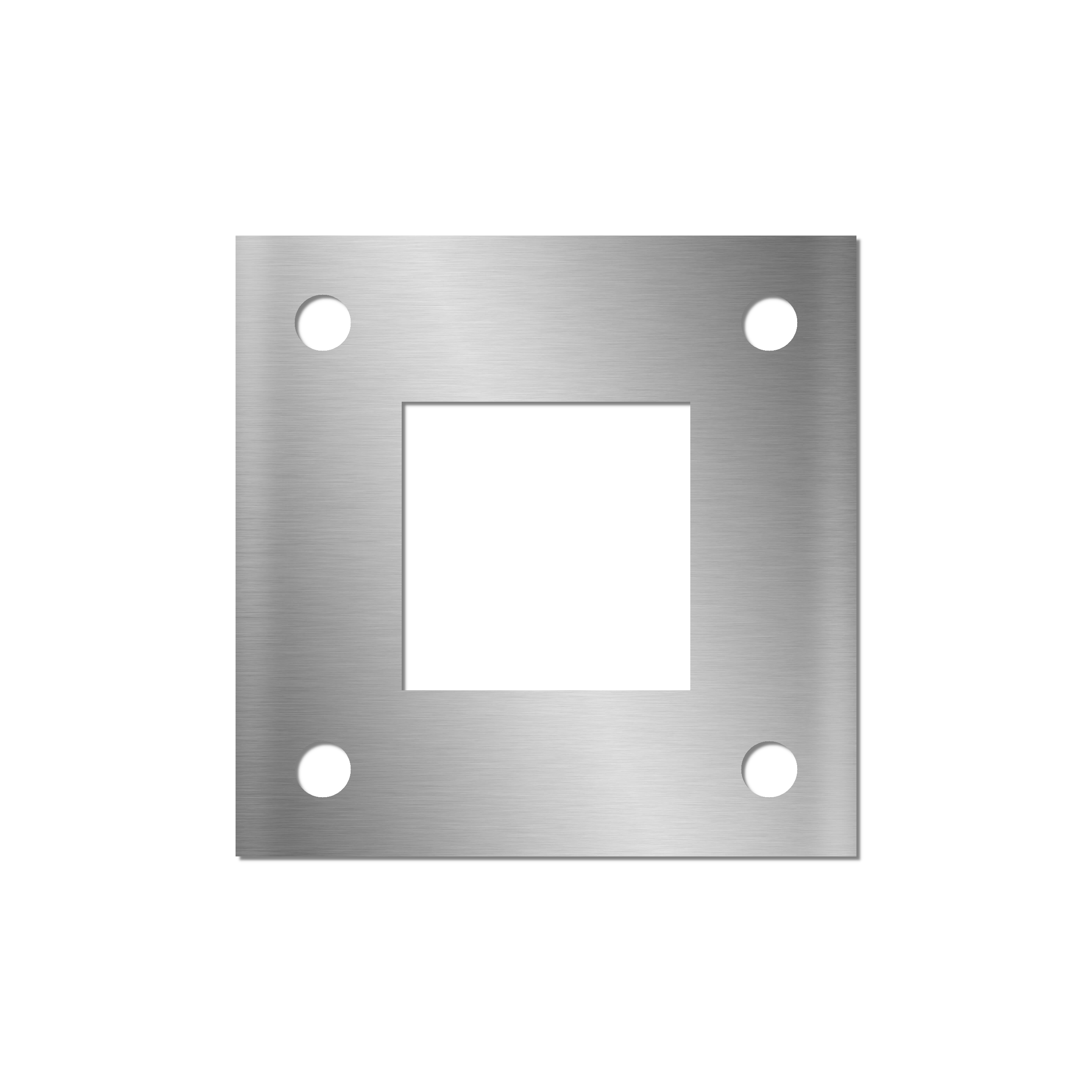

- Includes anchor bolt template
Full Listings
- Anchor bolts conform to ASTM F1554 Grade 55 with minimum yield strength of 55,000 PSI
Warranty
- 5-year limited system warranty standard
