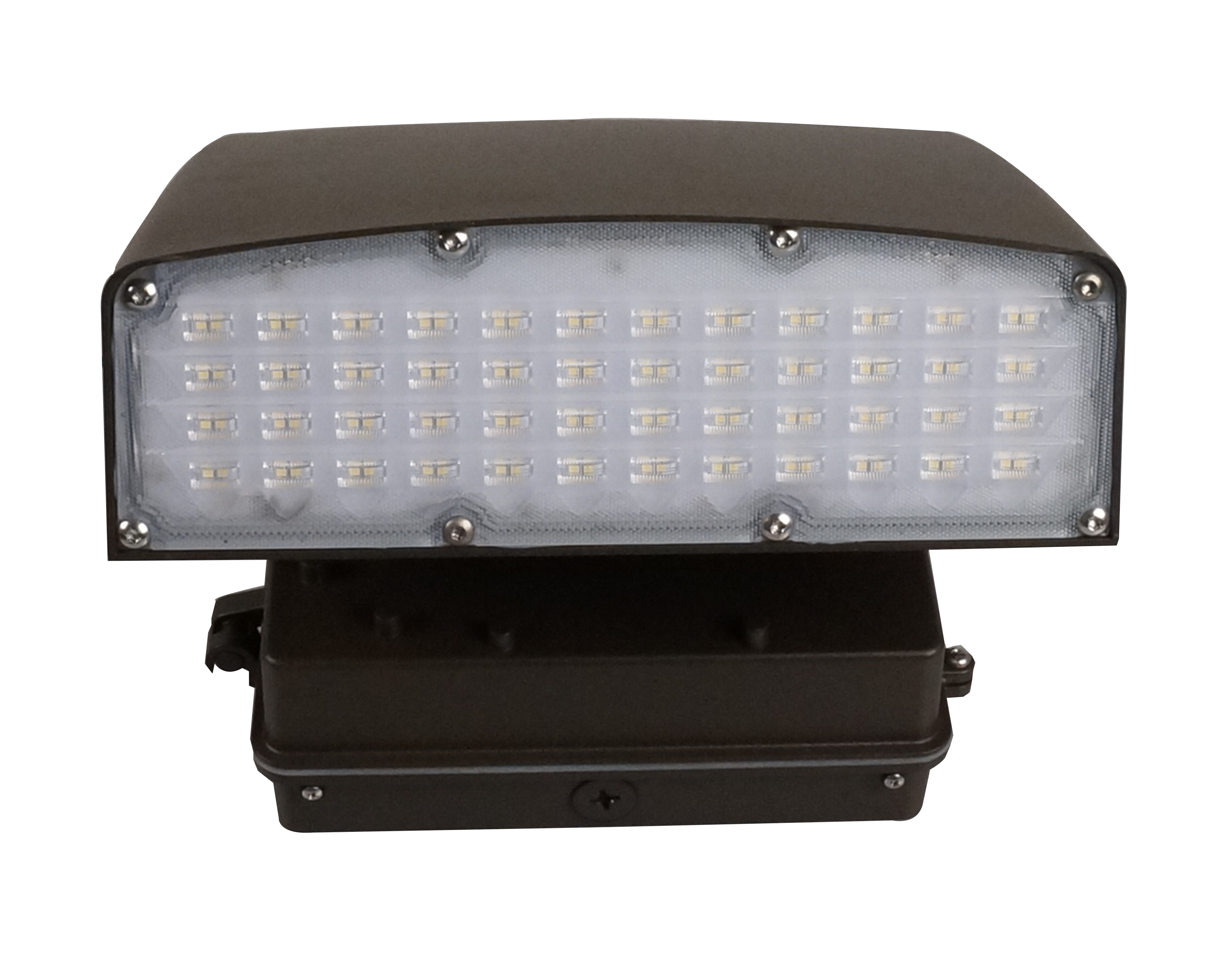

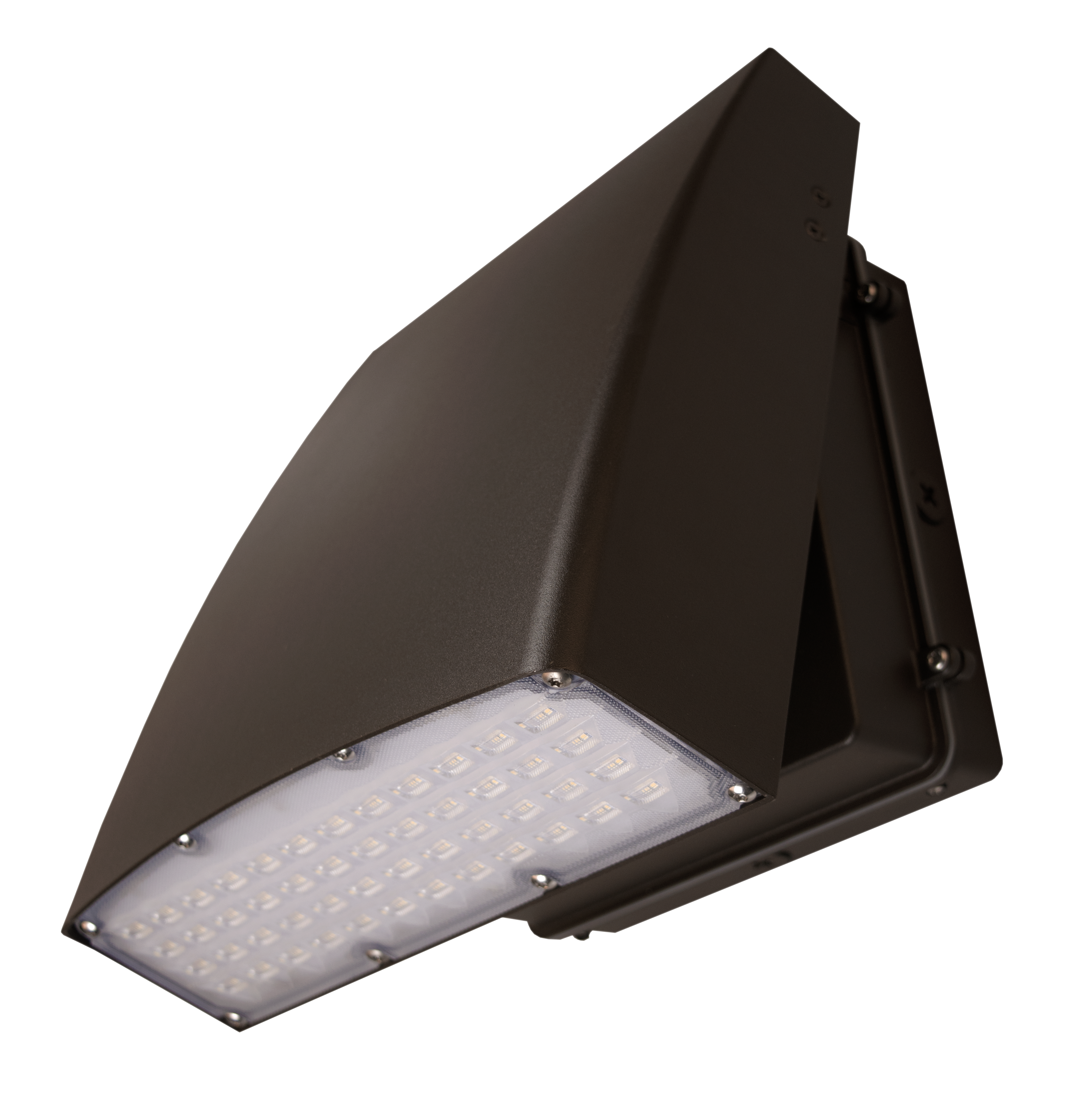

OSA(v1) 120W Bronze Outdoor 5000K LED Adjustable Sconce
The OSA(v1) LED Adjustable Sconce provides uniform light distribution with optimal output up to 118 lumens per watt in a compact, seamless design. Using a separable hinged backplate, the OSA is easy to install on walls or directly to a J-Box, and is adjustable from 0 to 90-degrees. It is an economic…
The OSA(v1) LED Adjustable Sconce provides uniform light distribution with optimal output up to 118 lumens per watt in a compact, seamless design. Using a separable hinged backplate, the OSA is easy to install on walls or directly to a J-Box, and is adjustable from 0 to 90-degrees. It is an economical and efficient replacement for a traditional wall pack and is ideal for accent or general purpose exterior lighting. The OSA can also be used as a flood light for certain applications.
- Heavy die-cast aluminum housing with powder coat finish
- Available in 30W, 50W, 80W, and 120W models
- 120-277VAC with 0-10VDC dimming
- Optional photocell pre-installed
- Choose between Bronze or White finishes
- Available in 4000K or 5000K color temperatures
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens14227
-
Wattage123.8
Listings & certifications
- cULus Listed
- IP65 Ingress Protection
- FCC Class B
- Wet-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Die-cast aluminum housing
- (4) 1/2” knockouts for conduit feeder or sensors
- Toolless separable hinged backplate for easy installation and maintenance
- Adjustable range of 0° to 90°
- UV- and fire-resistant lens
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat finish
Optical System
- Clear injection-molded acrylic creates uniform light distribution while maximizing lumen output
- Utilizes advanced LED technology with CCT of 4000K, and 5000K
- CRI 80+
Electrical
- Thermally-protected, high-efficiency driver
- Operating temperature rating of -4°F to 104°F (-40°C to 40°C)
- Input voltage of 120-277VAC
- Available in 30, 50, 80, & 120 watt
- Photocell optional
- Driver delivers full-range dimming from 0-10VDC on 80W and 120W
Installations
- Separable hinged backplate to allow for easy mounting
- Fixture mounts directly to J-Boxes and walls with screws
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL and CUL Listed for wet locations
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- TM-21 Projected L70(9k) life =75,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
