LED CANOPY

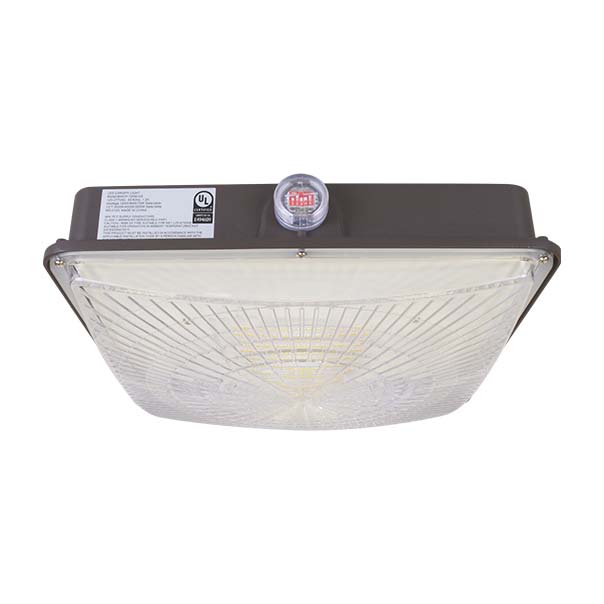

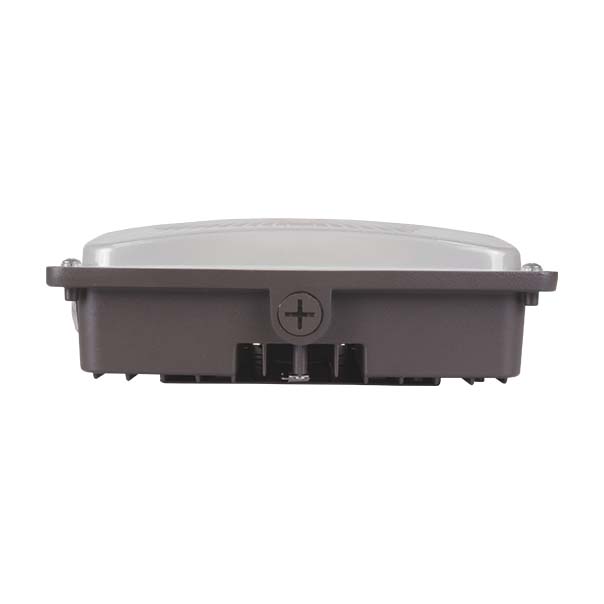

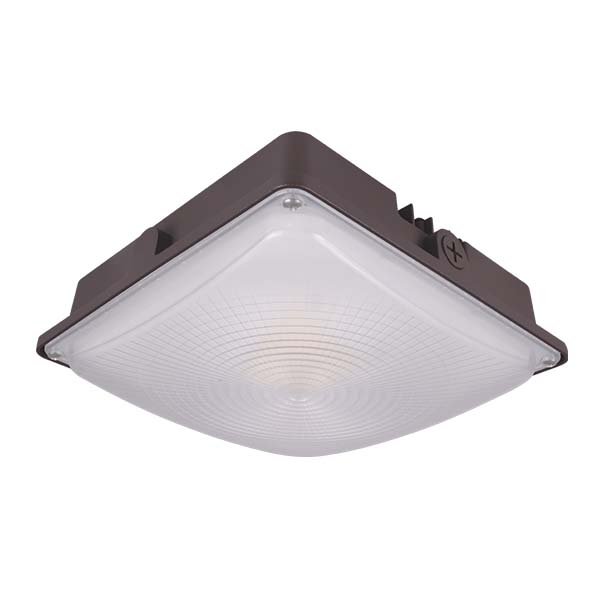

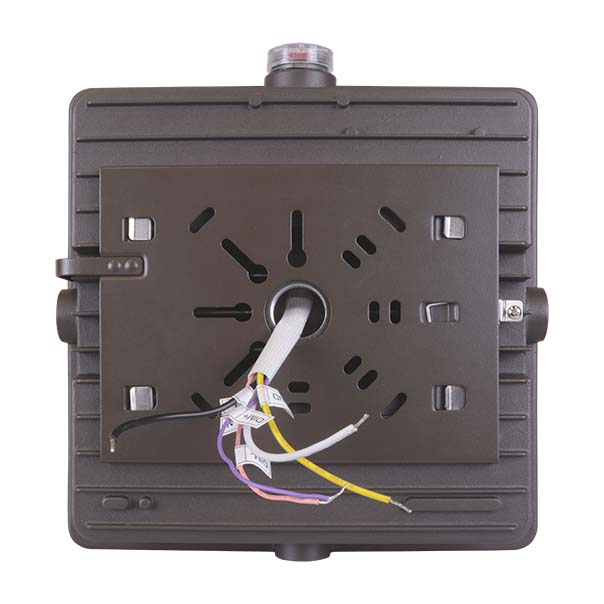

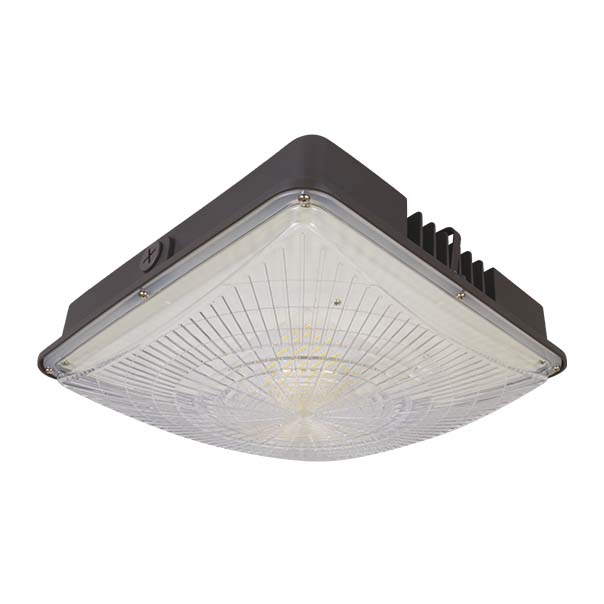

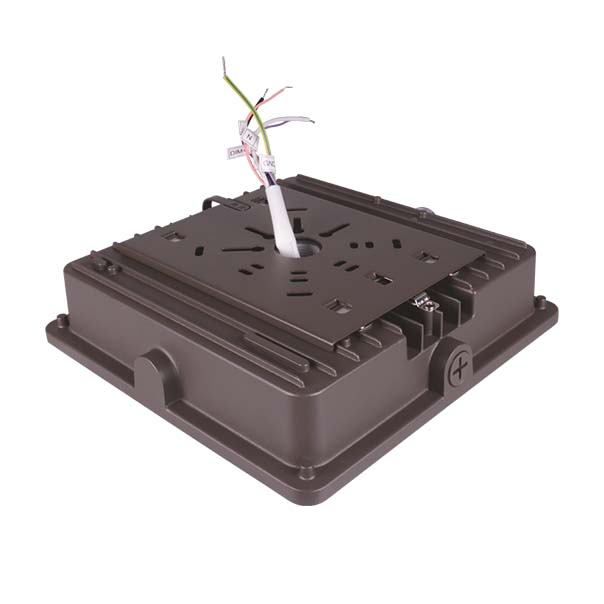

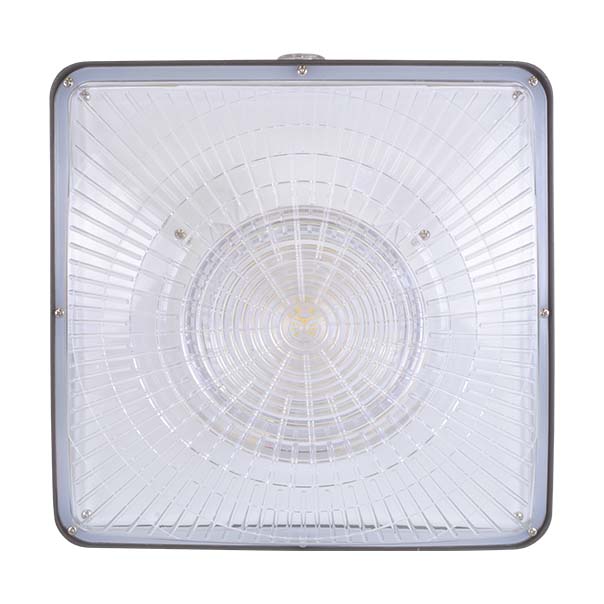

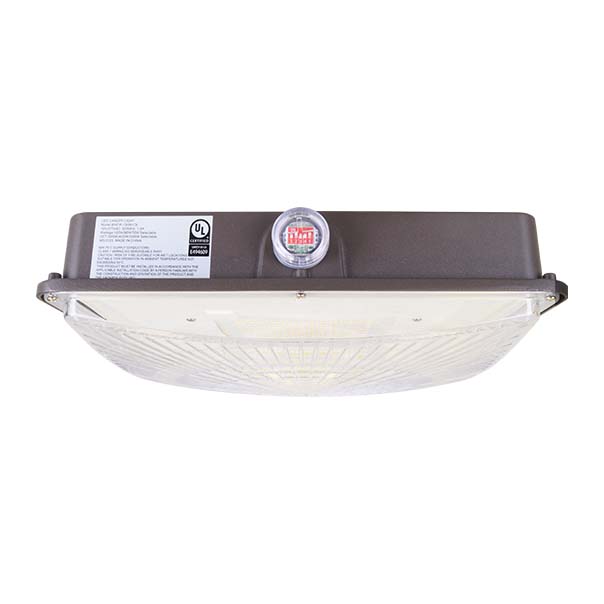

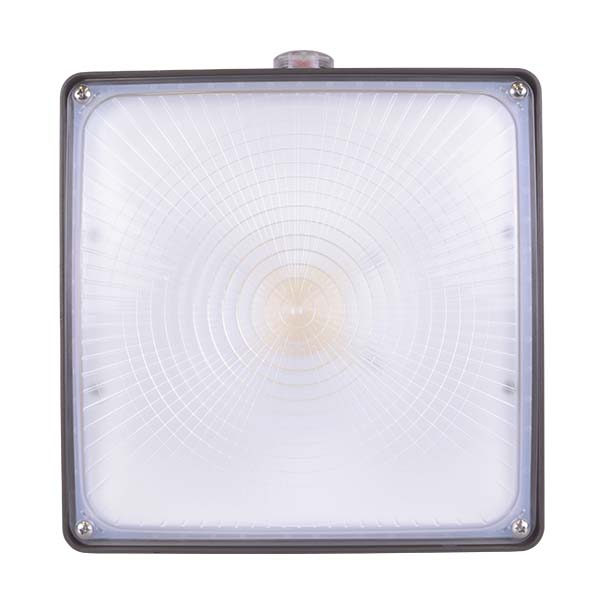

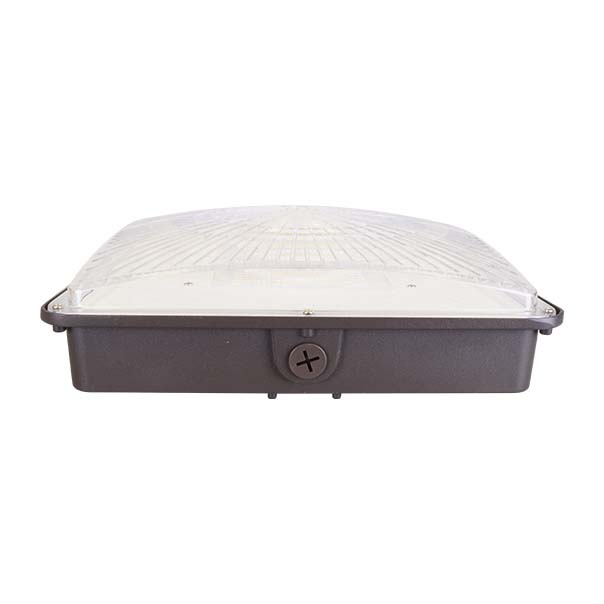

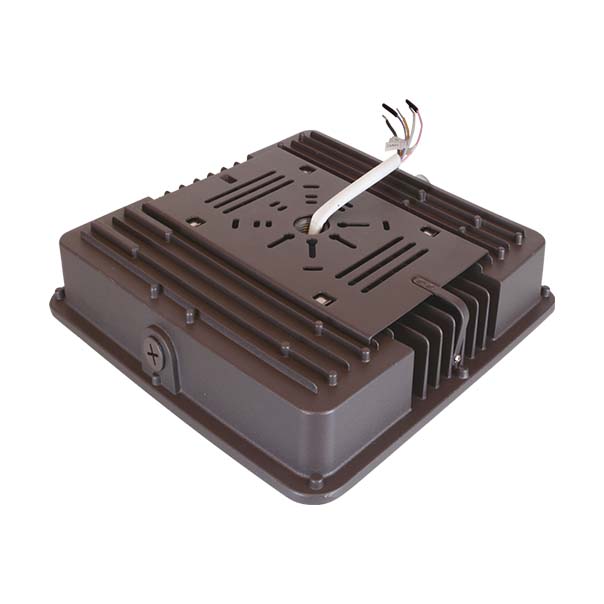

The OUC4 LED Canopy offers high performance in an economical and practical design. The OUC4 achieves even light distribution using a prismatic, frosted lens that is UV- and fire-resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant installations. The OUC4 is an efficient under outdoor canopy lighting solution for exterior ceilings or for parking garages, car ports, covered walkways, or other commercial spaces, and is equipped with an integrated heat sink and a Type V distribution precision lens. The OUC4 offers two models with selectable wattages (75W/60W/45W), (120W/96W/72W) and selectable CCT (3000K/4000K/5000K). Factory mounted photocell standard.



Specifications

  • High performance prismatic lens that is frosted for even distribution
  • Utilizes advanced LED technology with selectable CCT of 3000K, 4000K and 5000K
  • CRI 70+
  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -40° to 113°F (-40°C to 45°C)
  • 4KV surge protection standard
  • Input voltage of 120-277VAC with power factor >0.9
  • Selectable wattages with 75 and 120 watt max
  • Driver delivers full-range dimming from 0 - 10VDC
  • Factory mounted photocell standard (can be disabled in field)

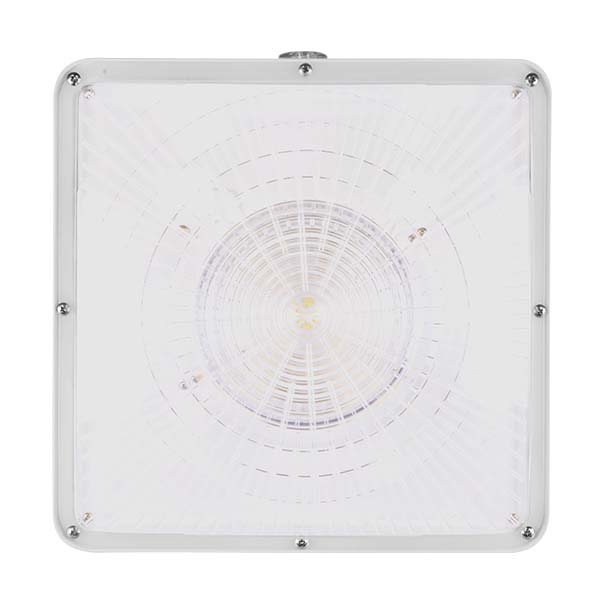

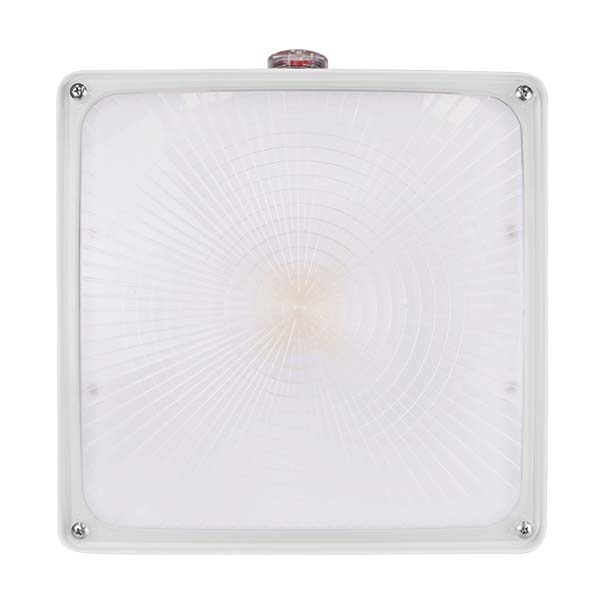

  • Fine-textured, UV-stabilized powder coat in bronze (BZ) and white (WH) finish
75 Watt

3000K
Warm White
4000K
Neutral
5000K
Cool

9212/7370/5527
Lumens

9765/7812/5859
Lumens

9396/7517/5638
Lumens

75/60/45
Input Watts

75/60/45
Input Watts

75/60/45
Input Watts

123/123/123
lm/W

131/130/130
lm/W

126/125/125
lm/W

>70
CRI

>70
CRI

>70
CRI

IES Download



Part Number:

 Select:OUC4075SUNVS
120 Watt
3000K
Warm White
4000K
Neutral
5000K
Cool

14,667/11,734/8800
Lumens

15,547/12,438/9328
Lumens

14,960/11,968/8976
Lumens

120/96/72
Input Watts

120/96/72
Input Watts

120/96/72
Input Watts

124/122/122
lm/W

131/130/130
lm/W

126/125/125
lm/W

>70
CRI

>70
CRI

>70
CRI

IES Download



Part Number:

 Select:OUC4120SUNVS
75 Watt
3000K
Warm White
4000K
Neutral
5000K
Cool

9212/7370/5527
Lumens

9765/7812/5859
Lumens

9396/7517/5638
Lumens

75/60/45
Input Watts

75/60/45
Input Watts

75/60/45
Input Watts

123/123/123
lm/W

131/130/130
lm/W

126/125/125
lm/W

>70
CRI

>70
CRI

>70
CRI

IES Download



Part Number:

 SelectOUC4075SUNVS

120 Watt
3000K
Warm White
4000K
Neutral
5000K
Cool

14,667/11,734/8800
Lumens

15,547/12,438/9328
Lumens

14,960/11,968/8976
Lumens

120/96/72
Input Watts

120/96/72
Input Watts

120/96/72
Input Watts

124/122/122
lm/W

131/130/130
lm/W

126/125/125
lm/W

>70
CRI

>70
CRI

>70
CRI

IES Download



Part Number:

 Select: OUC4120SUNVS
