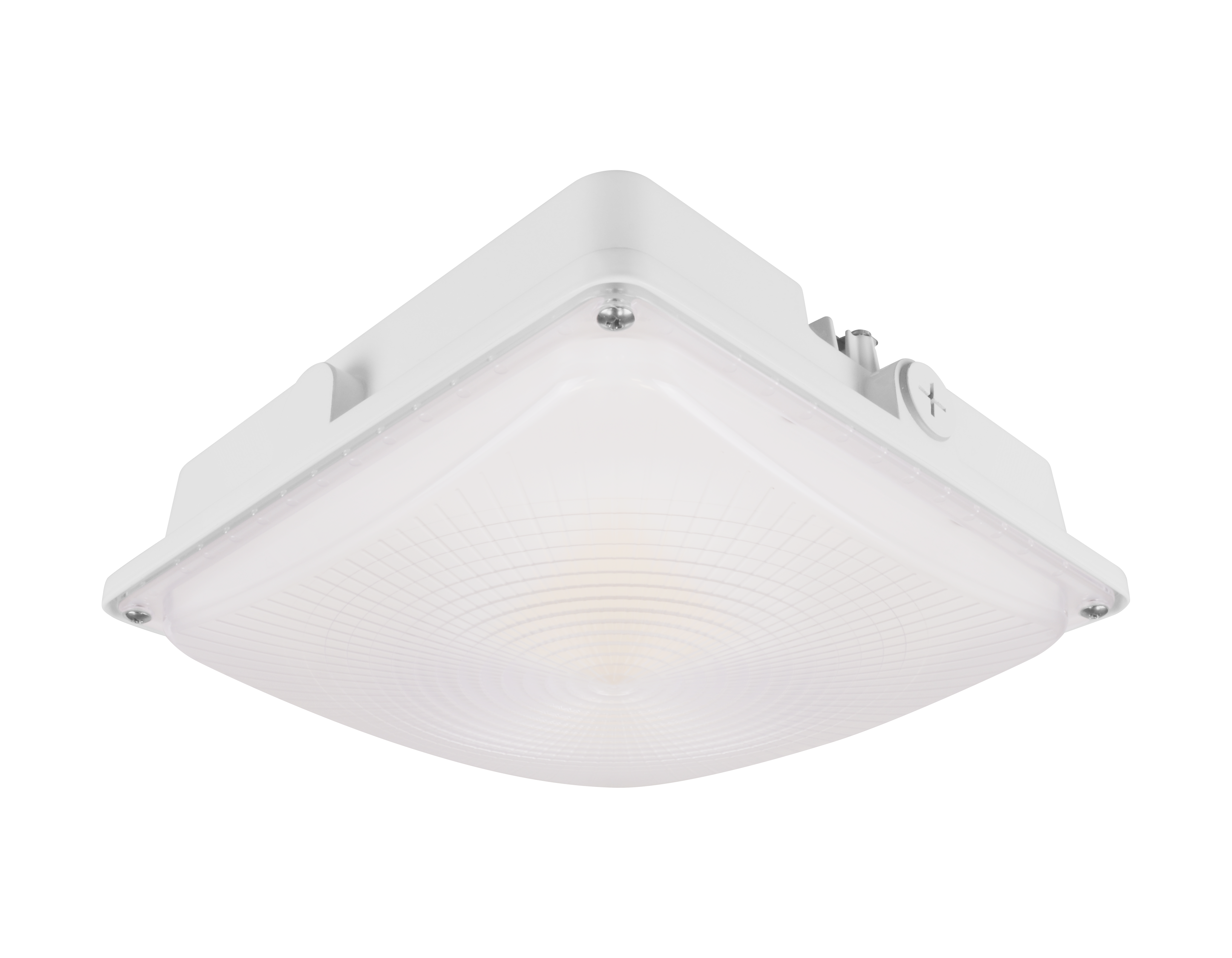

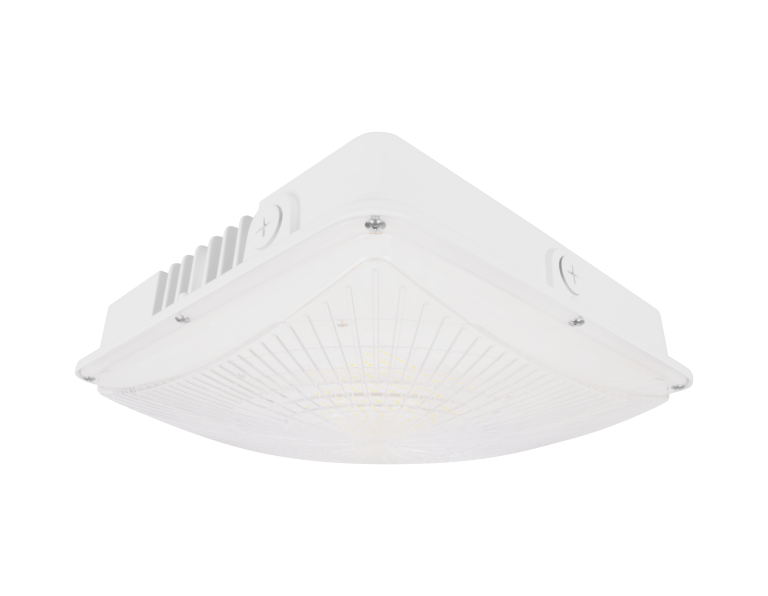

75W White Selectable LED Canopy Light
The OUC4 LED Canopy offers high performance in an economical and practical design. The OUC4 achieves even light distribution using a prismatic, frosted lens that is UV- and fire-resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant installat…
The OUC4 LED Canopy offers high performance in an economical and practical design. The OUC4 achieves even light distribution using a prismatic, frosted lens that is UV- and fire-resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant installations. The OUC4 is an efficient outdoor canopy lighting solution for exterior ceilings or for parking garages, carports, covered walkways, or other commercial spaces, and is equipped with an integrated heat sink and a Type V distribution precision lens. The OUC4 offers two models with selectable wattages (75W/60W/45W), (120W/96W/72W) and selectable CCT (3000K/4000K/5000K). Factory mounted photocell standard.
- Three selectable color temperatures(3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Even, high-output illumination with prismatic frosted lens and >70 CRI
- Die-cast aluminum housing with integrated heatsink; IP65, DLC 5.1 Premium
- Quick J-box, surface, or pendant mount with hinged plate
- Factory-mounted photocell (field-disable) and optional sensor socket

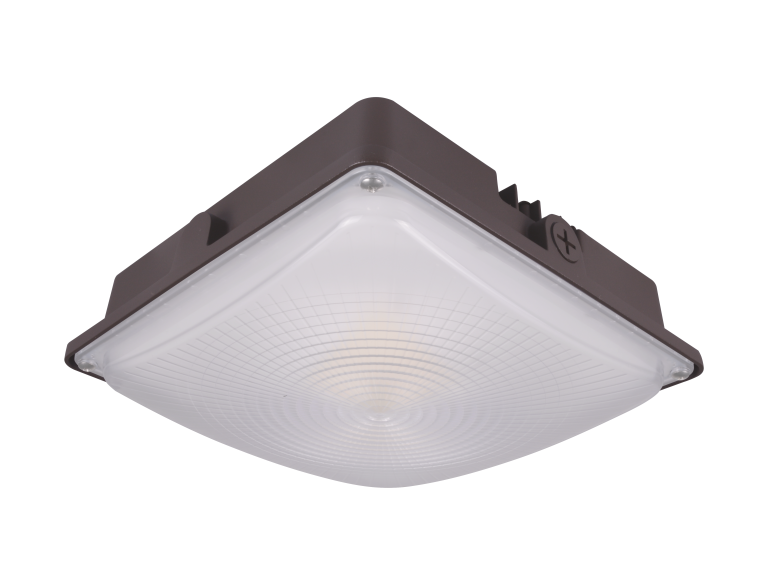

Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens5527 - 9765 lm
-
Wattage45, 60, 75
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- RoHS Compliant
- FCC Class A
- IP65 Ingress Protection
- Wet-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction
- High-quality, die-cast aluminum housing with integrated heat sink
- Easy to use mounting brackets allows for quick installation to J-Boxes (standard)
- 1/2” knockouts for conduit wiring or sensor additions
- UV- and fire-resistant lens
- Stainless steel hardware
Optical System
- High-performance prismatic lens that is frosted for even distribution
- Utilizes advanced LED technology with selectable CCT of 3000K, 4000K and 5000K
- CRI 70+
Electrical
- Thermally-protected, high-efficiency driver
- Operating temperature rating of -40° to 113°F (-40°C to 45°C)
- 4KV surge protection standard
- Input voltage of 120-277VAC with power factor >0.9
- Selectable wattages with 75 and 120 watt max
- Driver delivers full-range dimming from 0 - 10VDC
- Factory mounted photocell standard (can be disabled in field)
Installations
- Varied installation methods:
- J-Box (hinged mounting plate and an EVA stopper provided)
- Ceiling/conduit (1/2” threaded openings on sides)
- Pendant (3/4” provided by others)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 5.1 Premium Listed
- IP65 rated
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70 life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
