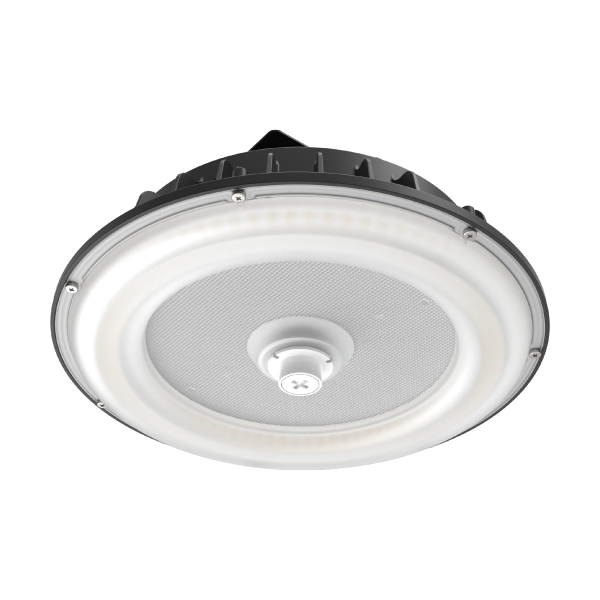

100W Black Selectable LED Canopy Light
The OUC5 LED Round Canopy offers high performance in an economical and practical design. The OUC5 achieves even light distribution using a prismatic, frosted lens that is UV- and fire-resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant ins…
The OUC5 LED Round Canopy offers high performance in an economical and practical design. The OUC5 achieves even light distribution using a prismatic, frosted lens that is UV- and fire-resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant installations. The OUC5 is an efficient outdoor canopy lighting solution for exterior ceilings or for canopy, parking garages, carports, covered walkways, or other commercial spaces, and is equipped with an integrated heat sink and a dual application lens. The OUC5 offers selectable wattages (100W/80W/60W) and selectable CCT (3000K/4000K/5000K). Factory mounted photocell standard.
- Selectable wattage (60W/80W/100W) & color temperature (3000K/4000K/5000K)
- Die-cast aluminum housing with integrated heat sink for durability
- Factory-mounted photocell plus 3.5mm sensor socket for smart control
- Flexible install: J-Box, ceiling/conduit, or pendant mounting
- IP65, DLC 6.0 Premium & cULus wet-location listed; 5-year warranty
Color Options:
Black
WhiteOrdering information
Downloads
Specifications
-
Lifespan>102,000 -
Lumens8407 - 15321 lm
-
Wattage60, 80, 100
Listings & certifications
- UL Certified
- DLC 6.0 Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- High-quality, die-cast aluminum housing with integrated heat sink
- Fine-textured, UV-stabilized powder coat in black and white finish
- Easy to use mounting brackets allows for quick installation to J-Boxes (standard)
- 1/2” knockouts for conduit wiring or sensor additions
- UV- and fire-resistant lens
- Stainless steel hardware
Optical System
- Specially designed lenses make the light distribution suitable for canopy and garages
- Utilizes advanced LED technology with selectable CCT of 3000K, 4000K, and 5000K
- CRI 80+
Electrical
- Thermally-protected, high-efficiency driver
- Operating temperature rating of -40°F to 113°F (-40°C to 45°C)
- 6KV surge protection standard
- Input voltage of 120-277VAC with power factor >0.9
- Selectable wattages with 100 watt max
- Driver delivers full-range dimming from 0-10VDC, continuous dimming to 10% or below
Installations
- Various installation methods, including j-box, ceiling mount, or pendant mount
- J-Box (using hinged mounting plate)
- Ceiling/conduit (using 1/2” threaded openings on sides)
- Pendant (using 3/4” provided by others)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 6.0 Premium Listed
- IP65 rated
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70 life >102,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
