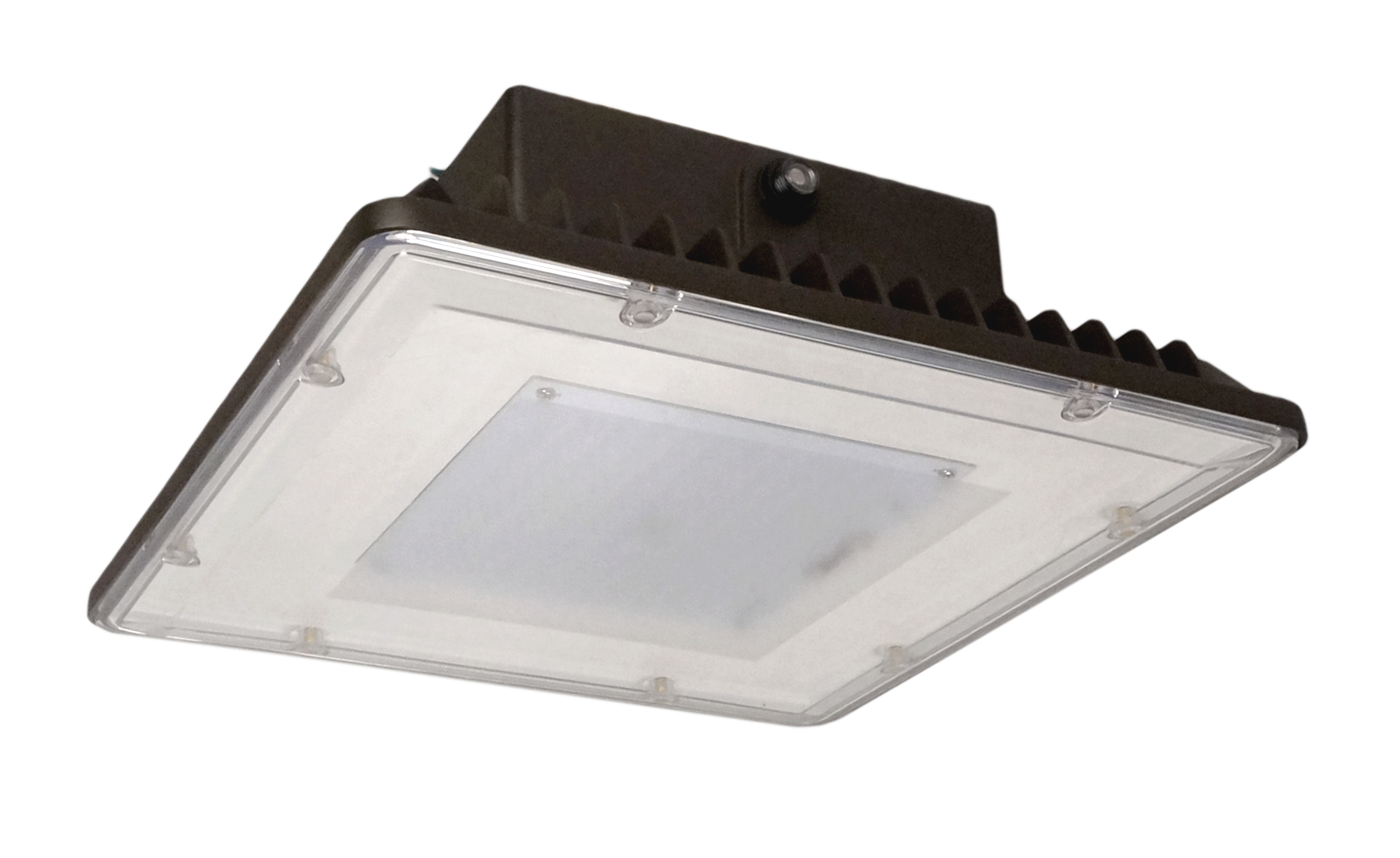

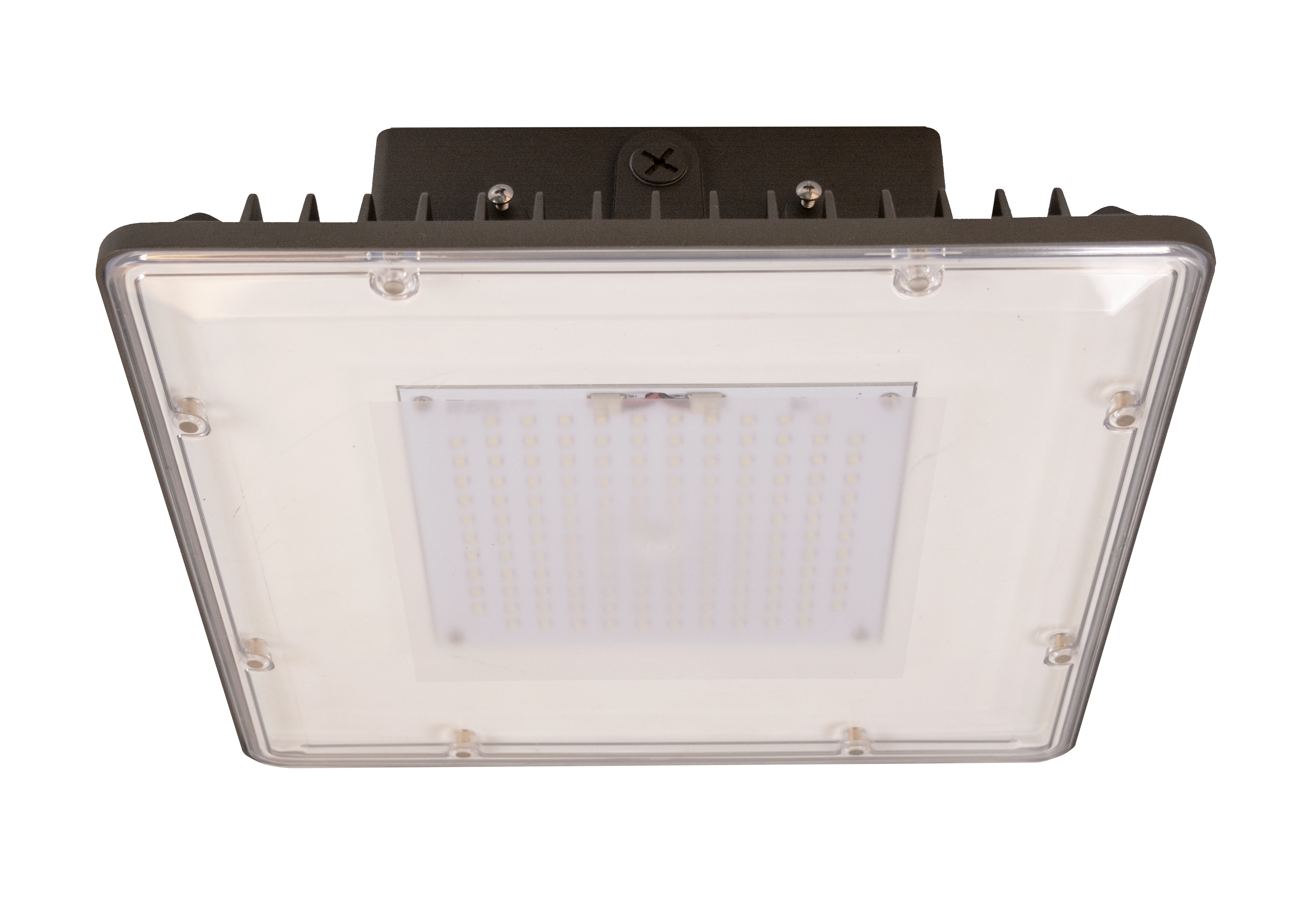

OUS Series Bronze 80W Outdoor 5000K LED Canopy
Delivering maximum lumen output in an attractive and streamlined design, the OUS LED Specification Canopy utilizes advanced LED technology to provide enhanced, even illumination with less energy. The OUS is an effective under canopy lighting solution for exterior ceilings or for parking garages, car…
Delivering maximum lumen output in an attractive and streamlined design, the OUS LED Specification Canopy utilizes advanced LED technology to provide enhanced, even illumination with less energy. The OUS is an effective under canopy lighting solution for exterior ceilings or for parking garages, car ports, covered walkways, or other commercial spaces. Its die-cast aluminum housing with hinged and removable back box and convenient knockouts allow for easy J-Box, surface mount, or pendant installations. The fixture is equipped with an integrated heat sink, a Type V distribution precision lens, and has an optional photocell.
- High-quality, die-cast aluminum housing with integrated heat sink
- Easy to use hinged back box allows for quick installation to J-Boxes
- (4) 1/2” knockouts for conduit wiring or sensor additions
- Stainless steel hardware
- EVA gasket for water-resistant surface mounting
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>60,000 -
Lumens10282
-
Wattage80.5
Listings & certifications
- cULus Listed
- IP65 Ingress Protection
- FCC Class B
- Wet-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
Features
Construction
- High-quality, die-cast aluminum housing with integrated heat sink
- Easy to use hinged back box allows for quick installation to J-Boxes
- (4) 1/2” knockouts for conduit wiring or sensor additions
- Stainless steel hardware
- EVA gasket for water-resistant surface mounting
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System

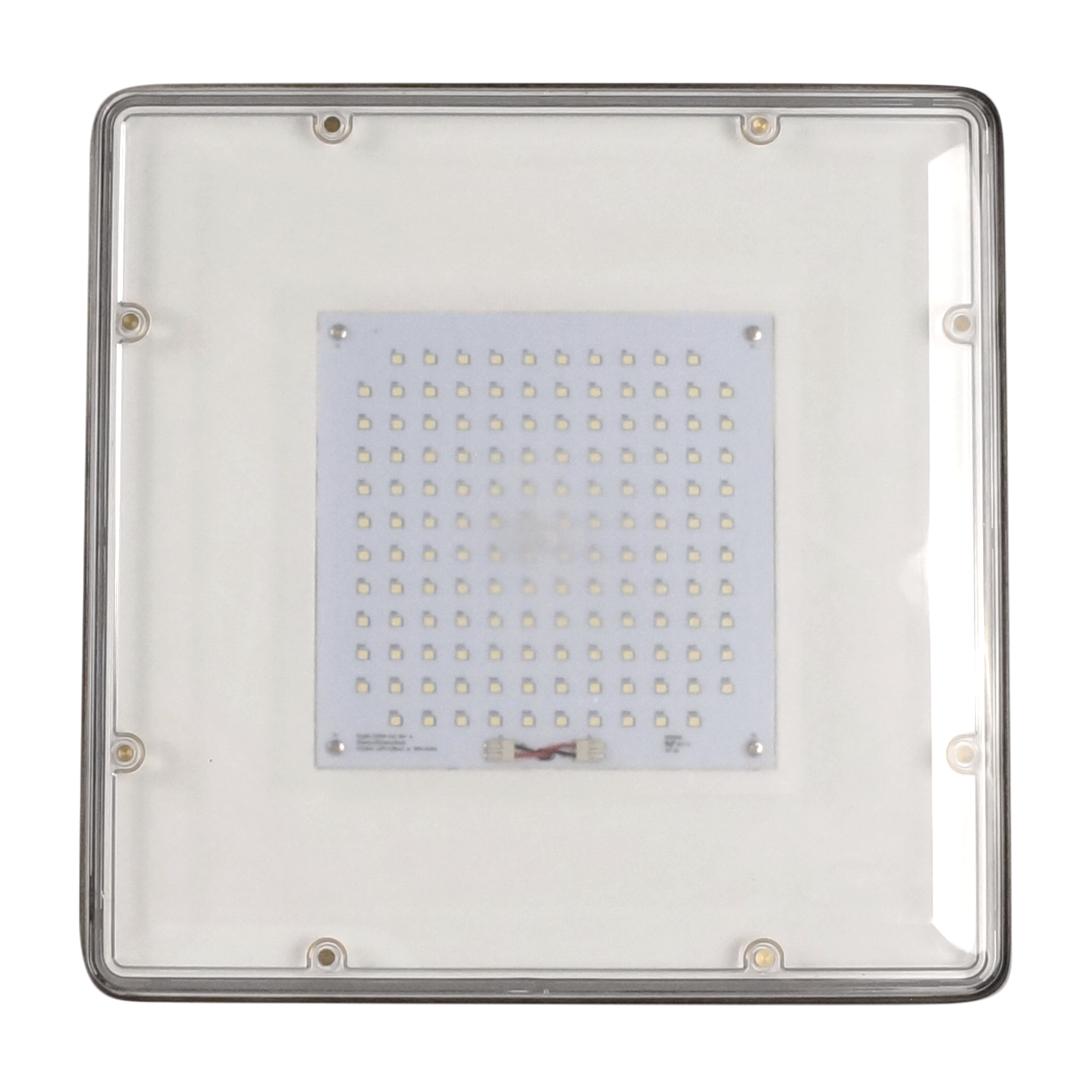

- High light transmittance polycarbonate frosted flat lens
- Utilizes advanced LED technology with CCT of 4000K and 5000K
- CRI 70+
Electrical
- Thermally-protected, high-efficiency driver
- Operating temperature rating of -4° to 104°F (-20°C to 40°C)
- 10kA surge protection standard
- Input voltage of 120-277VAC
- Available in 45 and 80 watt
- Photocell optional
- Driver delivers full-range dimming from 0 - 10VDC
Installations
- Varied installation methods:
- J-Box (hinged with mounting plate)
- Ceiling/conduit (4 fasteners by others)
- Pendant (1/2” conduit by others)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- cULus 1598 Listed for wet locations
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
