OWC 35W Round LED Outdoor Wall Mount Cylinder Up/Down Light, 3000K, White
The OWC Series Round 4” LED Wall Mount Cylinder delivers optimal performance up to 114 lumens per watt in an attractive, contemporary design. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is …

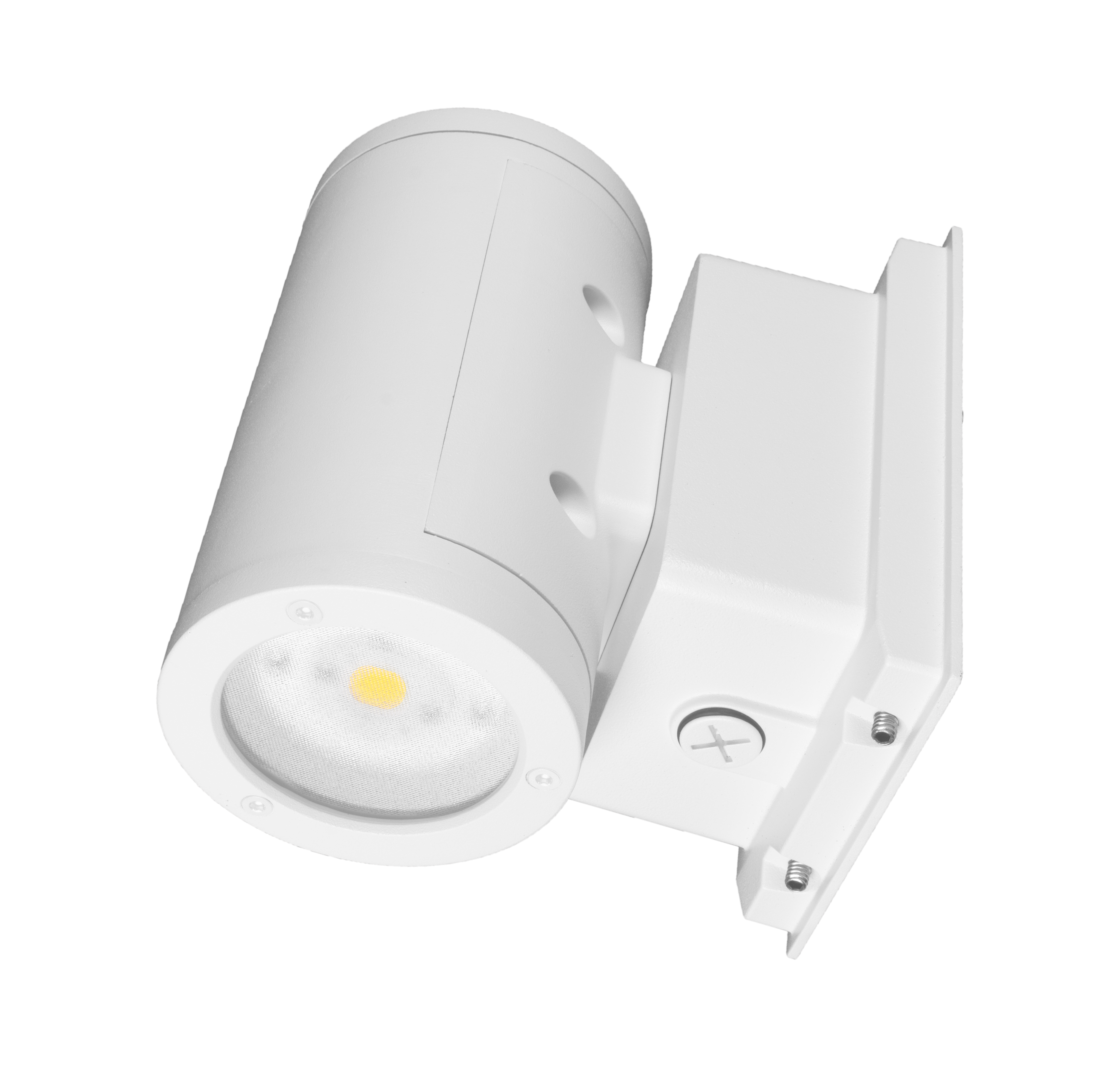

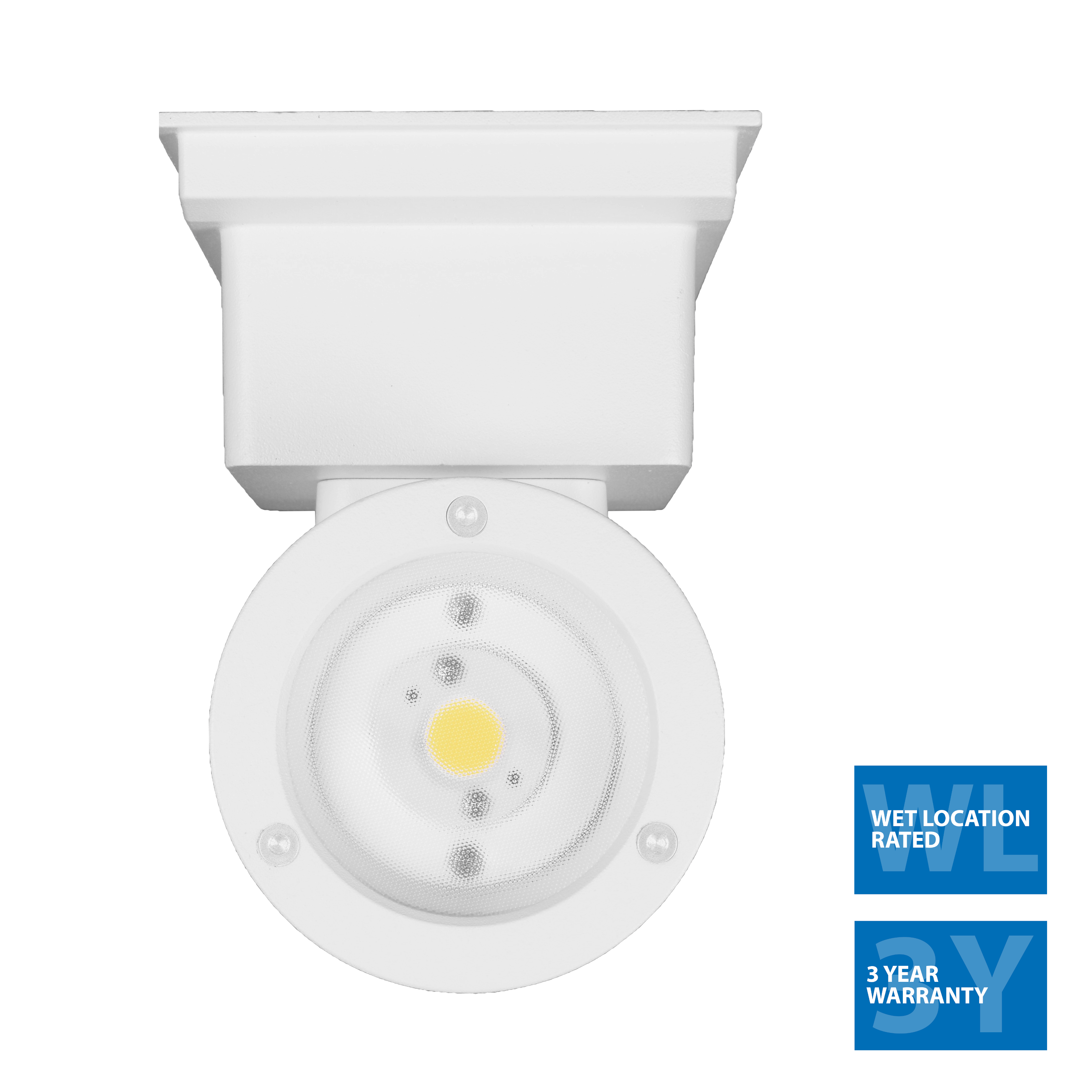

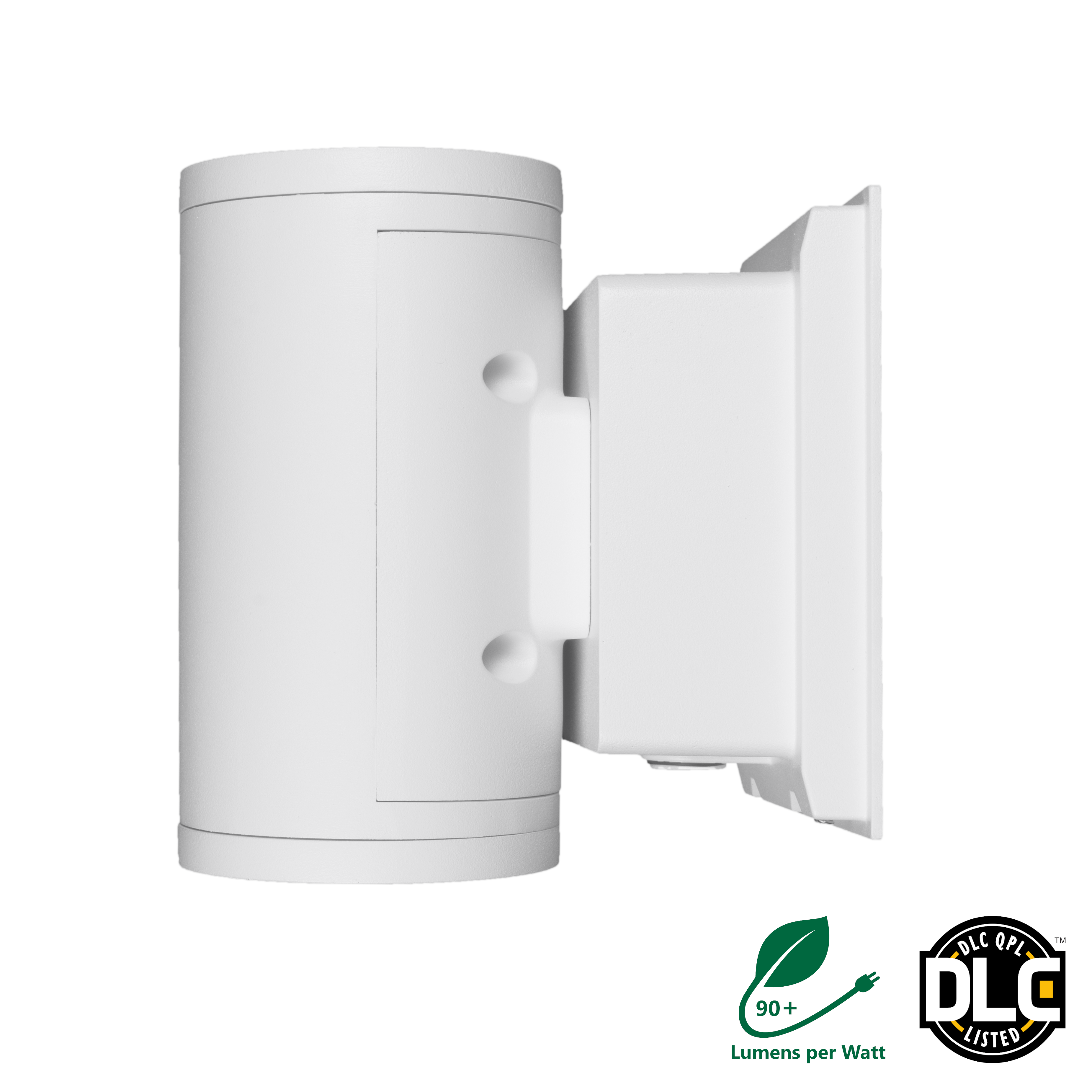

The OWC Series Round 4” LED Wall Mount Cylinder delivers optimal performance up to 114 lumens per watt in an attractive, contemporary design. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is desired, the OWC Round uses tempered, clear prismatic glass to create uniform down or up/down light distribution free of hot spots or glare. The fixture features a detachable mounting plate for easy mounting to J-Boxes and has a knockout for through-wiring.
- Contemporary die-cast aluminum housing with detachable mounting plate
- Available in Up/Down or Down light distributions at 3000K, 4000K, and 5000K
- Fine-textured, UV-stabilized powder coat finish available in Bronze or White
- Easy to use mounting bracket allows for quick installation in standard junciton boxes
Color Options:
Ordering information
Downloads

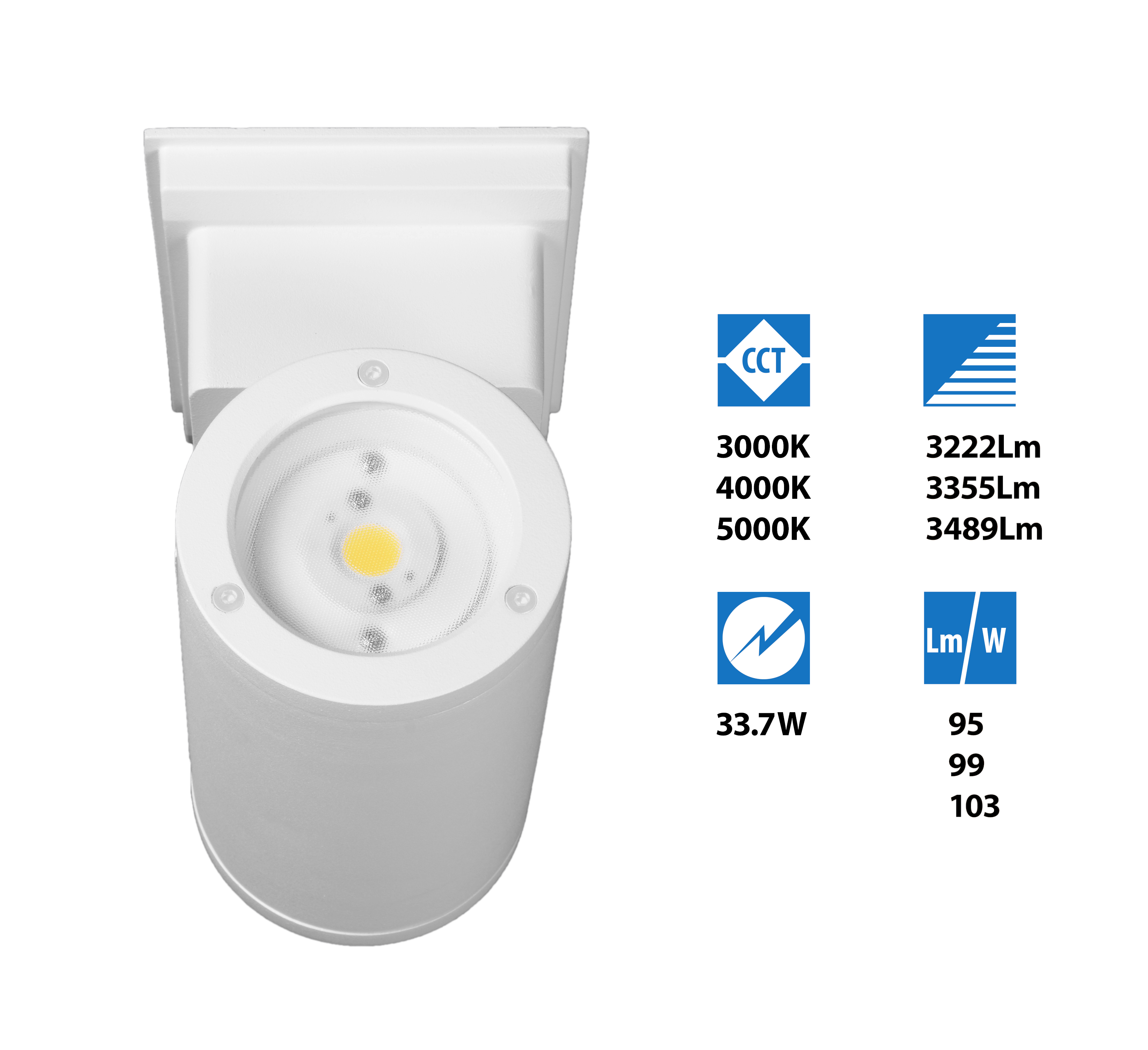

Specifications
-
Lifespan>60,000 -
Lumens3222
-
Wattage33.7
Listings & certifications
- cULus Listed
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
Features
Construction
- Die-cast aluminum housing
- Detachable mounting plate
- Easy to use mounting bracket allows for quick mounting to J-Boxes
- 1/2” knockout for conduit wiring
- Fine-textured, UV-stabilized powder coat finish
Optical System
- Tempered, clear prismatic glass creates uniform distribution while maximizing lumen output
- Offered in single and up/down configurations
- Utilizes advanced LED technology with CCT of 3000K, 4000K, and 5000K
- CRI 80+
Electrical
- Thermally-protected, high-efficiency driver (non-dimmable)
- Operating temperature rating of -4° to 104°F (-20°C to 40°C)
- Input voltage of 120-277VAC
- Available in 22-Watt and 35-Watt models
Installations
- Easy installation on a recessed junction box
- Fixture mounts directly to J-Boxes with screws
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL and cUL Listed for wet locations
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
- TM-21 Projected L70(10k) life =106,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
