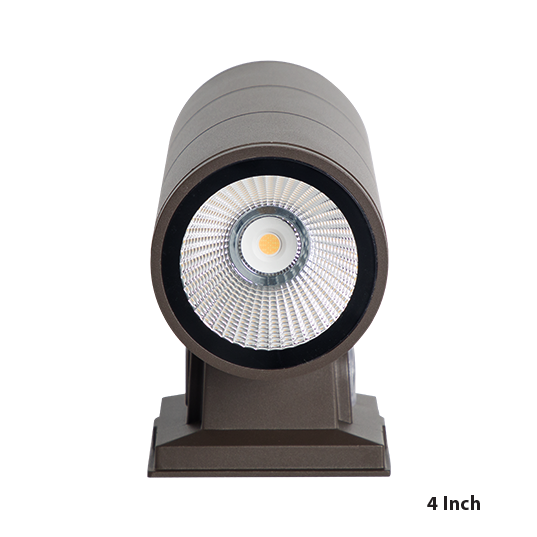

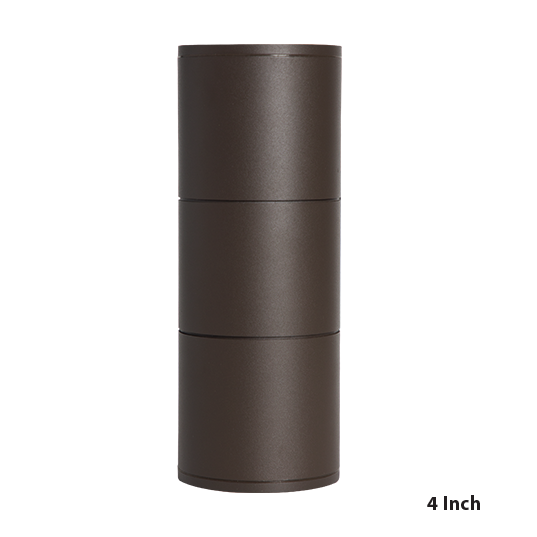

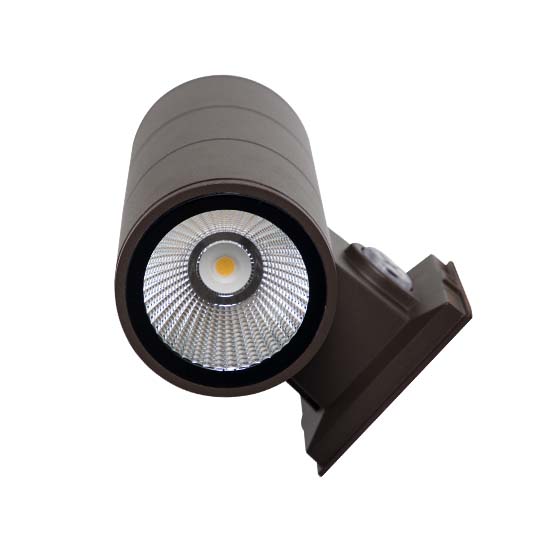

OWCR 4-inch Bronze 60° Selectable LED Up/Down Wall Mount Cylinder
The new OWCR LED Wall Mount Cylinder delivers optimal performance over 95 lumens per watt in an attractive, contemporary design. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is desired, the …
The new OWCR LED Wall Mount Cylinder delivers optimal performance over 95 lumens per watt in an attractive, contemporary design. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is desired, the OWCR uses tempered glass to create uniform up, down, or full light distribution free of hot spots or glare. The fixture features a detachable mounting plate for easy mounting to J-Boxes and surface mounting.
- Three selectable color temperatures (3000K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Excellent color rendering for high-quality light output
- 40° optics included. Interchangeable 25° and 60° optics available
- Wet-location and IP65 rated for added protection in outdoor settings

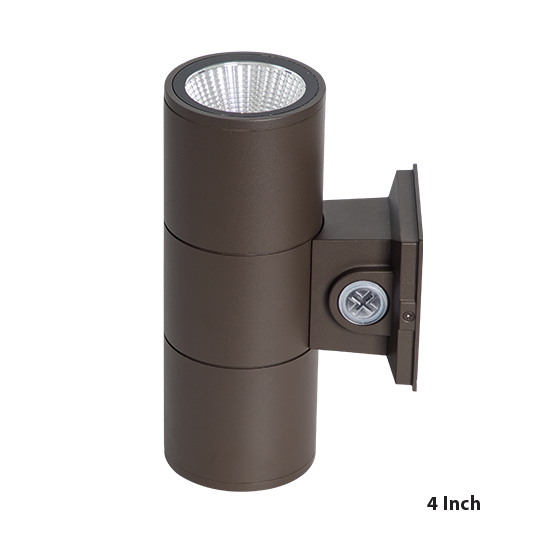

- Integrated photocell with simple knockout setup
- Selectable up, down, or up/down lighting
Color Options:
Ordering information
Accessories
- OWCR42OPTIC25
- OWCR42OPTIC60
Downloads
Specifications
-
Lifespan>60,000 -
Lumens1205 - 2058 lm
-
Wattage12, 16, 20
Listings & certifications
- UL Certified
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Heavy duty die-cast construction
- UV stabilized powder coat finish
Optical System
- High temperature resistant toughened glass lens
- Up/Down/Full selectable distributions
- 25°, 40°, or 60° optics available
- Selectable CCT of 3000/4000/5000K
- Standard 80 CRI to improve safety and color definition in public places
Electrical
- Wattage Selectable : 4” = 12/16/20W
- Wattage Selectable : 6” = 22/29/35W
- Input voltage of 120-277VAC
- Surge protection 10kV (20kV on HV models) provides single phase protection for line/ neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High category
- Operating temperature rating of -40°F to 123°F (-40°C to 45°C)
Installations

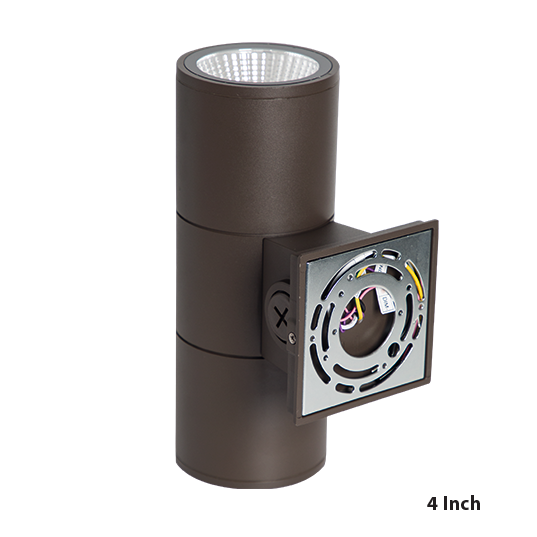

- Mounting plate and hardware included
- Easy installation on a 4/O recessed junction box
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus1598 Listed for Wet locations
- RoHS Compliant
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
