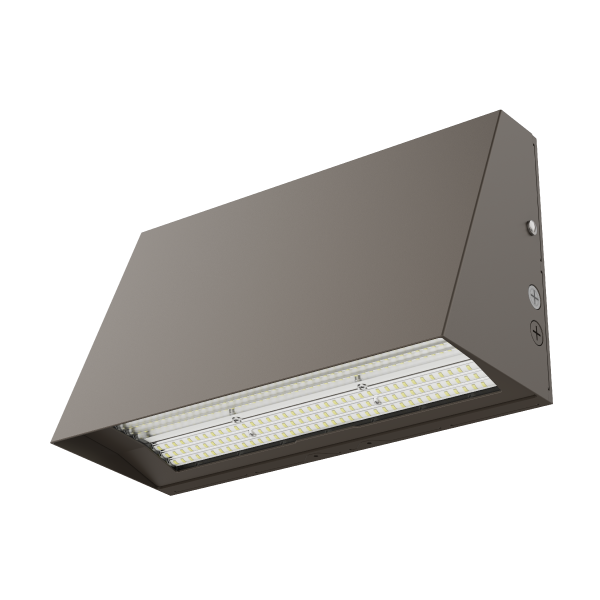

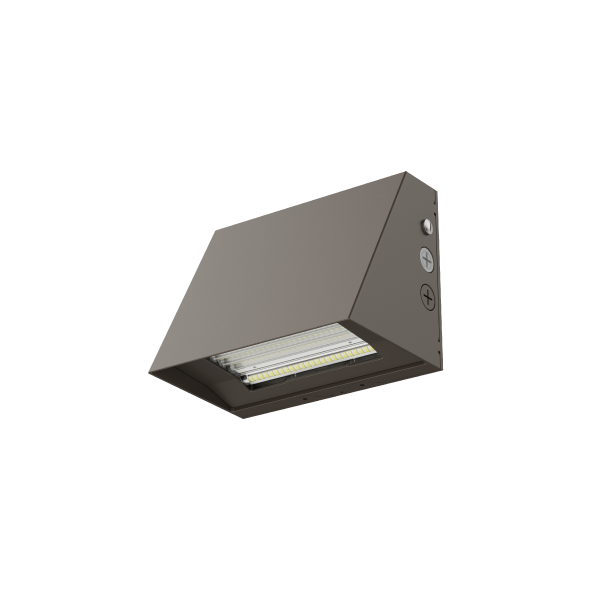

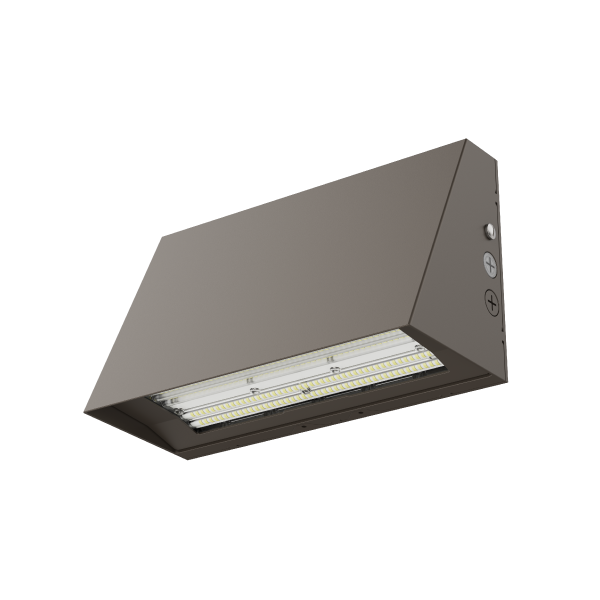

40W Bronze Full Cut-Off Selectable LED Wall Pack
Introducing the OWF5 Full Cut-Off LED Wallpack – a cutting-edge lighting solution that seamlessly combines classic architectural style with enhanced performance and a sleek new slim factor. Designed to minimize visual obstruction, the slim profile ensures a spacious and open atmosphere for buildings…
Introducing the OWF5 Full Cut-Off LED Wallpack – a cutting-edge lighting solution that seamlessly combines classic architectural style with enhanced performance and a sleek new slim factor. Designed to minimize visual obstruction, the slim profile ensures a spacious and open atmosphere for buildings or outdoor areas. Boasting an impressive output of up to 178 lumens per watt, the OWF5 provides uniform light distribution and reduced glare through its Type II, Type III, Type IV distribution precision lens. It is easy to install on walls or directly on a J-Box with its included mounting bracket. With three knockouts for throughwiring or sensor additions, flexibility is key. The Trible Select models feature an internal switch for CCT adjustment (3000K, 4000K, 5000K), Wattage control (low, med, high) and Selectable distribution (Type II, Type III, Type IV). Ideal for perimeter lighting, building entrances, walkways, and various commercial spaces, the OWF5 sets a new standard for versatile, high-performance general-purpose lighting solutions.
- Triple Select Technology: Adjustable Wattage, CCT (3000K/4000K/5000K), and Distribution
- Delivers up to 178 lumens per watt in a sleek, slim, low-glare profile
- Selectable wattage options: 40W/30W/20W, 100W/80W/60W, or 150W/120W/90W
- Selectable Type II, Type III, and Type IV distribution from a single fixture
- DLC 6.0 Premium Listed, IP65 rated, and cULus Listed for wet locations
Color Options:
Architectural BronzeOrdering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens2875 - 5826 lm
-
Wattage20, 30, 40
Listings & certifications
- UL Certified
- DLC 6.0 Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class B
- Wet-Location (UL 1598)
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing
- One (1) ½” knockout for conduit feed or sensor
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze finish
Optical System
- Clear injection-molded acrylic creates uniform distribution while maximizing lumen output
- Internal switch to change between Type II, Type III, and Type IV distributions
- CCT Selectable models use a dual emitter array that enables CCT selection of 3000K, 4000K, 5000K
- >80 CRI to improve safety and color definition in public places
Electrical
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC, 50/60Hz
- Power Factor = >0.9
- THD = ≤20%
- Dim to off, 0-10V dimming
- Selectable Wattage (40/30/20W) or (100/80/60W) or (150/120/90W)
- Operating temperature rating of -40°F to 113°F (-40°C to 45°C)
- Optional internal emergency back-up, Emergency Option at operating temperature of (0°C to 45°C)
Installations
- Mounts to surface using supplied mounting plate
- Wiring possible through backplate or knockouts
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 6.0 Premium Listed
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- RoHS Compliant
- TM-21 Reported L70(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
