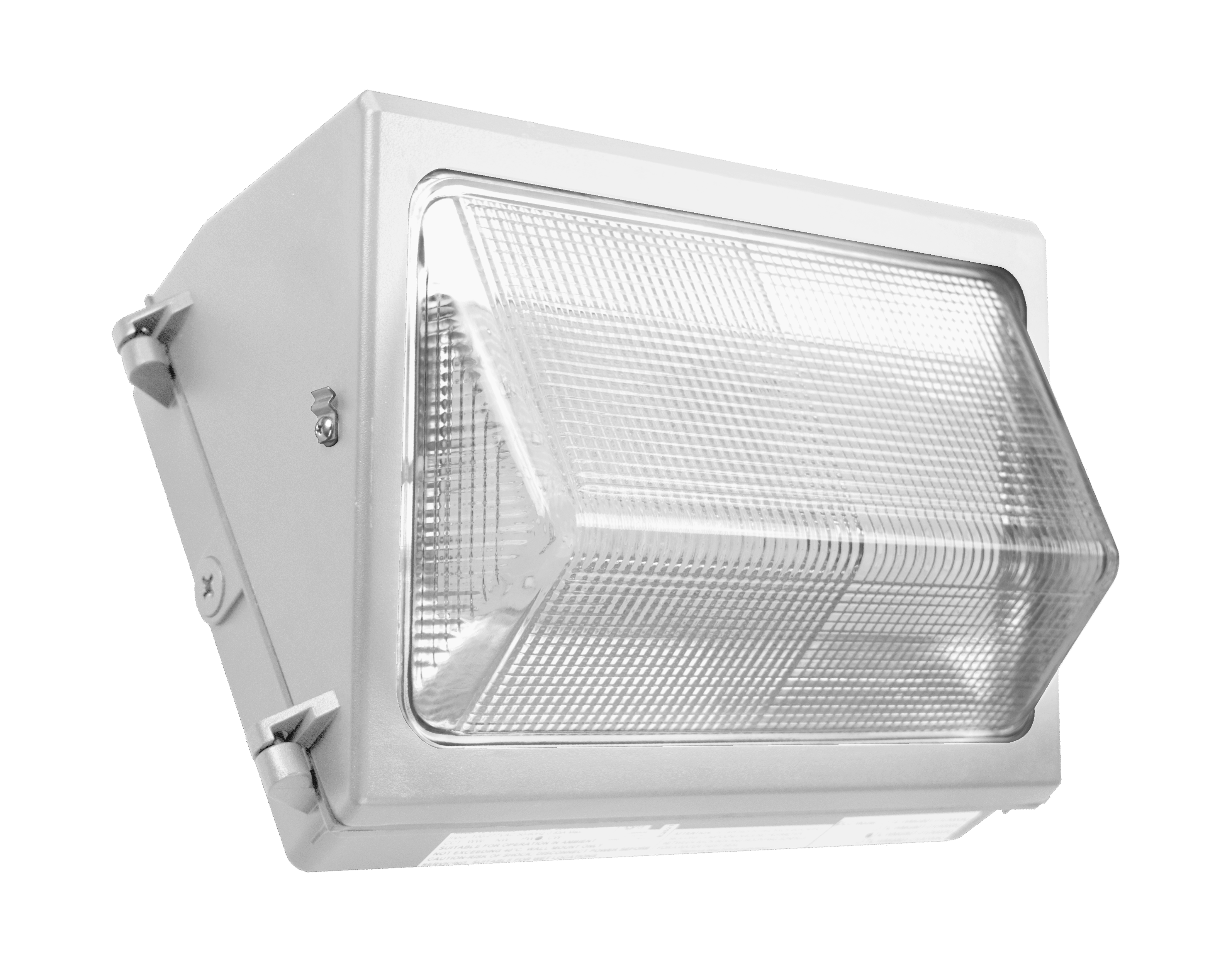

OWG 120W Outdoor LED Wall Pack in White, 4000K
The Corvus LED Wallpack features the classic design of a traditional wallpack with enhanced performance and efficiency. With output up to 127 lumens per watt, the Corvus delivers uniform light distribution with minimized glare and is easy to install on walls or directly to a J-Box with its separable…
The Corvus LED Wallpack features the classic design of a traditional wallpack with enhanced performance and efficiency. With output up to 127 lumens per watt, the Corvus delivers uniform light distribution with minimized glare and is easy to install on walls or directly to a J-Box with its separable hinged backplate. The Corvus has three knockouts for through-wiring or sensor additions and is an ideal solution for security and perimeter lighting.
- Available in 50W, 80W, and 120W models
- Choose between bronze or white finishes
- 4000K or 5000K color temperature options
- Optional photocell available
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens14212
-
Wattage116.7
Listings & certifications
- cULus Listed
- DLC Standard
- IP65 Ingress Protection
- FCC Class B
- Wet-Location
- Testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing
- (3) 1/2” knockouts for conduit feed or sensors
- Toolless, separable hinged backplate for easy installation and maintenance
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze or white finish

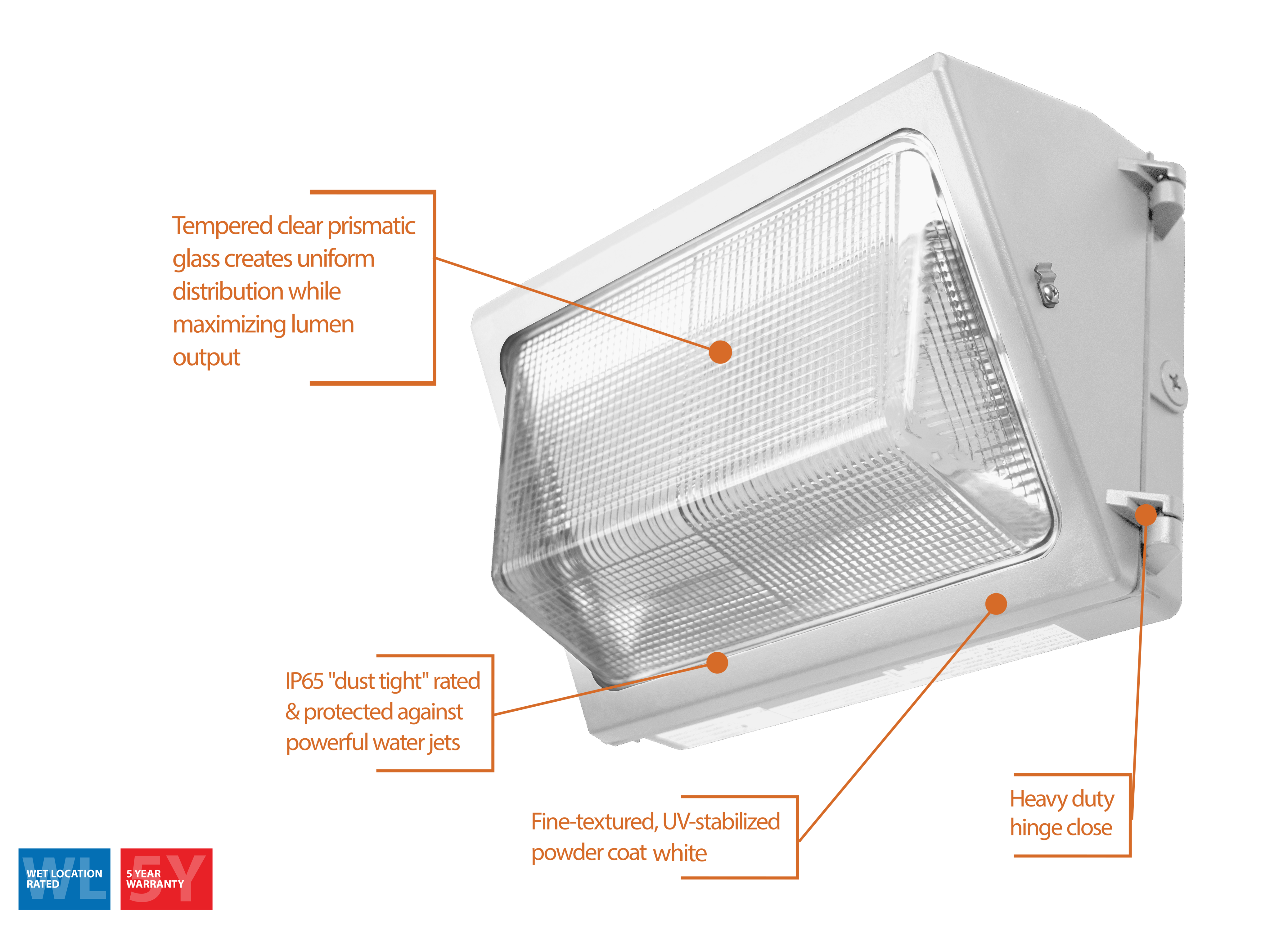

Optical System
- Tempered clear prismatic glass maximizes lumen output
- Utilizes advanced LED technology with CCT of 4000K and 5000K
- CRI 70+
Electrical
- Thermally-protected, high-efficiency driver
- Operating temperature rating of -4° to 104°F (-20°C to 40°C)
- Input voltage of 120-277VAC
- Available in 50, 80, and 120 watt
- Photocell optional
- Power Factor = >0.9
- THD = <20%
Installations
- Fixture mounts directly to J-Boxes and walls with screws
- Wiring possible through backplate or knockouts
- Separable hinged backplate to allow for easy mounting
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards.
- UL and CUL Listed for wet locations
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- TM-21 Projected L70(9k) life =75,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
