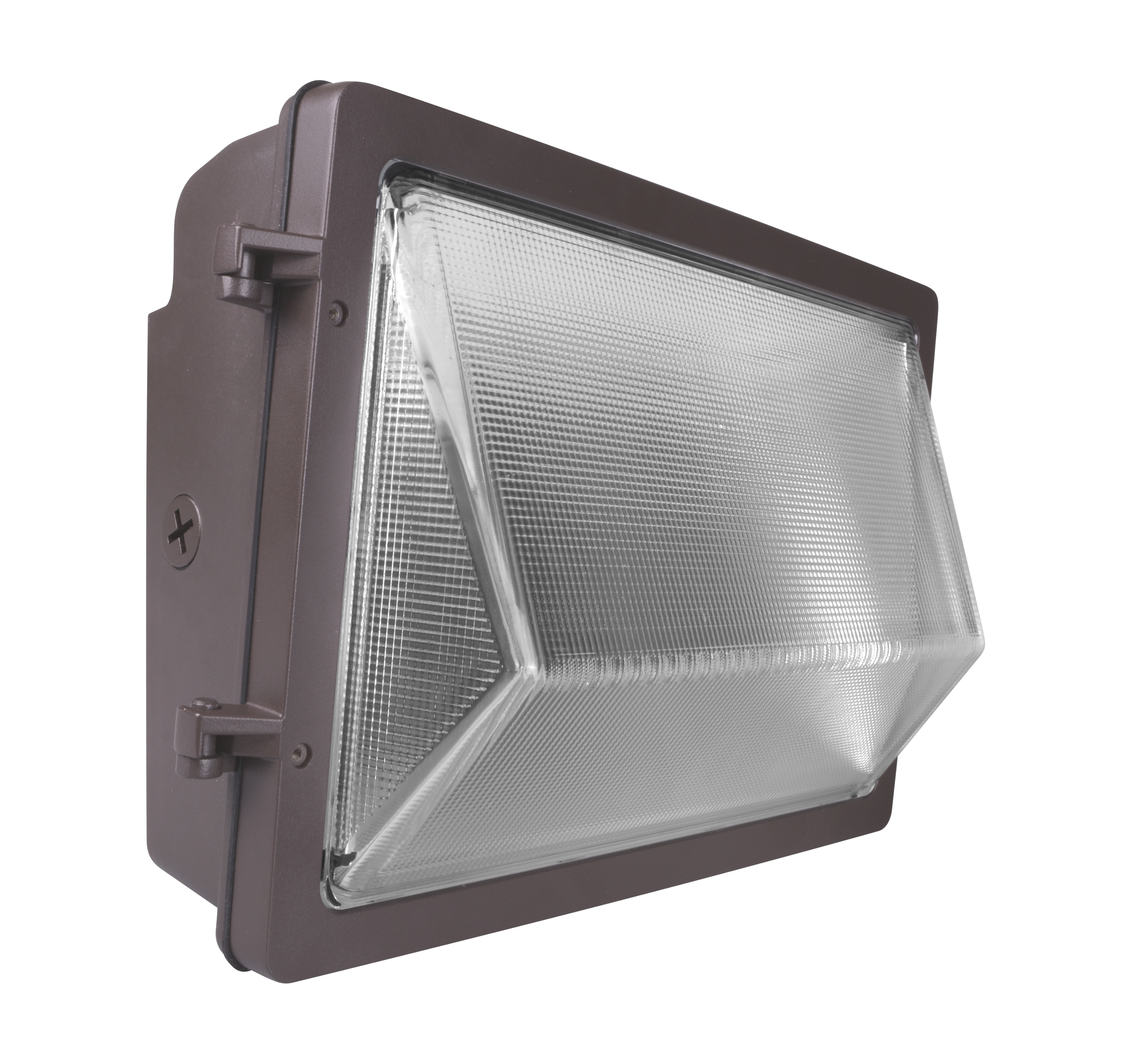

OWG4 100W Bronze Selectable LED Wall Pack
The OWG4 LED Wall Pack represents a modernized version of the traditional wall pack design, featuring selectable CCT (correlated color temperature) and an optional adjustable lumens (wattage) setting. With an impressive output of up to 135 lumens per watt, the OWG4 provides powerful and evenly distr…
The OWG4 LED Wall Pack represents a modernized version of the traditional wall pack design, featuring selectable CCT (correlated color temperature) and an optional adjustable lumens (wattage) setting. With an impressive output of up to 135 lumens per watt, the OWG4 provides powerful and evenly distributed light. Its installation is hassle-free, allowing attachment to walls or direct mounting on a J-Box using its separable hinged backplate. Internal switches enable users to customize the CCT within the range of 3000/4000/5000K and an option to adjust the wattage or the lumen output to high, medium, or low settings. Equipped with three knockouts for through-wiring or sensor additions, the OWG4 is an excellent choice for security and perimeter lighting. It comes standard with an integral photocell, which can be enabled as needed.
- Three selectable color temperatures (3000K/4000K/5000K)
- Three optional selectable wattage settings (Low/Med/High)
- Prismatic glass optics with >80 CRI for uniform, glare-free light
- IP65 Rated die-cast aluminum housing with 4kV surge protection
- Hinged backplate for easy wall or J-box install and maintenance
- Standard photocell, optional sensor socket, 0-10V dimming
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens7813 - 13231 lm
-
Wattage58.7 - 97.9 W
Listings & certifications
- UL Certified
- DLC Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class B
- Wet-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Die-cast aluminum housing
- Three (3) 1/2” knockouts for conduit feed or sensors
- Separable hinged backplate for easy installation and maintenance
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze or white finish
Optical System
- Tempered clear prismatic glass to maximize lumen output
- LED array mounting reduces glare for optimum distribution.
- Selectable models use a dual emitter array that enables CCT selection of 3000/4000/5000K
- >80 CRI to improve safety and color definition in public places.
Electrical
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC
- Power Factor = >0.9
- THD = ≤20%
- 0-10V dimming
- Optional Selectable Wattage (100/80/60W)
- Operating temperature rating of -40°F to 122°F (-40°C to 50°C)
- Emergency Option at operating temperature of (0°C to 45°C)
- 4kV surge protection standard
- Optional internal emergency back-up
Installations
- Fixture mounts directly to J-Box and walls with fastners (not furnished)
- Wiring possible through backplate or knockouts
- Separable hinged backplate to allow for easy mounting
- For installations where power surge may be possible, NICOR recommends installing
- additional surge protection at the electrical distribution panel
Full Listings
- LM-79,LM-80 testing performed in accordance with IESNA standards
- cULus 1598 Listed for wet locations
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- RoHS Compliant
- TM-21 Reported L70(9k) life >50,000 hours
- DLC Premium
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
