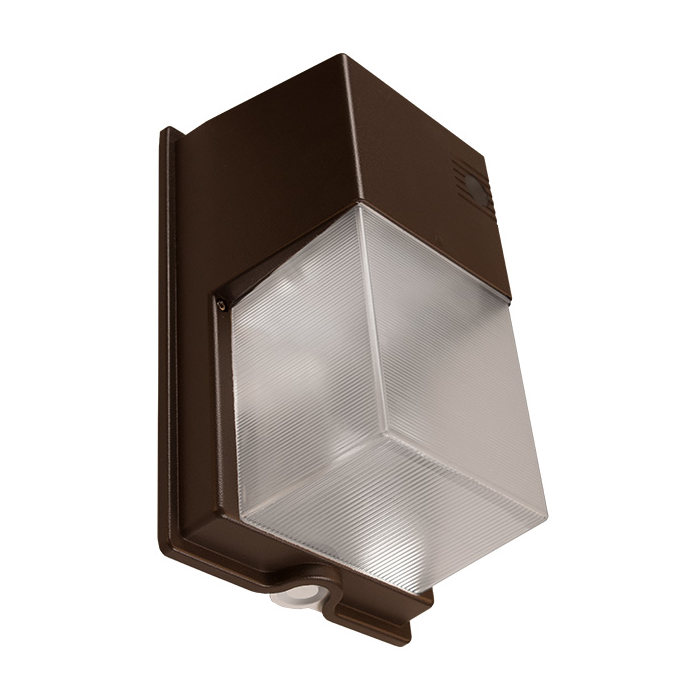

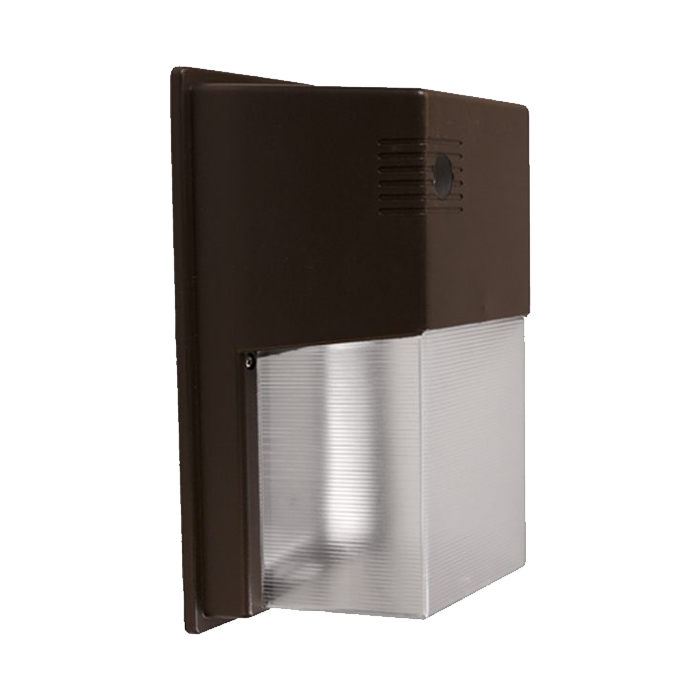

30W Bronze Outdoor LED Wall Pack
The OWR3 LED Wallpack combines a simple rectangular style with top performance and efficiency. The Obelus features a single-piece, die-cast aluminum housing with a ribbed, UV- and fire-resistant lens for even light distribution. It installs easily into a 4/O J-Box and has a standard photocell. The O…

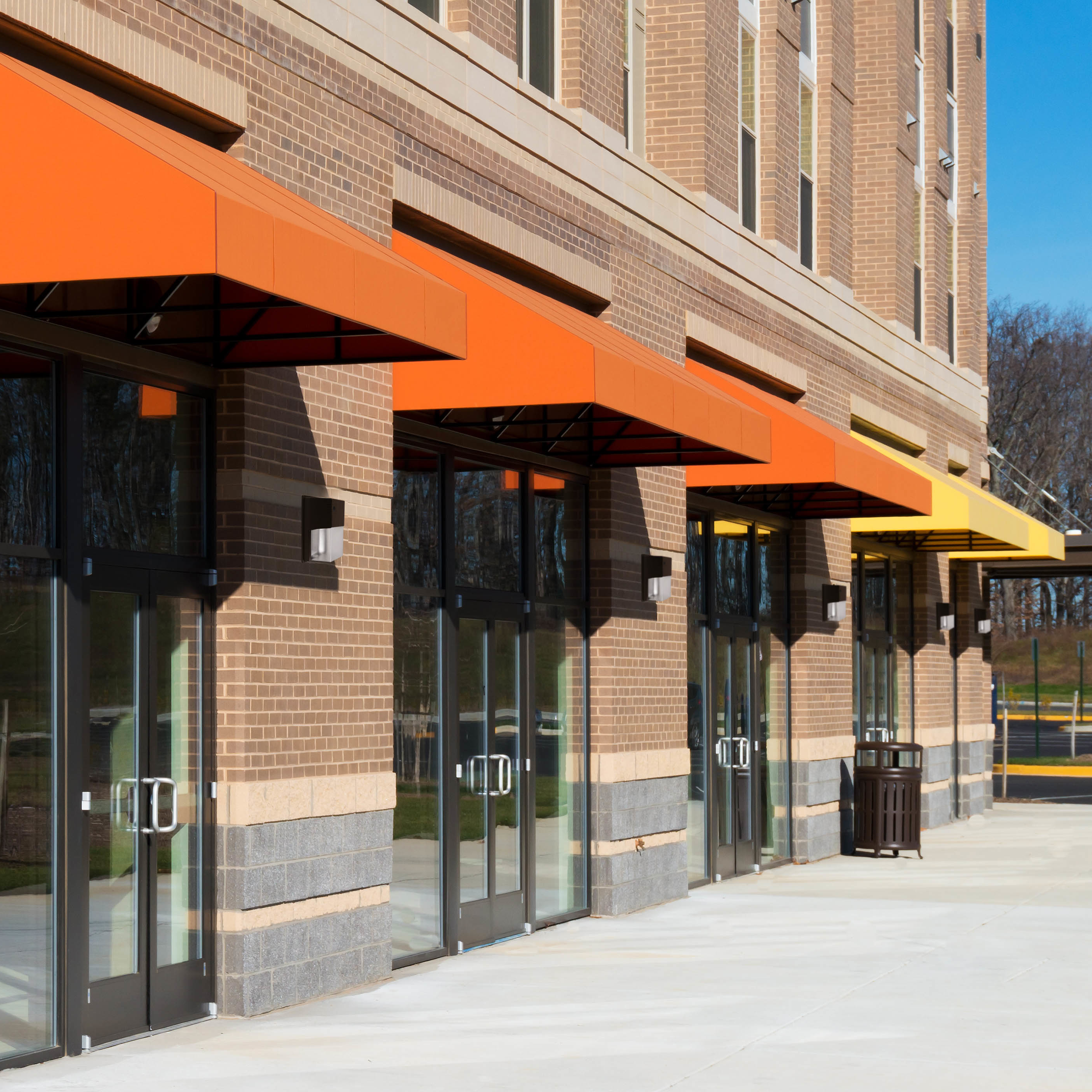

The OWR3 LED Wallpack combines a simple rectangular style with top performance and efficiency. The Obelus features a single-piece, die-cast aluminum housing with a ribbed, UV- and fire-resistant lens for even light distribution. It installs easily into a 4/O J-Box and has a standard photocell. The OWR3 is recommended for perimeter lighting as well as building entrances, garages, tunnels, other commercial spaces where general purpose lighting is desired.
- Utilizes advanced LED technology with CCT of 5000K
- Input voltage of 120-277VAC
- Fine-textured, UV-stabilized bronze finish
- Fixture mounts directly to J-Boxes with screws
- Single-piece, injection-molded lens
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens3643
-
Wattage29.7
Listings & certifications
- cULus Listed
- DLC 5.1 Standard
- IP65 Ingress Protection
- FCC Class B
- Wet-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction
- Single-piece, injection-molded lens
- Die-cast aluminum backplate and plastic housing
- UV- and fire-resistant lens
- Stainless steel hardware
Optical System
- High light transmittance polycarbonate
- Clear ribbed lens for even light distribution
- Utilizes advanced LED technology with CCT of 5000K
- 70 CRI
Electrical
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC
- Full-range dimming via 1-10VDC controls
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
- Photocell standard
Installations
- Easy installation on 4/O J-Box
- Fixture mounts directly to J-Boxes with screws
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 5.1 Standard listed
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LM-79, LM-80 testing performed in accordance with IESNA standards
- TM-21 Reported L70(9k) life >54,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
