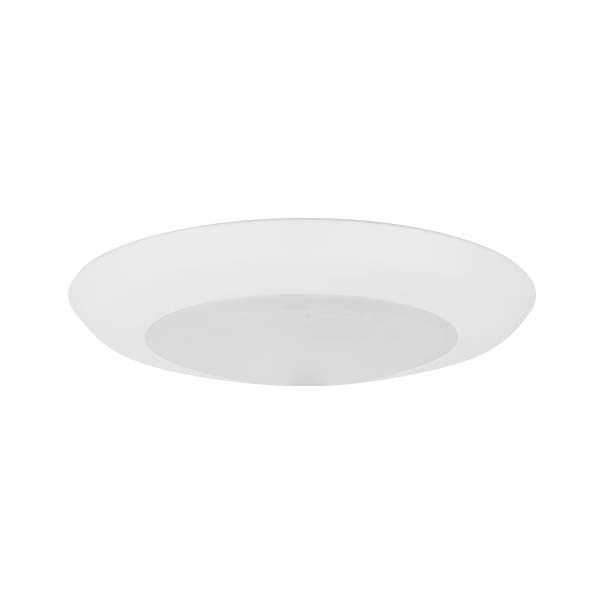

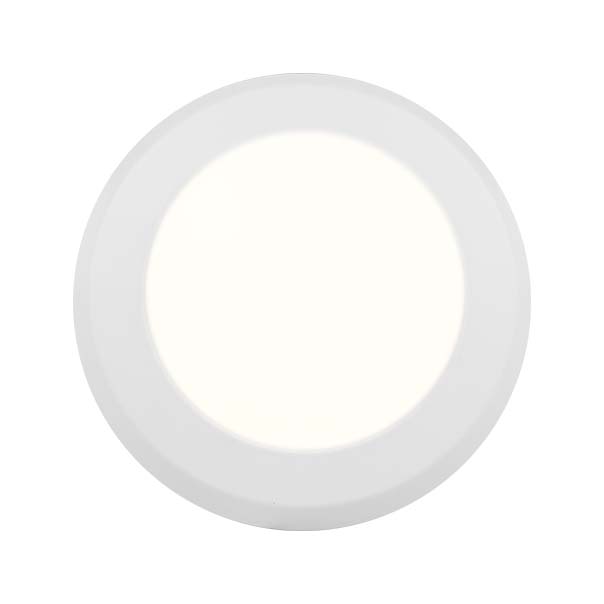

LOW PROFILE SURFACE MOUNT LED DOWNLIGHT

The RCD Selectable is a Low Profile Surface Mount Downlight, a sleek and low-profile lighting solution meticulously crafted for seamless integration into the most confined spaces. Designed with a low profile, this downlight offers a thin installation profile, ensuring a discreet yet powerful lighting presence. Simplifying the installation process is our innovative twist lock diffuser, allowing for effortless removal during installation. The direct box mount guarantees a flush fit to the ceiling, delivering a polished and professional aesthetic. The versatility of this downlight is further enhanced by its CCT Selectable feature, offering a range of color temperatures (2700/3000/3500/4000/5000K) via switch, enabling you to customize the lighting ambiance to your preference. Economical and practical, each pack includes 24 units, making it an efficient choice for both residential and commercial lighting projects. Illuminate your space with the RCD Downlight, a perfect blend of functionality and style.



Specifications

  • Molded polymer, UV stabilized diffuser maximizes light output
  • Convex diffuser creates uniform light distribution while reducing glare
  • Offered in 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • Input voltage of 120VAC, 60Hz

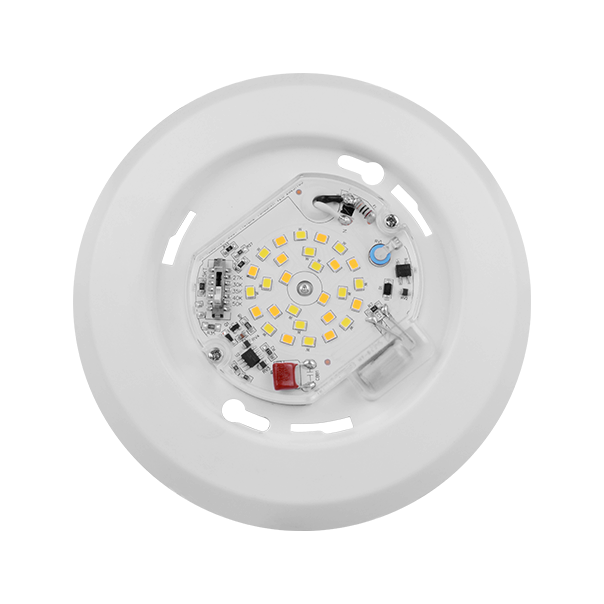

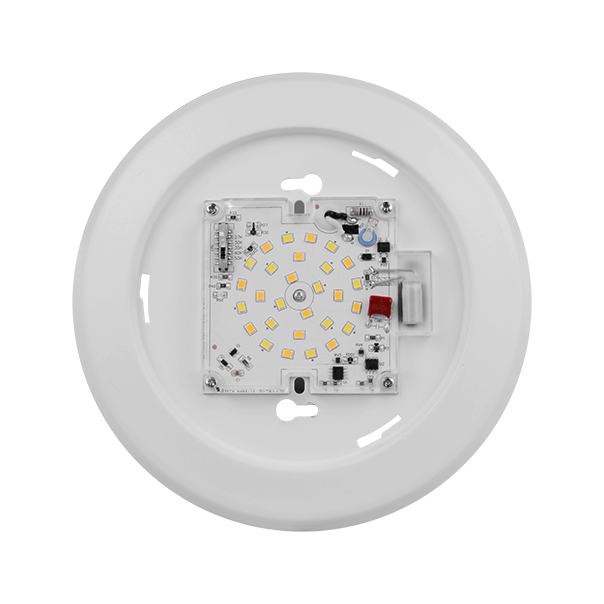

  • CCT switch located under lens
  • Dimmable to 10% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • White powder coat finish standard
RCD - 4" Round
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

605
Lumens

630
Lumens

664
Lumens

670
Lumens

652
Lumens

10
Input Watts

10
Input Watts

10
Input Watts

10
Input Watts

10
Input Watts

60.5
lm/W

63.0
lm/W

66.4
lm/W

67.0
lm/W

65.2
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RCD41120S9WH

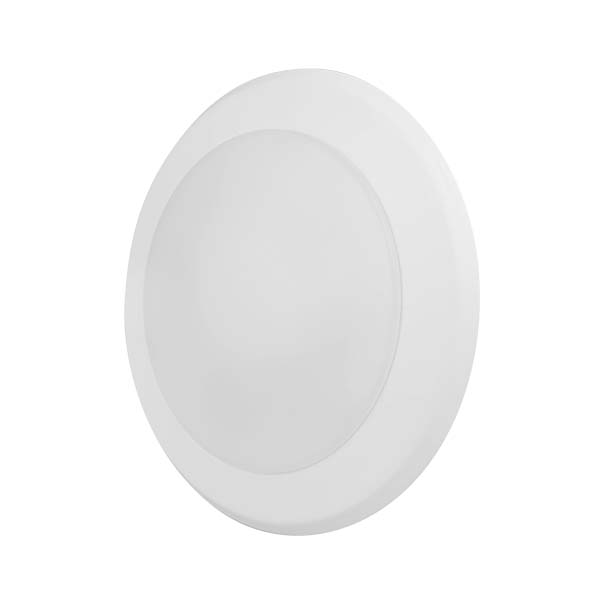

RCD - 6" Round
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

910
Lumens

977
Lumens

1056
Lumens

1060
Lumens

1020
Lumens

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

60.7
lm/W

65.1
lm/W

70.4
lm/W

70.7
lm/W

68.0
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

Part Number:

 Select:RCD61120S9WH
RCD - 4" Round
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

605
Lumens

630
Lumens

664
Lumens

670
Lumens

652
Lumens

10
Input Watts

10
Input Watts

10
Input Watts

10
Input Watts

10
Input Watts

60.5
lm/W

63.0
lm/W

66.4
lm/W

67.0
lm/W

65.2
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:RCD41120S9WH

RCD - 6" Round
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

910
Lumens

977
Lumens

1056
Lumens

1060
Lumens

1020
Lumens

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

15
Input Watts

60.7
lm/W

65.1
lm/W

70.4
lm/W

70.7
lm/W

68.0
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

Part Number:

 Select:RCD61120S9WH
