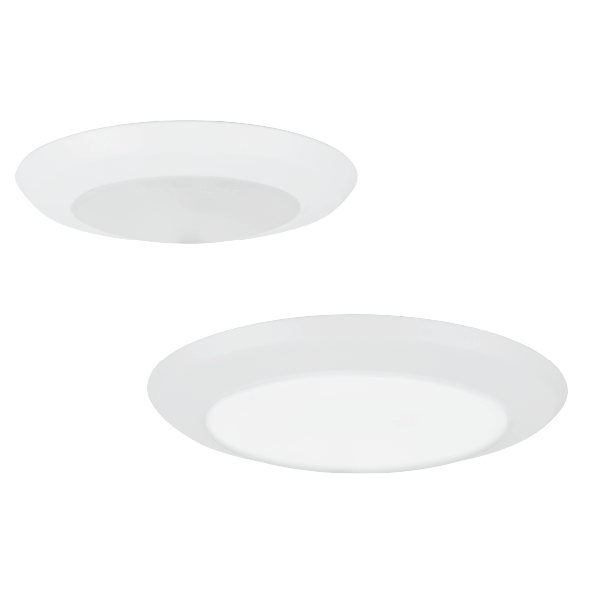

RCD Low-Profile Selectable LED Surface Mount Disk Light
The RCD Selectable is a Low Profile Surface Mount Downlight, a sleek and low-profile lighting solution meticulously crafted for seamless integration into the most confined spaces. Designed with a low profile, this downlight offers a thin installation profile, ensuring a discreet yet powerful lightin…

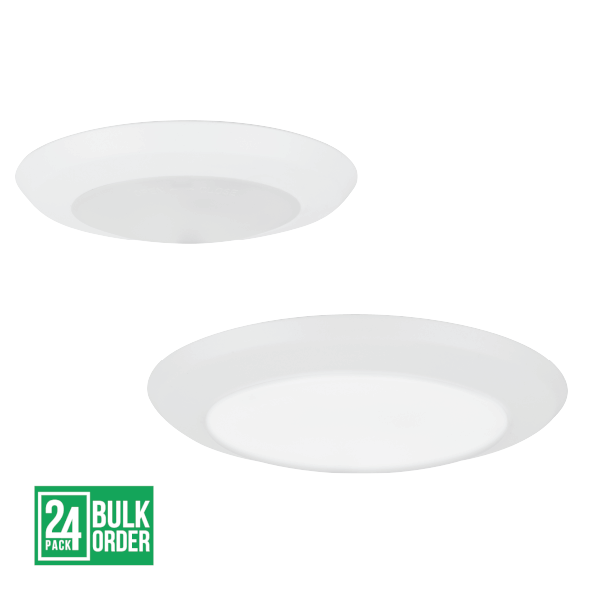

The RCD Selectable is a Low Profile Surface Mount Downlight, a sleek and low-profile lighting solution meticulously crafted for seamless integration into the most confined spaces. Designed with a low profile, this downlight offers a thin installation profile, ensuring a discreet yet powerful lighting presence. Simplifying the installation process is our innovative twist lock diffuser, allowing for effortless removal during installation. The direct box mount guarantees a flush fit to the ceiling, delivering a polished and professional aesthetic. The versatility of this downlight is further enhanced by its CCT Selectable feature, offering a range of color temperatures (2700/3000/3500/4000/5000K) via switch, enabling you to customize the lighting ambiance to your preference. Economical and practical, each pack includes 24 units, making it an efficient choice for both residential and commercial lighting projects. Illuminate your space with the RCD Downlight, a perfect blend of functionality and style.
- Ultra-thin, low-profile design ideal for tight ceiling spaces
- Selectable Color Temperature (2700K, 3000K, 3500K, 4000K, or 5000K)
- Direct junction box mount with keyhole slots for quick installation
- Smooth, glare-reducing diffuser for uniform light distribution
- Dimmable to 10% with TRIAC/ELV compatibility
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>60,000
Listings & certifications
- cETLus Intertek Listed
- Title 24
- JA8
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- LM-79, LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Stamped steel body
- Twist-lock diffuser allows for easy removal for installation
- White powder coat finish standard
Optical System
- Molded polymer, UV stabilized diffuser maximizes light output.
- Convex diffuser creates uniform light distribution while reducing glare
- Offered in 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
Electrical
- Input voltage of 120VAC, 60Hz
- CCT switch located under lens
- Dimmable to 10% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Easy installation in metallic and non-metallic new construction junction boxes (see compatibility list for more information)
- Keyhole mounting slots allow for quick installation to junction boxes
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Listed for wet locations
- CA Title 24/JA8 Compliant
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70 life >60,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
