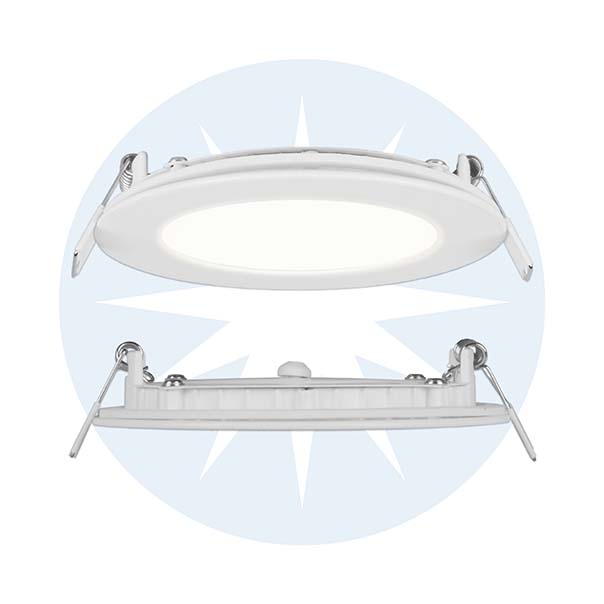

LED RECESSED DOWNLIGHT

The REL Single CCT Edge Lit Downlight offers an attractive aesthetic with a low profile. The edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow a secure fit and easy installation. Perfect for adding light in tight spaces such as hallways, bathrooms, basements, and utility closets.

   *

* Except 5000K

Categories: Tags:

Specifications

  • Precision engineered optical stack creates uniform light distribution that maximizes lumen output
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50
  • CCTs offered at 2700K, 3000K, 4000K, or 5000K
  • Input voltage of 120VAC
  • Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • Available magnetic accessory trim covers (more coming soon):
    • Black - REL4, REL6, REL8
    • Oil-Rubbed Bronze - REL4
    • Nickel - REL4

Downloads

– Downlight Brochure
– Sell Sheet

– Spec Sheet
– Installation Instructions

– Goof Ring Spec Sheet

REL4
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

666
Lumens

680
Lumens

694
Lumens

717
Lumens

10.3
Input Watts

10.3
Input Watts

10.3
Input Watts

10.3
Input Watts

64.7
lm/W

66.0
lm/W

67.4
lm/W

69.6
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL411202KRDWH
 3000K:REL411203KRDWH
 4000K:REL411204KRDWH
 5000K:REL411205KRDWH
REL6
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

902
Lumens

921
Lumens

940
Lumens

971
Lumens

11.8
Input Watts

11.8
Input Watts

11.8
Input Watts

11.8
Input Watts

76.4
lm/W

78.0
lm/W

79.7
lm/W

82.3
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL611202KRDWH
 3000K:REL611203KRDWH
 4000K:REL611204KRDWH
 5000K:REL611205KRDWH
REL8
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

1279
Lumens

1306
Lumens

1333
Lumens

1376
Lumens

17.9
Input Watts

17.9
Input Watts

17.9
Input Watts

17.9
Input Watts

71.5
lm/W

73.0
lm/W

74.5
lm/W

76.9
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL811202KRDWH
 3000K:REL811203KRDWH
 4000K:REL811204KRDWH
 5000K:REL811205KRDWH
REL4
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

666
Lumens

680
Lumens

694
Lumens

717
Lumens

10.3
Input Watts

10.3
Input Watts

10.3
Input Watts

10.3
Input Watts

64.7
lm/W

66.0
lm/W

67.4
lm/W

69.6
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL411202KRDWH
 3000K:REL411203KRDWH
 4000K:REL411204KRDWH
 5000K:REL411205KRDWH

REL6
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

902
Lumens

921
Lumens

940
Lumens

971
Lumens

11.8
Input Watts

11.8
Input Watts

11.8
Input Watts

11.8
Input Watts

76.4
lm/W

78.0
lm/W

79.7
lm/W

82.3
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL611202KRDWH
 3000K:REL611203KRDWH
 4000K:REL611204KRDWH
 5000K:REL611205KRDWH

REL8
2700K
Warm		3000K
Warm White		4000K
Neutral		5000K
Cool

1279
Lumens

1306
Lumens

1333
Lumens

1376
Lumens

17.9
Input Watts

17.9
Input Watts

17.9
Input Watts

17.9
Input Watts

71.5
lm/W

73.0
lm/W

74.5
lm/W

76.9
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:REL811202KRDWH
 3000K:REL811203KRDWH
 4000K:REL811204KRDWH
 5000K:REL811205KRDWH
