REL Series

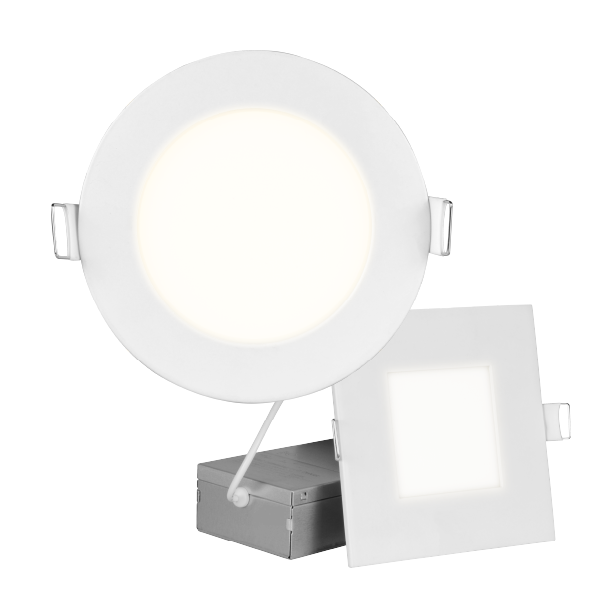

REL Series Round Canless LED Downlight
Product description
The REL Single CCT Edge Lit Downlight offers an attractive aesthetic with a low profile. The edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow a secure fit and easy installation. Perfect for adding light in tight spaces such as hal…
The REL Single CCT Edge Lit Downlight offers an attractive aesthetic with a low profile. The edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow a secure fit and easy installation. Perfect for adding light in tight spaces such as hallways, bathrooms, basements, and utility closets.
- Color temperatures offered at 2700K, 3000K, 4000K, or 5000K with 90+ CRI, R9 >50
- Uniform edge-lit illumination with high output and minimal glare
- Cast aluminum housing with off-board driver for long life
- Spring-loaded tabs for easy installation in ceilings up to 3/4”
- Dimmable to 5% with compatible TRIAC/ELV dimmers
- Multiple trim options (White, Black, Nickel, Oil Rubbed Bronze)
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000
Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- TAA Compliant
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
- Meets or exceeds ASTM-283 Airtight Requirements
Features
Construction
- Cast aluminum housing routes heat away from electrical components
- Edge-Lit technology allows for extremely thin fixture depth
- Adjustable, spring loaded retention tabs ensure secure fixture retention
- Off-board driver minimizes installation height and maximizes fixture life through improved heat management
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
- CCTs offered at 2700K, 3000K, 4000K, or 5000K
Electrical
- Input voltage of 120VAC
- Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Spring loaded retention tabs allow for easy installation into ceilings up to 3/4” thick with no need for a recessed housing
- Off-board driver/junction box includes three 1/2” KOs and three-port poke-in connectors
- Included paper cutting template
- Accessory metal rough-in template and frames available
- Accessory extension power cables (2’ & 10’) available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Classified for wet locations
- CA Title 24 Compliant (except 5000K)
- Certified for direct contact with insulation (IC)
- Meets Air Tight requirements per ASTM E283
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>54,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
