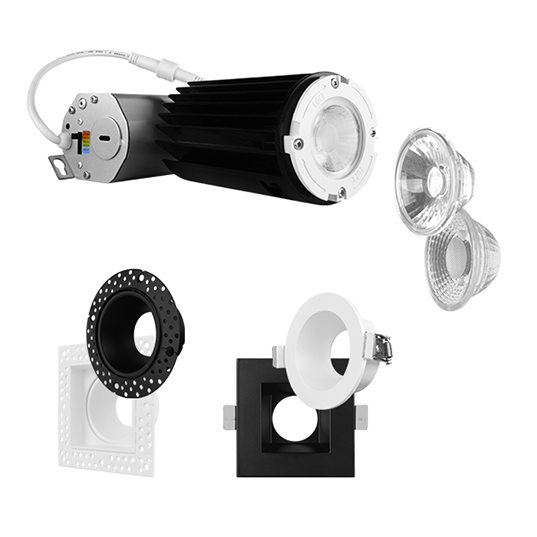

RRD 2-inch Selectable LED Downlight System
The RRD2 LED Downlight allows you to bring general ambient lighting into a space with small, architectural exposure. The high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The RRD offers two wattage level…
The RRD2 LED Downlight allows you to bring general ambient lighting into a space with small, architectural exposure. The high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The RRD offers two wattage levels and round and square trims in flanged and flange-less designs to meet any design need. The fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding ambient or accent lighting in areas such as living rooms, hallways, art niches and display cases is now easier than ever.
- Available with Flanged or mud ring style trims in round or square shapes
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- TIR optic provides smooth, uniform light with a 38° beam angle
- Utilizes high performing LEDs with 90+ CRI and an R9 > 60
- ENERGY STAR Downlights 1.0 Rated with premium efficiency
Ordering information
Downloads
Specifications
-
Lifespan>50,000
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- RoHS Compliant
- ICES-005 Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- Testing performed in accordance with IESNA standards
Features
Construction
- Cast aluminum trim
- Forged aluminum heatsink for superior thermal management
- Spring loaded retention tabs on trim ensure secure fixture retention
- Anodized aluminum junction box for superior thermal management
Optical System
- TIR optic provides smooth, uniform light with a 38° beam angle
- Dual emitter COB enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Utilizes high performing LEDs with 90+ CRI and an R9 > 60
Electrical
- Input voltage 120VAC, 60Hz
- Available in 8W and 14W models
- CCT selection switch on driver housing
- Dimmable to <10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Spring loaded retention arms allow for use without a recessed housing
- Off-board driver/junction box includes two 1/2” KOs and three-port poke-in connectors
- Junction box sized to fit through 2” cut out for new and retrofit installations
Full Listings
- cETLus 1598 Classified for wet locations
- CA Title 24 compliant (JA8)
- Certified for direct contact with insulation (IC-Rated)
- Meets Air Tight requirements per ASTM E283
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant : Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- ICES-005 Compliant
- LED lumen maintenance: L70(9k)>50,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge.) For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
