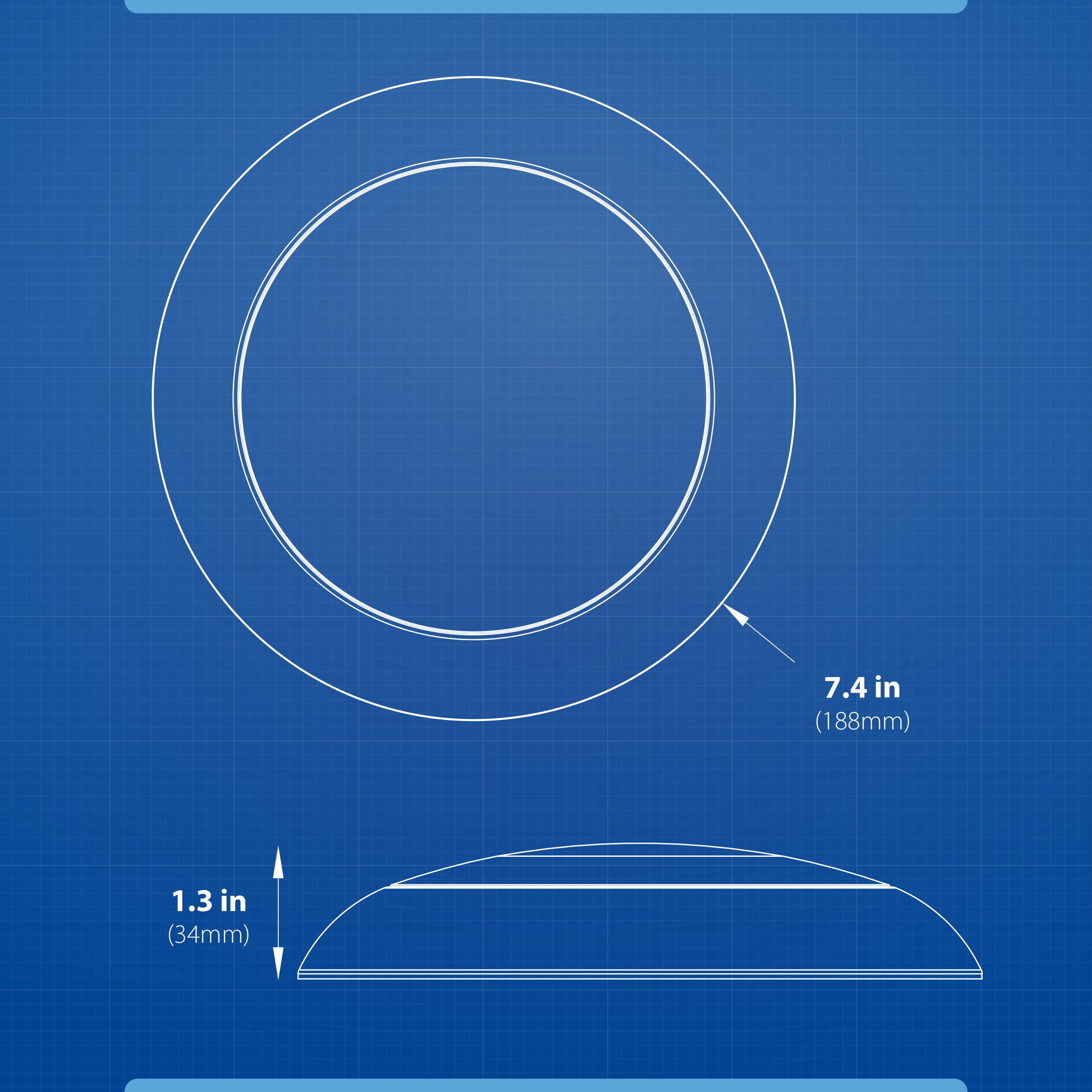

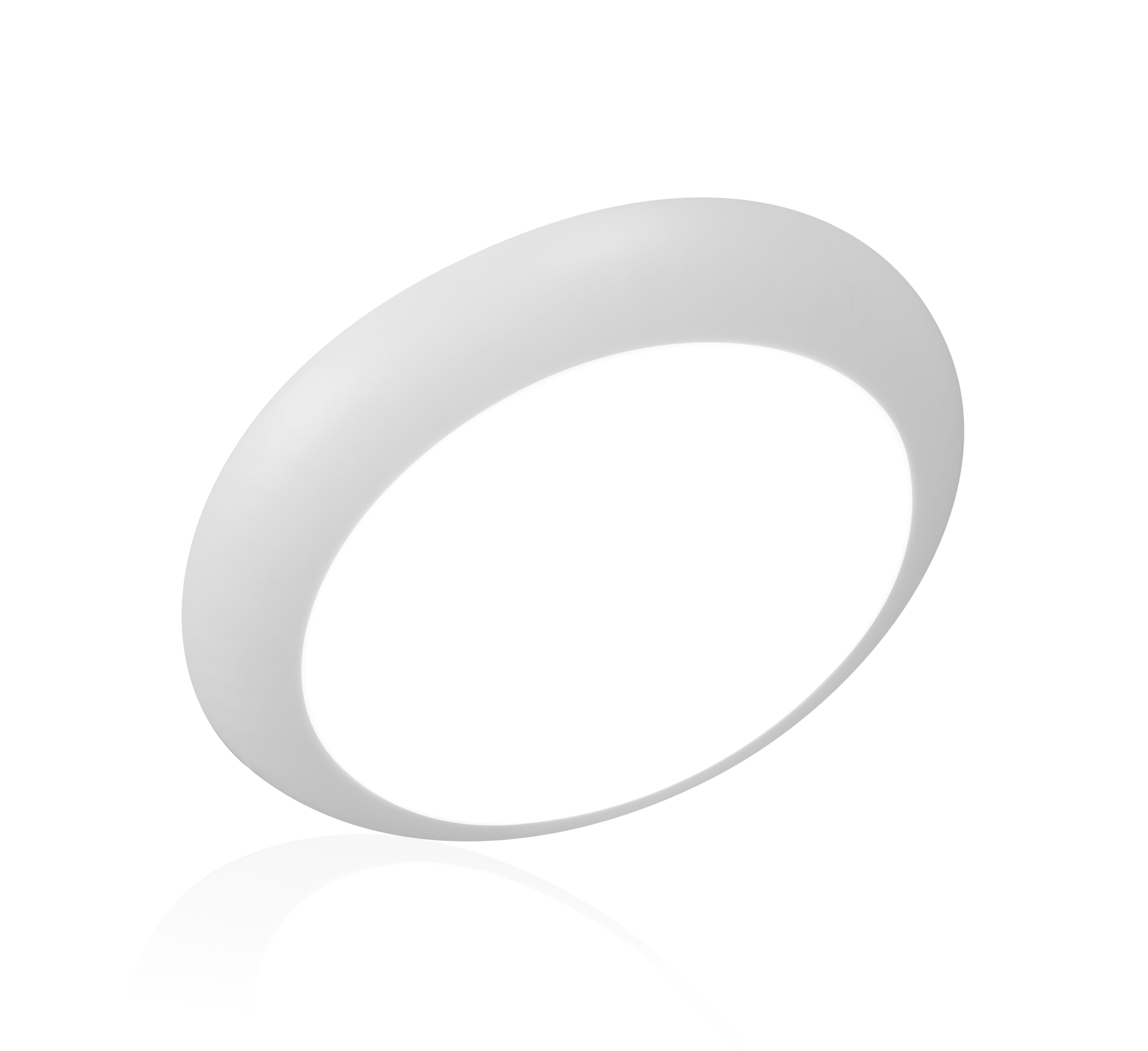

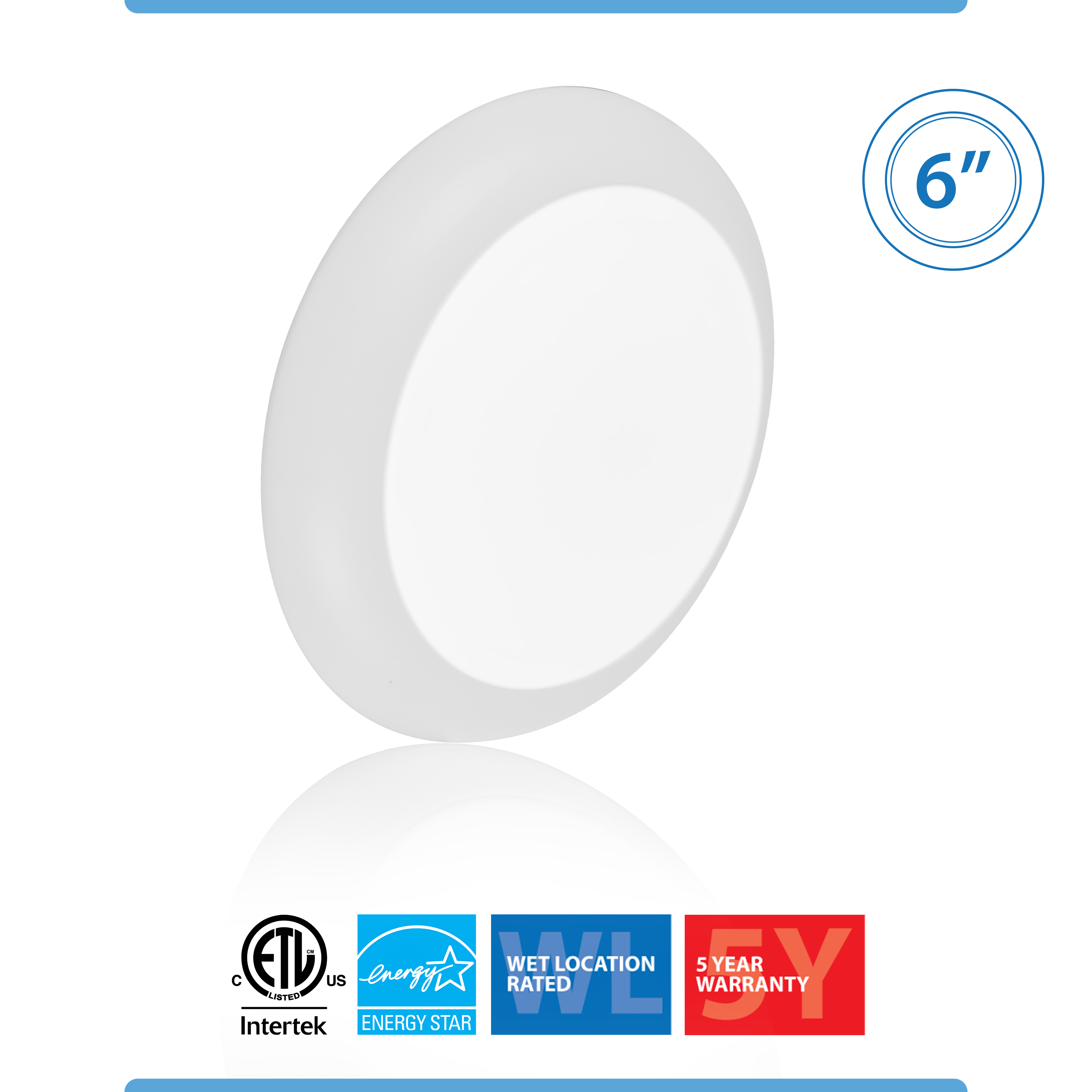

RSD Series 6″ Surface Mount LED Downlight, 4000K
The RSD Single CCT Downlight offers a thin installation solution designed to fit the tightest of spaces. Installation is easier than ever with the twist lock diffuser that can be removed during installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. …
The RSD Single CCT Downlight offers a thin installation solution designed to fit the tightest of spaces. Installation is easier than ever with the twist lock diffuser that can be removed during installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Available in your choice of 2700K, 3000K, 4000K or 5000K CCT depending on your desired light temperature. Perfect for bringing even illumination to any area of your home.
- Color temperatures offered at 2700K, 3000K, 4000K, or 5000K with 90+ CRI, R9 >50
- Uniform, glare-reducing illumination with molded polymer convex diffuser
- Wet-location rated with durable stamped-steel construction
- Thin surface-mount design with twist-lock diffuser for easy installation
- Compatible with TRIAC/ELV dimming down to 5%
- ENERGY STAR listed with long 54,000-hour L70 life
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -

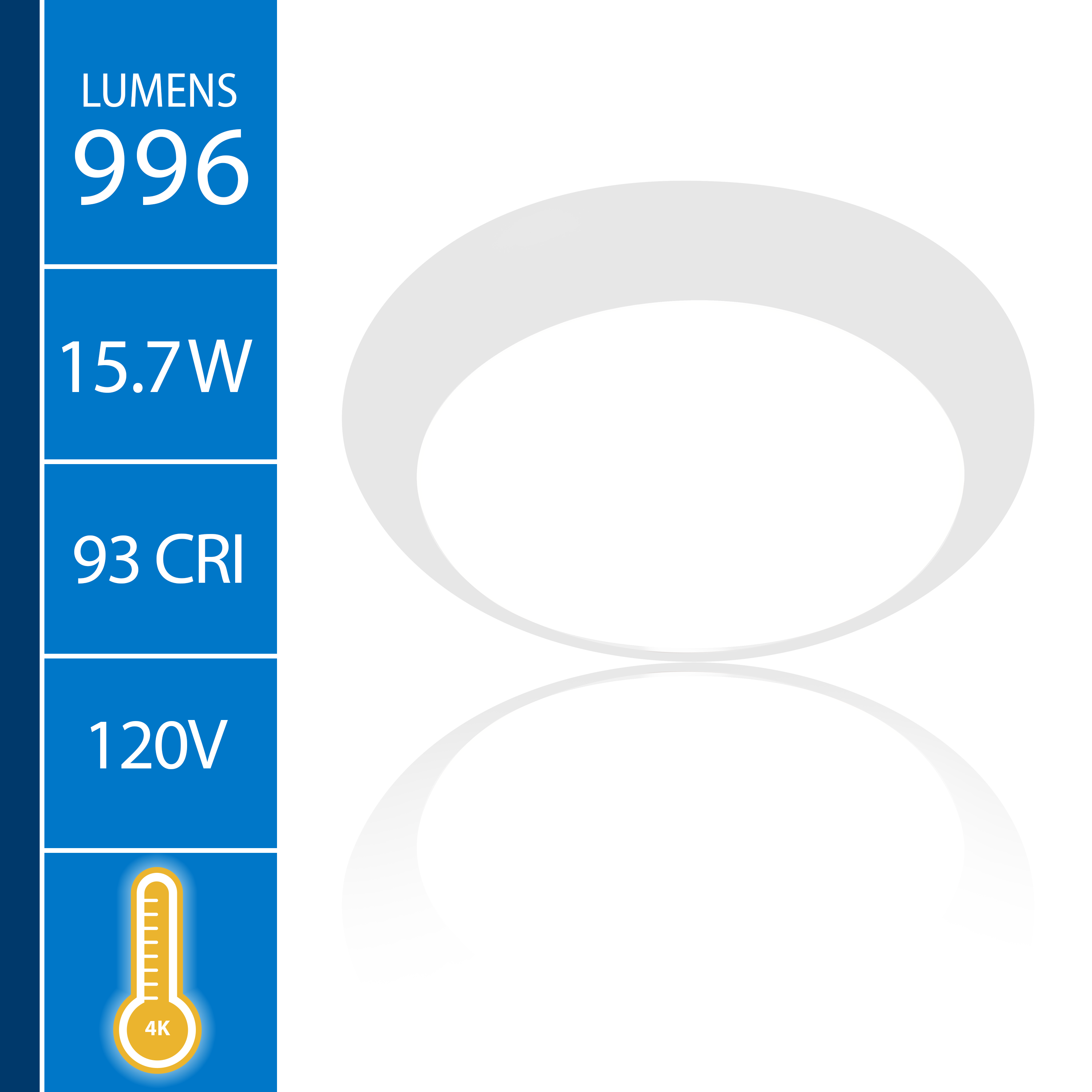

Lumens996
-
Wattage15.7
Listings & certifications
- cETLus Intertek Listed
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- LM-79, LM-80 testing performed in accordance with IESNA standards
Features
Construction

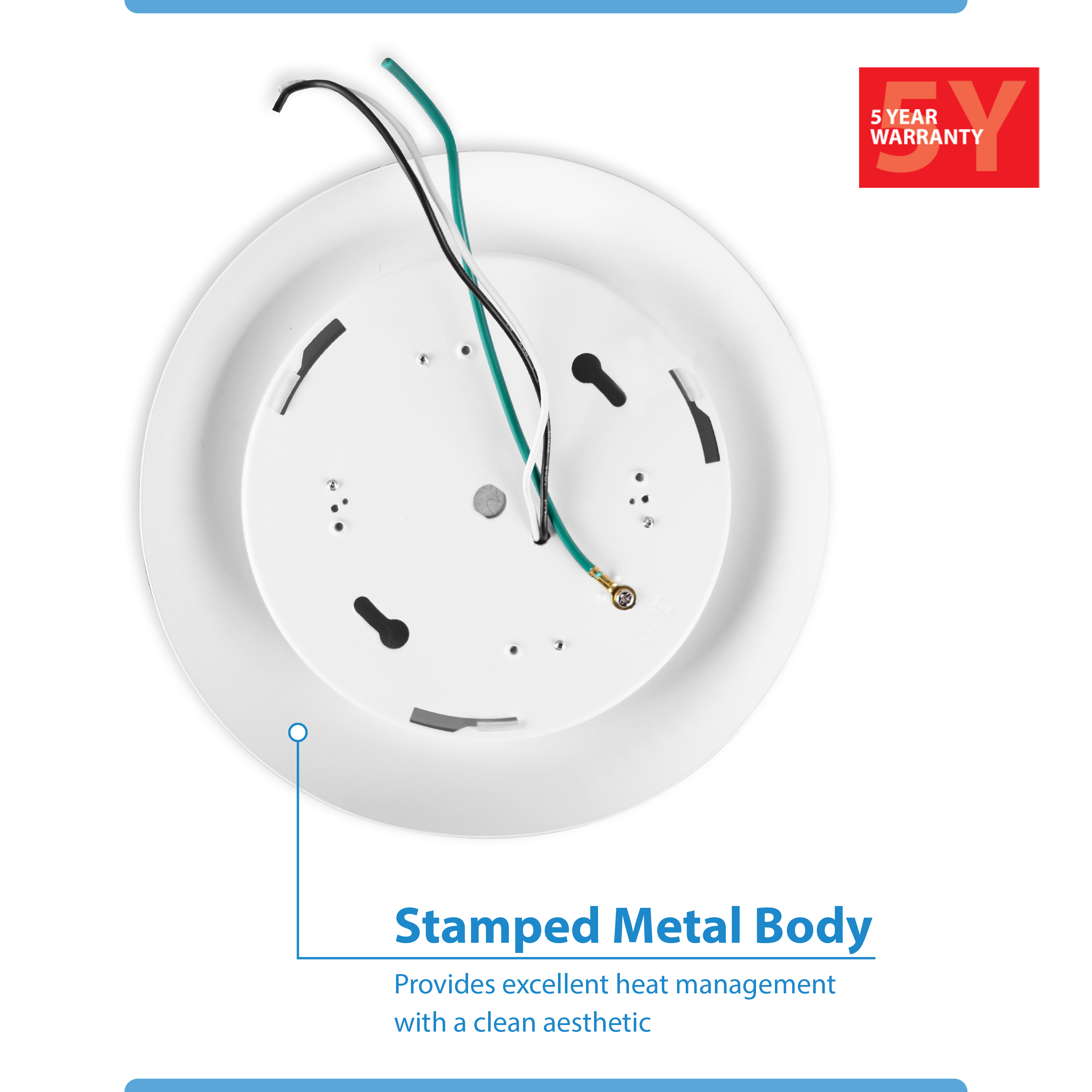

- Stamped steel body

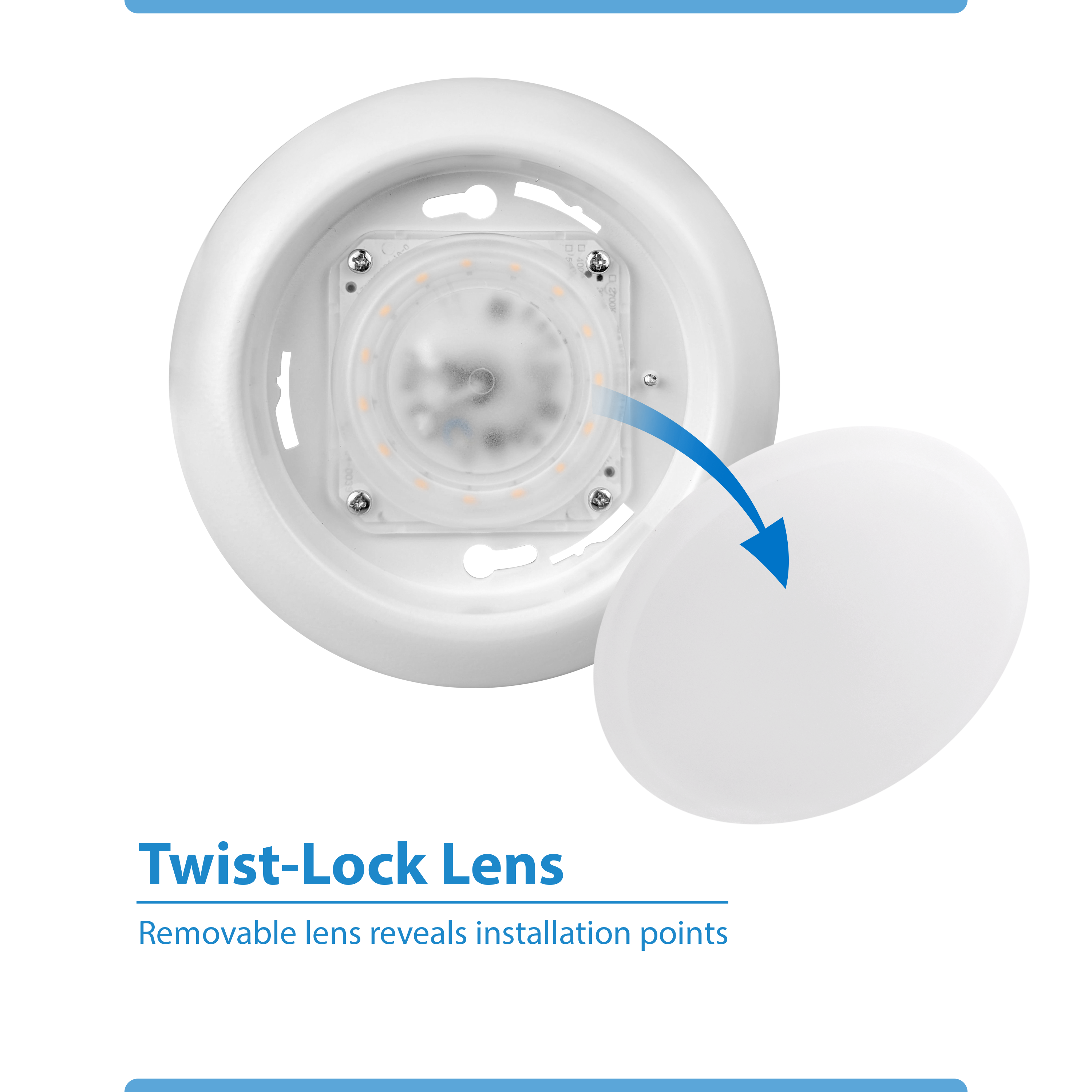

- Twist-lock diffuser allows for easy removal during installation
Optical System
- Molded polymer, UV stabilized diffuser maximizes light output
- Convex diffuser creates uniform light distribution while reducing glare
Electrical
- Input voltage of 120VAC, 60Hz
- Dimmable to 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50

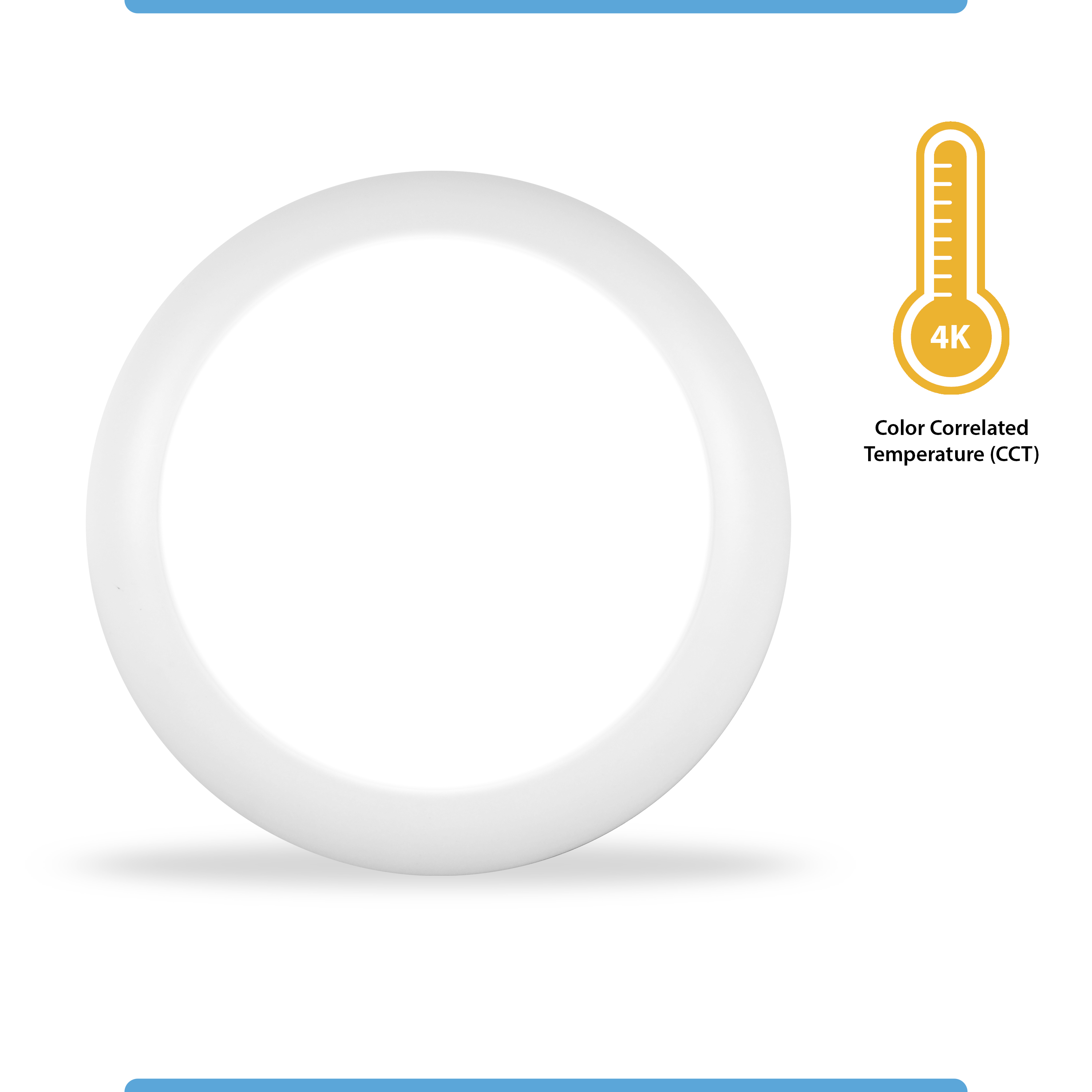

- Available in 2700K, 3000K, 4000K, or 5000K CCTs
- Binned within 4-step MacAdams with duv <±0.003
Installations
- Easy installation in any 4” pancake, 4” non-metallic or 4/O junction box
- Keyhole mounting slots allow for quick installation to junction boxes
- Operating temperature of -4° to 104°F (-20°C to 40°C)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- cETLus 1598 Listed for wet locations
- Suitable for use in closets : Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5)
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
