SURFACE MOUNT DOWNLIGHT WITH PIR MOTION SENSOR

The RSDS-M Surface Mount Downlight with PIR Motion Sensor offers a thin installation solution that provides automatic on/off control. Select the CCT (3000/4000/5000K) with the flip of a switch. Installation is easier than ever with the twist lock diffuser that can be removed for installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Perfect for bringing even illumination with automatic controls to closets, pantries, and similar areas.



Specifications

  • Molded polymer, UV stabilized diffuser maximizes light output
  • Convex diffuser creates uniform light distribution while reducing glare
  • Offered in 3CCT selection of 3000K, 4000K, and 5000K
  • Input voltage of 120VAC, 60Hz

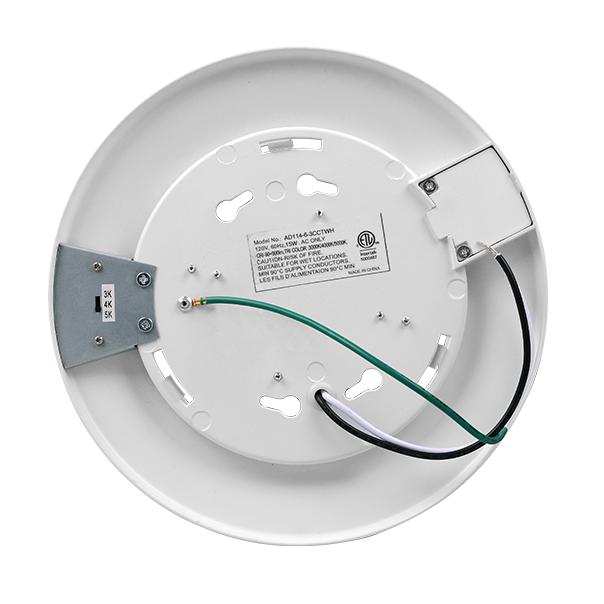

  • CCT switch located on back of fixture
  • Integrated PIR motion sensor. Automatic ON with 30 second wait time to OFF.
  • Dimmable to 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
RSDS-M - 4" Round
3000K
Warm White
4000K
Neutral
5000K
Cool

611
Lumens

658
Lumens

620
Lumens

10
Input Watts

10
Input Watts

10
Input Watts

62.7
lm/W

67.8
lm/W

63.7
lm/W

91
CRI

91
CRI

91
CRI

IES Download

IES Download

IES Download

Part Number:

 ALL:RSD41120SWHM
RSDS-M - 6" Round
3000K
Warm White
4000K
Neutral
5000K
Cool

832
Lumens

988
Lumens

856
Lumens

14
Input Watts

16
Input Watts

15
Input Watts

57.5
lm/W

63.7
lm/W

58.6
lm/W

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

Part Number:

 ALL:RSD61120SWHM
RSDS-M - 4" Round
3000K
Warm White
4000K
Neutral
5000K
Cool

611
Lumens

658
Lumens

620
Lumens

10
Input Watts

10
Input Watts

10
Input Watts

62.7
lm/W

67.8
lm/W

63.7
lm/W

91
CRI

91
CRI

91
CRI

IES Download

IES Download

IES Download

Part Number:

 ALLRSD41120SWHM

RSDS-M - 6" Round
3000K
Warm White
4000K
Neutral
5000K
Cool

832
Lumens

988
Lumens

856
Lumens

14
Input Watts

16
Input Watts

15
Input Watts

57.5
lm/W

63.7
lm/W

58.6
lm/W

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

Part Number:

 ALL:  RSD61120SWHM
