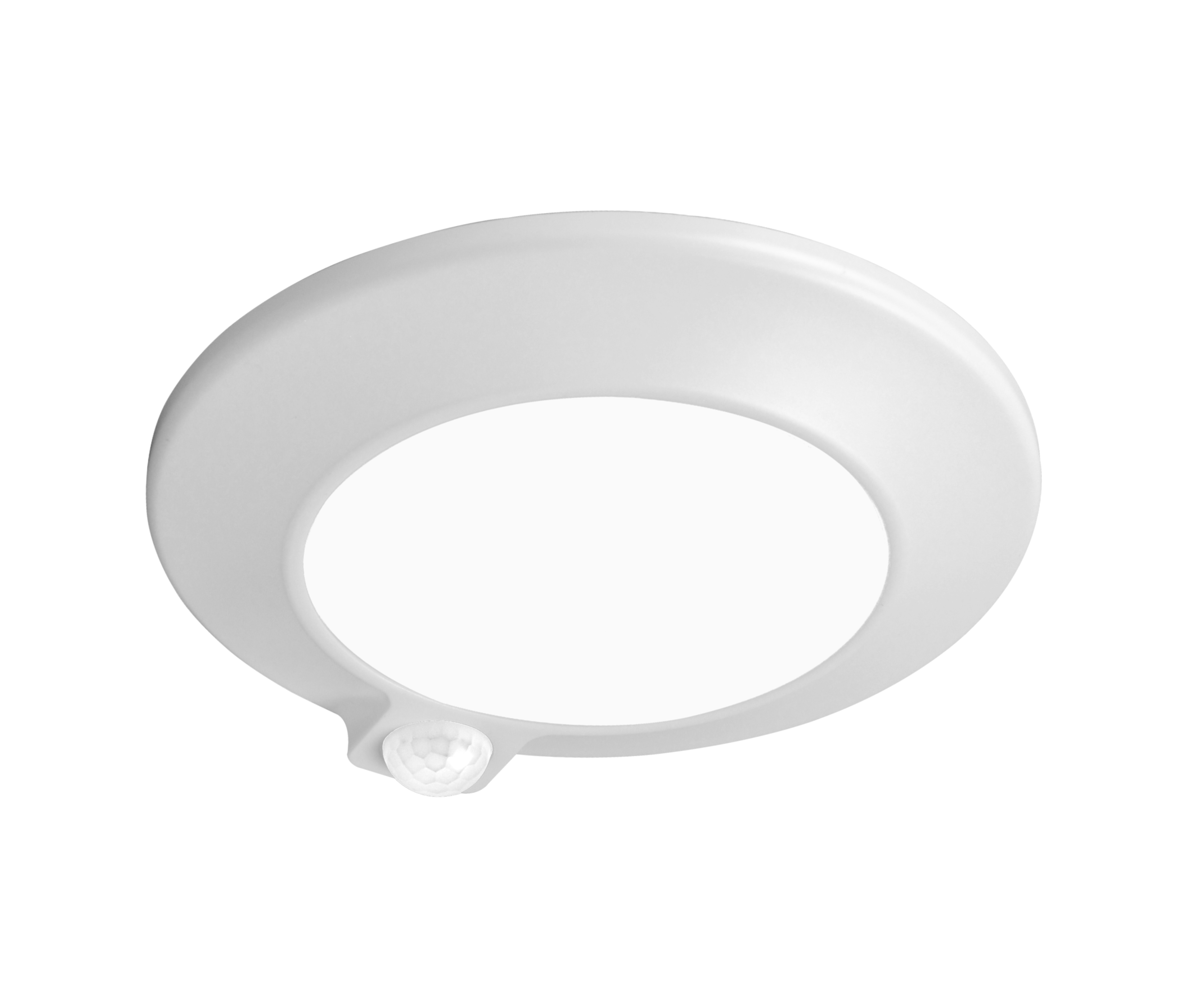

RSDSM 4″ Selectable Surface Mount Downlight with PIR Motion Sensor
The RSDS-M Surface Mount Downlight with PIR Motion Sensor offers a thin installation solution that provides automatic on/off control. Select the CCT (3000/4000/5000K) with the flip of a switch. Installation is easier than ever with the twist lock diffuser that can be removed for installation. The di…
The RSDS-M Surface Mount Downlight with PIR Motion Sensor offers a thin installation solution that provides automatic on/off control. Select the CCT (3000/4000/5000K) with the flip of a switch. Installation is easier than ever with the twist lock diffuser that can be removed for installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Perfect for bringing even illumination with automatic controls to closets, pantries, and similar areas.
- Integrated PIR motion sensor with auto on and auto off
- Three selectable color temperatures (3000K/4000K/5000K)
- Uniform, glare-free light with UV-stabilized diffuser
- Durable aluminum body; cETLus wet listed; RoHS compliant
- Twist-lock diffuser and keyhole mount for quick 4” junction box installation
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -

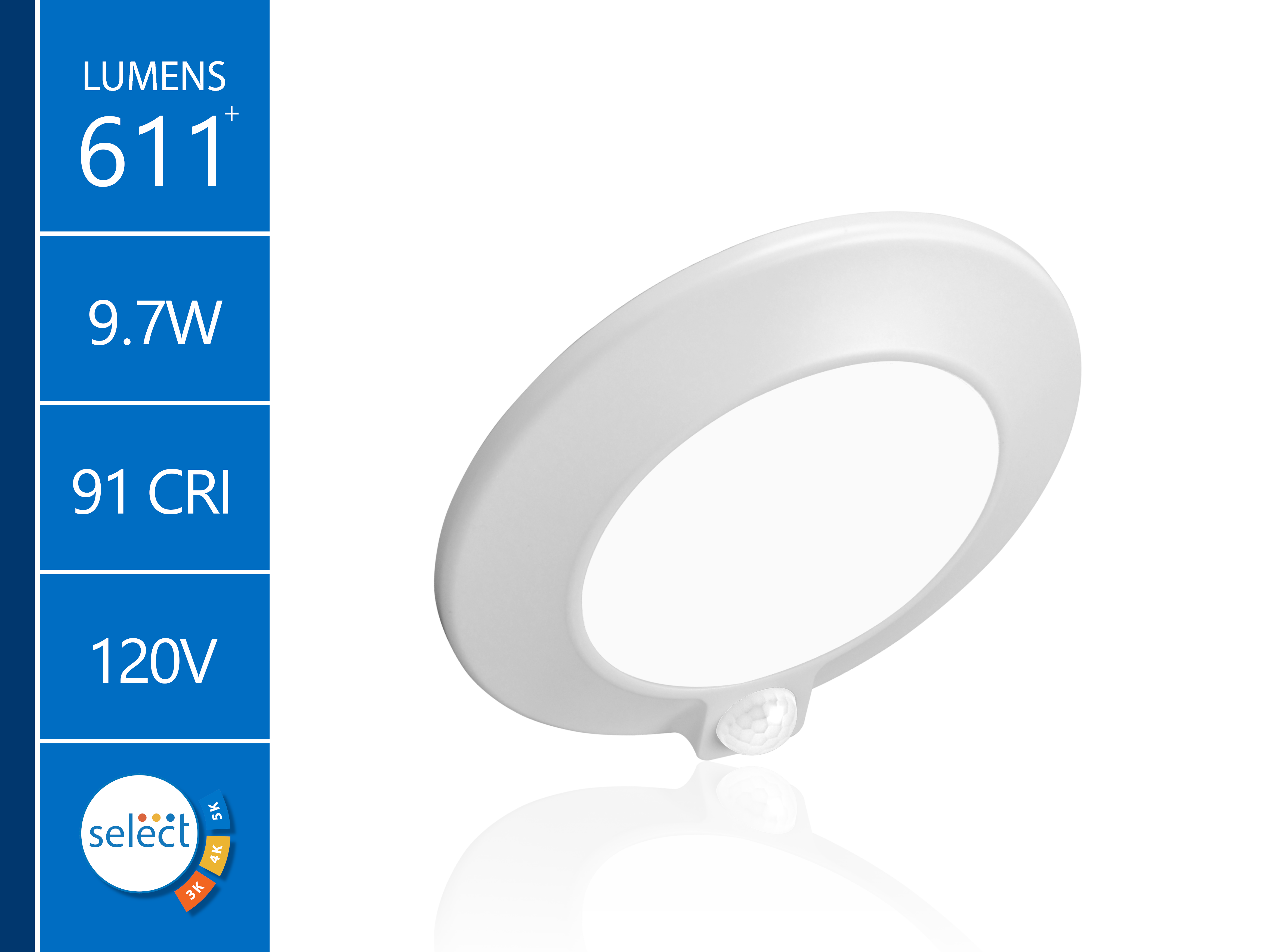

Lumens611 - 658 lm
-
Wattage9.7 - 9.7 W
Listings & certifications
- cETLus Intertek Listed
- Title 24
- JA8
- Airtight (ASTM E283)
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
Features
Construction
- Durable aluminum body

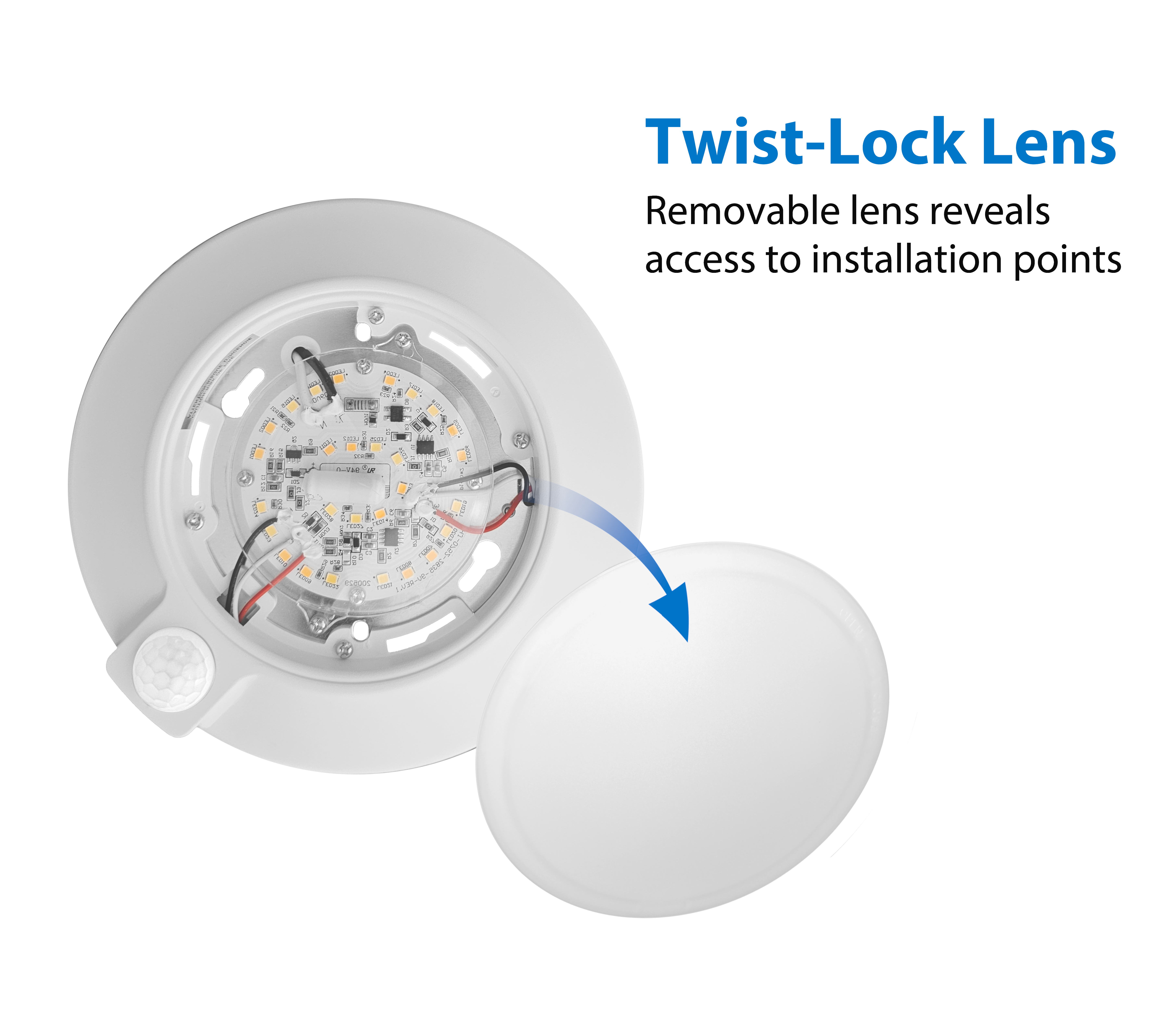

- Twist-lock diffuser allows for easy removal during installation
Optical System

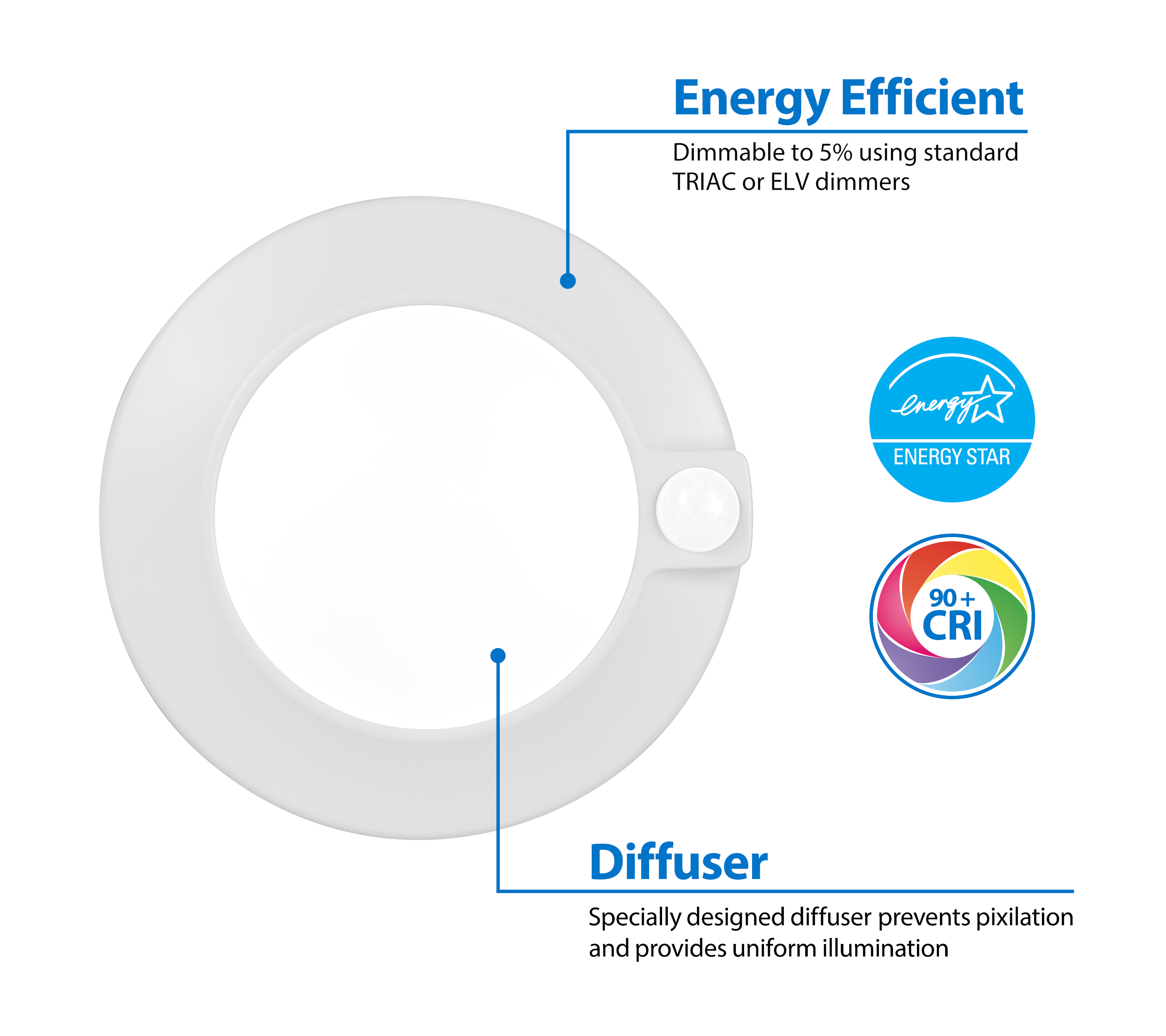

- Molded polymer, UV stabilized diffuser maximizes light output
- Convex diffuser creates uniform light distribution while reducing glare
- Offered in 3CCT selection of 3000K, 4000K, and 5000K
Electrical
- Input voltage of 120VAC, 60Hz

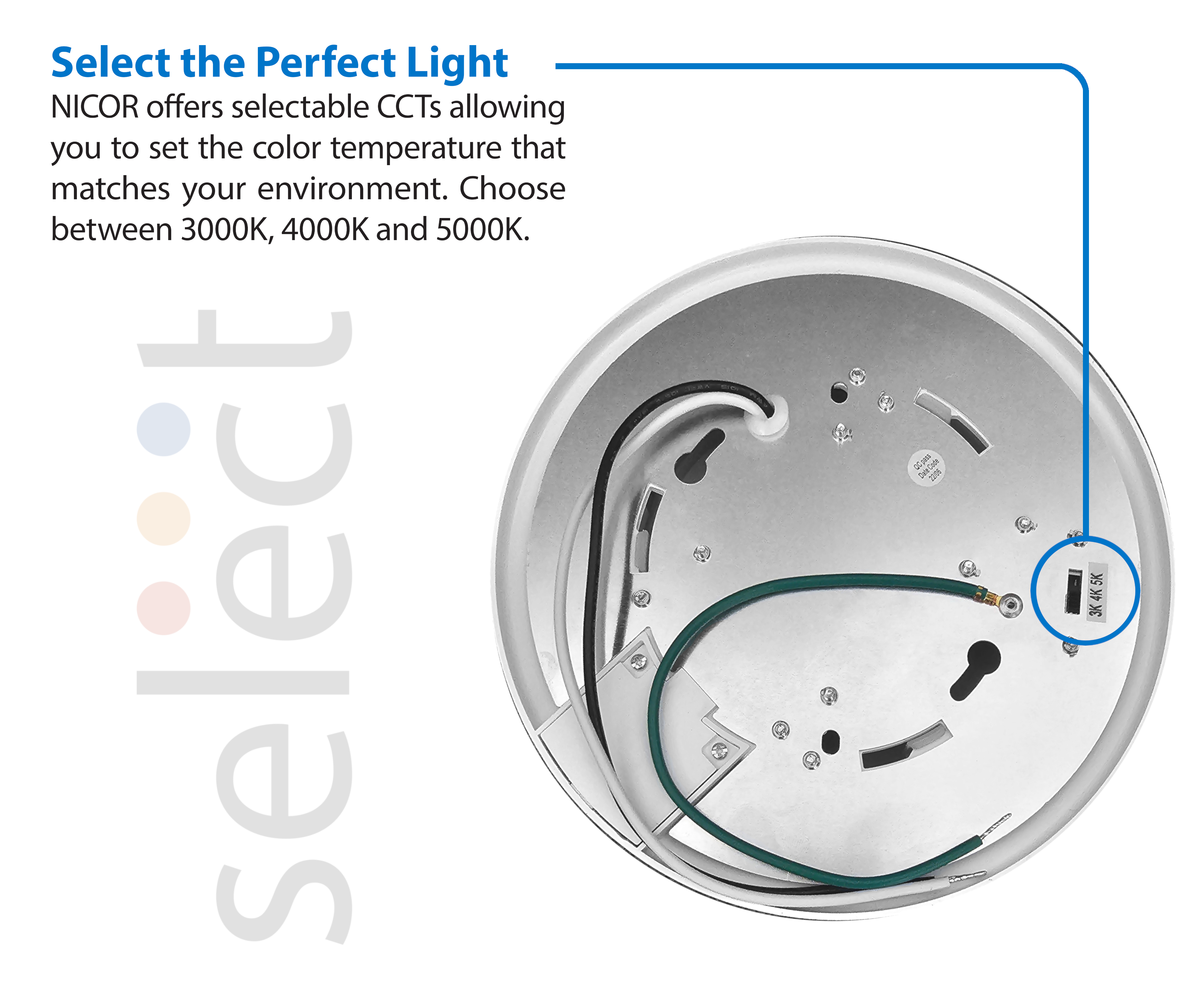

- CCT switch located on back of fixture

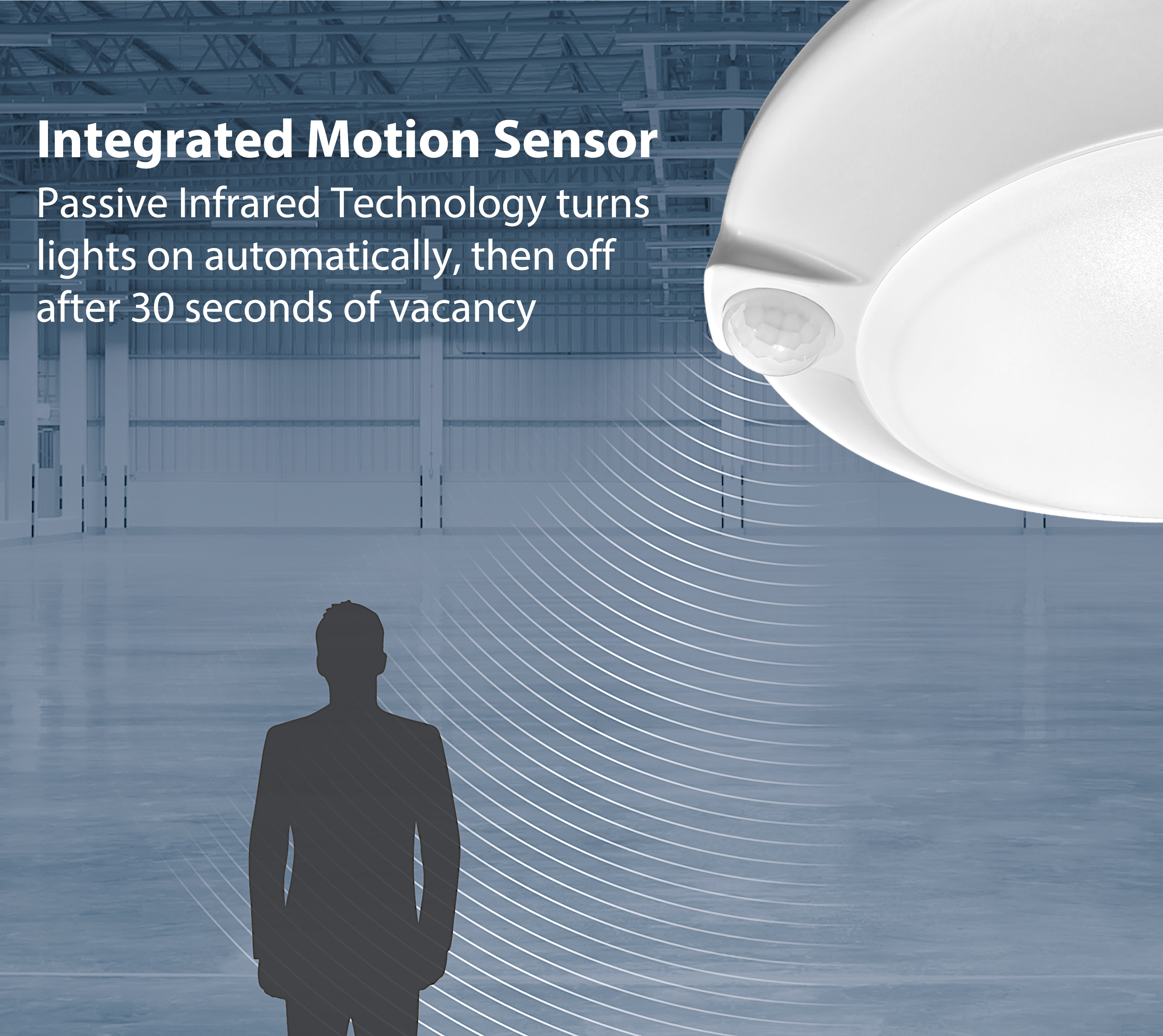

- Integrated PIR motion sensor. Automatic ON with 30 second wait time to OFF
- Dimmable to 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Easy installation in any 4” pancake, 4” non-metallic or 4/O junction box
- Keyhole mounting slots allow for quick installation to junction boxes
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Listed for wet locations
- CA Title 24/JA8 Compliant
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
