NLC BLUETOOTH MICROWAVE SENSOR KIT

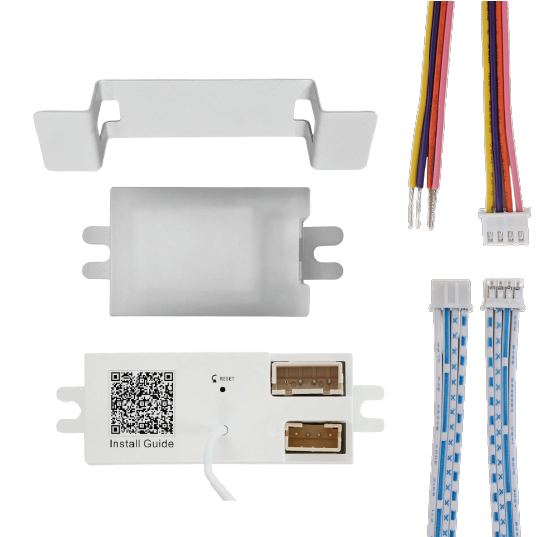

The SENSORMWBT1KIT consists of a Microwave Sensor module, a Bluetooth Communications module, mounting bracket and wiring harness. The Bluetooth module enables Luminaire Level Lighting Control (LLLC) capabilities with integrated “sensor ready” functionality. It is powered by 12VDC input from dimmable dim-to-off LED drivers and provides connectivity to non-Bluetooth, eco-sensors. The sensor module provides Microwave Occupancy detection with adjustable sensitivity inputs.



Categories: Tags:

Specifications

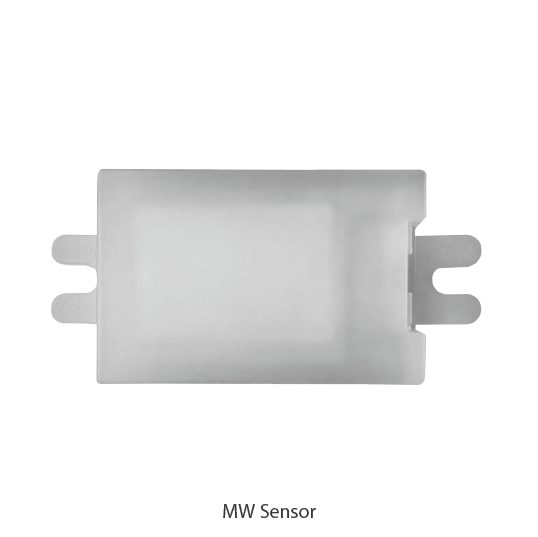

  • Microwave occupancy detection with adjustable 0–100% sensitivity, capturing motion from subtle to large-scale activity

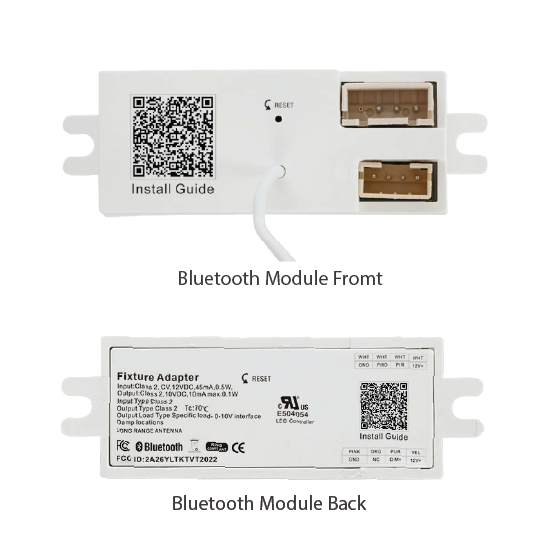

  • Integrated Bluetooth 5.0 module for Luminaire Level Lighting Control (LLLC)
  • Programmable via the NICOR NLC app — no field calibration required
  • Compatible with LED 0–10V, dim-to-OFF drivers; 12VDC input
  • Detection range: 20–40ft depending on mounting height
  • Bluetooth transmission range up to 200ft
  • Operating temperature: -22°F to +131°F (-30°C to +55°C)

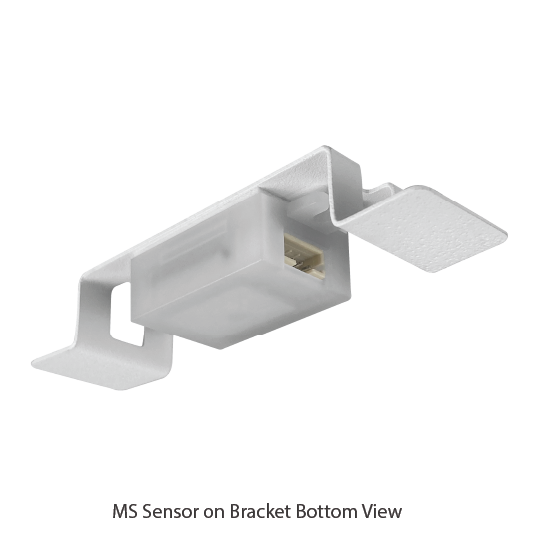

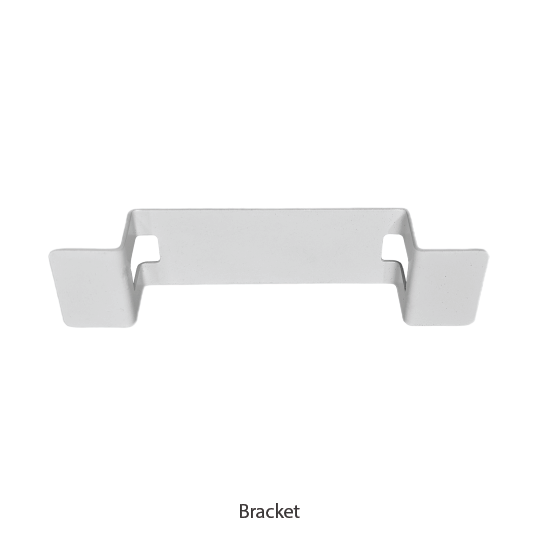

  • Includes sensor module, Bluetooth module, powder-coated steel bracket, and wiring harness

Part Number:

SENSORMWBT1KIT

Downloads

– Spec Sheet
– Installation Instructions
