SNAPINSENSOR Series
Snap-In Passive Infrared Occupancy Sensor
Product description

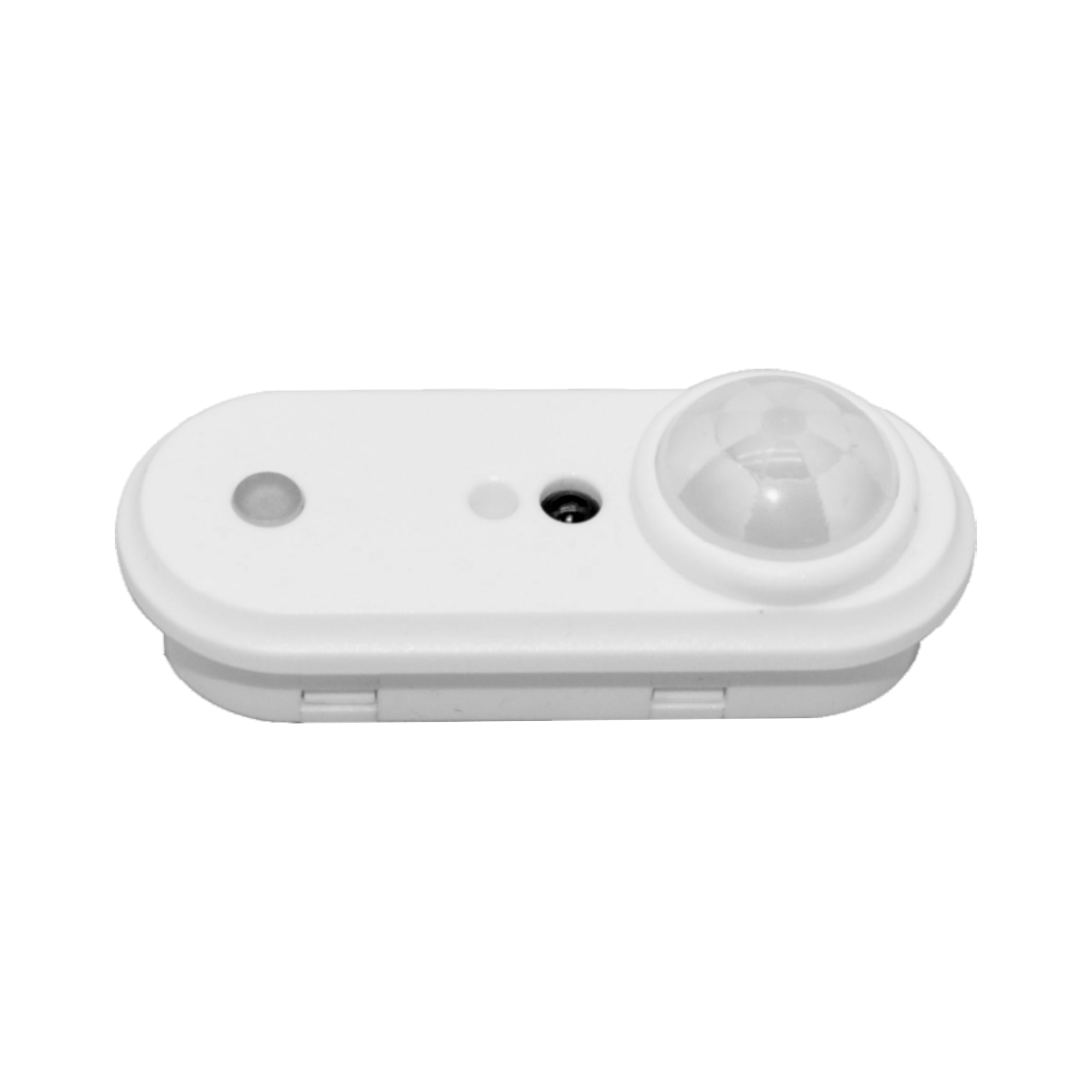

The SNAPINSENSORPIR1WH is passive infrared occupancy bi-level sensor. Compatible with select NICOR fixtures, the sensor mounts to a convenient snap-in feature and provides multi-level control based on motion and/or daylight contribution. All controls parameters (Hold time, task light level, stand-by…
The SNAPINSENSORPIR1WH is passive infrared occupancy bi-level sensor. Compatible with select NICOR fixtures, the sensor mounts to a convenient snap-in feature and provides multi-level control based on motion and/or daylight contribution. All controls parameters (Hold time, task light level, stand-by level, stand-by time) are adjustable via a wireless remote control.
- PIR occupancy sensor provides bi-level lighting control based on motion and daylight contribution
- Snap-in mounting design installs easily into compatible fixture frames or lenses
- Supports 0-10V dim-to-off drivers for energy-saving lighting control
- Adjustable sensitivity, hold time, standby period, and daylight threshold settings
- Compatible with select TGL4, TAC3, TAR3, and WPC4 fixture families
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- RoHS Compliant
- IP20 Ingress Protection
- Damp-Location
Features
Construction
- Polymer housing
- Fire retardent plastic
- IP20 rated
Electrical
- Powered through 4 pin harness
- Input voltage: 10-14VDC
- Compatible with LED 0-10V, dim-to-off driver
- Highly configurable: Detection Sensitivity, Hold time, Stand By Time, Daylight Threshold
- Input Voltage (V): 10-14
- Output Power (W): 0.25
- Sinking Current (mA): 25
- Dimming: 0-10V
Installations
- Eaily snaps into place on fixture frame or lens
- Maximum mounting height of 12Ft
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
- Sensors have default settings. but can be configured via remote (SNAPINMWREMOTE, ordered separately)
Full Listings
- RoHS Compliant
- IP20 Ingress Protection
- Damp-Location
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
