SNAPINSENSOR Series

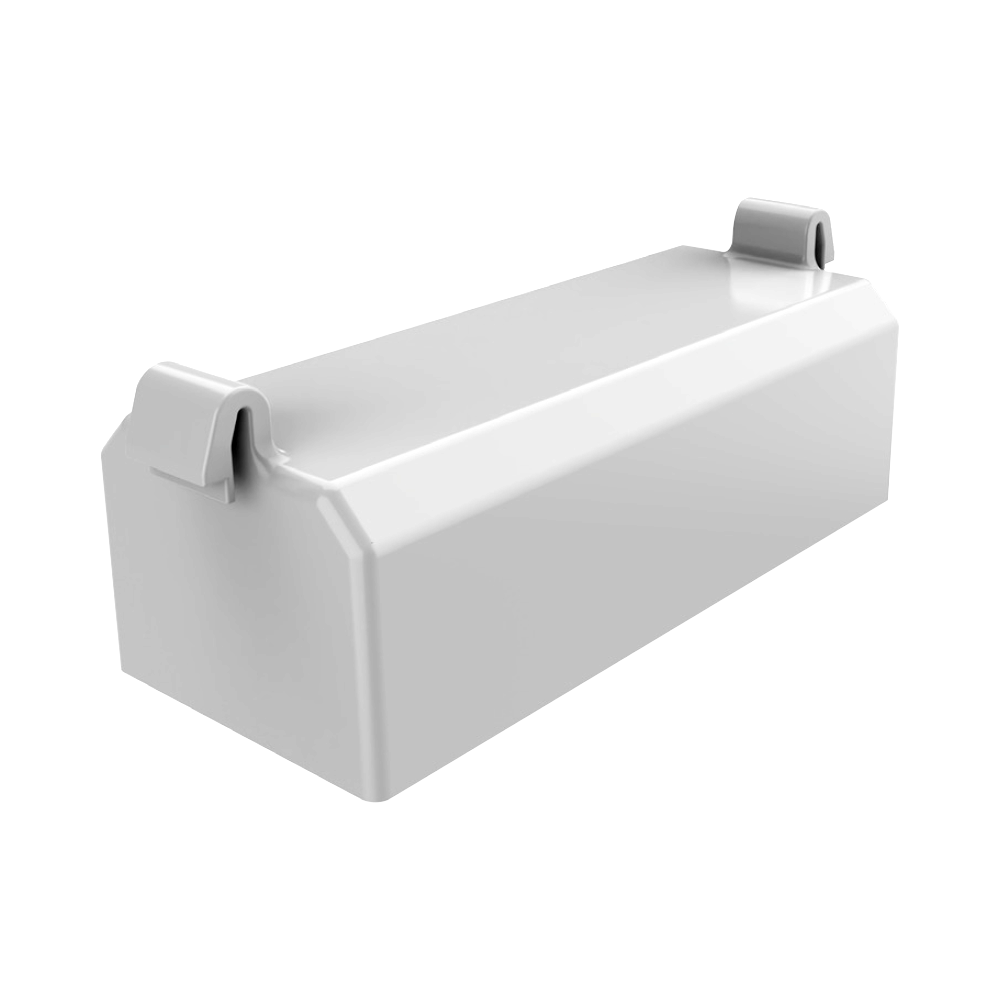

Snap-In Microwave Occupancy Sensor
Product description
The SNAPINSENSORMW Microwave Occupancy Sensor is highly adjustable and comes with an integrated daylight sensor for mounting applications up to 16 feet long. The sensor is designed to fit into the die-cut opening of the LED array lens assembly and is capable of controlling a 0-10V dimmable fixture. …
The SNAPINSENSORMW Microwave Occupancy Sensor is highly adjustable and comes with an integrated daylight sensor for mounting applications up to 16 feet long. The sensor is designed to fit into the die-cut opening of the LED array lens assembly and is capable of controlling a 0-10V dimmable fixture. SNAPINMWREMOTE (sold separately) is used to configure the sensor’s settings.
- Microwave occupancy sensor with integrated daylight sensor for automated lighting control
- Snap-in design enables quick installation into compatible fixture lens assemblies
- Supports 0-10V dim-to-off drivers for occupancy and daylight-based dimming control
- Adjustable detection area, hold time, standby dimming, and daylight thresholds via remote
- Compatible with LSL1 fixtures and the SNAPINMWREMOTE programming remote
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- RoHS Compliant
- IP20 Ingress Protection
- Damp-Location
Features
Construction
- All polymer, fully sealed body
- Snap in tabs for secure mounting
- IP20
- Microwave motion detection with built in daylight sensor
Electrical
- Input voltage: 12VDC
- Input current: 30mA
- Standby power: 36mW
- Compatible with LED 0-10V, dim to OFF driver
- Operating temperature: -30°F ~ 131°F (-30°C ~ 55°C)
- Highly configurable with SNAPINMWREMOTE: Detection Area, Time Delay, Daylight Threshold
Installations
- Die-cut to snap-in

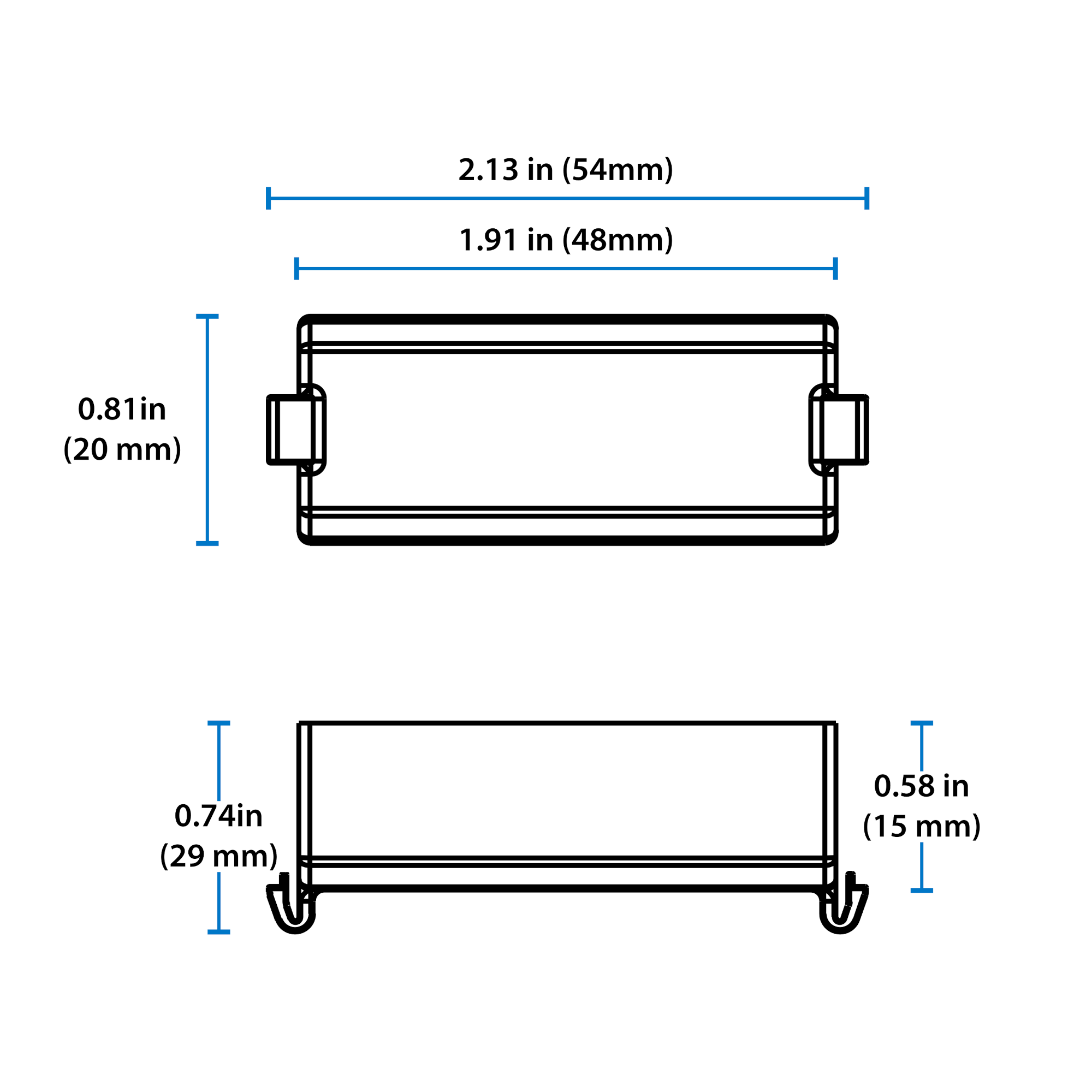

- LED array lens component in the fixture features a 21.5 x 55mm opening
- The LSL1 Fixture includes a 3-wire plug-in connector, making this sensor easy to install
- Maximum mounting height of 16Ft
- Sensors have default settings. but can be configured via remote (SNAPINMWREMOTE, ordered separately)
Full Listings
- RoHS Compliant
- IP20 Ingress Protection
- Damp-Location
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
