STP2 Frosted White LED Step Light

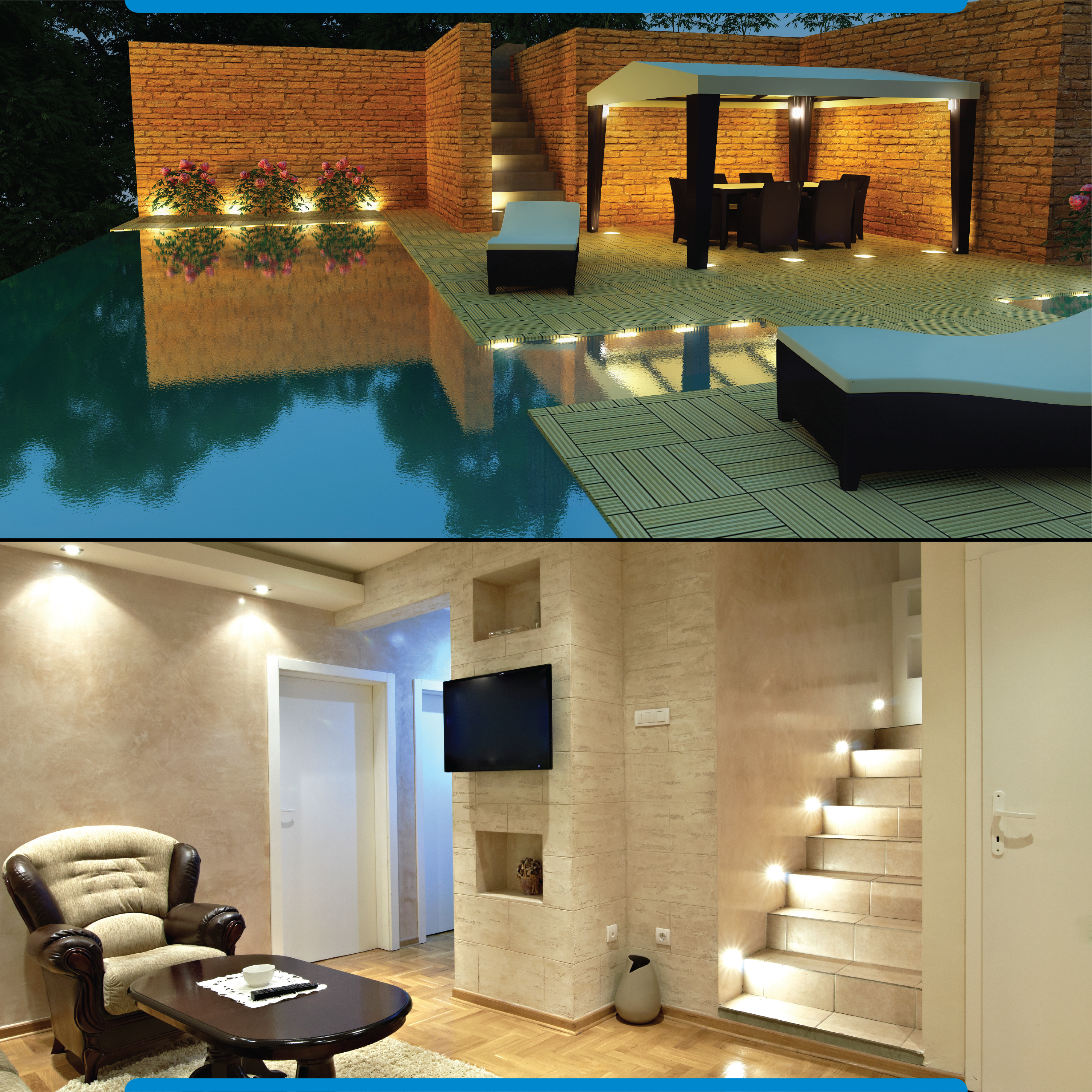

NICOR’s LED Step Lights are a great complement for your residential and commercial projects. This step light not only provides a touch of safety, but it offers a warm, natural glow making it a perfect accent for any project. Need more flexibility? This LED step light has been designed with a photoce…
NICOR’s LED Step Lights are a great complement for your residential and commercial projects. This step light not only provides a touch of safety, but it offers a warm, natural glow making it a perfect accent for any project. Need more flexibility? This LED step light has been designed with a photocell built right in. Now you can save even more energy and have light only when you need it. No need to turn on a switch, this fixture does it for you. For a truly customizable choice, this LED step light also offers paintable faceplates making it versatile for any residential or commercial application. Wet location approved for indoor and outdoor use.
- Selectable dusk-to-dawn operation with built-in photocell
- Uniform, glare-free illumination with frosted or louvered faceplates
- Slim, polymer housing with gasketed, wet location protection
- Compact, low-profile design for indoor or outdoor mounting
- Fits directly into most single gang junction boxes
- Can be mounted in either horizontal or vertical direction
Color Options:
Ordering information
Downloads
Specifications
-

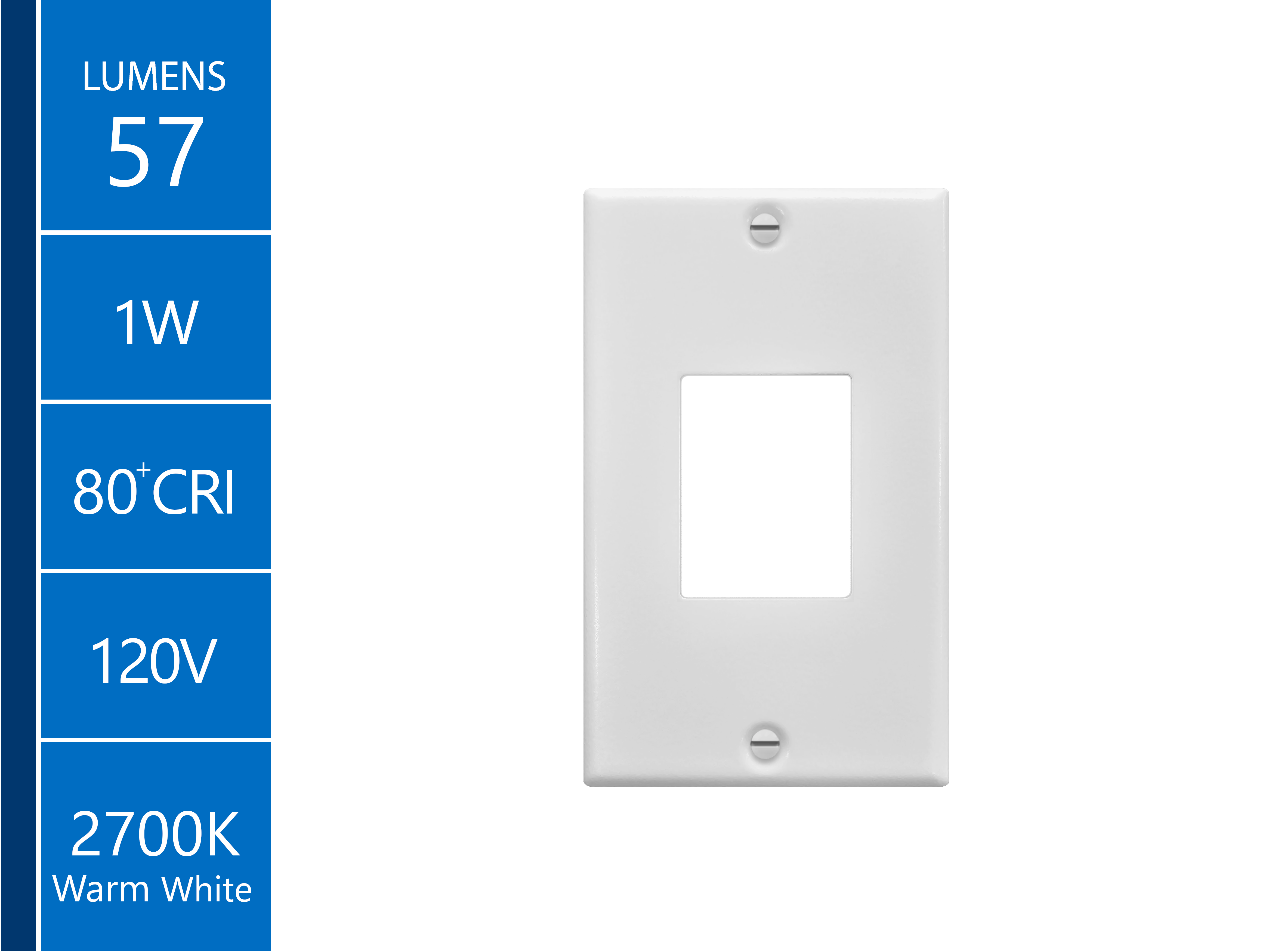

Lifespan>50,000 -
Lumens57
-
Wattage1
Listings & certifications
- cETLus Intertek Listed
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Slim polymer body with gasketing to prevent water instrusion

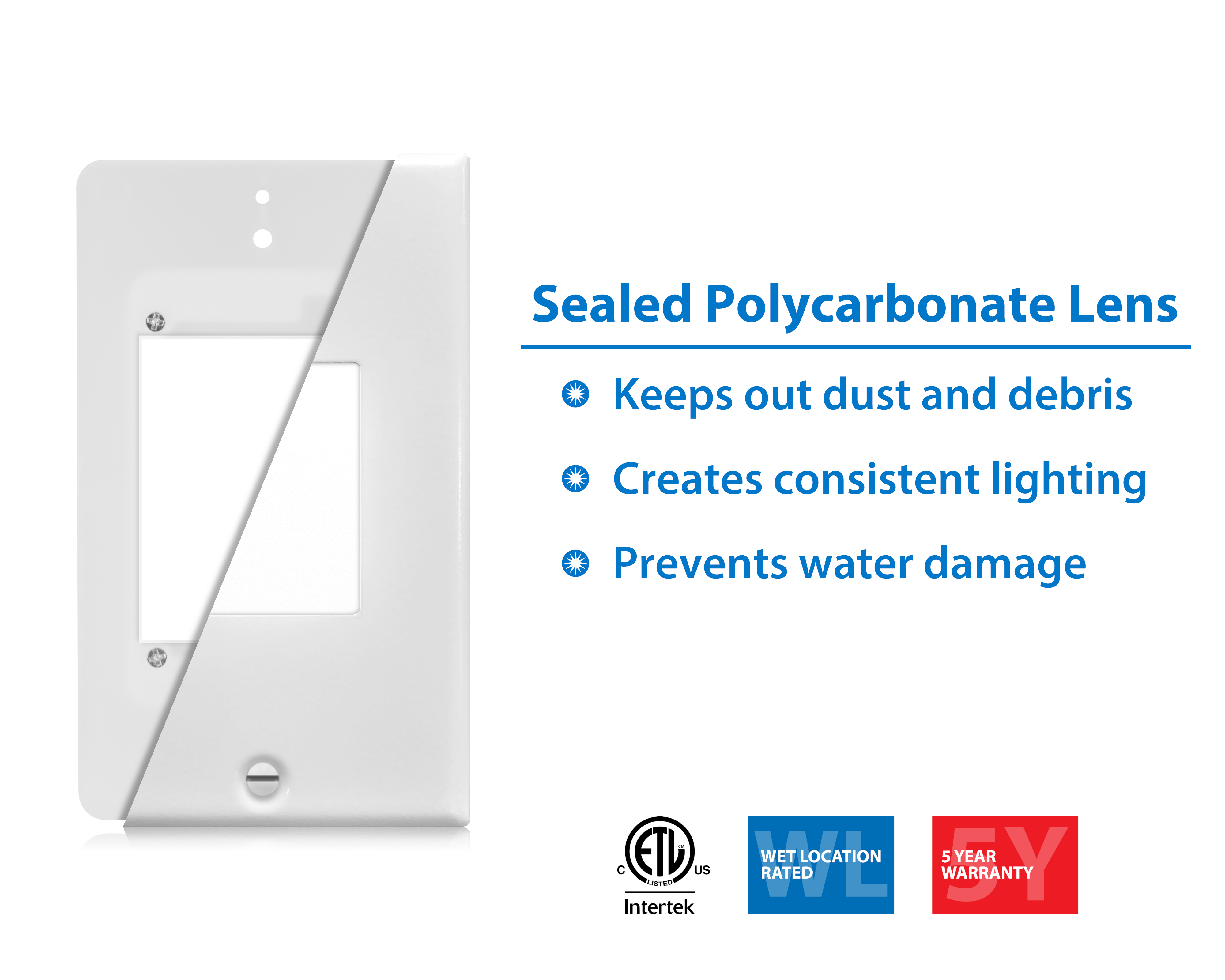

- Polycarbonate diffuser faceplate

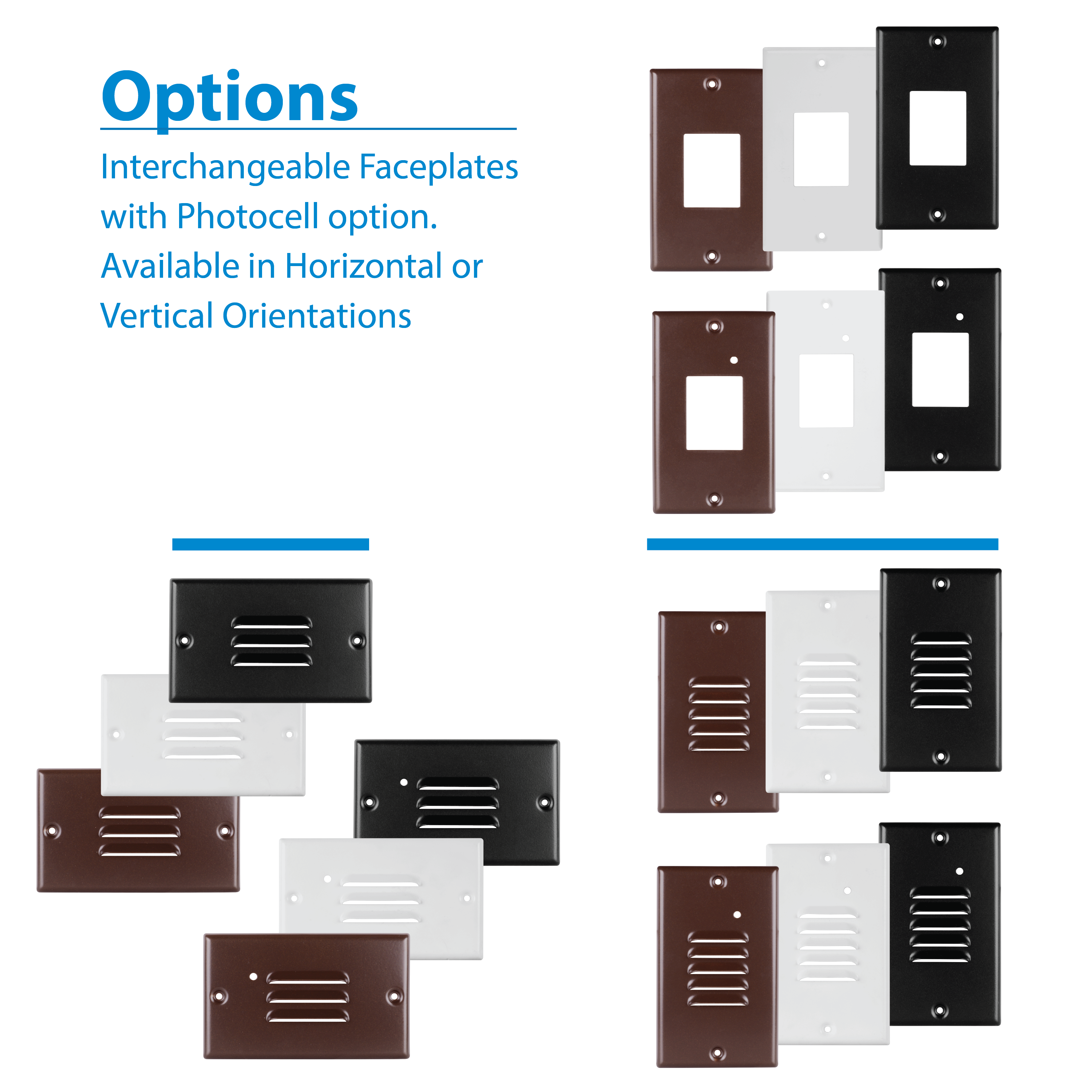

- Powder coated faceplates available in louvered and open face designs
- White powder coat finish equipped standard
- Optional faceplates available in Black and Oil-Rubbed Bronze
Optical System
- Polycarbonate diffuser creates uniform distribution
- Louvered faceplate conceals LED and provide a footpath directed distribution pattern

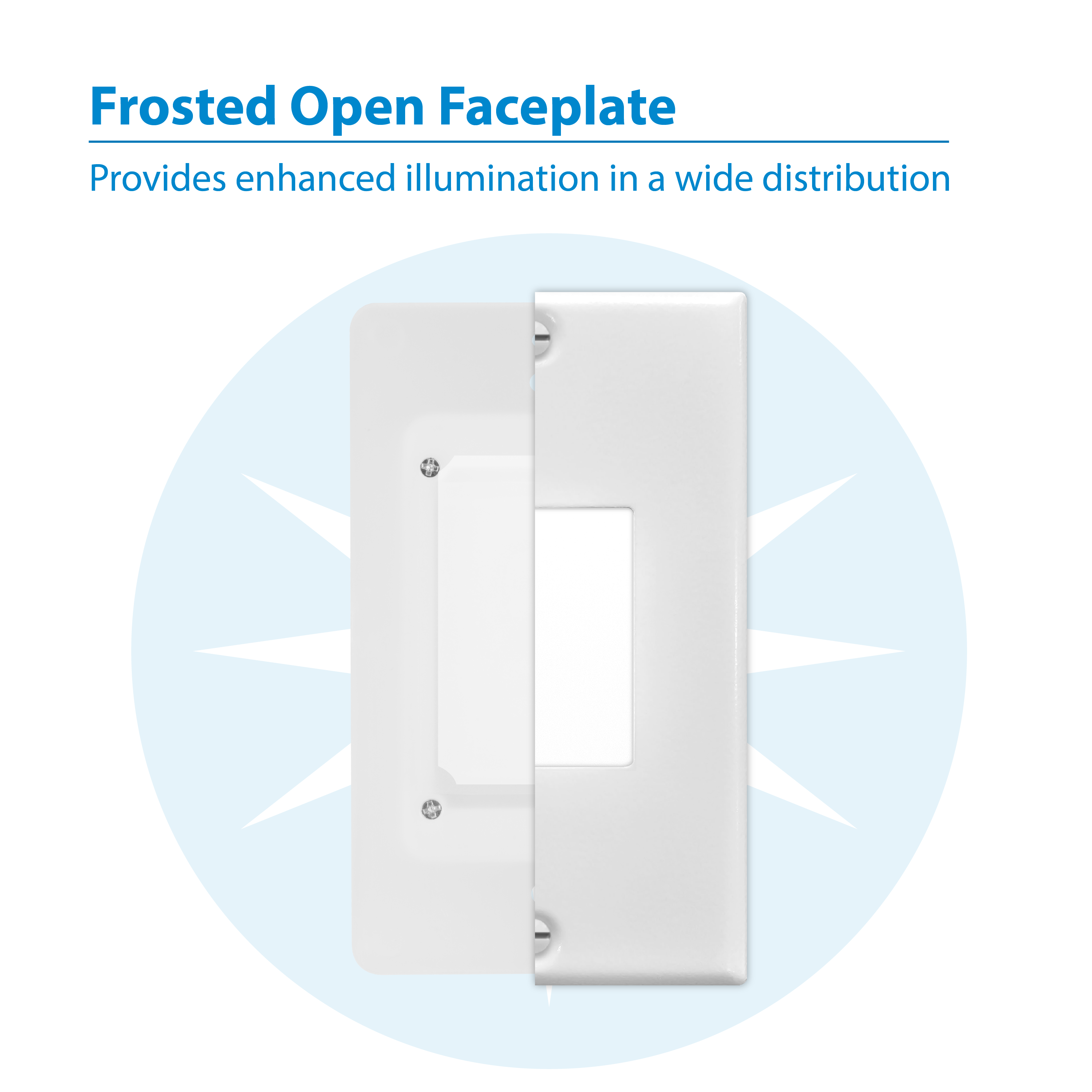

- Frosted open faceplate provide enhanced illumination in a wide distribution
Electrical
- Custom driver design minimizes installation depth
- 6” leads for Hot and Neutral connections. No ground required due to polymer housing.
- Input voltage of 120VAC, 60Hz
- Photocell enabled model provides dusk to dawn operation: light off at day, on at night.
- Dimmable with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Mounts directly in most metal, non-metallic and non-metallic remodel single gang junction boxes
- Faceplates allows fixture to be mounted in horizontal or vertical orientation

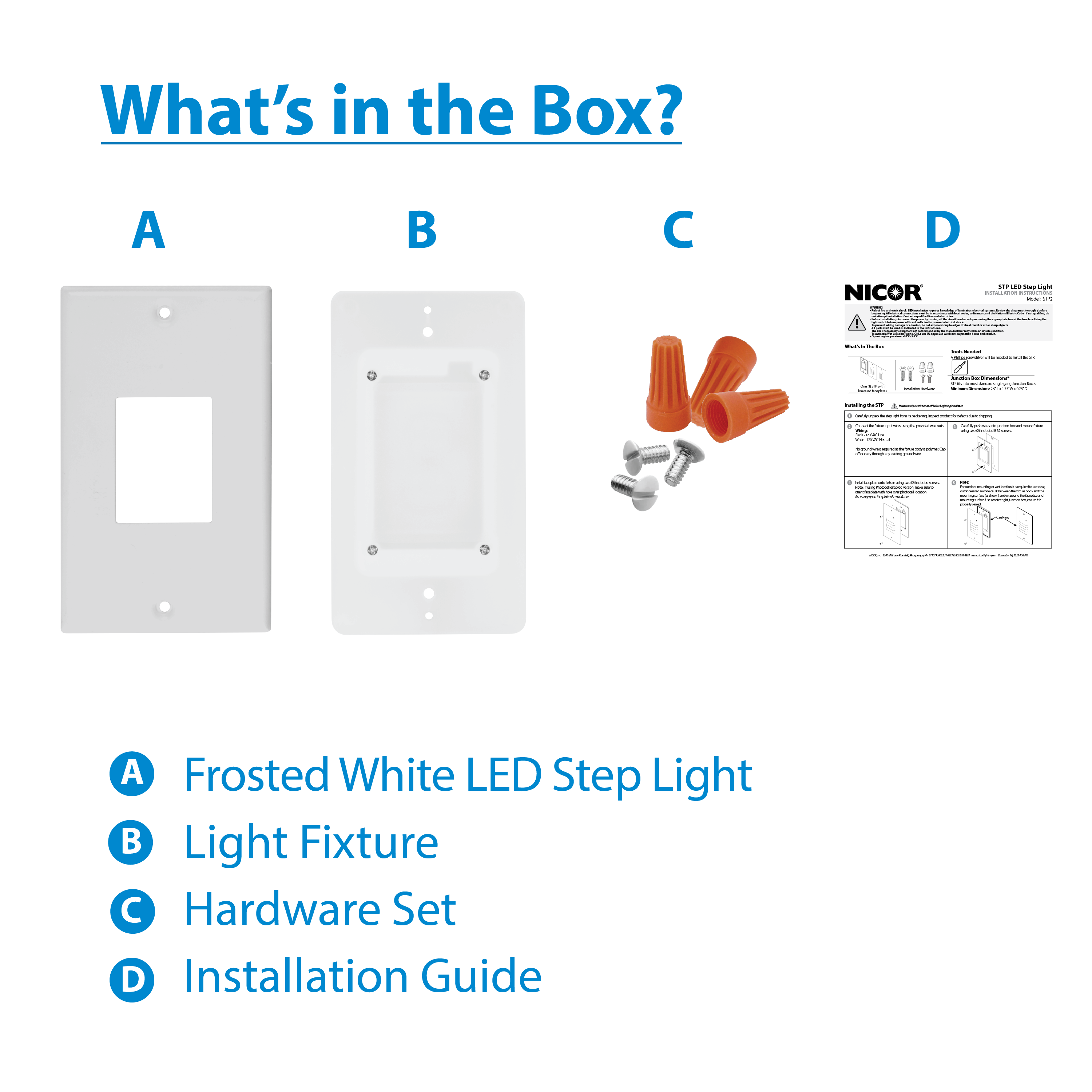

- Includes two wire nuts and mounting screws
- Wet location approved for indoor and outdoor use
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Listed for wet locations
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >50,000 hour
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
