STW Series

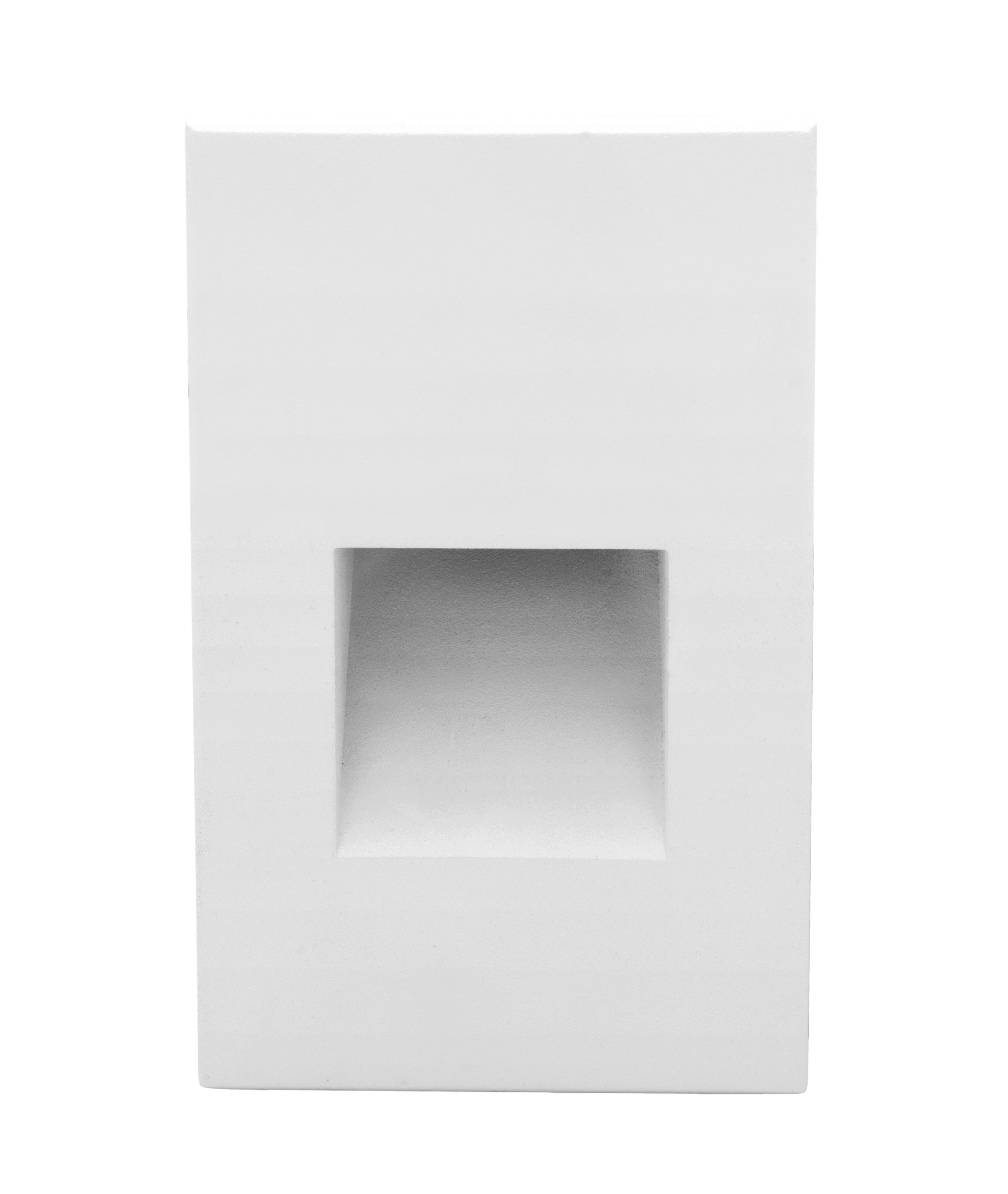

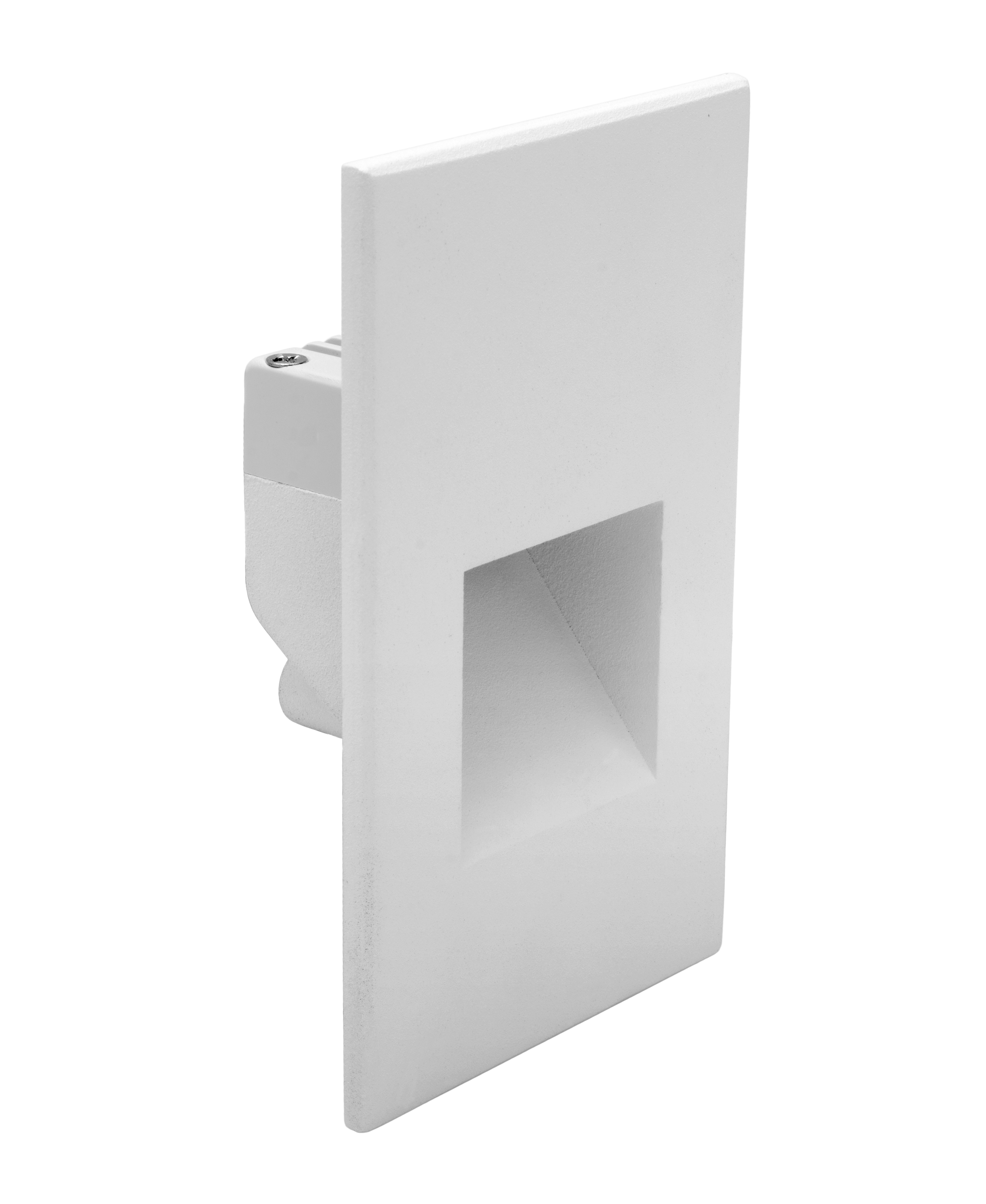

STW Series White Vertical LED Step Light
Product description
NICOR’s Wet Location LED Step Lights are a great compliment for your residential and commercial projects. Increases the safety of walkways, stairways, patios, and balconies. This step light not only provides safety, but it offers a warm, natural glow making it a perfect accent for any project. Creat…
NICOR’s Wet Location LED Step Lights are a great compliment for your residential and commercial projects. Increases the safety of walkways, stairways, patios, and balconies. This step light not only provides safety, but it offers a warm, natural glow making it a perfect accent for any project. Created with Anti-microbial powder coat paint to hinder most bacteria. Available for indoor or outdoor use.
- Architectural LED Step Lights with die-cast aluminum housing
- Vertical model designed for use in metallic and non-metallic 2” x 4” J-Boxes
- Horizontal model designed for use in non-metallic 2” x 4” J-Boxes
- Available in 3000K and rated for >50,000 hours of operation
- Utilizes high performing LEDs with 80 CRI for quality light output
- Powder coat finish available in white, black, or bronze
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens35
-
Wattage3
Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- Wet-Location

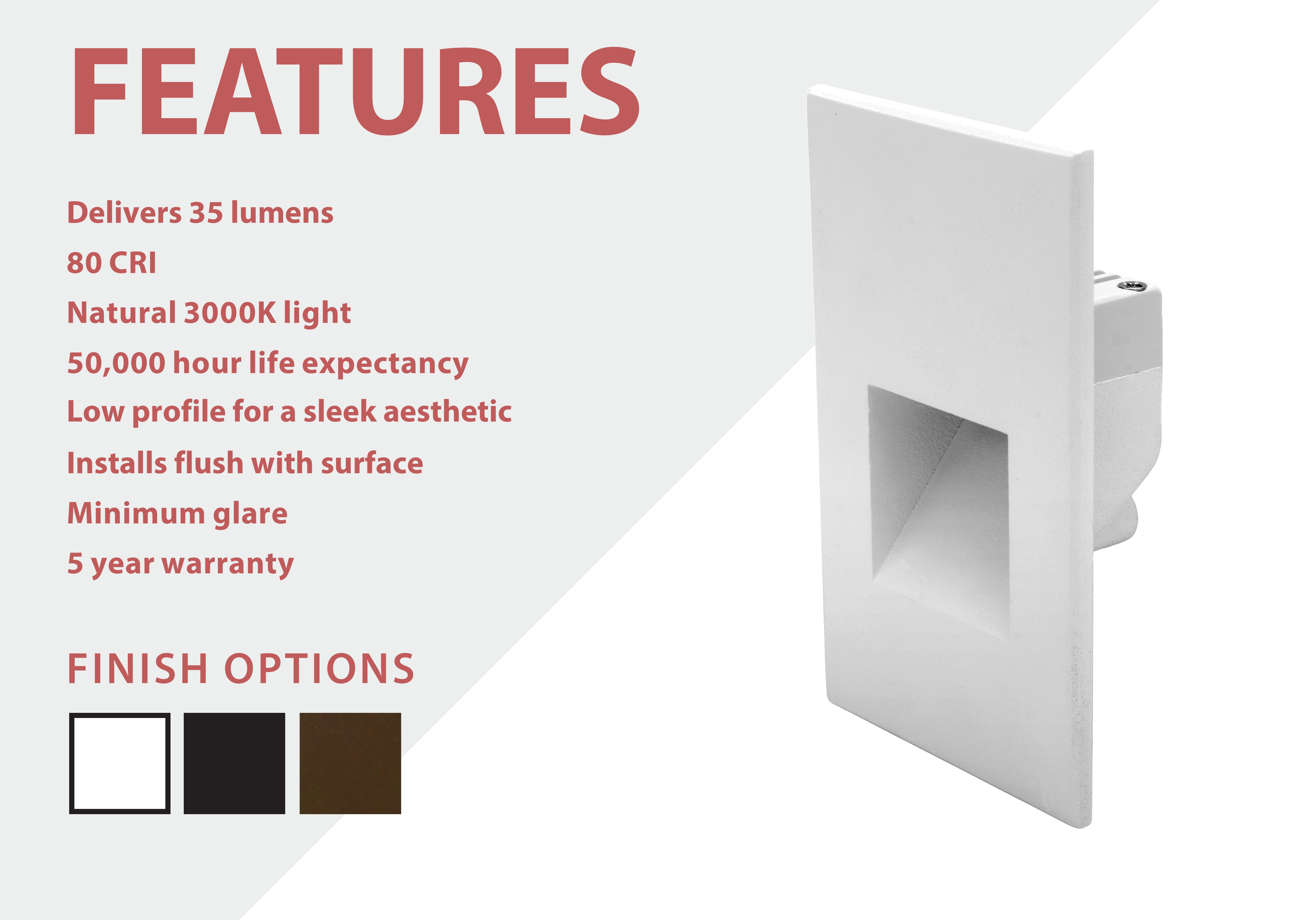

Features
Construction
- Aluminum die-cast housing routes heat away from electrical components
- Vertical model designed for use in metallic and non-metallic 2” x 4” J-Boxes
- Horizontal model designed for use in non-metallic 2” x 4” J-Boxes
- Designed to have no visible hardware, and install flush to the surface
- Powder coat finish available in white, black, or bronze

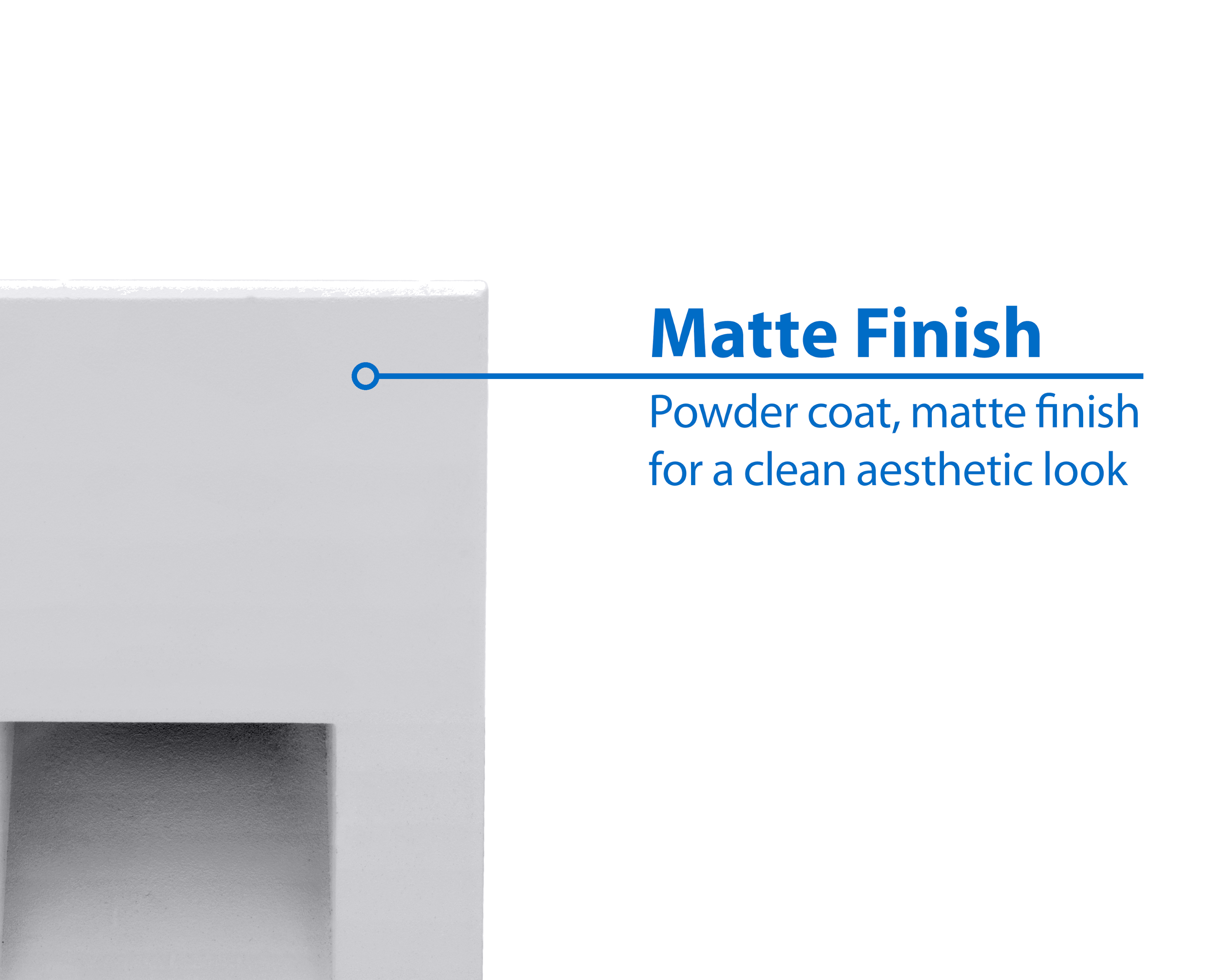

- Matte finish
Optical System
- Diffuser creates uniform light distribution that reduces glare while maximizing lumen output
Electrical

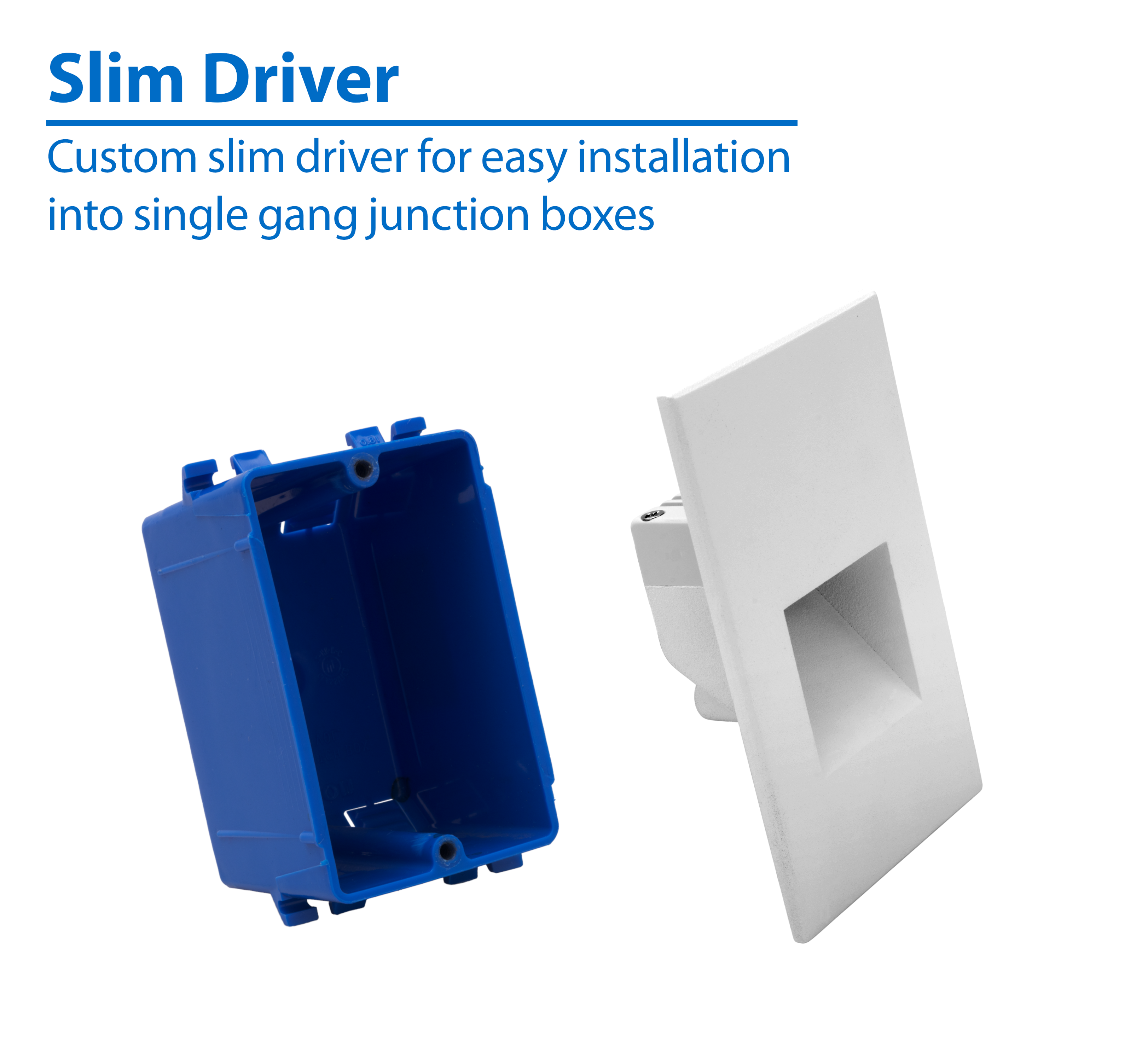

- Custom slim driver minimizes installation width
- Input voltage of 120VAC, 60Hz
- Operating temperature of -4°F to 113°F (-20°C to 45°C)
- Horizontal model input power of 5.4W
- Vertical model input power of 3W
- Available in 3000K CCT
- Life rated hours >50,000
- Utilizes high performing LEDs with 80 CRI
- Vertical model luminous flux of 35 lumens
- Horizontal model luminous flux of 75 lumens
Installations

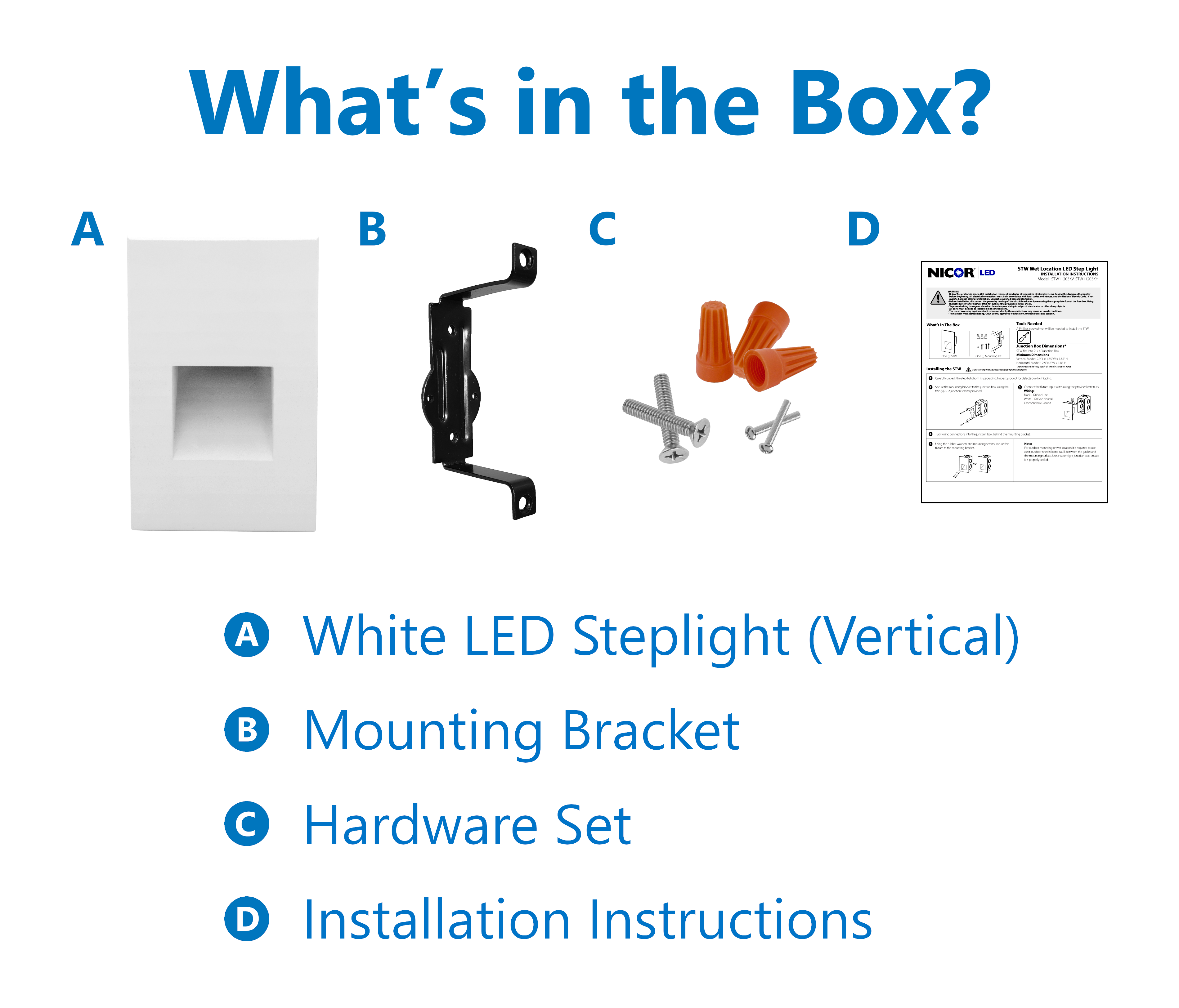

- Easy installation, mounting bracket included with fixture

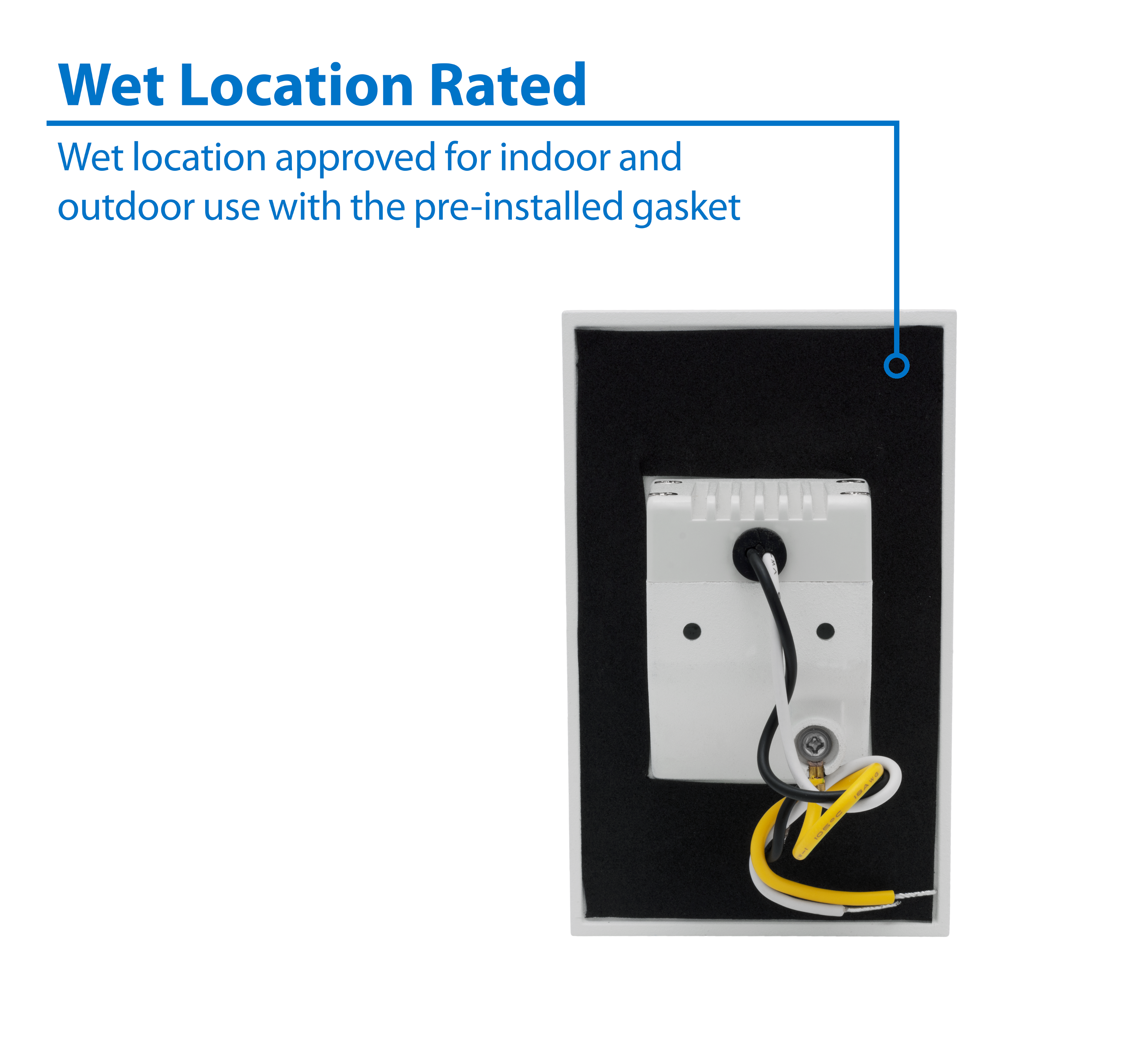

- Wet location approved for indoor and outdoor use. Gasket pre-installed on fixture
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
