LED ULTRA SLIM SURFACE MOUNT

The newest version of the SureFit™ Ultra Slim Surface Mount LED Downlight features increased lumen output and efficiency while keeping the same installation compatibility. The DLF will fit most standard 4/O, 4” non-metallic new construction or remodel J-Boxes. Simply mount the fixture directly to the J-Box using the keyhole mounting slots and two screws. Detachable round steel trims and square die-cast aluminum trims offer a seamless finish in both round and square apertures to enhance the visual aesthetic of any living space. The NICOR SureFit™ is the perfect solution for residential and light commercial spaces including living rooms, bedrooms, home theaters, corridors, office, retail and more.

Patent Pending



Order Yours Now!



Specifications

  • Custom slim driver minimizes installation height
  • Input voltage of 120VAC, 60Hz
  • Dimmable to less than 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
  • Easy installation in most 4/O and 4” non-metallic new construction and remodel J-Boxes

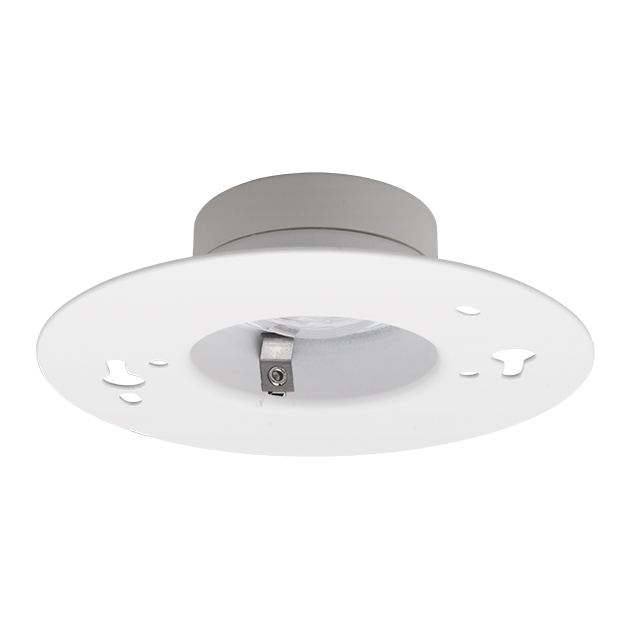

  • Removable trim allows for easy mounting while providing a seamless trim finish

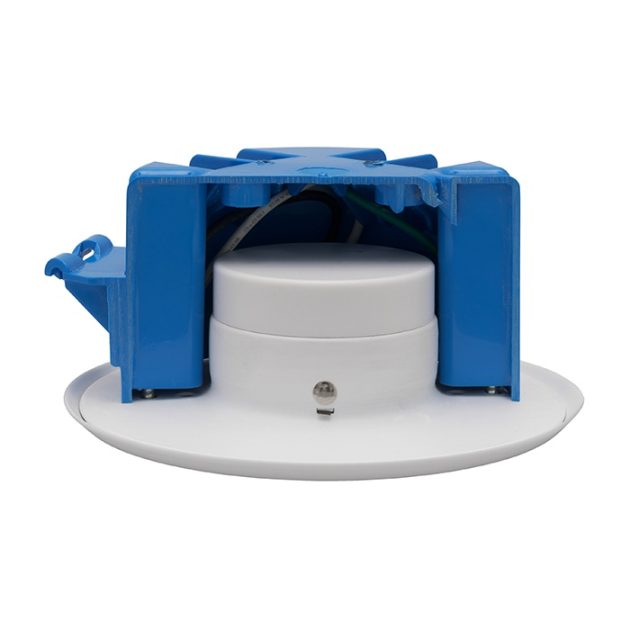

  • Fixture mounts directly to J-Boxes with two screws
  • Keyhole slots allow quick and easy installation
  • Three three-port poke-in connectors included
  • Operating temperature of 0°F to 104°F (-18°C to 40°C)
  • Round and Square Trims in Nickel, Oil-Rubbed Bronze, Black, and White available as accessories (DLF-2-TRIM)
SureFit™ DLFv3
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

706
Lumens

720
Lumens

747
Lumens

756
Lumens

10.1
Input Watts

10.1
Input Watts

10.1
Input Watts

10.1
Input Watts

69.9
lm/W

71.3
lm/W

74.0
lm/W

74.9
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DLF301202KWH
 3000K:DLF301203KWH
 4000K:DLF301204KWH
 5000K:DLF301205KWH
SureFit™ DLFv3
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

706
Lumens

720
Lumens

747
Lumens

756
Lumens

10.1
Input Watts

10.1
Input Watts

10.1
Input Watts

10.1
Input Watts

69.9
lm/W

71.3
lm/W

74.0
lm/W

74.9
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DLF301202KWH
 3000K:DLF301203KWH
 4000K:DLF301204KWH
 5000K:DLF301205KWH
