ULTRA SLIM SURFACE MOUNT LED DOWNLIGHT

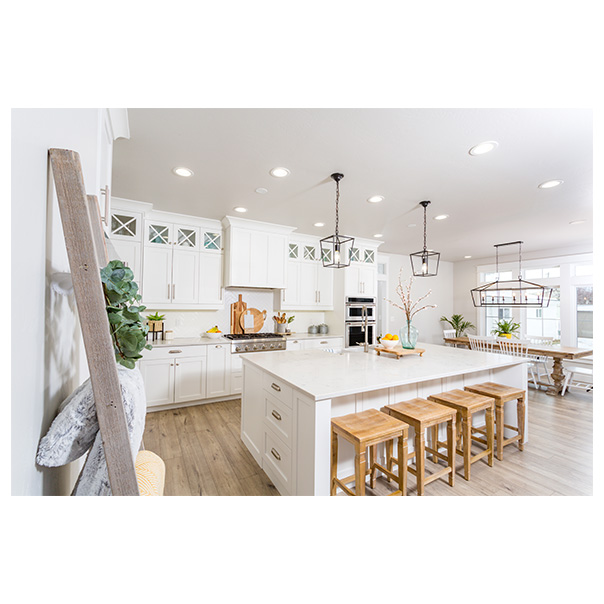

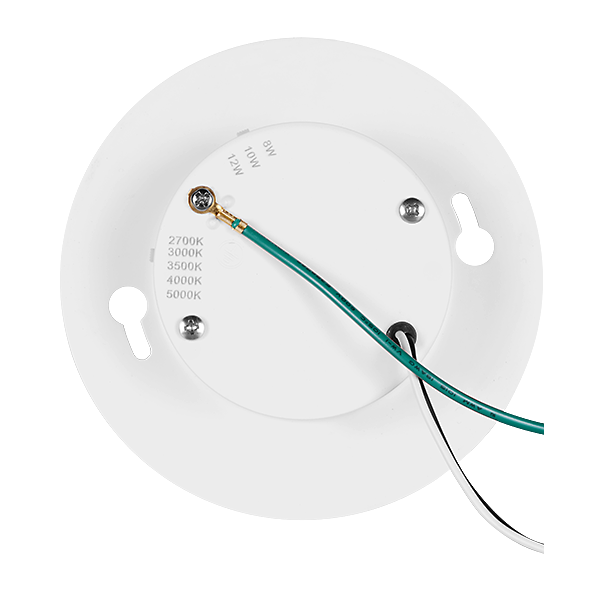

The NICOR SureFit™ Ultra Slim Surface Mount LED Downlight brings selectable lumen output and selectable CCT with an improved design. The DLF will fit a variety of 4/O junction boxes (see Spec Sheet for compatibility list). Mount the fixture directly to the J-Box using the keyhole mounting slots and two screws. Magnetic round, square or wall wash trims, in a variety of colors, offer a seamless finish to enhance the visual aesthetic of any living space. The NICOR SureFit™ is the perfect solution for residential and light commercial spaces including living rooms, bedrooms, home theaters, corridors, office, retail and more.



Order Request

Categories: Tags:

Specifications

  • Polystyrene diffuser creates uniform distribution without sacrificing lumen output
  • Offered with 3 lumen selections of 600, 750 and 900lm
  • Offered with 5CCT selection of 2700K, 3000K, 3500K, 4000K, and 5000K
  • Custom slim driver minimizes installation height
  • Input voltage of 120VAC, 60Hz
  • Dimmable to less than 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • White powder coat finish standard

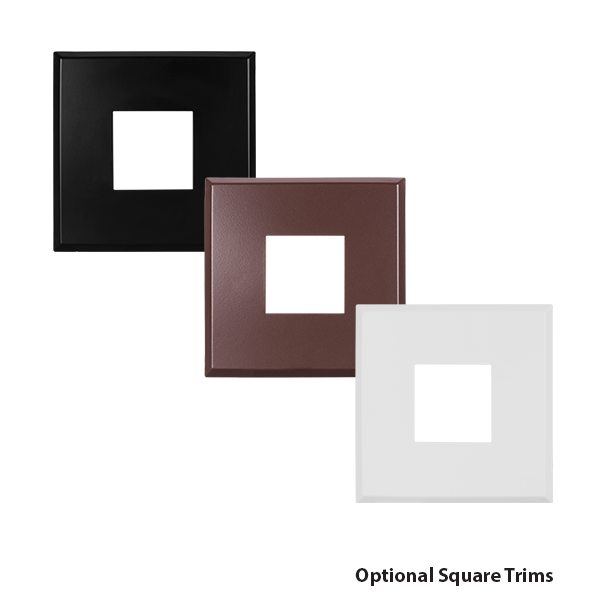

  • Optional magnetic Round, Square, and Wall Wash trims currently available:
    • Black (BK)
    • Oil-Rubbed Bronze (OB)
    • White (WH)

Downloads

– Comparison Sheet
– Sell Sheet
– Compatibility Sheet

– Spec Sheet
– Installation Instructions

– ies Files
– ies Files Wall Wash

SureFit™ DLFv4 - Downlight

2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

625/763/912
Lumens

644/787/940
Lumens

688/840/1004
Lumens

676/825/986
Lumens

618/755/902
Lumens

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

82/81/80
lm/W

87/86/84
lm/W

91/90/88
lm/W

89/89/87
lm/W

84/83/81
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Part Numbers:

Select Fixture: DLF4S120SWH
Optional Round Trims: DLF4-TRIM-RD-xx
Optional Square Trims: DLF4-TRIM-SQ-xx

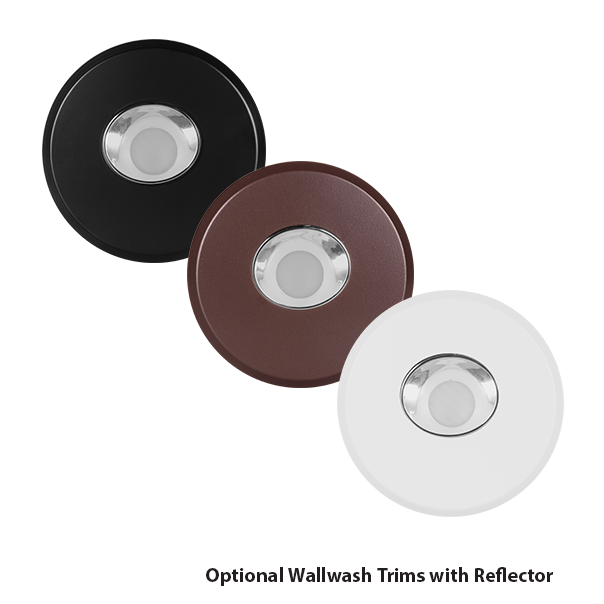

SureFit™ DLFv4 - Downlight with Wall Wash Trim Kit

2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

441/539/644
Lumens

455/556/664
Lumens

486/593/709
Lumens

477/582/696
Lumens

437/533/637
Lumens

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

58/57/56
lm/W

62/61/59
lm/W

64/64/62
lm/W

63/63/61
lm/W

59/59/57
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Part Numbers:

Select Fixture: DLF4S120SWH
Wallwash Trim: DLF4-TRIM-WW-RD-xx
Reflector: DLF4-WW-REFLECTOR
Wallwash Trim Kit: DLF4-WW-KIT-RD-xx (includes Trim and Reflector)
SureFit™ DLFv4 - Downlight



2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

625/763/912
Lumens

644/787/940
Lumens

688/840/1004
Lumens

676/825/986
Lumens

618/755/902
Lumens

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

82/81/80
lm/W

87/86/84
lm/W

91/90/88
lm/W

89/89/87
lm/W

84/83/81
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Part Numbers:

Select Fixture: DLF4S120SWH
Optional Round Trims: DLF4-TRIM-RD-xx
Optional Square Trims: DLF4-TRIM-SQ-xx

SureFit™ DLFv4 - Downlight with Wall Wash Trim Kit



2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

441/539/644
Lumens

455/556/664
Lumens

486/593/709
Lumens

477/582/696
Lumens

437/533/637
Lumens

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

8/10/12
Input Watts

58/57/56
lm/W

62/61/59
lm/W

64/64/62
lm/W

63/63/61
lm/W

59/59/57
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Part Numbers:

Select Fixture: DLF4S120SWH
Wallwash Trim: DLF4-TRIM-WW-RD-xx
Reflector: DLF4-WW-REFLECTOR
Wallwash Trim Kit: DLF4-WW-KIT-RD-xx (includes Trim and Reflector)
