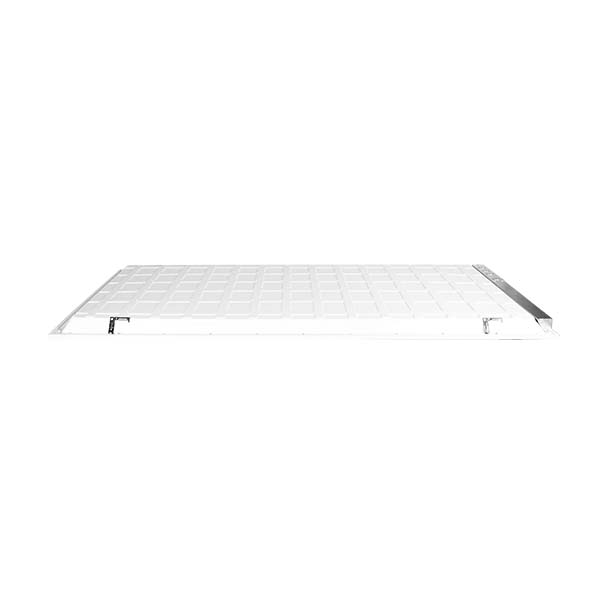

LED BACKLIT TROFFER

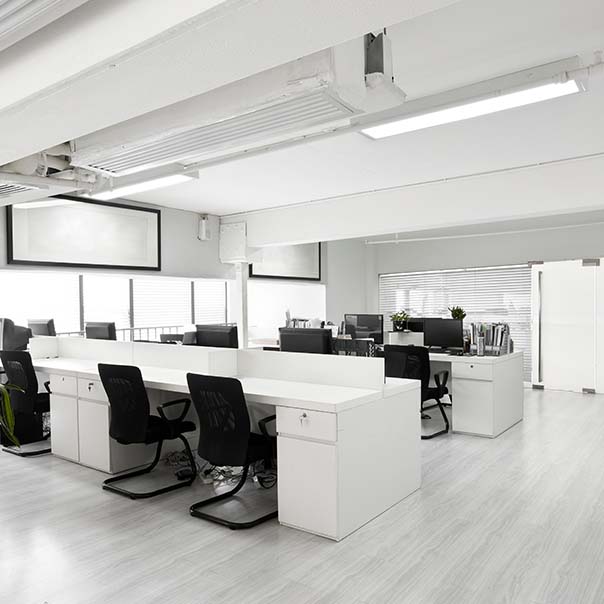

The T7C is a spec grade Troffer that will exceed quality and performance for most commercial spaces. The T7C LED Troffer features a pre-mounted driver and a maintenance-free, fully sealed chamber with seamless aluminum frame to keep bugs and dust out. The fixture utilizes a precision-engineered, textured diffuser to deliver maximum lumen output and optimal uniformity without revealing hot spots or shadowing. Available in 3000K, 4000K, and 5000K correlated color temperatures (CCT). Now with DLC 5.1 Premium certification, ensuring top of the line quality and performance. The T7C is the perfect lighting solution for offices, hospitals, and other commercial spaces.



Categories: Tag:

Specifications

  • Internal batwing distribution lenses
  • High reflectivity internal coating
  • Precision engineered polystyrene diffuser
  • No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
  • 80 CRI for good color definition in public places
  • Input voltage of 120-277VAC
  • Full-range dimming via 1-10VDC controls
  • Power factor > 0.9
  • THD < 20%
  • Luminaire surge protection level designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
  • Operating temperature range: 4°F to 104°F (-20°C to 40°C)

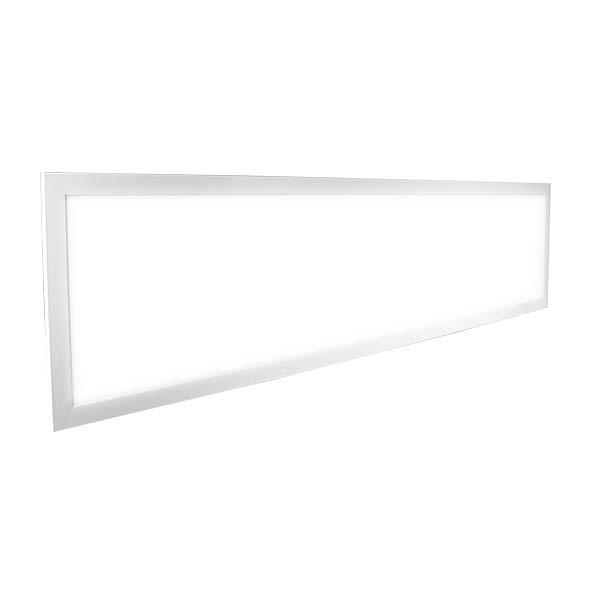

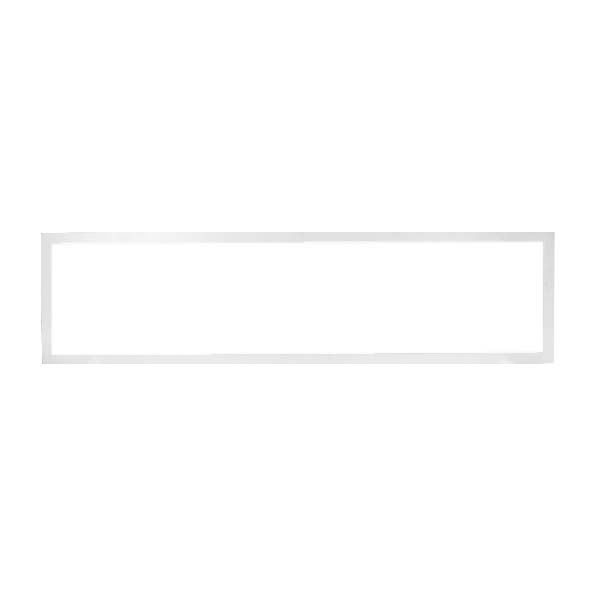

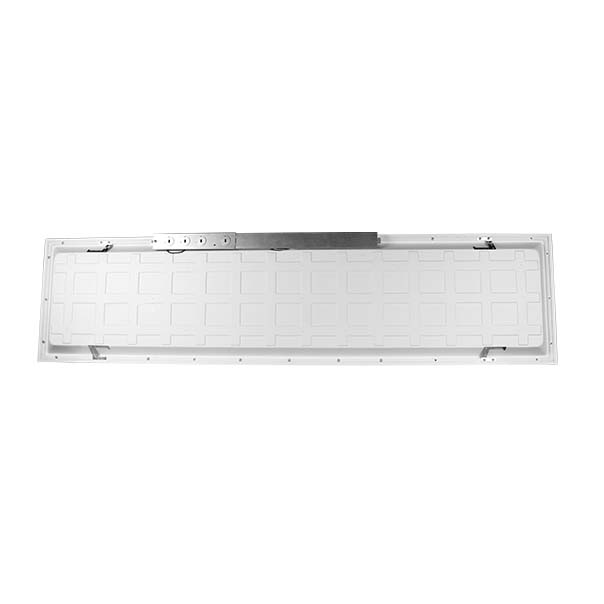

T7C - 1x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3558
Lumens

3590
Lumens

3618
Lumens

27
Input Watts

27
Input Watts

27
Input Watts

129.9
lm/W

131.0
lm/W

132.1
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Numbers:



3500K:

4000K:

5000K:

T7C14HU35

T7C14HU40

T7C14HU50

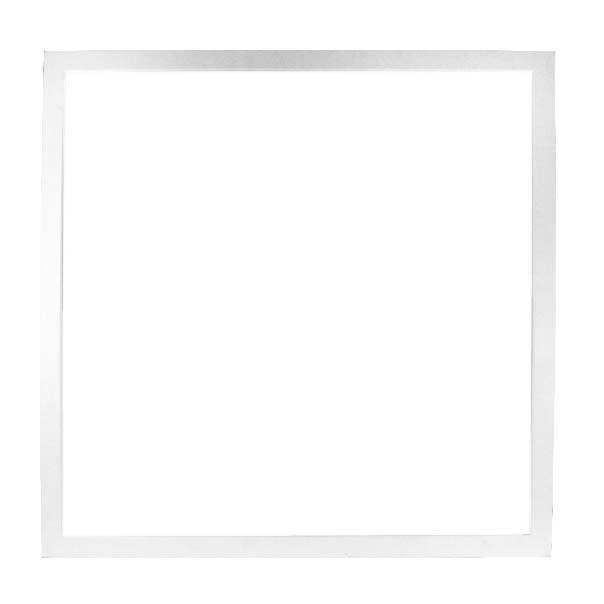

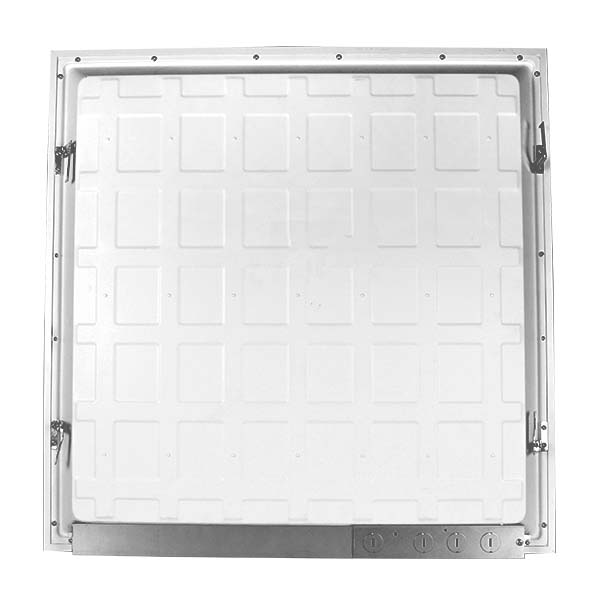

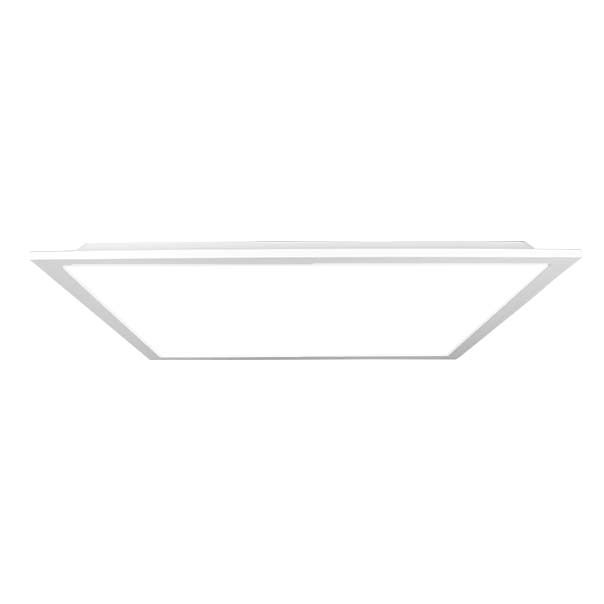

T7C - 2x2
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

4494
Lumens

4525
Lumens

4557
Lumens

35
Input Watts

35
Input Watts

35
Input Watts

129.9
lm/W

130.8
lm/W

131.7
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:



3500K:

4000K:

5000K:

T7C22HU35

T7C22HU40

T7C22HU50

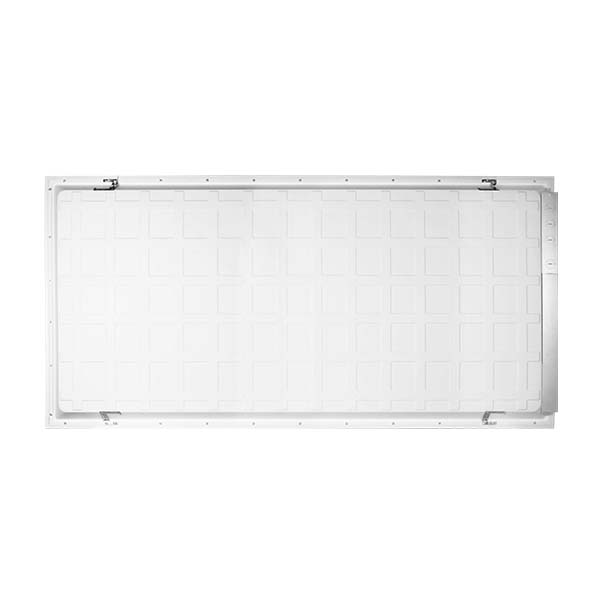

T7C - 2x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

5638
Lumens

5689
Lumens

5734
Lumens

46
Input Watts

46
Input Watts

46
Input Watts

122.0
lm/W

123.1
lm/W

124.1
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:



3500K:

4000K:

5000K:

T7C24HU35

T7C24HU40

T7C24HU50

T7C - 1x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3558
Lumens

3590
Lumens

3618
Lumens

27
Input Watts

27
Input Watts

27
Input Watts

129.9
lm/W

131.0
lm/W

132.1
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Number:



3500K

4000K:

5000K:

T7C14HU35

T7C14HU40

T7C14HU50

T7C - 2x2
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

4494
Lumens

4525
Lumens

4557
Lumens

35
Input Watts

35
Input Watts

35
Input Watts

129.9
lm/W

130.8
lm/W

131.7
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Number:



3500K

4000K:

5000K:

T7C22HU35

T7C22HU40

T7C22HU50

T7C - 2x4
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

5638
Lumens

5689
Lumens

5734
Lumens

46
Input Watts

46
Input Watts

46
Input Watts

122.0
lm/W

123.1
lm/W

124.1
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Number:



3500K

4000K:

5000K:

T7C24HU35

T7C24HU40

T7C24HU50
