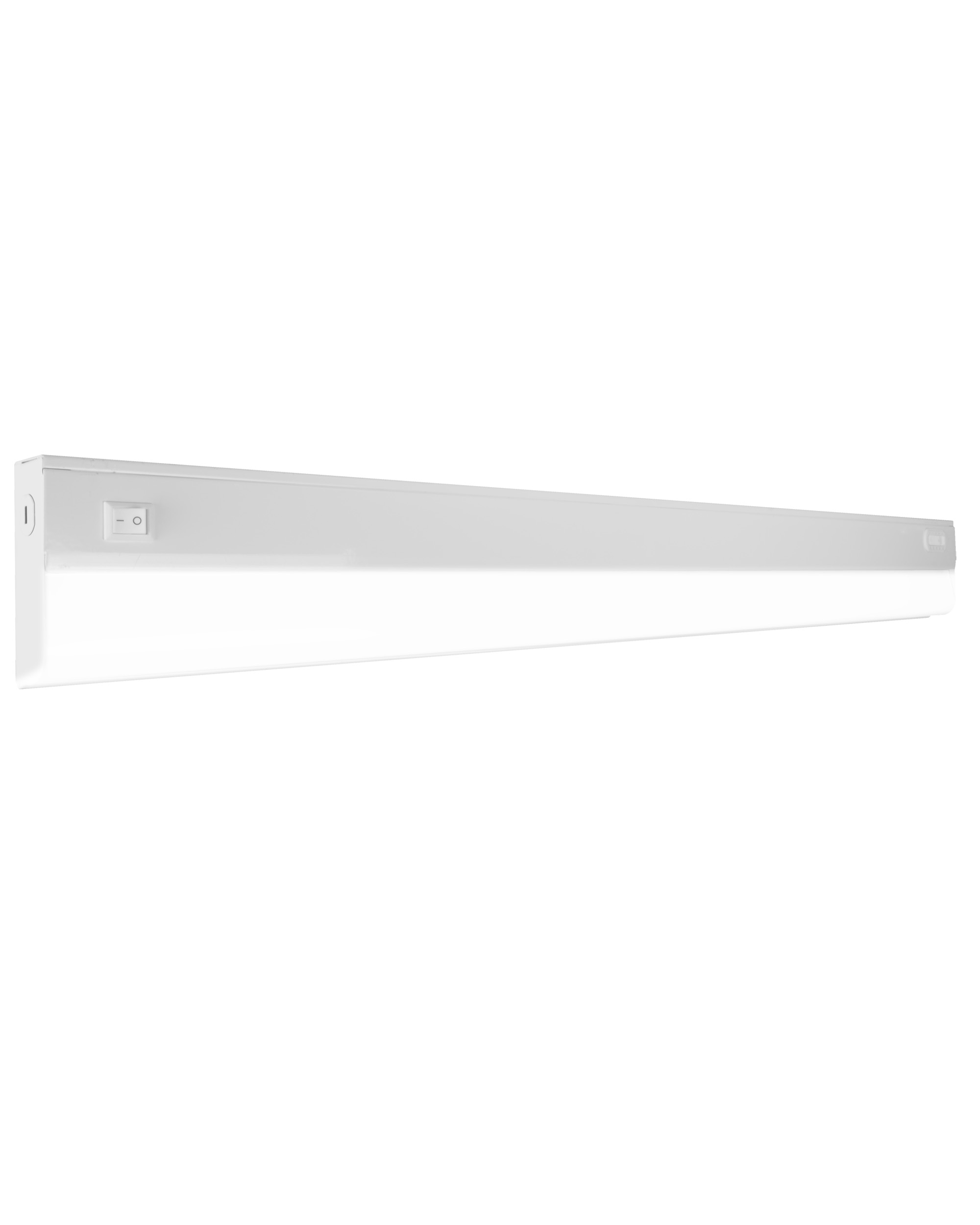

UCB Series 33-inch White Selectable LED Under Cabinet Light with On/Off Switch
The UCB LED Under Cabinet light is an attractive and efficient lighting solution designed to enhance illumination in various spaces. The 5CCT Selectable functionality allows for easy adjustment to 2700K, 3000K, 3500K, 4000K, or 5000K color temperature settings. The UCB’s 1-inch low-profile and gloss…

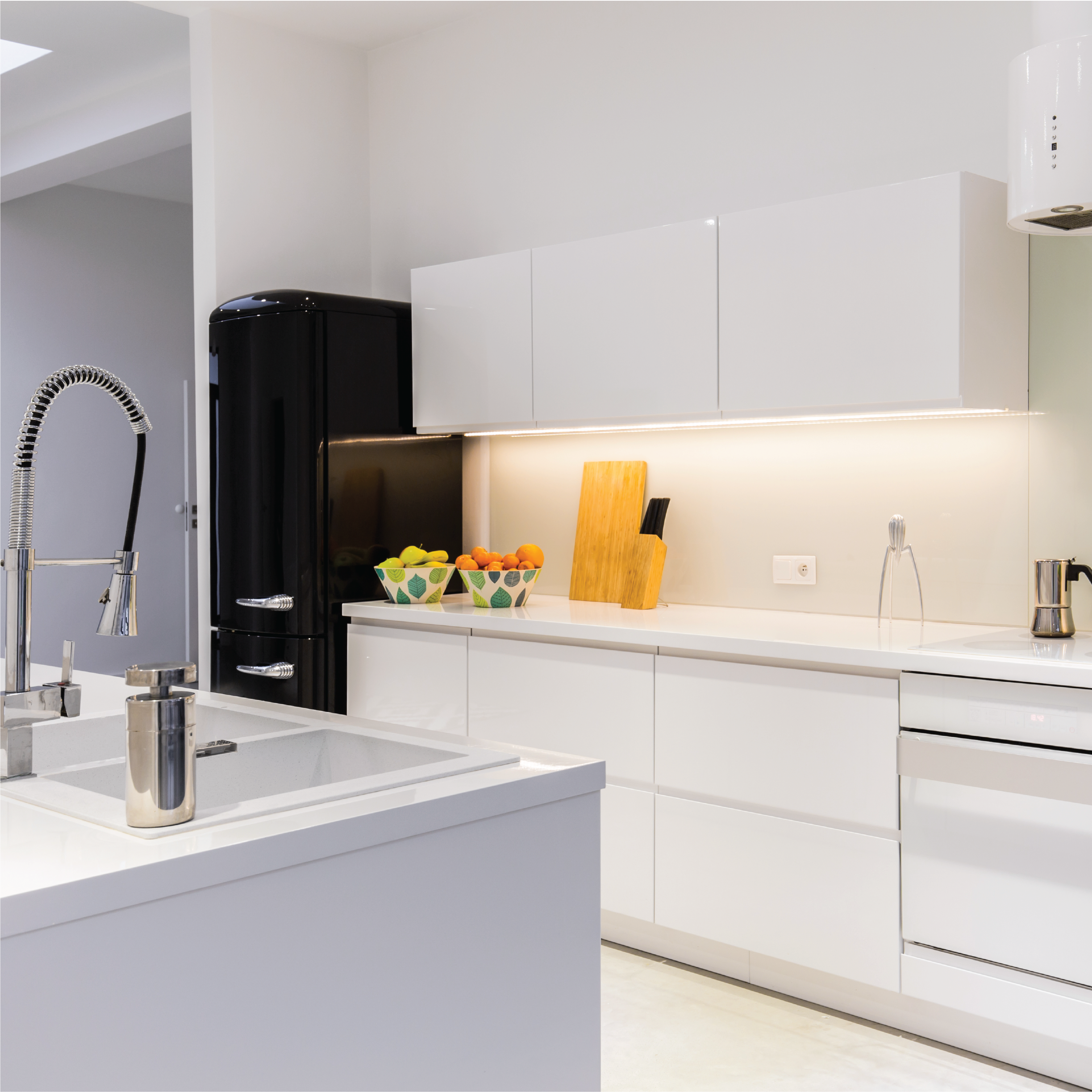

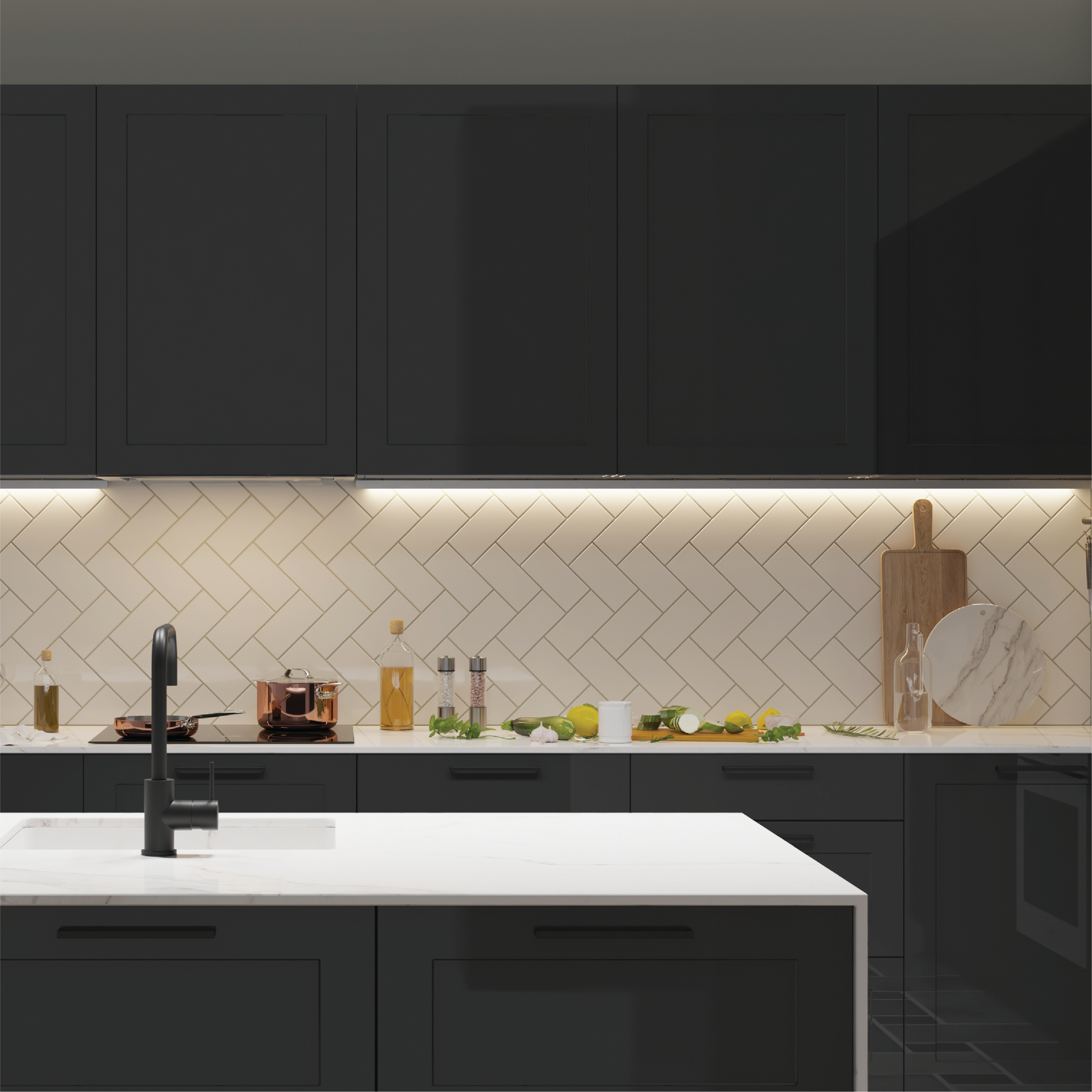

The UCB LED Under Cabinet light is an attractive and efficient lighting solution designed to enhance illumination in various spaces. The 5CCT Selectable functionality allows for easy adjustment to 2700K, 3000K, 3500K, 4000K, or 5000K color temperature settings. The UCB’s 1-inch low-profile and gloss white finish presents a clean, professional look allowing an existing wall switch or dimmer to easily control your lights. Available in a range of lengths from 9 to 42 inches, the UCB offers flexibility to fit various cabinet sizes. Whether in a kitchen, under a shelf, or in a defined workspace, the UCB is perfect for task or accent lighting and illuminating products, apparel, or collectibles. The UCB comes with a 5-year limited system warranty, making it a dependable choice for under cabinet lighting in residential, retail, and commercial applications.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Uniform, high-CRI 90+ illumination with fully diffused lens
- Durable steel housing with gloss white finish, damp location rated

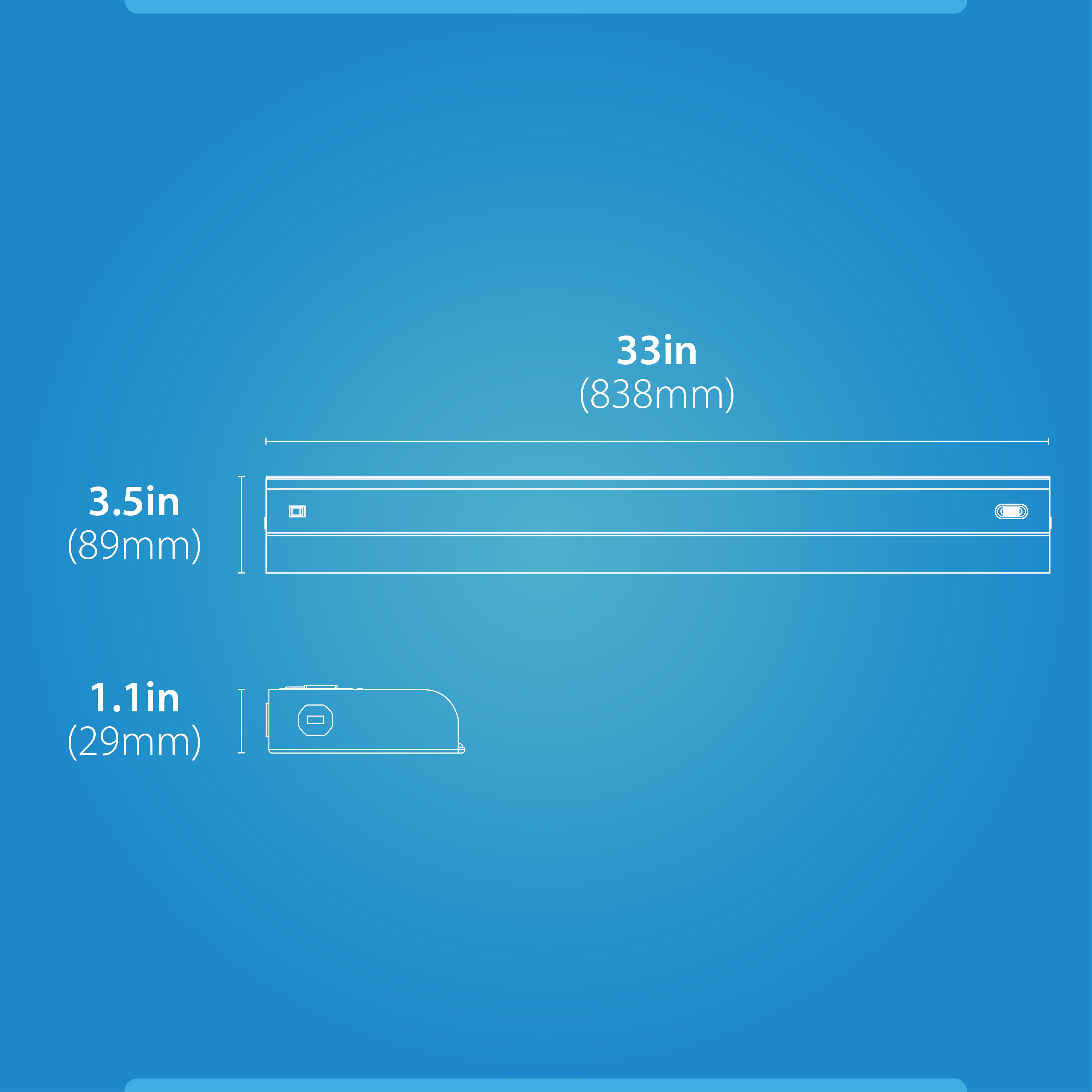

- Low-profile 1" design for seamless surface mounting
- Dimmable to 5% with TRIAC or ELV dimmers

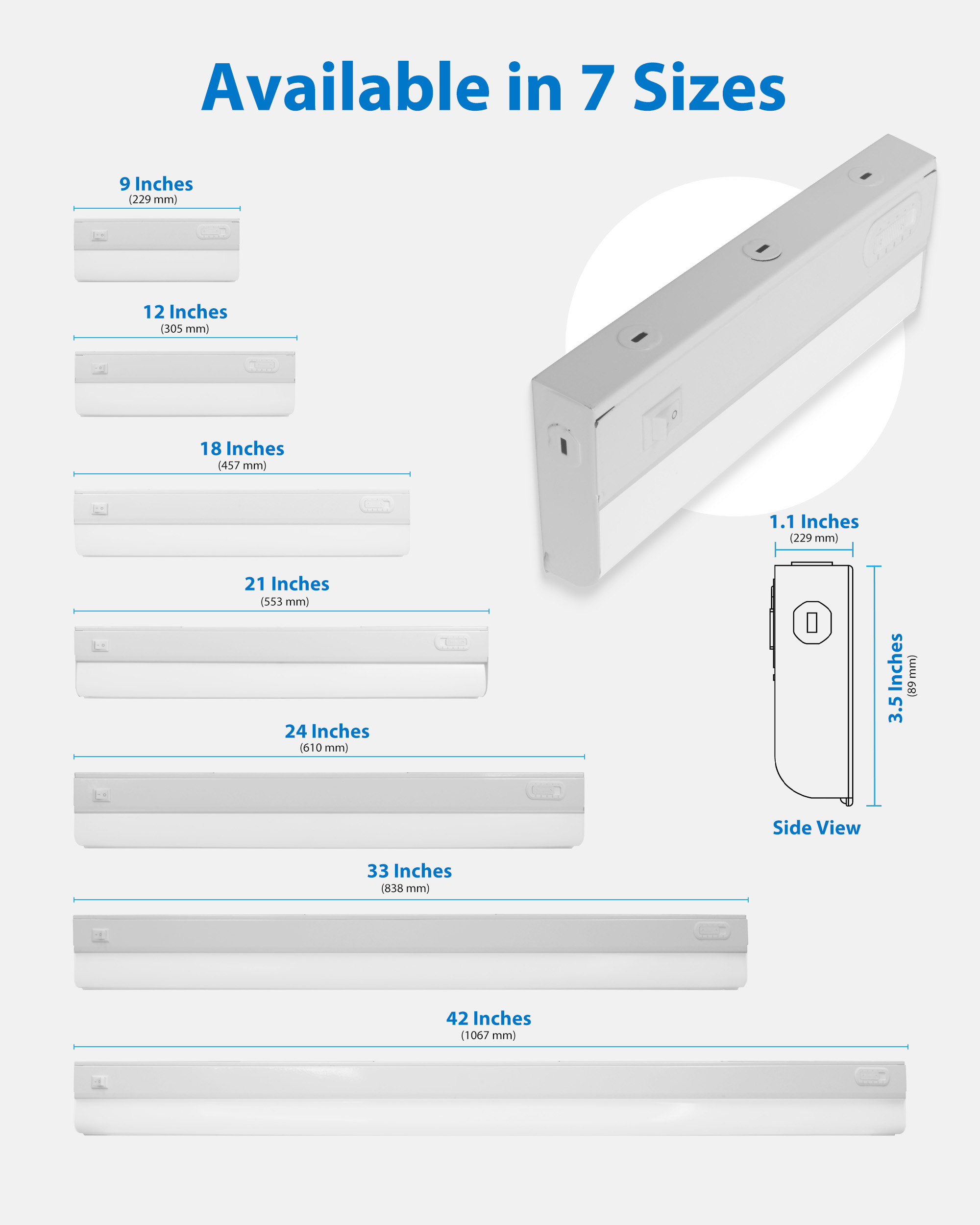

- Seven available sizes (9”, 12”, 18”, 21”, 24”, 33”, 42”)
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens952 - 1008 lm
-
Wattage14
Listings & certifications
- UL Certified
- Title 24
- JA8
- RoHS Compliant
- FCC Class B
- Damp-Location (UL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Powder coated steel housing
- Frosted polycarbonate diffuser
- Available in lengths of 9, 12, 18, 21, 24, 33 and 42 inches
- Gloss white powder coat
Optical System
- Uniform lighting with fully diffused polycarbonate diffuser
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50

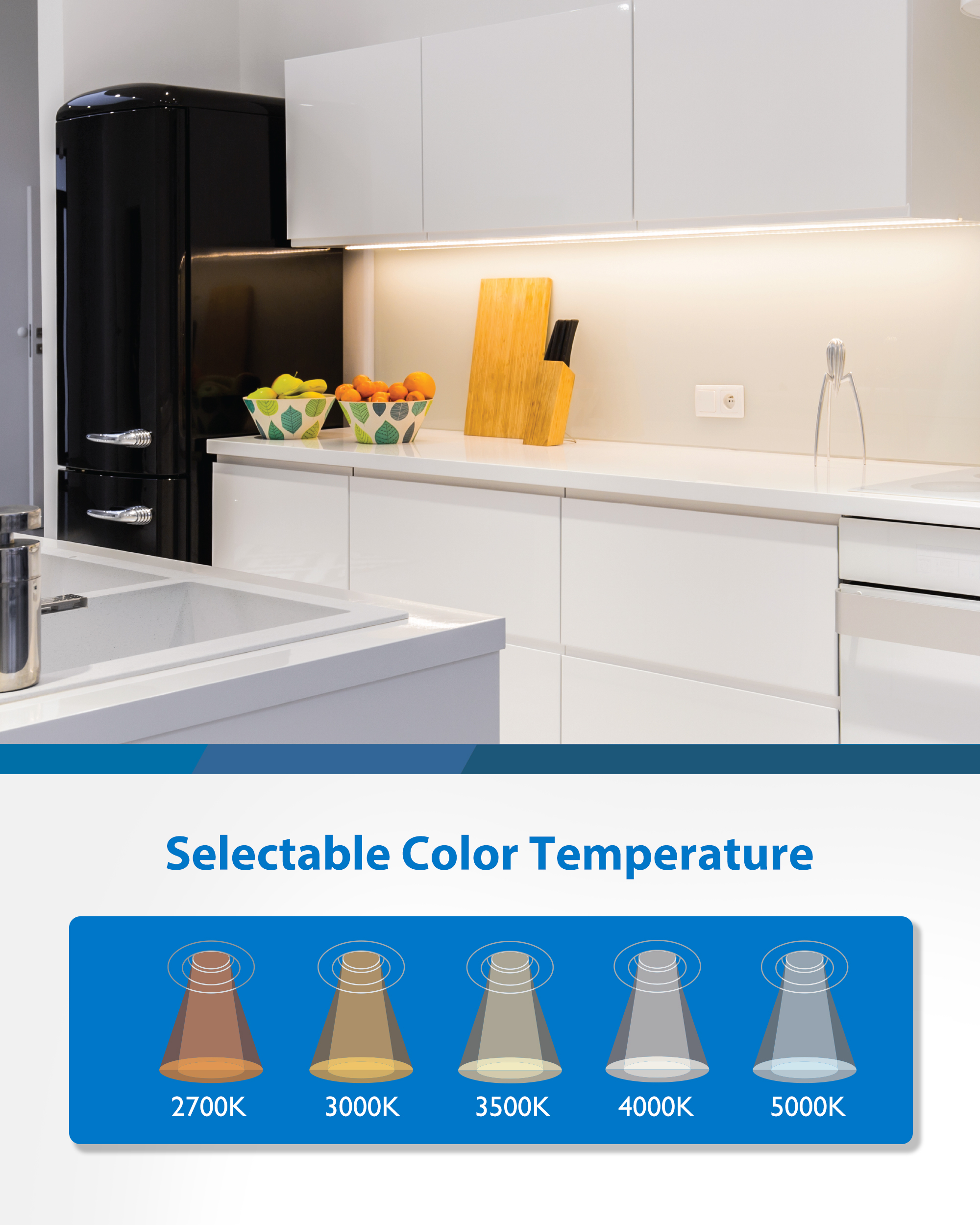

- CCT Selectable at 2700K, 3000K, 3500K, 4000K and 5000K
Electrical
- 120VAC Input
- Available with or without power switch on fixture
- CCT selector switch on face of fixture
- Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 113°F (-20°C to 45°C)
Installations
- Easy surface mount installation

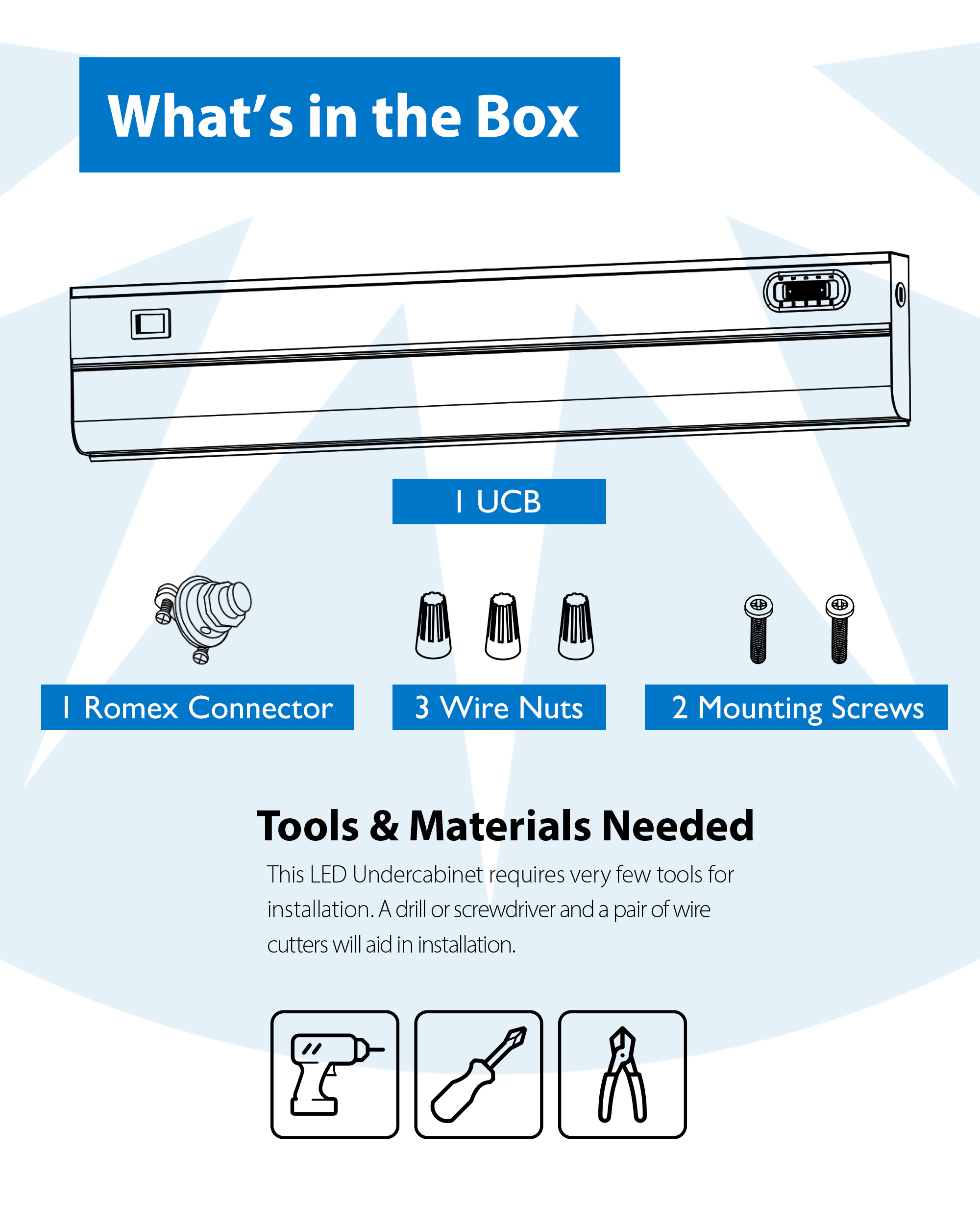

- Conduit clamp and mounting screws included

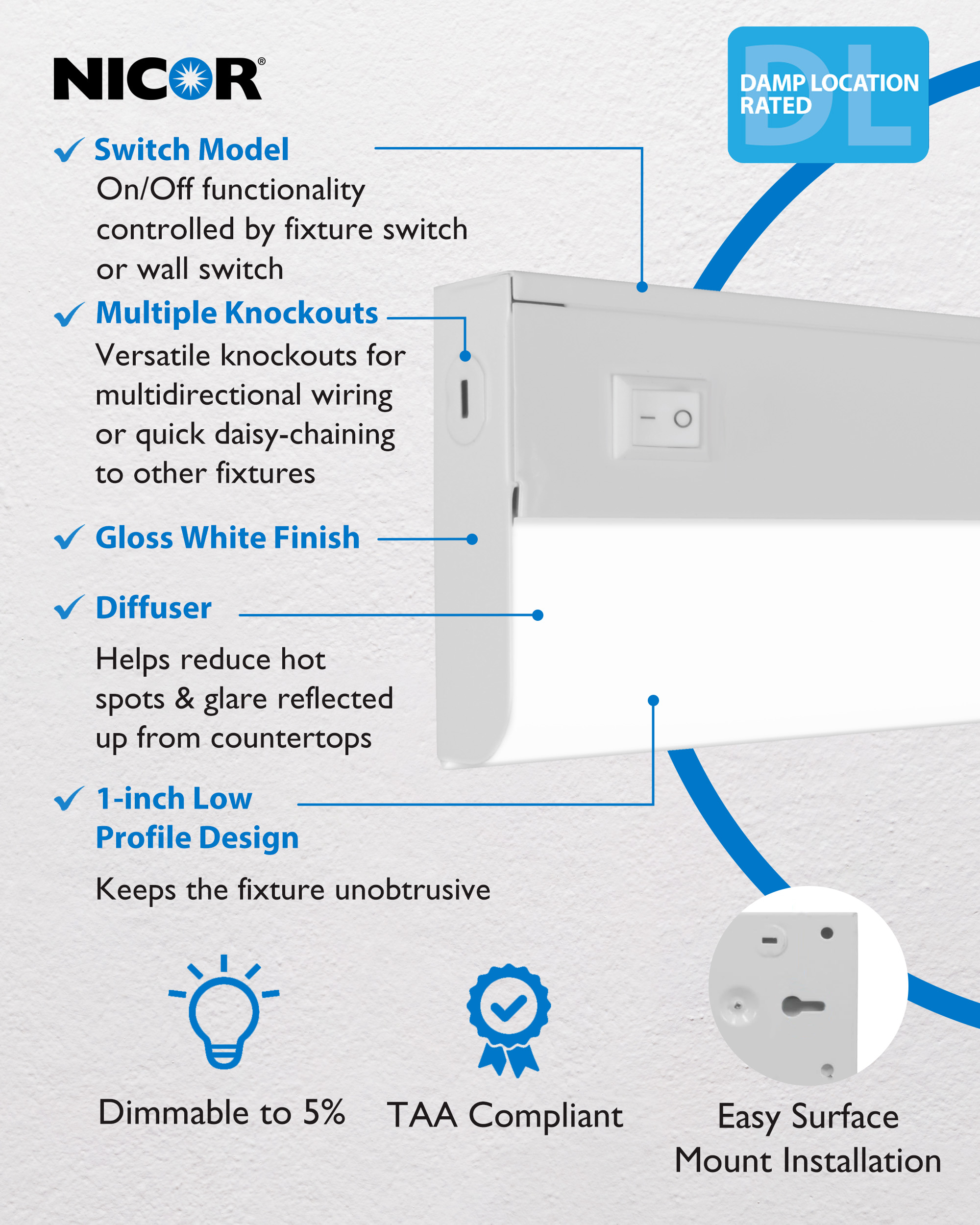

- Versatile 1/2-inch knockout selection, which includes one knockout hole on each side and three knockout holes at the back, enabling multiple wiring directions
Full Listings
- cULus 1598 Listed for damp locations
- CA Title 24 compliant (JA8)
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>50,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
