VT4 Series Selectable LED Vaportite
The VT4 LED Linear Vaportite is designed to give long lasting, energy efficient light in demanding locations. The VT4 is provided with CCT and lumen output selectable options with the choice of 3500K, 4000K, or 5000K CCTs and low, medium, and high lumen output. It is also DLC 5.1 Standard certified,…

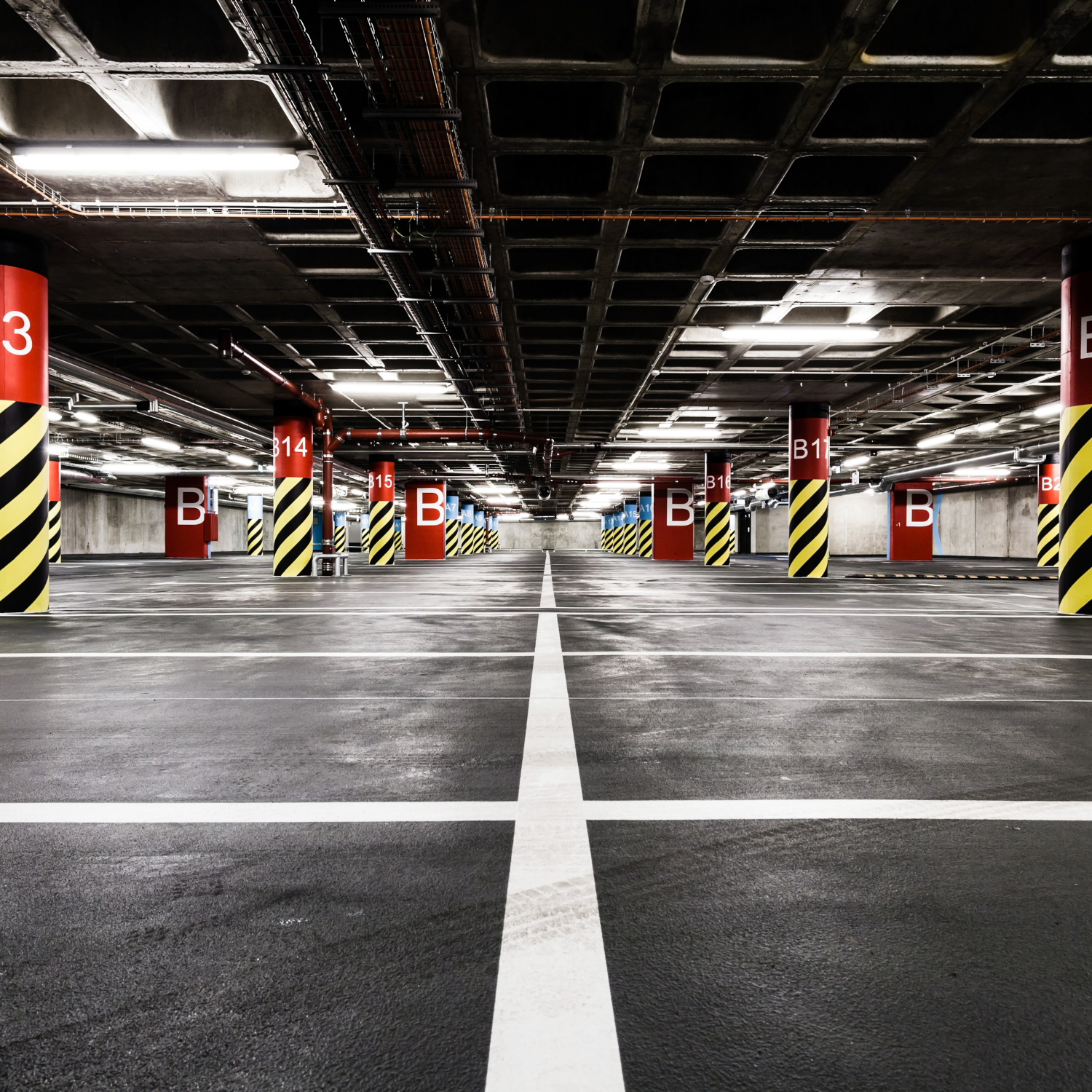

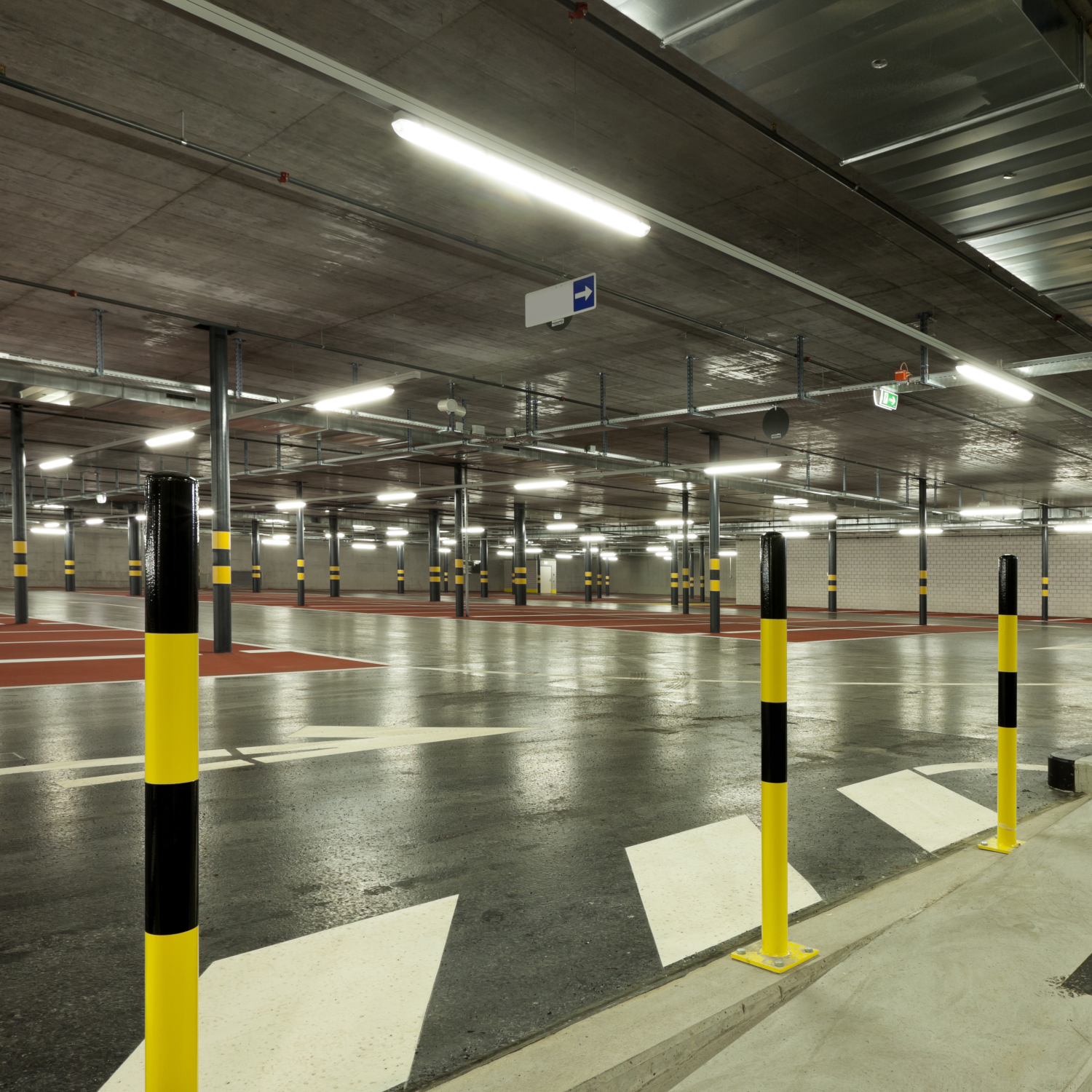

The VT4 LED Linear Vaportite is designed to give long lasting, energy efficient light in demanding locations. The VT4 is provided with CCT and lumen output selectable options with the choice of 3500K, 4000K, or 5000K CCTs and low, medium, and high lumen output. It is also DLC 5.1 Standard certified, ensuring top of the line quality and performance. This IP66 rated fixture is dust and water tight and replaces legacy fluorescent strip lights in car wash operations, garages, maintenance facilities, canopies, locker rooms and stairwells.
- Fully gasketed polycarbonate housing and lens
- Selectable color temperature (3500K, 4000K, and 5000K)
- Selectable Wattage (Standard, Medium, and High)

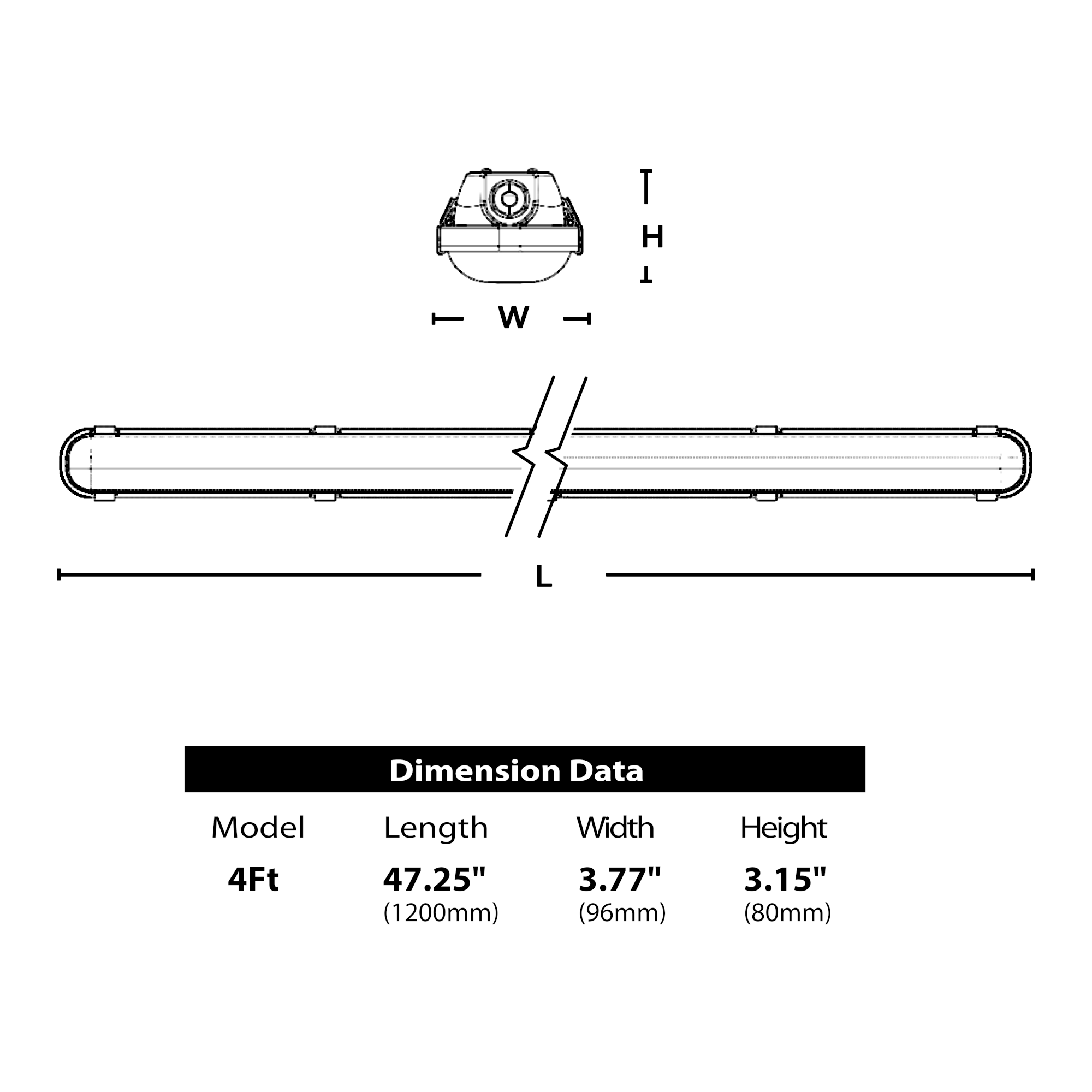

- Available in 4Ft length with optional microwave sensor or NLC controls
- Optional emergency battery backup offered in 8W and 18W options
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens5364 - 7964 lm
-
Wattage37.2 - 55.9 W
Listings & certifications
- cETLus Intertek Listed
- DLC 5.1 Standard
- UL 94 5VA (Flame Resistance)
- IP66 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location
- LM-79, LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Fully gasketed polycarbonate housing

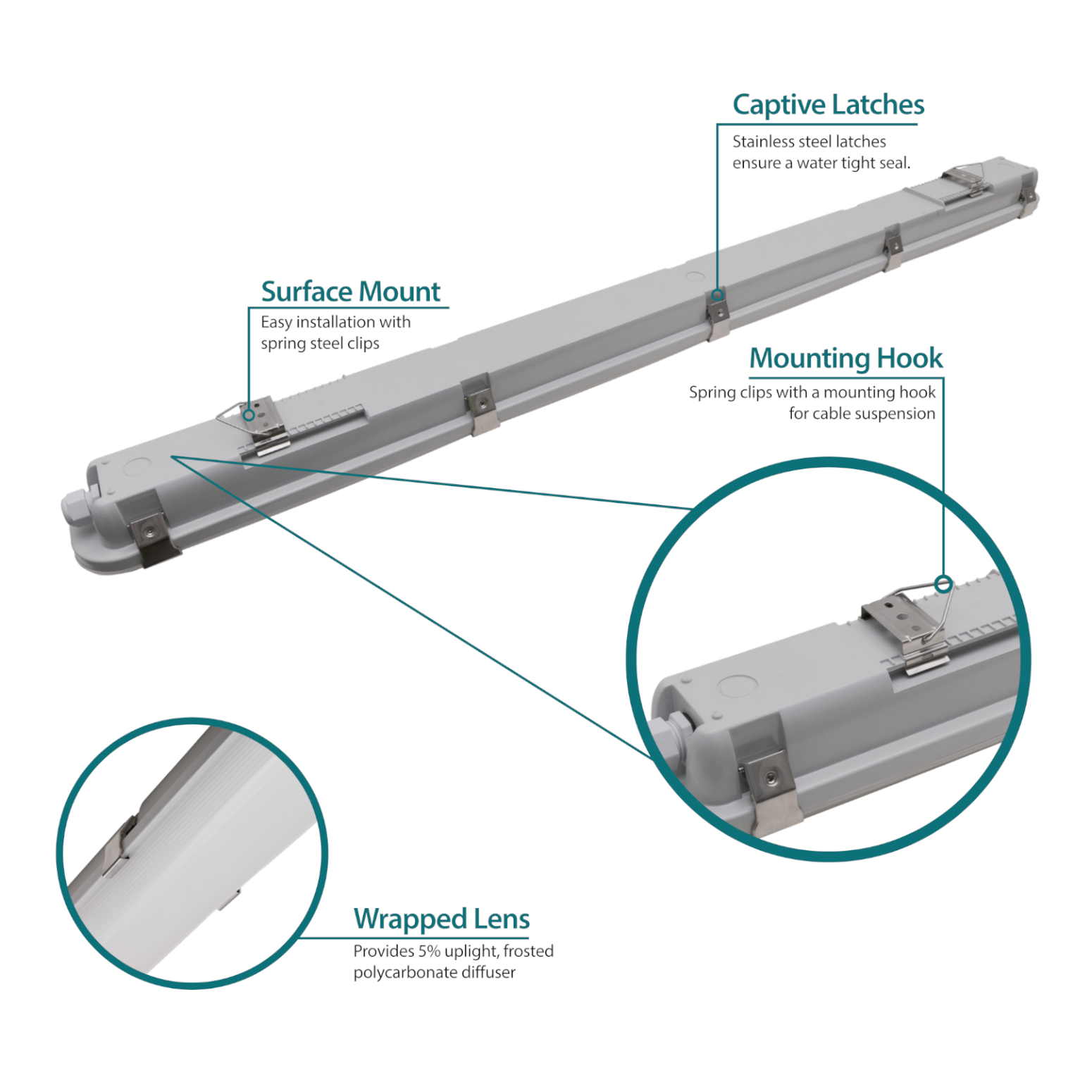

- Captive stainless steel latches ensure a water tight seal
- Fully sealed light chamber keeps LEDs sealed during installation
Optical System
- UV stabilized, frosted polycarbonate lens
- Wrapped lens provides 5% uplight
- 80+ CRI
Electrical
- Input voltage of 120-277VAC
- Wattage selection switch on driver

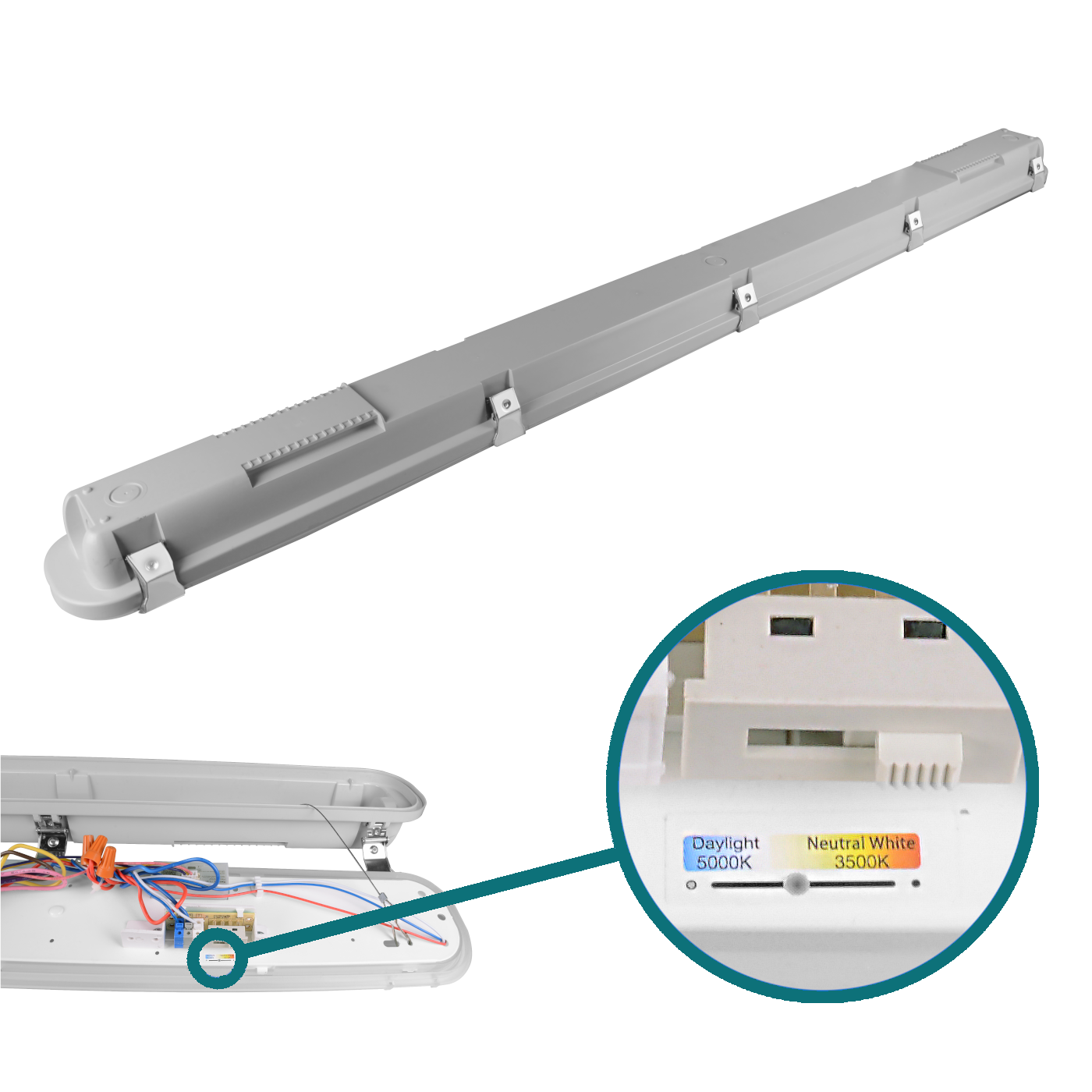

- Color Temperature selection switch in body
- Dim-to-off via 0-10VDC controls
- Optional, factory installed, 8W and 18W Emergency packs available
- Power factor > 0.95
- THD < 6%
- Luminaire surge protection level: designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
Installations
- Toolless surface mount installation via spring-steel clips
- Clips contain mounting feature for cable suspension
- Can be surface mounted to walls and ceilings for application variability
- Drill through knockouts available: 3 on back, 1 on each end
- Operating temperature range:
- -40°F to 113°F (-40° to 45°C) when surface mounted
- -40°F to 122°F (-40° to 50°C) when suspended at least 18” from ceiling.
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Listed for wet locations
- UL94 5VA flame classification
- IP66 Rated
- RoHS Compliant
- DLC 5.1 Standard Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
