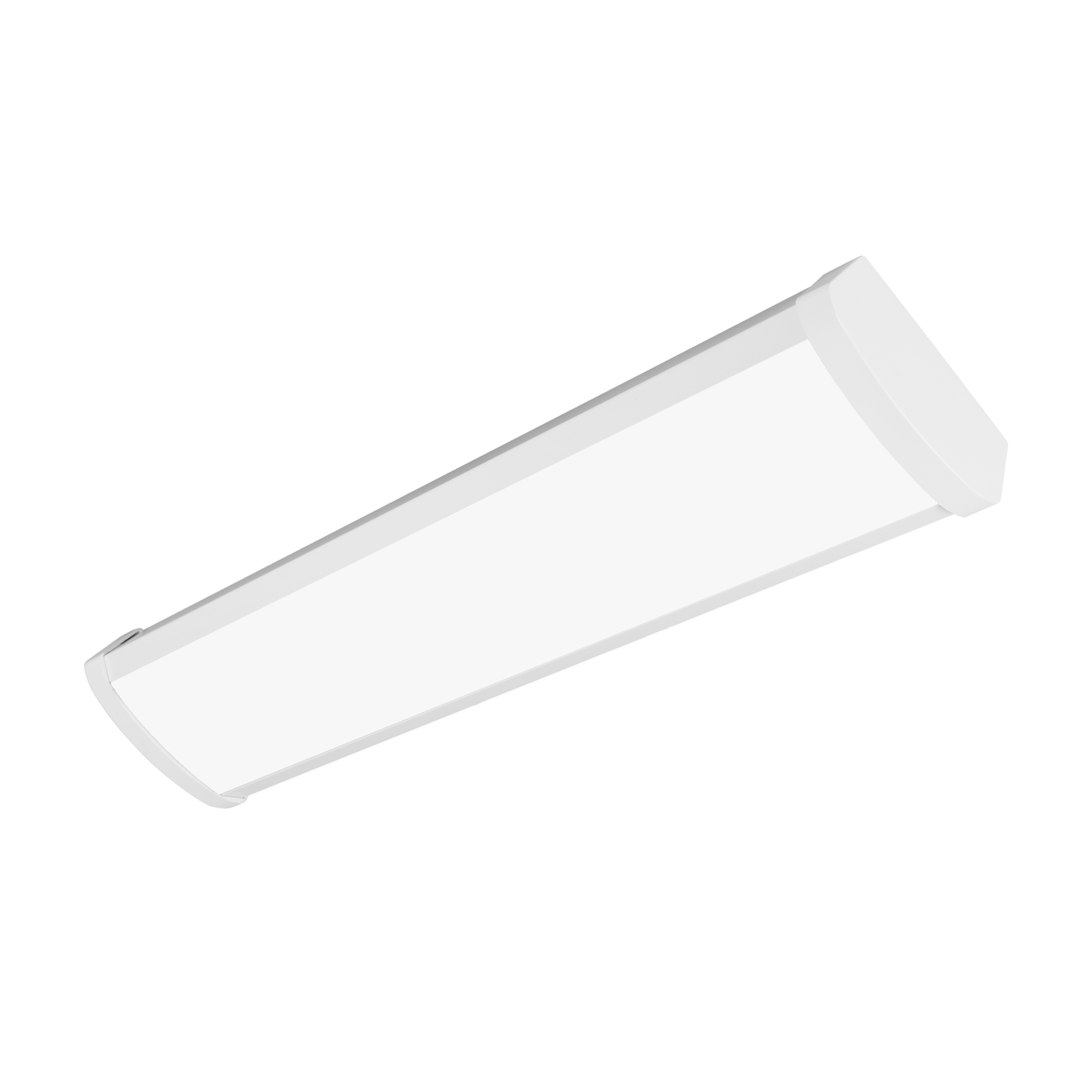

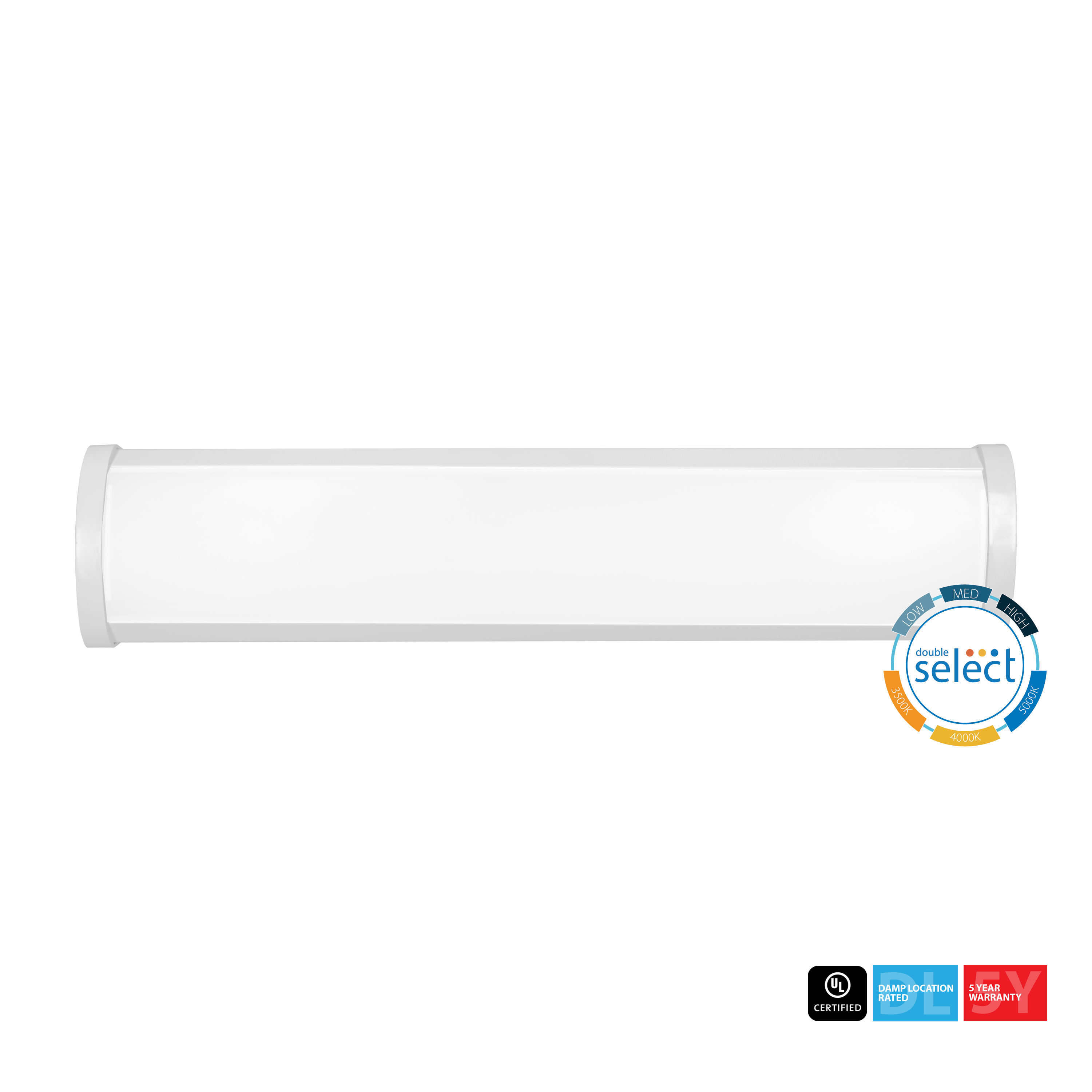

WPC3 2′ Selectable LED Linear Wraparound
The WPC3 LED Linear Wrap is an economical, energy-efficient lighting alternative to traditional fluorescent wrap fixtures. The WPC3's modern design features a curved, milky white lens that offers a more polished aesthetic while eliminating hotspots. Available with CCT and lumen output Selectable opt…

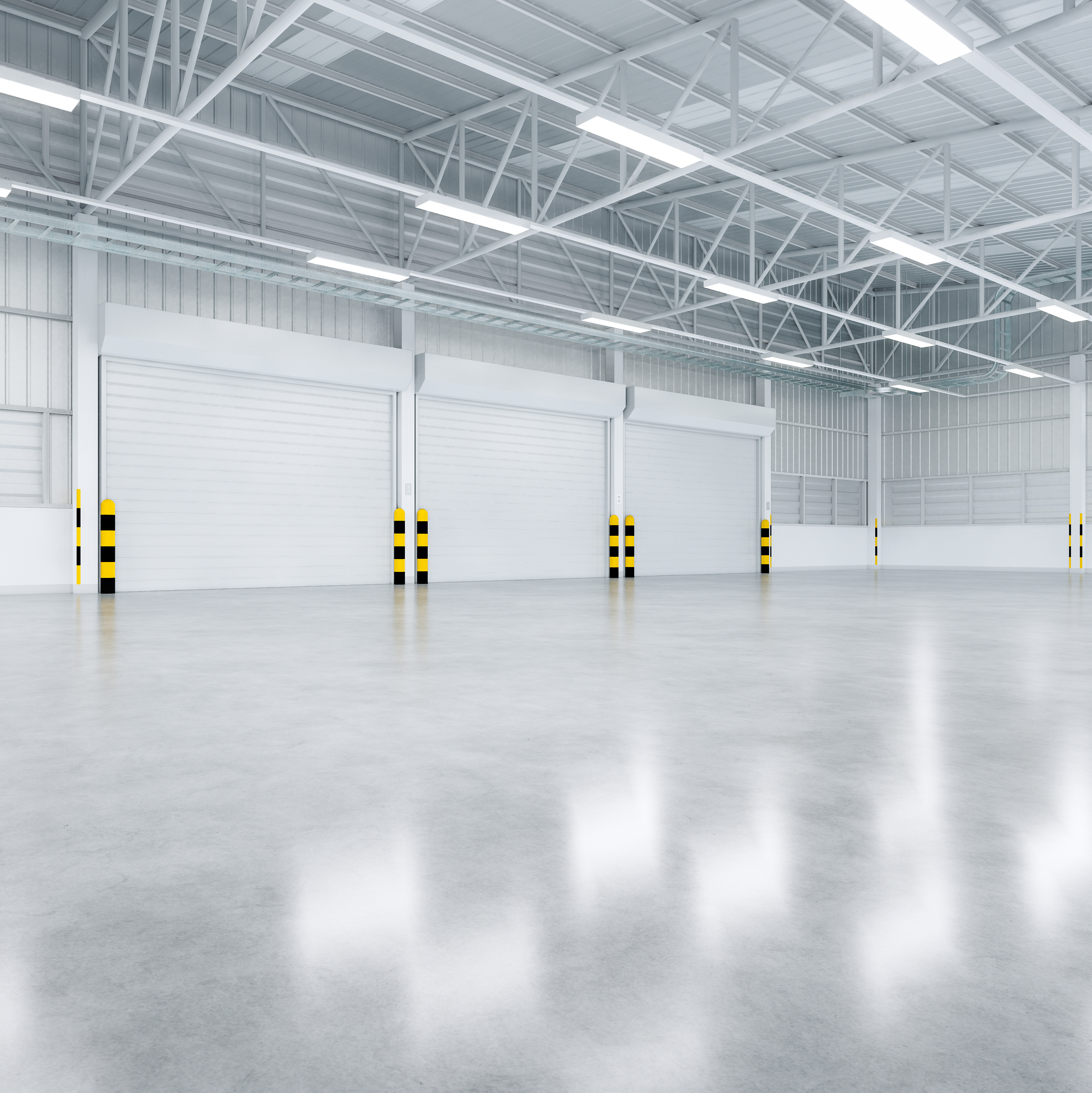

The WPC3 LED Linear Wrap is an economical, energy-efficient lighting alternative to traditional fluorescent wrap fixtures. The WPC3's modern design features a curved, milky white lens that offers a more polished aesthetic while eliminating hotspots. Available with CCT and lumen output Selectable options with the choice of 3500K, 4000K, or 5000K CCTs and low, medium, and high lumen output. This versatile fixture is easy to surface mount on both ceilings and walls, making it ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications.

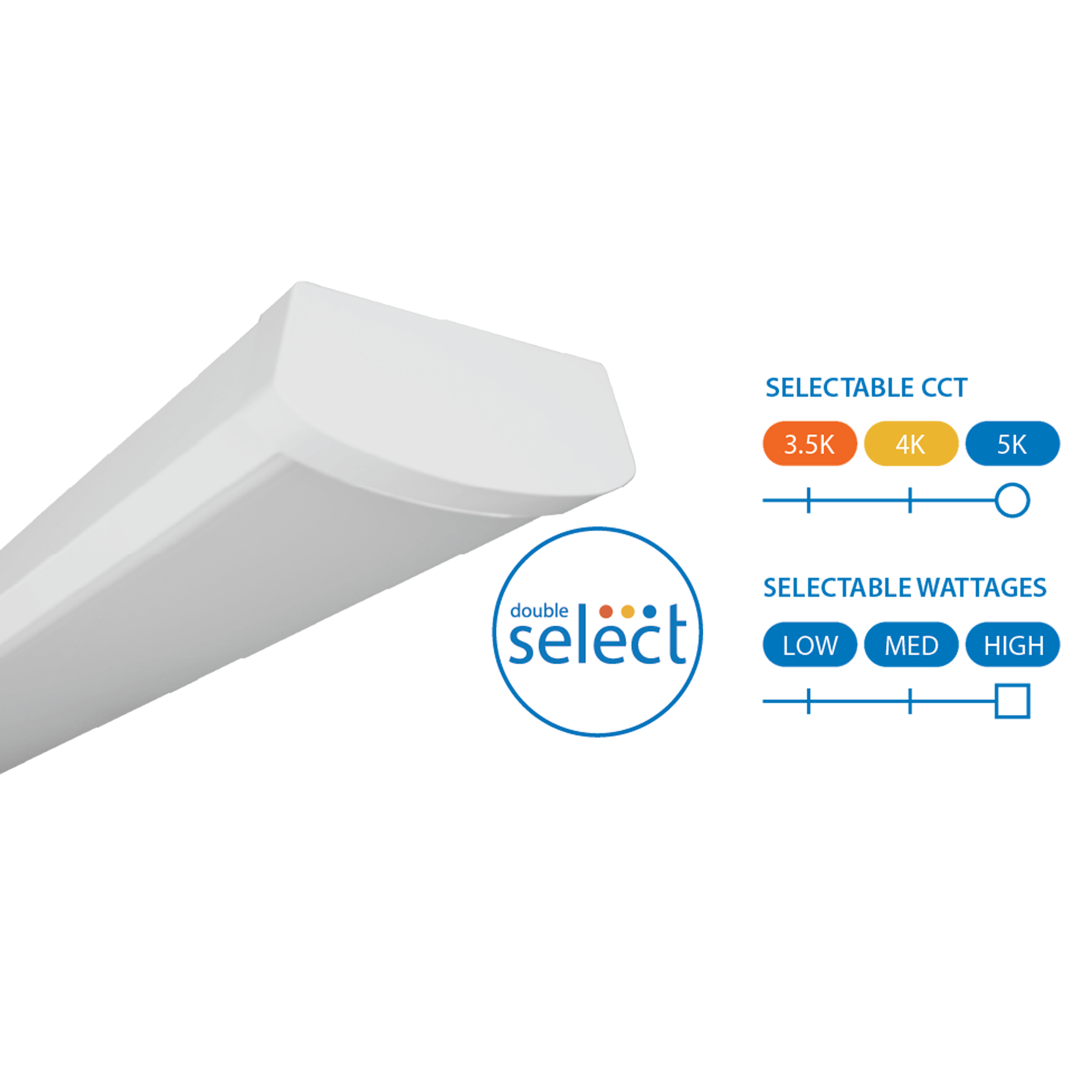

- Three selectable wattage settings (Low/Med/High)
- Three selectable color temperatures (3500K/4000K/5000K)
- Precision engineered polystyrene diffuse
- High reflectivity internal coating
- 80 CRI for good color definition in public places
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -

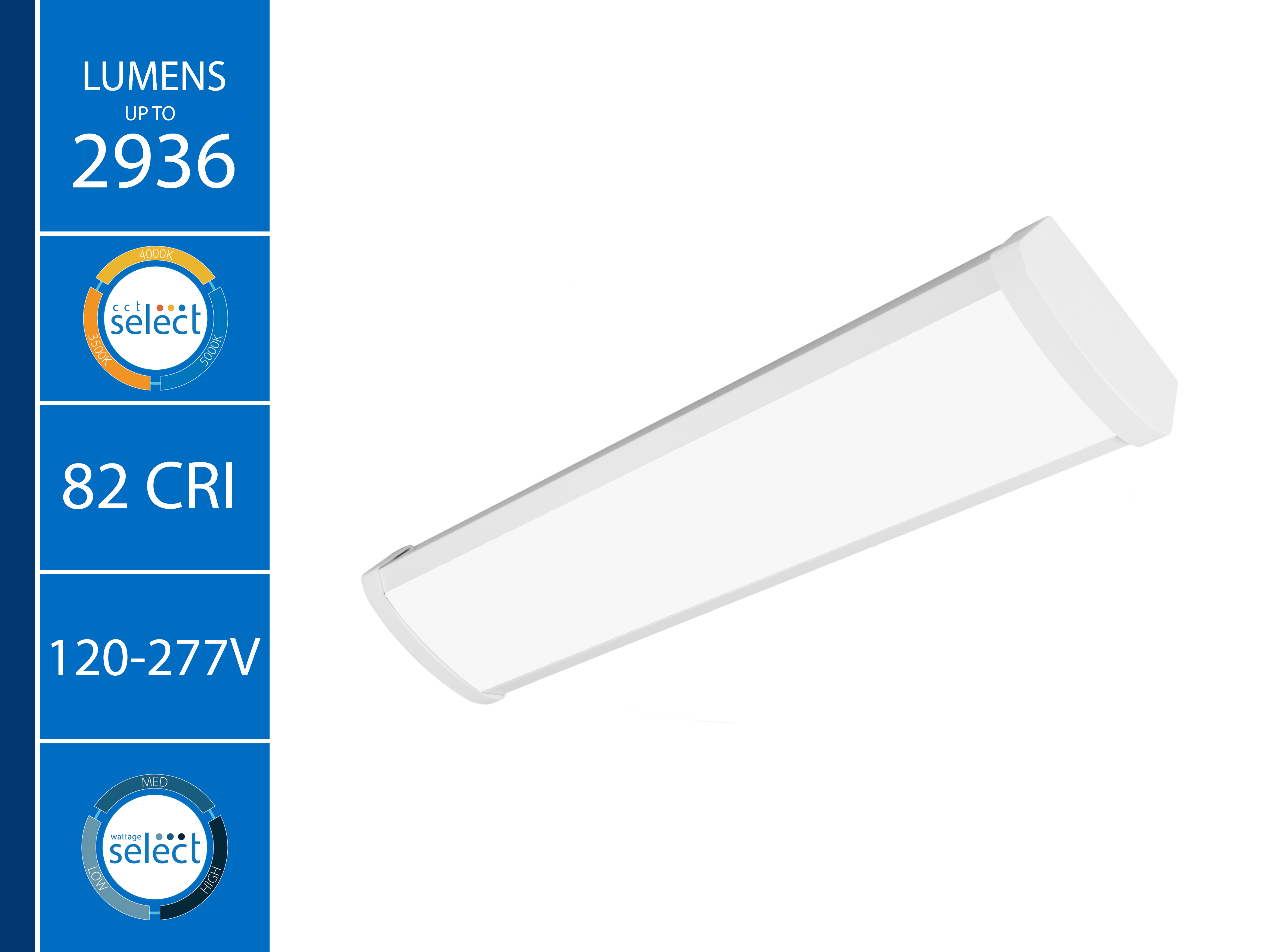

Lumens1995 - 2936 lm
-
Wattage16 - 24.1 W
Listings & certifications
- UL Certified
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features

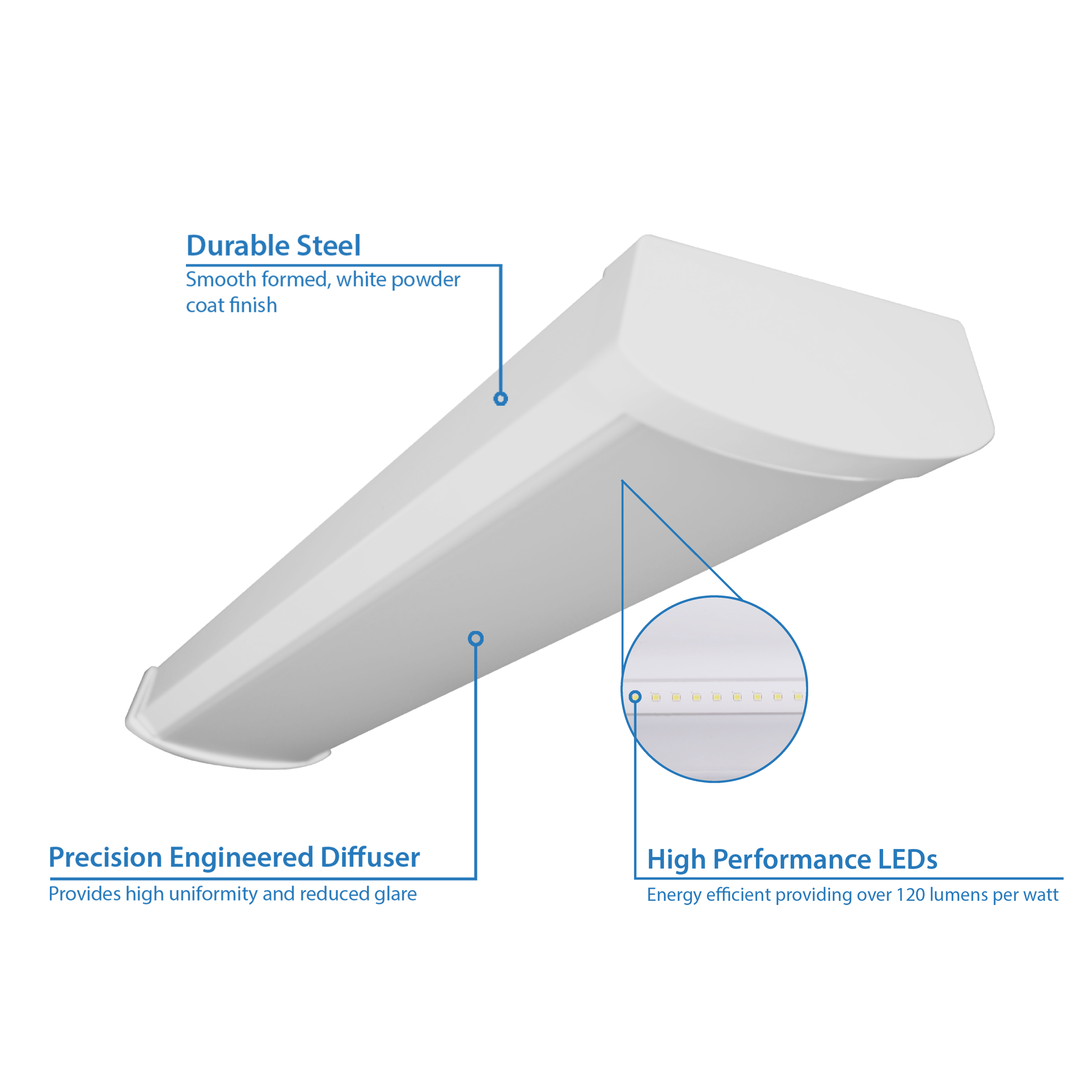

Construction
- Durable steel construction with powder coat finish
- Smooth formed sides for safe handling
- Polymer endcaps
Optical System
- Precision engineered polystyrene diffuser
- High reflectivity internal coating
- No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
- 80 CRI for good color definition in public places
Electrical
- Input voltage of 120-277VAC
- CCT and wattage selector switch accessible on driver
- Full-range dimming via 0-10VDC controls
- Operating temperature range: -4°F to 122°F (-20°C to 50°C)

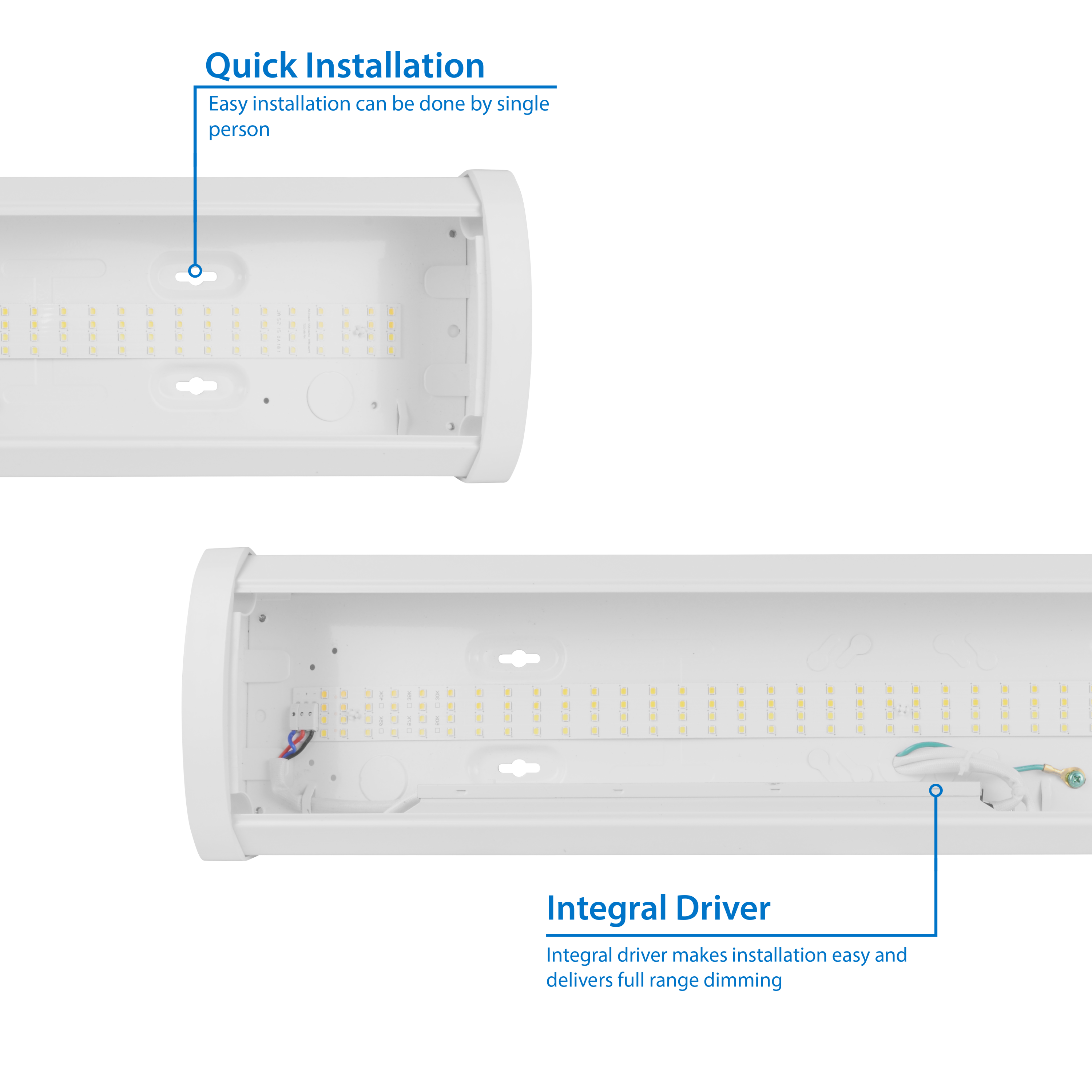

Installations
- Quick and easy single person installation
- Features an integral driver for ease of wiring
Full Listings
- cULus 1598 Listed for damp locations
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge.)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
