Galvanized

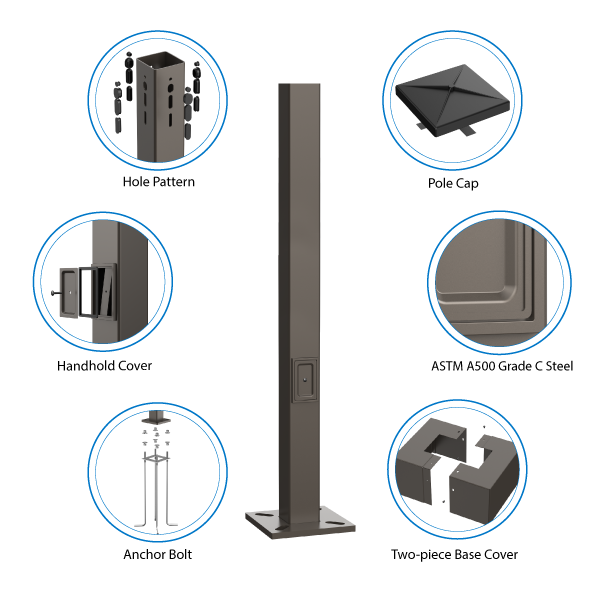

The OPL4v2 4-inch square straight steel poles are engineered for commercial, municipal, and industrial area lighting applications. The pole shaft is fabricated from high-grade structural steel tubing conforming to ASTM A500 Grade C specifications with an 11-gauge (.120”) wall thickness and minimum yield strength of 50,000 PSI. The poles feature a fabricated carbon steel base plate (conforming to ASTM A36 standards), reinforced cast iron hand hole cover with grounding provisions, and a textured architectural bronze powder coat finish for long-term durability and corrosion resistance. The assembly also includes a removable pole-cap and a two-piece formed steel base cover for a clean finished appearance.

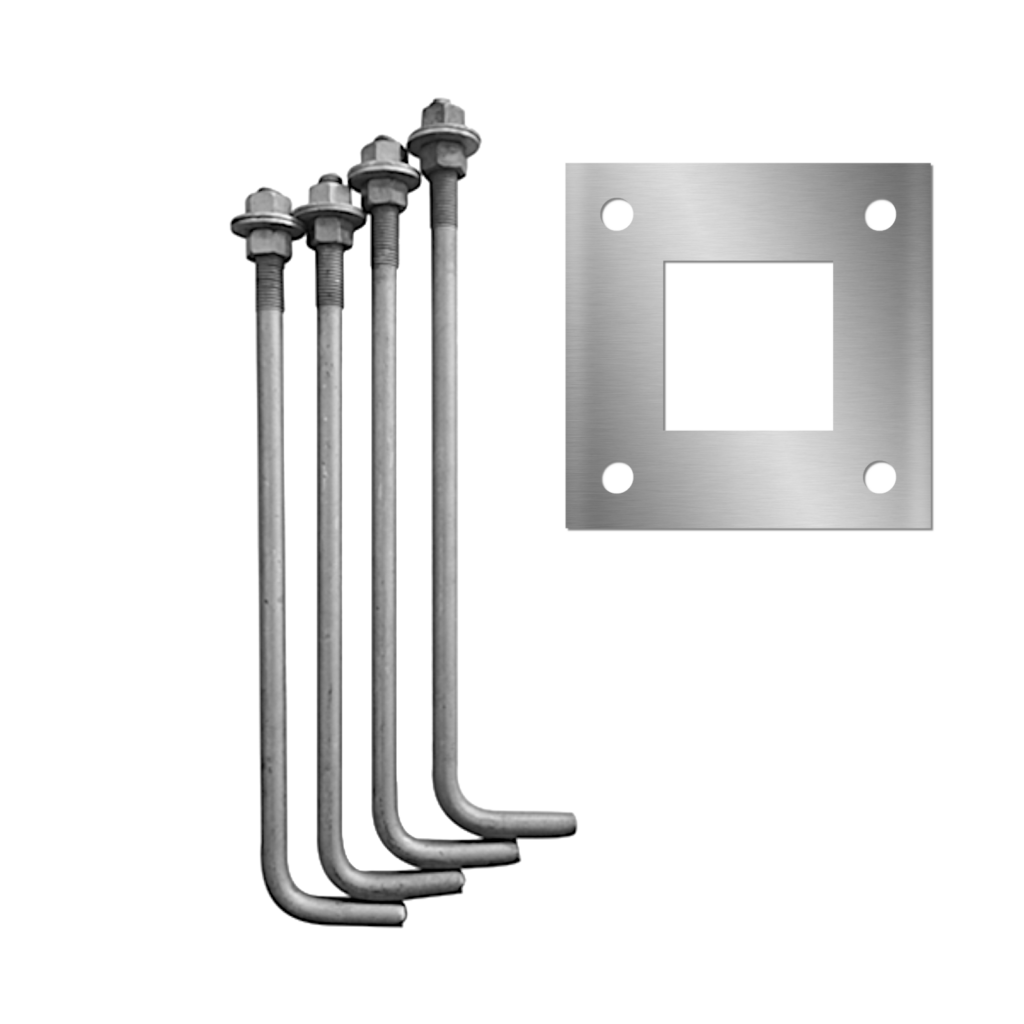

The OPL4 Series Anchor Bolt Kit provides a secure foundation for pole-mounted lighting systems. Featuring galvanized ASTM F1554 Grade 55 steel construction, the heavy-duty L-shaped anchor bolts deliver reliable structural support and corrosion resistance for demanding outdoor applications.

XPQ Series Accessories

The HBC6 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with selectable wattage, selectable color temperature, selectable beam angle, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC6 produces an impressive light output exceeding 135 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC6 operates at 120-277V with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC6 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

The HBC5 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with Selectable wattage, Selectable color temperature, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC5 produces an impressive light output exceeding 130 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC5 operates at 120-277V (or 277-480VAC) with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC5 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

The EMSM is an LED emergency driver for field installations that enables normal and emergency operation of LED surface mount downlights. During a power failure, the EMSM activates emergency mode to maintain constant output power to the fixture for a minimum of 90 minutes without light degradation. The EMSM contains a battery, charger, and converter circuit in a single housing and includes a test button/indicator light to be adhered to the fixture or a nearby surface.

The HBC6 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with selectable wattage, selectable color temperature, selectable beam angle, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC6 produces an impressive light output exceeding 135 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC6 operates at 120-277V with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC6 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

The HBC6 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with selectable wattage, selectable color temperature, selectable beam angle, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC6 produces an impressive light output exceeding 135 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC6 operates at 120-277V with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC6 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

The HBC6 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with selectable wattage, selectable color temperature, selectable beam angle, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC6 produces an impressive light output exceeding 135 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC6 operates at 120-277V with 0-10V dimming and a 12V accessory wire for standard or smart (NLC) sensors. Add a 40W emergency backup for added safety and security. The HBC6 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.
