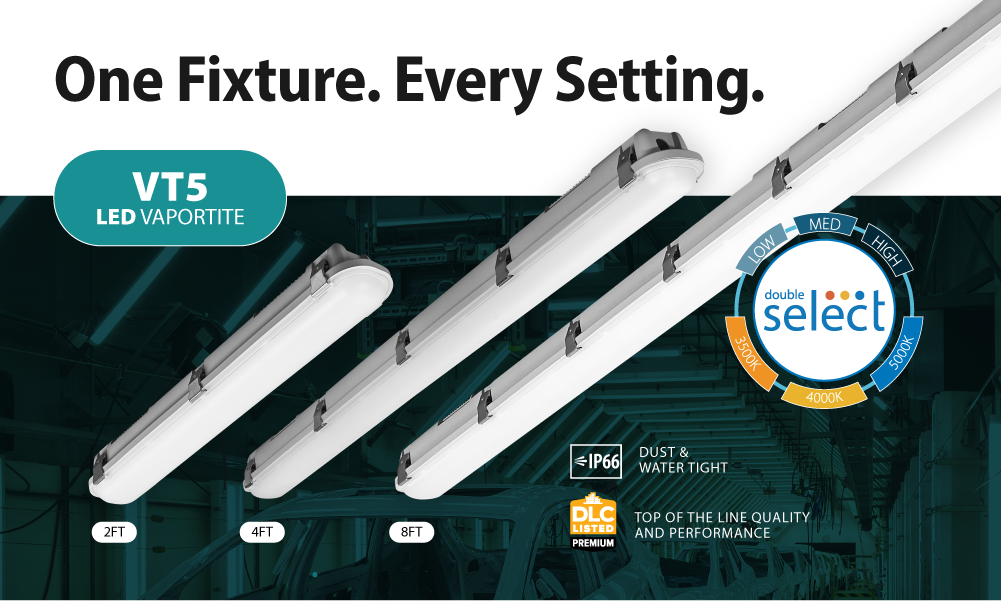

Wet-location spaces like car washes, parking garages, and maintenance facilities put real demands on lighting. Moisture, dust, and temperature swings wear down fixtures that weren’t built for the environment. The VT5 LED Vaportite is designed to hold up in those conditions while giving installers and specifiers more flexibility in a single part number.
- Selectable 3500K, 4000K, or 5000K color temperature
- Selectable low, medium, or high lumen output
- IP66 rated, dust and water tight
- DLC 6.0 Premium certified
- Available in 2ft, 4ft, and 8ft lengths
- 5-year limited system warranty
Built for Demanding, Wet-Location Environments
The VT5 replaces legacy fluorescent strip lights in the applications that need it most: car wash operations, parking garages, maintenance facilities, canopies, locker rooms, and stairwells. Its fully gasketed polycarbonate housing and captive stainless steel latches keep the light chamber sealed during and after installation. The UV-stabilized, frosted polycarbonate lens resists yellowing and adds 5% uplight, so the fixture holds its output and its appearance over time.
Wattage and CCT Selectable On-Site
Instead of stocking separate SKUs for every color temperature and output level, the VT5 puts the choice on the fixture. A wattage selector and a CCT selector, built into both the driver and the fixture body, let installers set 3500K, 4000K, or 5000K and low, medium, or high output at the time of install. That means fewer part numbers to track and less guesswork on the job site.
Sensor and Emergency Options Built In
The VT5 supports an internal microwave motion sensor, or an external microwave or PIR sensor for installations that need it mounted separately. It’s also compatible with NICOR’s NLC wireless sensor line. A 12V output from the driver powers connected sensors directly, and occupancy detection with daylight harvesting helps cut energy use in spaces that aren’t lit continuously. For applications that require it, factory-installed emergency packs are available in 4W, 8W, and 18W options.
Installation Made Simple
Toolless spring-steel clips mount the VT5 to walls or ceilings without hardware, and the same clips include a feature for cable or chain suspension. Drill-through knockouts (three on the back, one on the end) support wiring flexibility for continuous rows or standalone runs. The fixture is rated to operate from -40°F to 113°F when surface mounted, or up to 122°F when suspended at least 18 inches from the ceiling, so it holds up in unconditioned spaces.
Back by a 5-year Warranty
Every VT5 carries NICOR’s 5-year limited system warranty. The fixture is cETLus listed for wet locations, RoHS compliant, and DLC 6.0 Premium certified, with TM-21 reported L70(9k) life over 50,000 hours. The VT5 is available now through NICOR’s agent and distributor network. For a closer look at how it compares to the rest of the vaportite line, visit the VT4 LED Vaportite product page or browse NICOR’s full vaportite category. For more on lighting built for demanding spaces, see NICOR’s Industrial
solutions page.
Built to Deliver
Selectable Wattage & CCT
Field-selectable output (Low/Med/High) and CCT (3500K/4000K/5000K) → install the right on-site instead of stocking separate SKUs for every combination.
Captive Latches
Captive stainless steel latches ensure a water-tight seal → keeps moisture and dust out over repeated openings, without loose parts to lose in the field.
Wrapped, Frosted Lens
UV-stabilized polycarbonate lens wraps for 5% uplight, diffusing light evenly at 80+ CRI → softer, more even coverage with a lens that resists yellowing over time.
Tooless Mounting Clips
Spring-steel clips for toolless surface mount, with built-in feature for cable/chain suspension → faster installs and flexible mounting without extra hardware.
Internal Microwave Motion Sensor
Optional built-in sensor with occupancy detection and daylight harvesting → cuts energy use automatically in spaces that aren’t lit continuously, no separate mount required.
