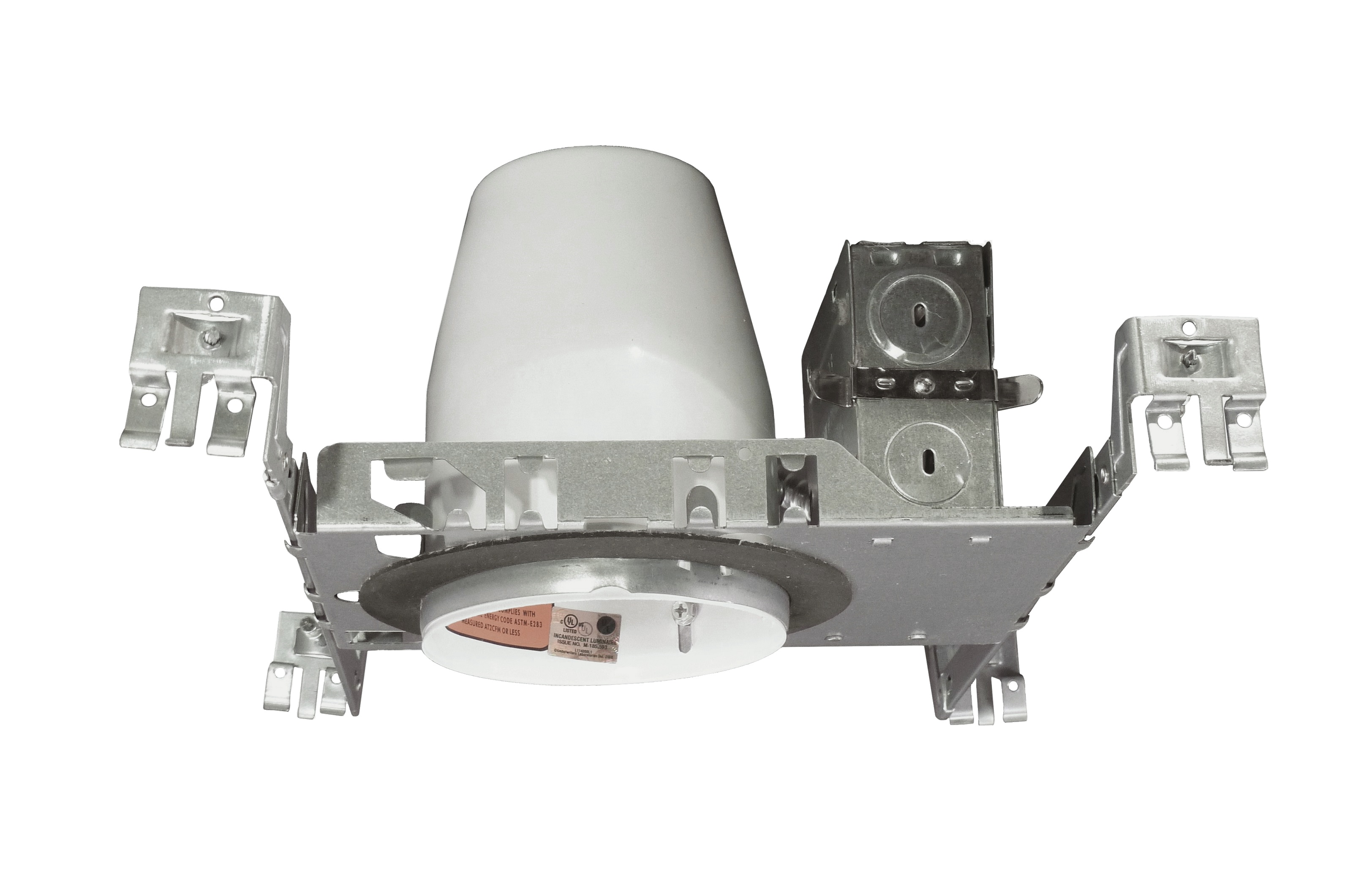

13200A-LED Series
3 in. LED Housing for New Construction Applications
Product description

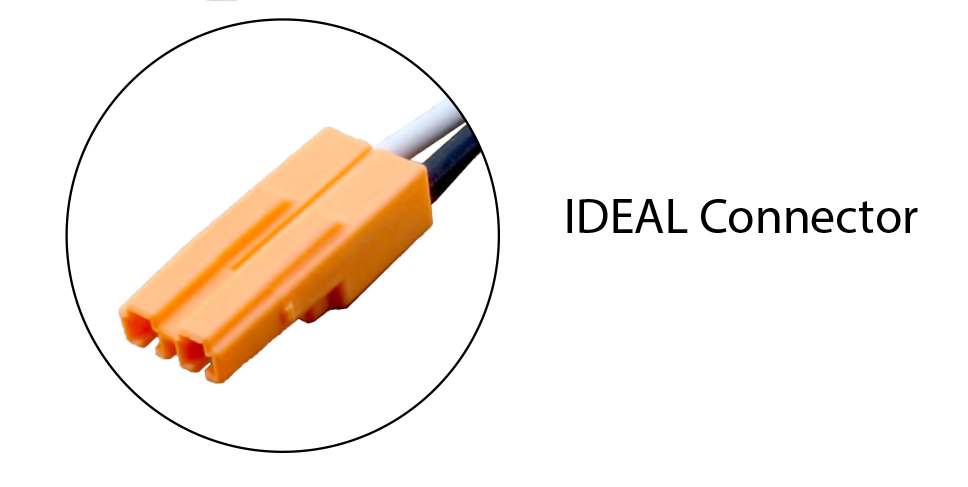

The 13200A-LED features IDEAL connections that allows for quick, snap-in connection of NICOR® D-series LED downlights. Suitable for new construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.
- IC-rated housing approved for direct contact with insulation, making it ideal for energy-efficient new construction applications
- IDEAL snap-in connections provide fast, secure installation of compatible NICOR D-Series LED downlights
- Low-profile 4.5-inch housing height fits easily within standard 2-inch x 6-inch joist construction
- Heavy-gauge captive hanger bars offer superior stability, tool-free adjustments, and compatibility with 12-inch to 24-inch joist spans
- Accessible junction box with integral strain relief pry-outs, push-in wire connectors, and captive nails simplifies wiring and installation tasks
Color Options:
Ordering information
Downloads
Specifications
-
Wattage12
Listings & certifications
Listings & Certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Features
Construction

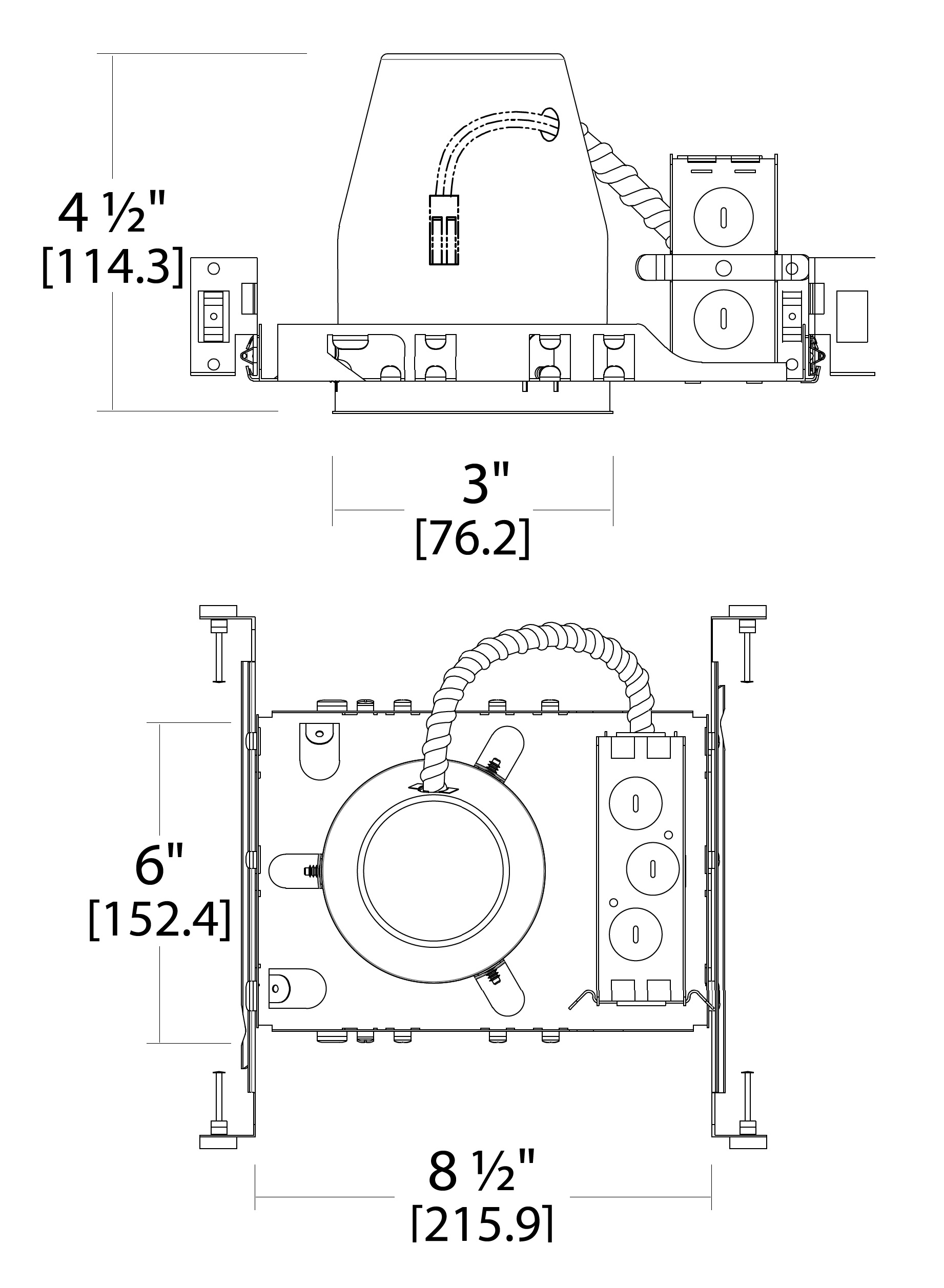

- 4.5” height allows use in 2” x 6” joist construction
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
- Unique hanger bar lip design helps align can to joist
- Bars can be repositioned 90° on plaster frame without tools
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
Installations
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness
- Four pryouts with integral strain relief simplify Romex installation
- Supplied with three push-in wire connectors
- Four double-headed captive nails provide for ease of installation
Full Listings
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Washington State Energy Code approved to meet restricted airflow requirements
- Listed for through branch circuit wiring and includes several 3/4” knockouts
