3″ White Recessed Selectable LED Downlight
The DLR3 Select is a newly improved 3” recessed downlight offering higher lighting efficiency for residential and commercial settings. Its quick and easy installation with an IDEAL luminaire connector and friction fit mounting system, along with an Edison screw base adaptor are perfect for remodel c…
The DLR3 Select is a newly improved 3” recessed downlight offering higher lighting efficiency for residential and commercial settings. Its quick and easy installation with an IDEAL luminaire connector and friction fit mounting system, along with an Edison screw base adaptor are perfect for remodel construction, making it a breeze to replace outdated fixtures. With an impressive CRI rating of 90 and an RA value of 60, it delivers exceptional light quality, ensuring accurate color representation. Adjusting the mood settings with the 5CCT selectable switch offers options from warm 2700K to cool 5000K lighting.
- Powder coated steel trim routes heat away from electrical components

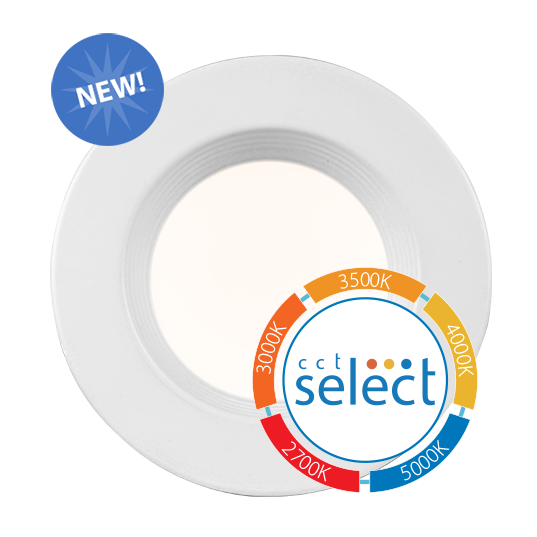

- 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Increased trim depth provides lower glare and a quieter ceiling
- Quick and easy installation with an IDEAL luminaire connector and friction fit mounting system
- Dimmable to 5% with compatible leading edge (TRIAC)
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens778 - 862 lm
-
Wattage7.5
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- Title 20
- IC-Rated
- NFPA 70 Compliant
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- Testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
Features
Construction
- Powder coated steel trim routes heat away from electrical components
- Polymer driver cover for durability
- Friction-fit arms to provide secure mounting means for fixture
- IDEAL luminaire connector
- Included EVA gasket to conform to AirTight rating when used with AT housing
Optical System
- Polystyrene diffusers create uniform light distribution with reduced glare
- 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Beam angle of 84.8°
- Utilizes high-performing LEDs with >90 CRI and an R9 ≥60
- Polystyrene diffusers create uniform distribution without sacrificing lumen output
- Increased trim depth provides lower glare and a quieter ceiling
Electrical
- Input voltage: 120 VAC, 60 Hz
- Power factor: ≥0.97

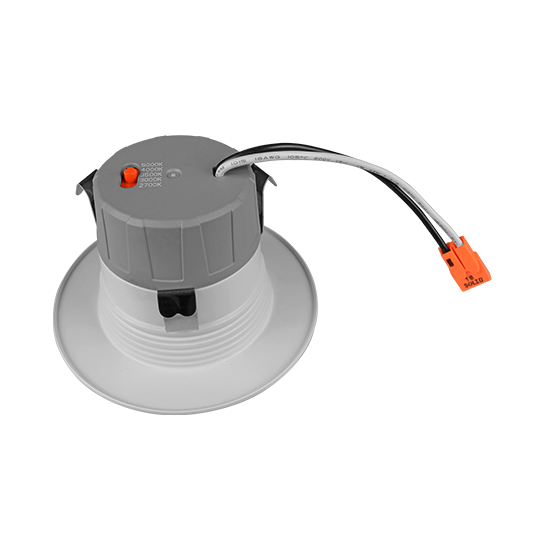

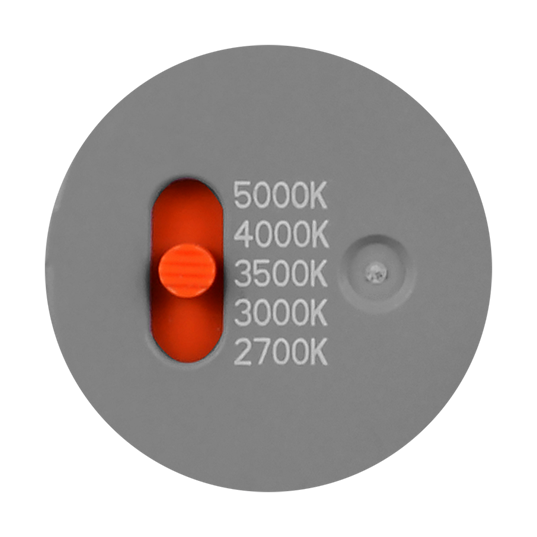

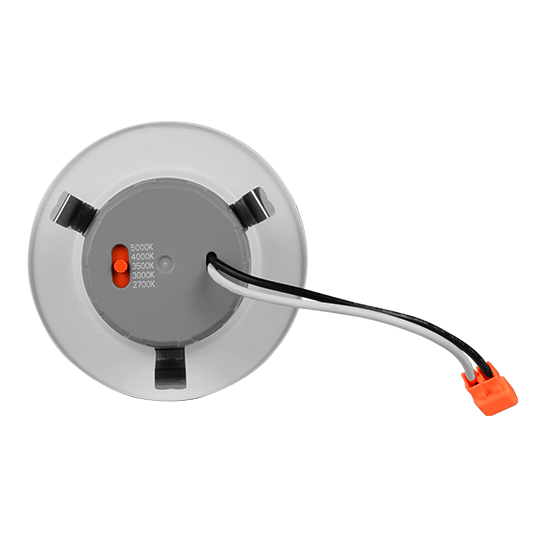

- CCT selection switch on the back of the housing
- Dimmable to 5% with compatible leading edge (TRIAC)
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Quick and easy installation with an IDEAL luminaire connector and friction fit mounting system
- Ships with Edison base socket string
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- ENERGYSTAR listed
- cETLus 1598 Classified for wet locations
- IC-Rated
- CA Title 20 Compliant
- CA Title 24 Compliant
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: (L70) >50,000 hrs
Warranty
- 5-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge). For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
