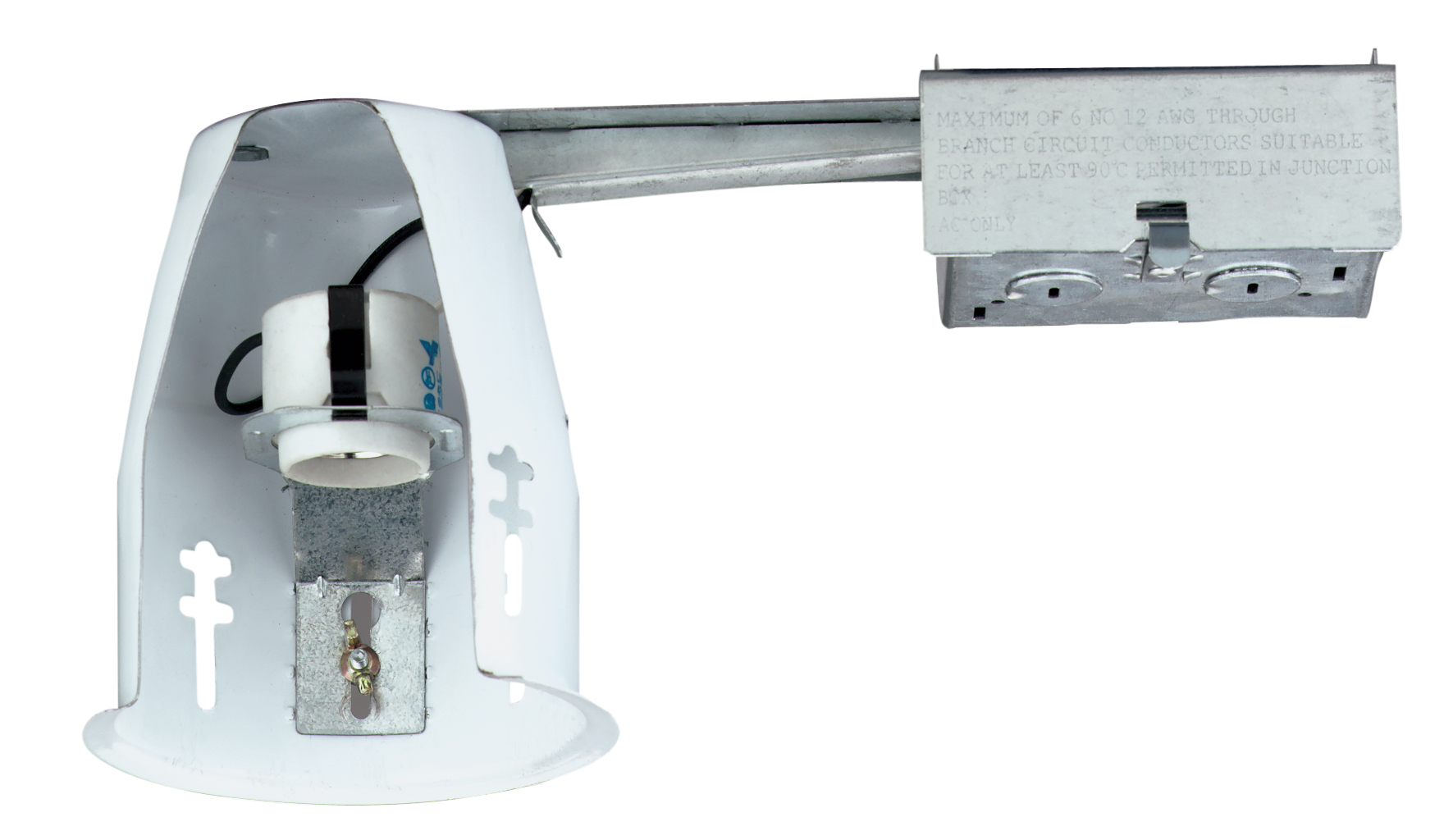

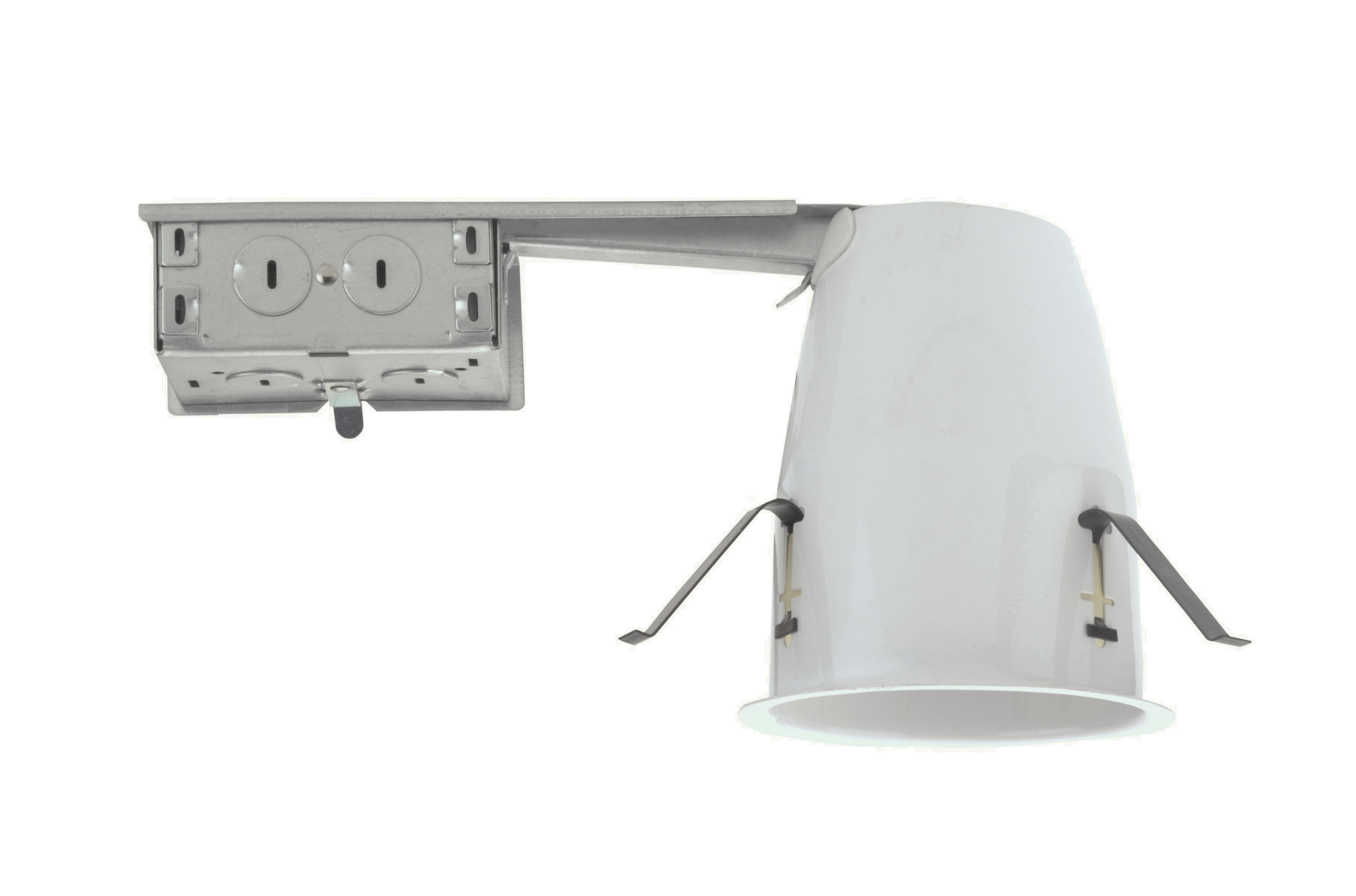

19001AR Series
4 in. Remodel Housing, Line voltage, Non-IC
Product description
The 19001AR is suitable for remodel applications in residential and commercial applications. NON-IC. Insulation must be kept a minimum of 3” from housing.
- Designed for remodel applications in residential and commercial settings, making it ideal for upgrading existing recessed lighting installations
- Adjustable socket bracket ensures proper and consistent lamp positioning for optimal light performance and trim alignment

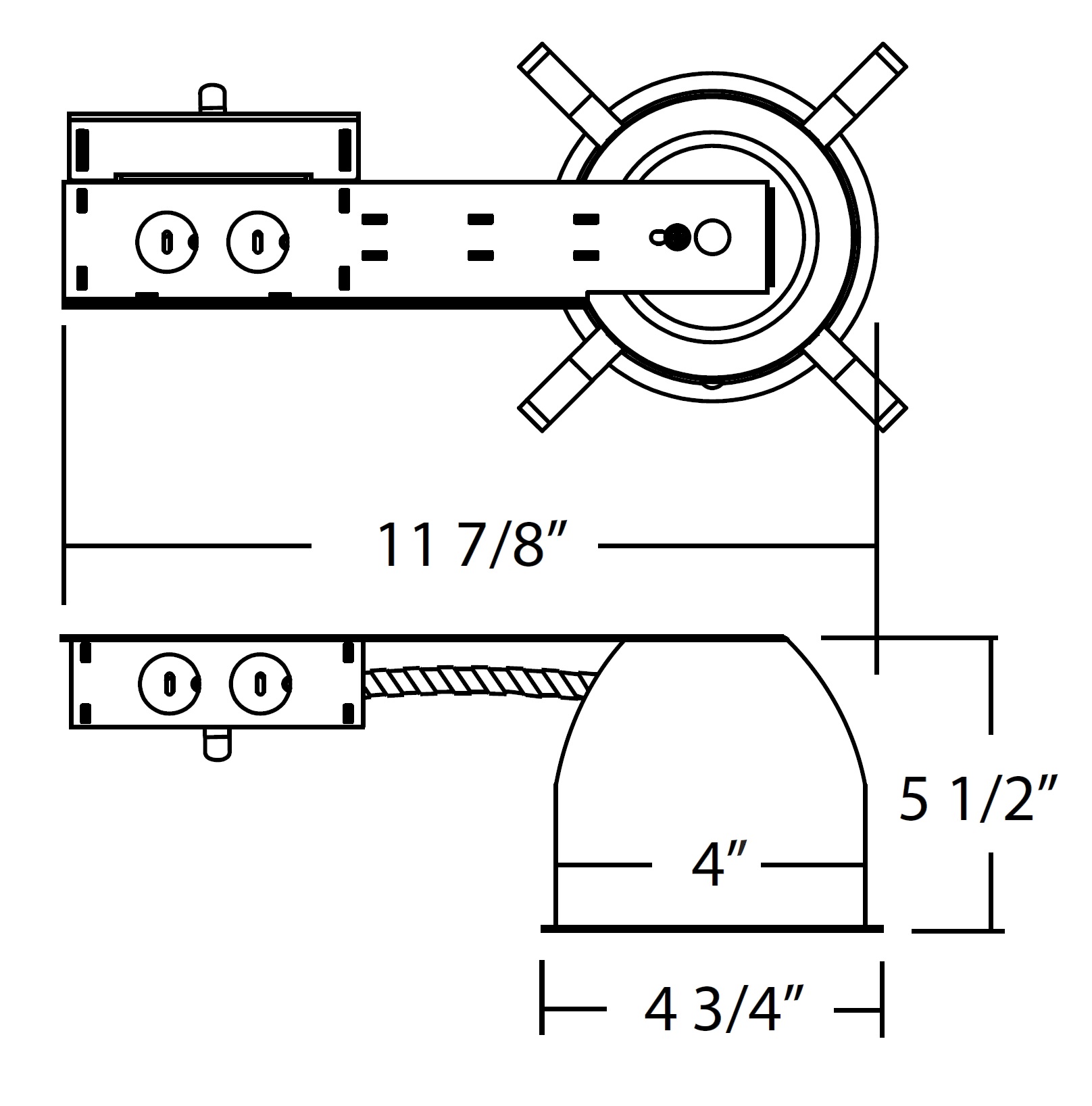

- Low-profile 5.5-inch housing height fits standard 2-inch x 6-inch joist construction, making it suitable for shallow ceiling spaces
- Airtight construction helps reduce airflow between conditioned living spaces and ceiling plenums while meeting Washington State Energy Code restricted airflow requirements
- Features integral thermal protection, IDEAL® push-in wire connectors, through-branch circuit wiring capability, and multiple 3/4-inch knockouts for fast and reliable installation
Color Options:
Ordering information
Downloads
Specifications
-
Wattage50
Listings & certifications
Listings & Certifications
- cULus Listed
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Adjustable socket bracket assures proper and consistent lamp positioning
- 5.5” height allows use in 2” x 6” joist construction
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Supplied with three IDEAL push-in wire connectors
Full Listings
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/ cooled areas
- Listed for through branch circuit wiring and includes several 3/4” knockouts
- UL Listed
- CUL Listed
Warranty
- 1 year warranty
