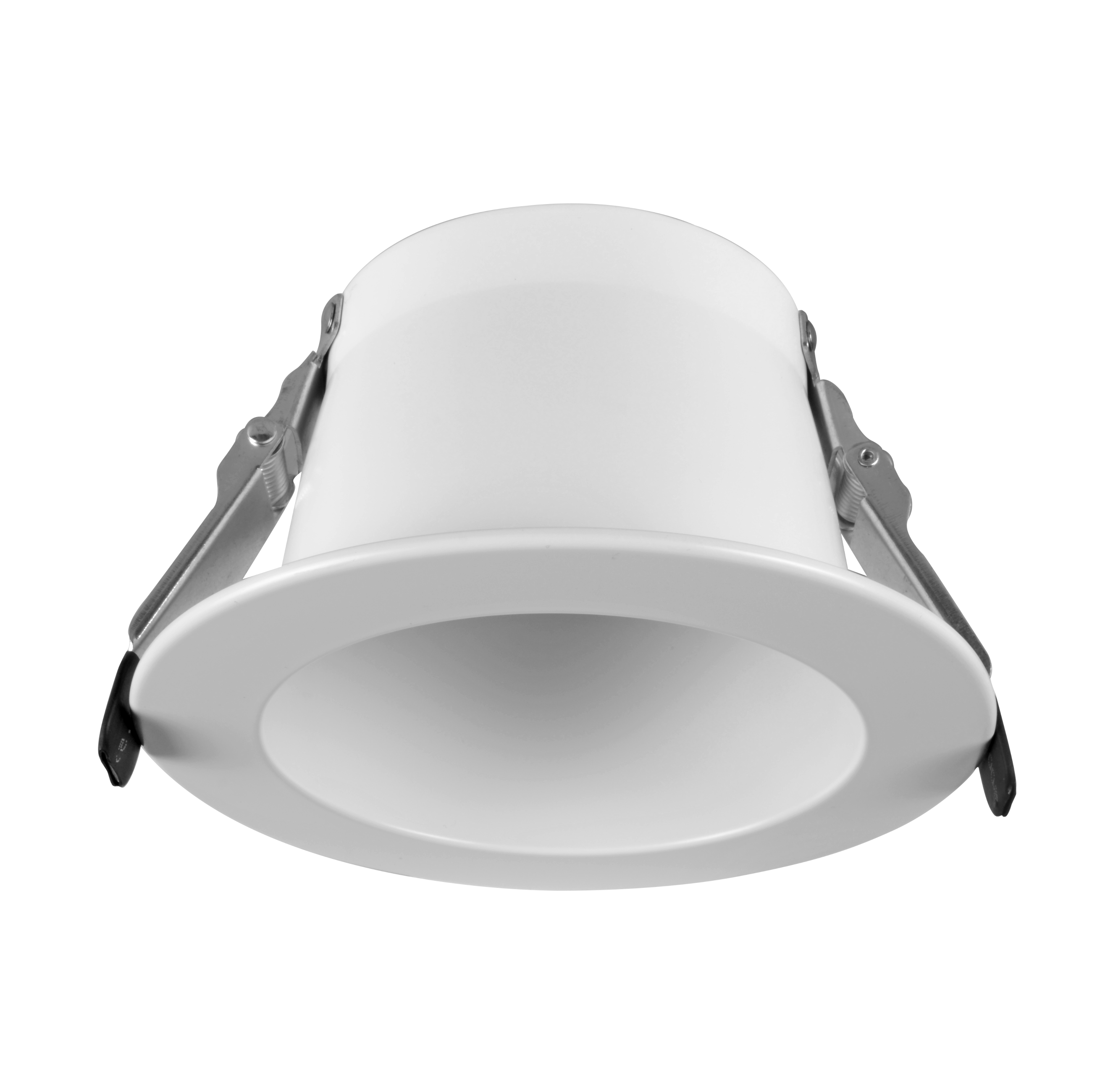

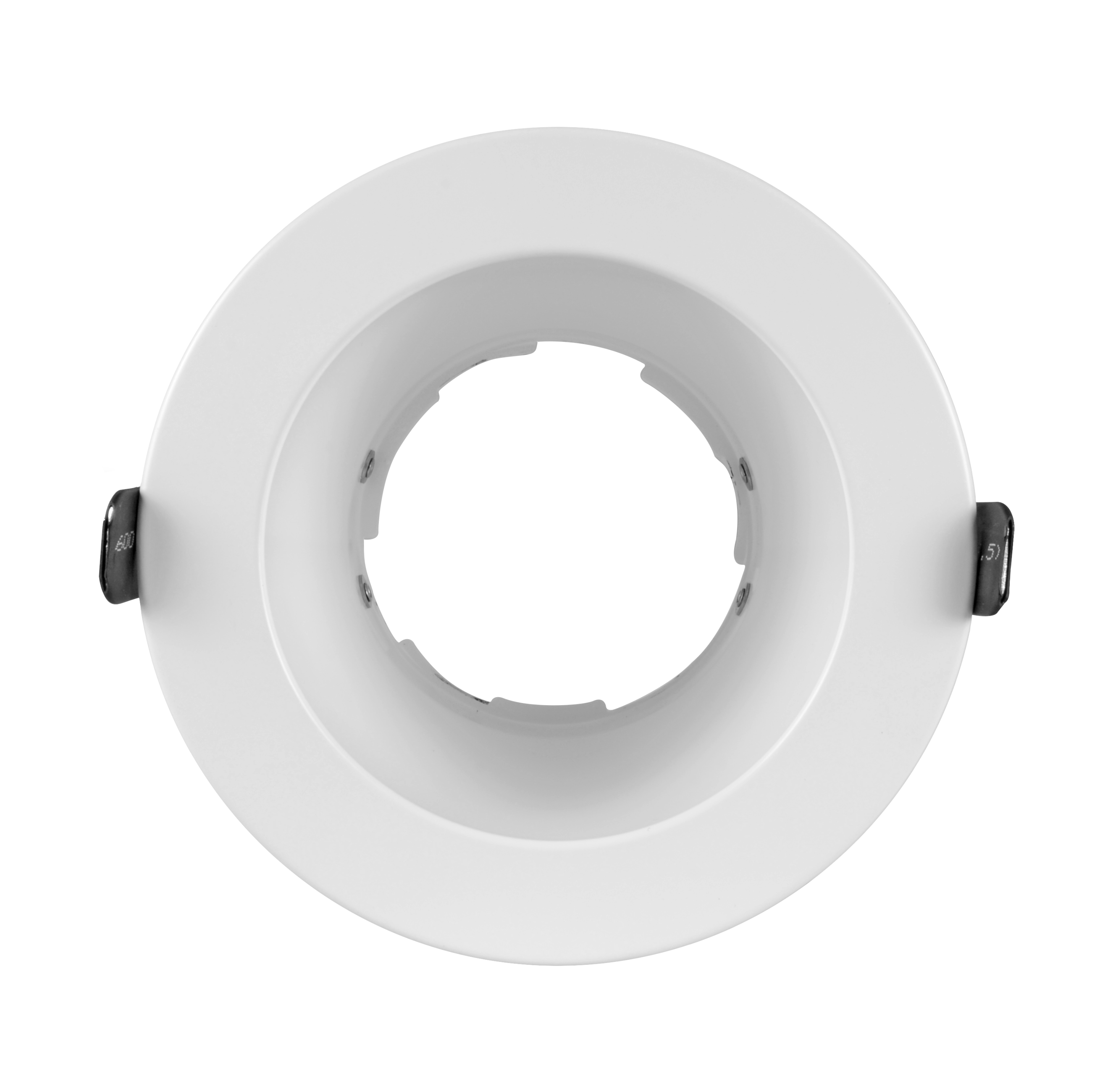

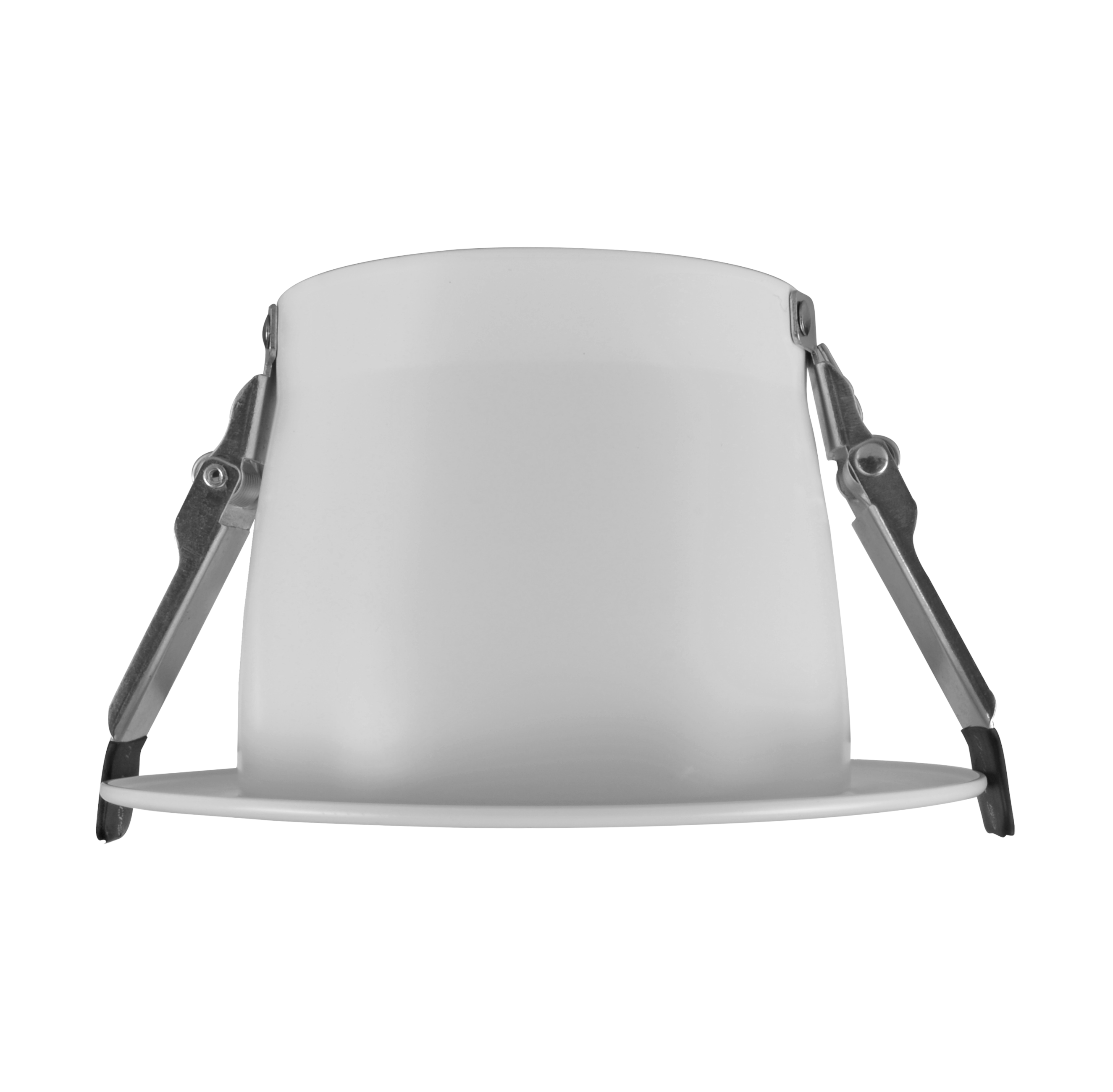

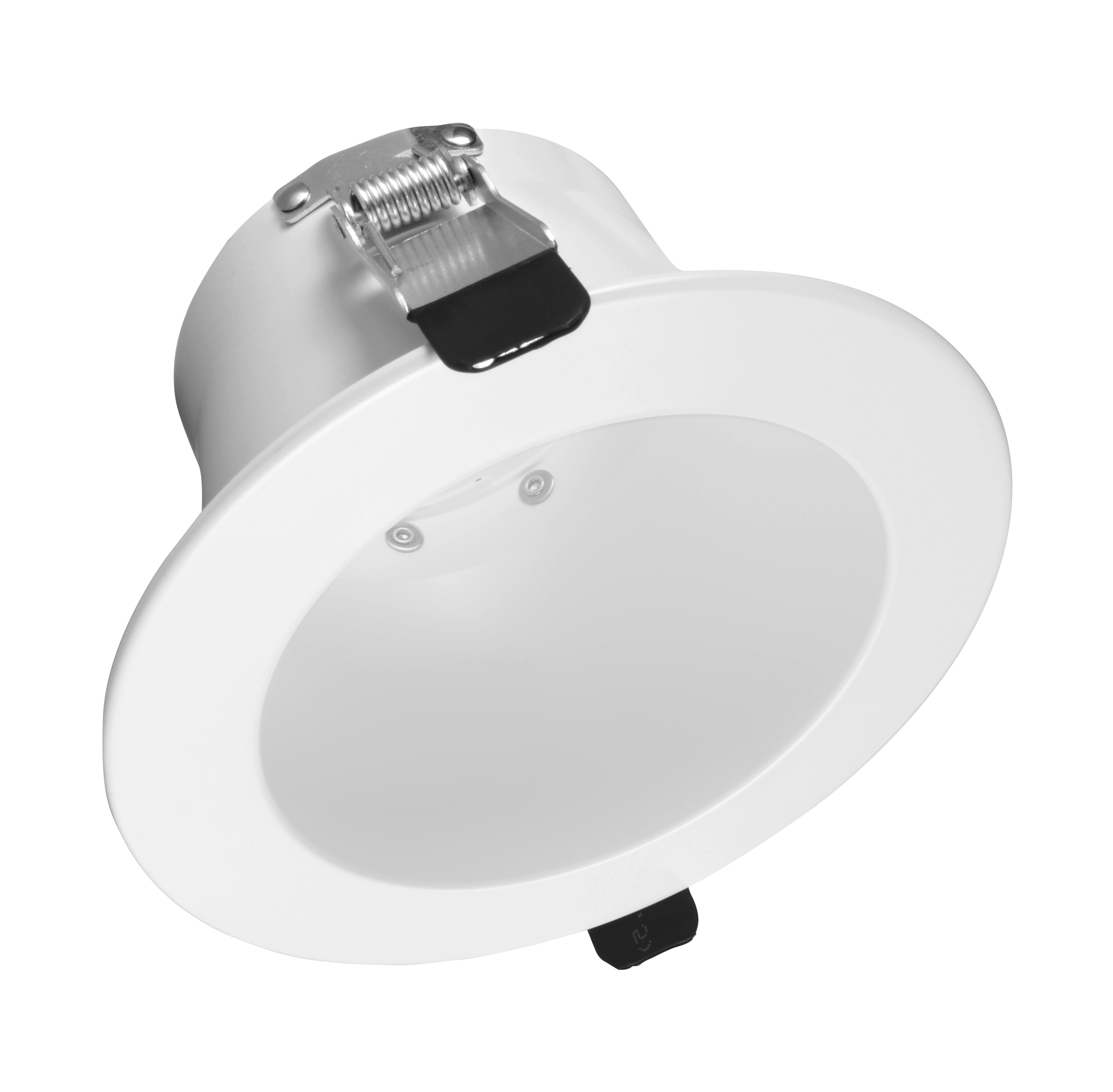

CDG 4″ White Trim with White Flange
Introducing the CDG LED Commercial Downlight System, a versatile lighting solution that combines modular design features with Selectable wattage/color temperature and wireless control technology. The galvanized steel frame features field-swappable mounting collars for both 4” and 6” trim reflectors …
Introducing the CDG LED Commercial Downlight System, a versatile lighting solution that combines modular design features with Selectable wattage/color temperature and wireless control technology. The galvanized steel frame features field-swappable mounting collars for both 4” and 6” trim reflectors available in multiple finishes. For retrofit applications, ditch the frame entirely and mount the trim directly via pre-installed retention clips. The remote junction box/driver is equipped with a hinged door for through-wiring and optional clips for effortless frame attachment. Standard field-adjustable optics produce a range of 36° to 60°, while the optional narrow optic spans 22° to 36° for a more focused light distribution. A wall wash lens can be added to either optic for refined directional lighting. The CDG operates at 120-277V with 0-10V dimming and a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add 4W or 8W emergency backup for added safety and security. NICOR’s CDG System sets a new standard in commercial lighting, defining versatility, convenience, and innovation.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Standard field-adjustable optics
- Adjustable beam angles 36° to 60° (medium) or 22° to 36° (narrow)
- Galvanized steel frame, clip-on driver, wet location listed
- Interchangeable 4”/6” frames; retrofit ready; torsion spring mount
- Bluetooth NLC: full dimming, occupancy, daylight control
- Optional wall wash, 4W/8W emergency, multiple reflector finishes
Color Options:
Ordering information
Downloads
Specifications
Features
Construction
- Galvanized steel mounting frame with interchangeable frame collars
- Galvanized steel junction box with hinged door and locking tabs
- Clip on driver can be mounted facing either direction
- One combination 1/2”-3/4” and four 1/2” knockouts for through wiring
- Mounting brackets provide 2” vertical adjustment
Optical System
- Field adjustable optic from 36°-60° standard
- Narrow optic of 22°-36° available for field installation
- Clip on, rotatable wall wash lens accessory available
- Reflectors provide cutoff angle of 55° (6”) and 50° (4”)
- 90CRI standard
Electrical
- 120-277VAC, 60Hz Input voltage
- 5 CCT and 3 Wattage Selectable options; selector switches located on junction box
- 5CCT Select: 2700K-3000K-3500K-4000K-5000K
- 3 Wattage Select: 38W/3000lm-25W/2200lm-12W/1100lm
- Junction box capacity: 6 (3 in, 3 out) No.12 AWG conductors, rated for 90°C
- Full-range dimming from 0 - 10VDC
- 12VDC output wire for powering controls hardware
- 4W or 8W emergency packs available
- Ambient temperature rating of -4°F-113°F (-20°C-45°C)
- NLC (Network Lighting Controls) compatible
- Bluetooth Low Energy (BLE) mesh network providing Luminaire Level Lighting Control
- Configurable with the NICOR NLC app available on iOS and Android devices
- Provides full dimming control with occupancy and daylight harvesting functions
Installations
- Field interchangeable mounting frame collars included for 4” and 6” trim options
- Mounting brackets for adjustable arms (included) or butterfly brackets (accessory)
- Adjustable hanger bars accommodate 16”-24” joist spacing
- Trim/Light engine mount with torsion springs
- Retrofit model (no frame) can be used with existing commercial frames or frameless installations
Full Listings
- cETLus 1598 for wet locations
- ENERGYSTAR listed
- CA Title 24 / JA8 compliant
- RoHS compliant
- Patent Pending
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
