SELECTABLE 4” LED RECESSED GIMBAL

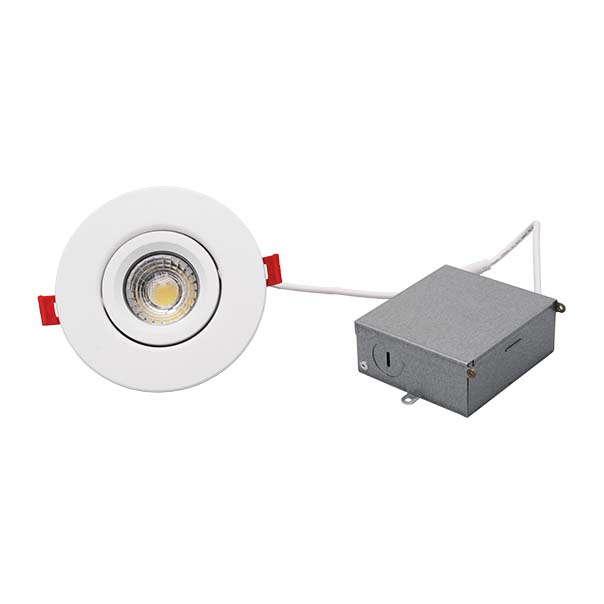

The DGC LED Downlight Gimbal Series offers an Airtight, IC rated gimbal that simplifies challenging lighting installations into easily tailored masterpieces. With five CCT Selections from 2700-5000K, the high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The DGC fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Directional lighting is now easier than ever with 25° tilt and 360° rotation making the DGC perfect for architectural accents such as living rooms, hallways, stairways and corridors.



Specifications

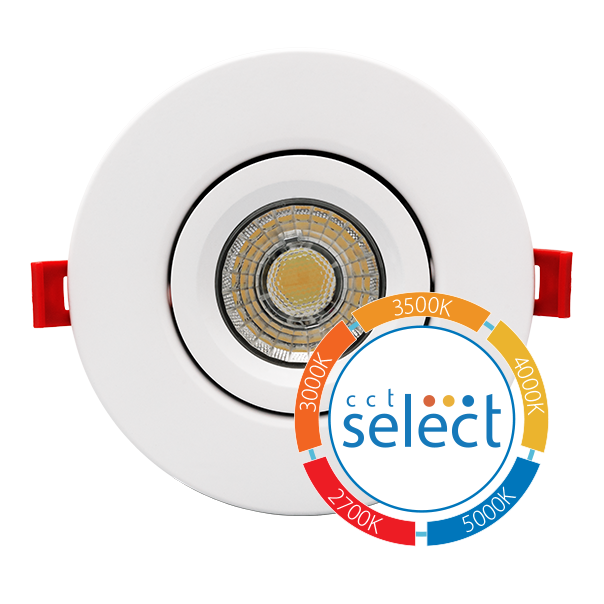

  • Dual emitter COB enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • COB maintains 4-step MacAdams with duv <±0.003
  • 90+ CRI and an R9 > 50
  • TIR optic provides smooth, uniform light with a 33° beam angle

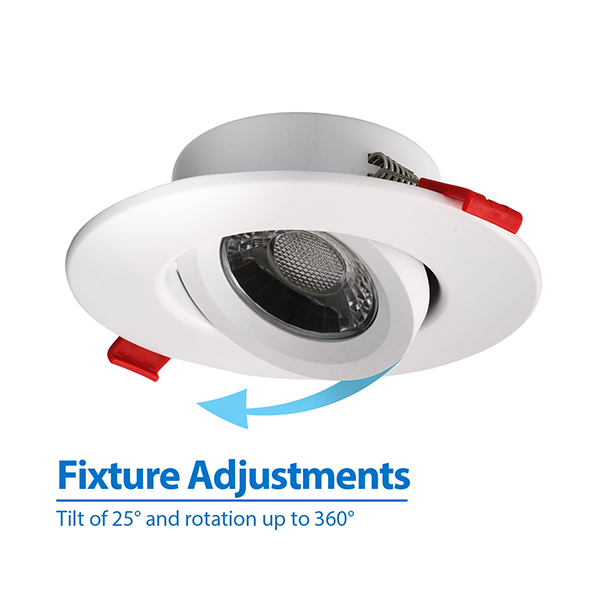

  • 25° Tilt with 360° rotation of the housing
  • 120VAC 50/60Hz input to driver
  • Off-board driver/junction box includes three 1/2” KOs and three-port poke-in connectors
  • Dimmable to less than 5% with compatible TRIAC dimmers
  • Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
  • L70 Lifetime rated for greater than 54,000 hours
  • LM-79, LM-80 testing performed in accordance with IESNA standards
DGC4v3
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

715
Lumens

763
Lumens

805
Lumens

840
Lumens

845
Lumens

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

81.4
lm/W

87.1
lm/W

92.7
lm/W

96.7
lm/W

96.5
lm/W

97
CRI

97
CRI

97
CRI

97
CRI

97
CRI

IES Download

IES Download

IES Download

IES Download

IES Download

Part Number:

 Select:DGC43120SRD
