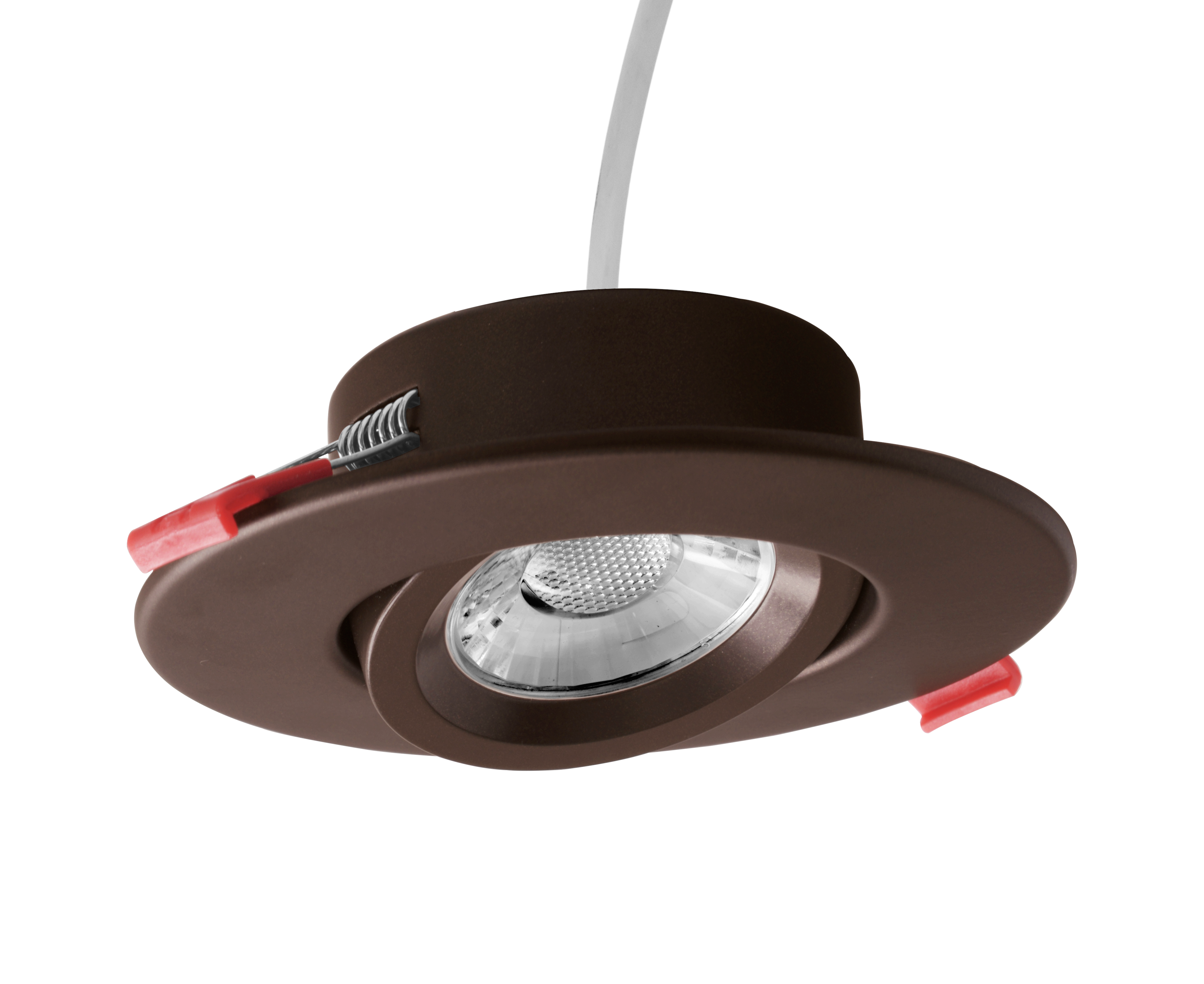

DGC 4-inch Oil-Rubbed Bronze Selectable Canless Adjustable Gimbal LED Recessed Downlight
The DGC LED Downlight Gimbal Series offers an Airtight, IC rated gimbal that simplifies challenging lighting installations into easily tailored masterpieces. With five CCT Selections from 2700-5000K, the high performing light engine with off-board driver allows for more flexible installations and in…
The DGC LED Downlight Gimbal Series offers an Airtight, IC rated gimbal that simplifies challenging lighting installations into easily tailored masterpieces. With five CCT Selections from 2700-5000K, the high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The DGC fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Directional lighting is now easier than ever with 25° tilt and 360° rotation making the DGC perfect for architectural accents such as living rooms, hallways, stairways and corridors.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Uniform light with 90+ CRI, R9 > 50, and 90° beam angle
- Durable polymer flange, IC-rated compatibility, RoHS compliant
- Compact design with integrated driver for IC-rated/shallow housings
- Twist-and-turn gimbal: 350° rotation, 30° tilt; friction-fit/Edison connector
- Dimmable to 5% with TRIAC or ELV dimmers; CCT selector switch
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -

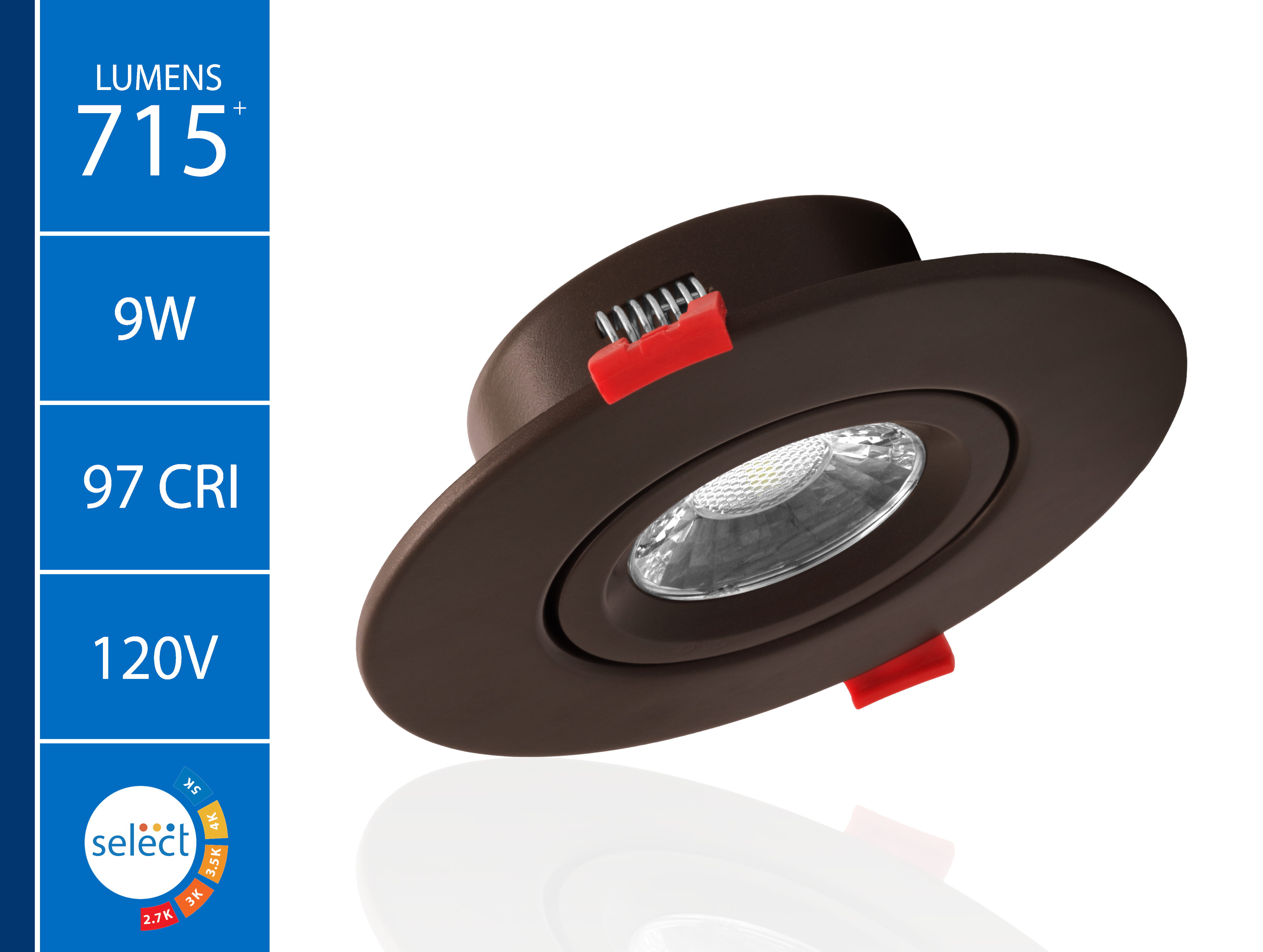

Lumens715 - 845 lm
-
Wattage8.7 - 8.9 W
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- IC-Rated
- Airtight (ASTM E283)
- RoHS Compliant
- FCC Class B
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
- COB maintains 4-step MacAdams with duv <±0.003
- Meets or exceeds ASTM E283 Airtight requirements
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction

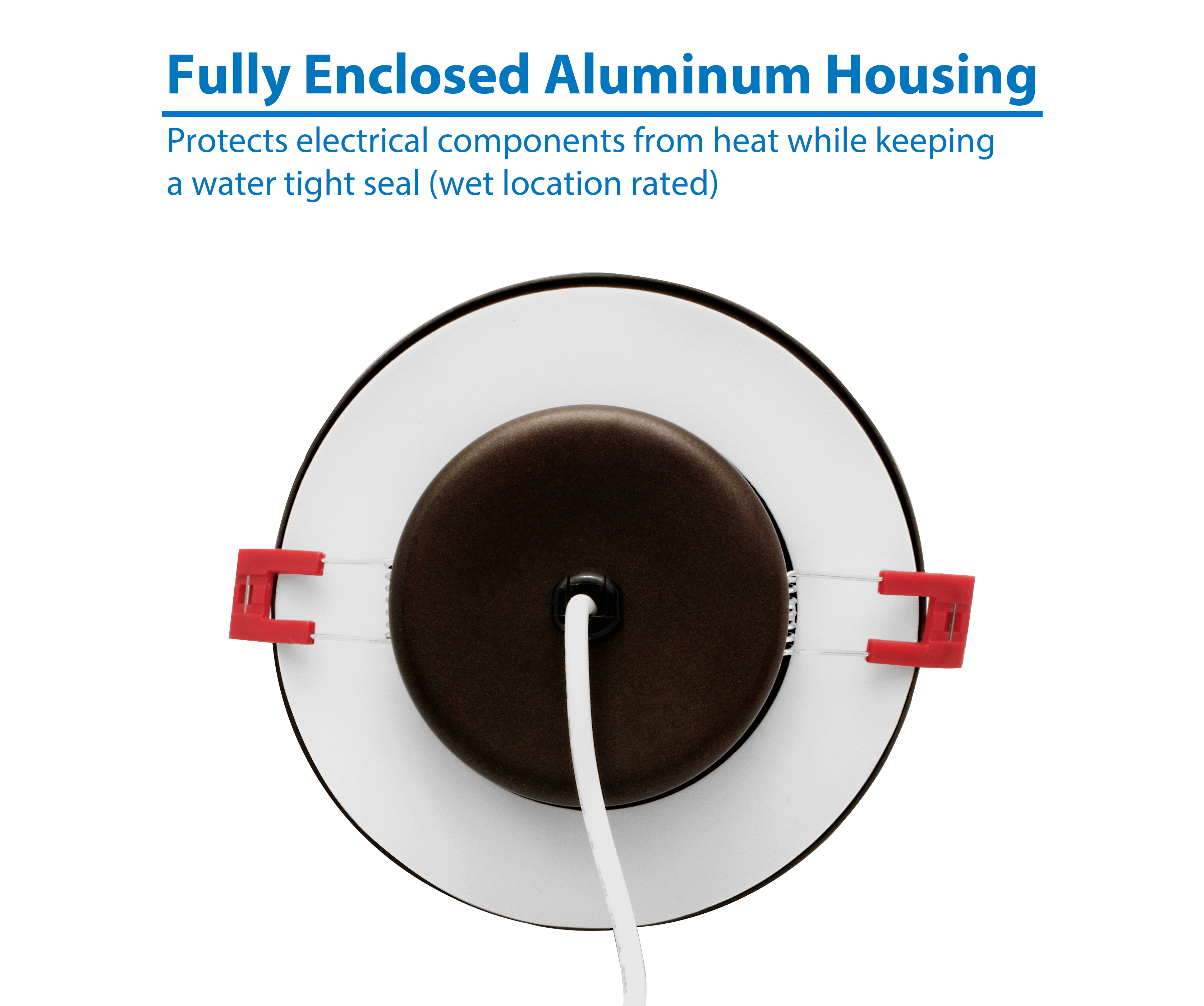

- Fully enclosed aluminum housing
- Adjustable, spring loaded retention tabs ensure secure fixture retention
Optical System
- Dual emitter COB enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- COB maintains 4-step MacAdams with duv <±0.003
- 90+ CRI and an R9 > 50

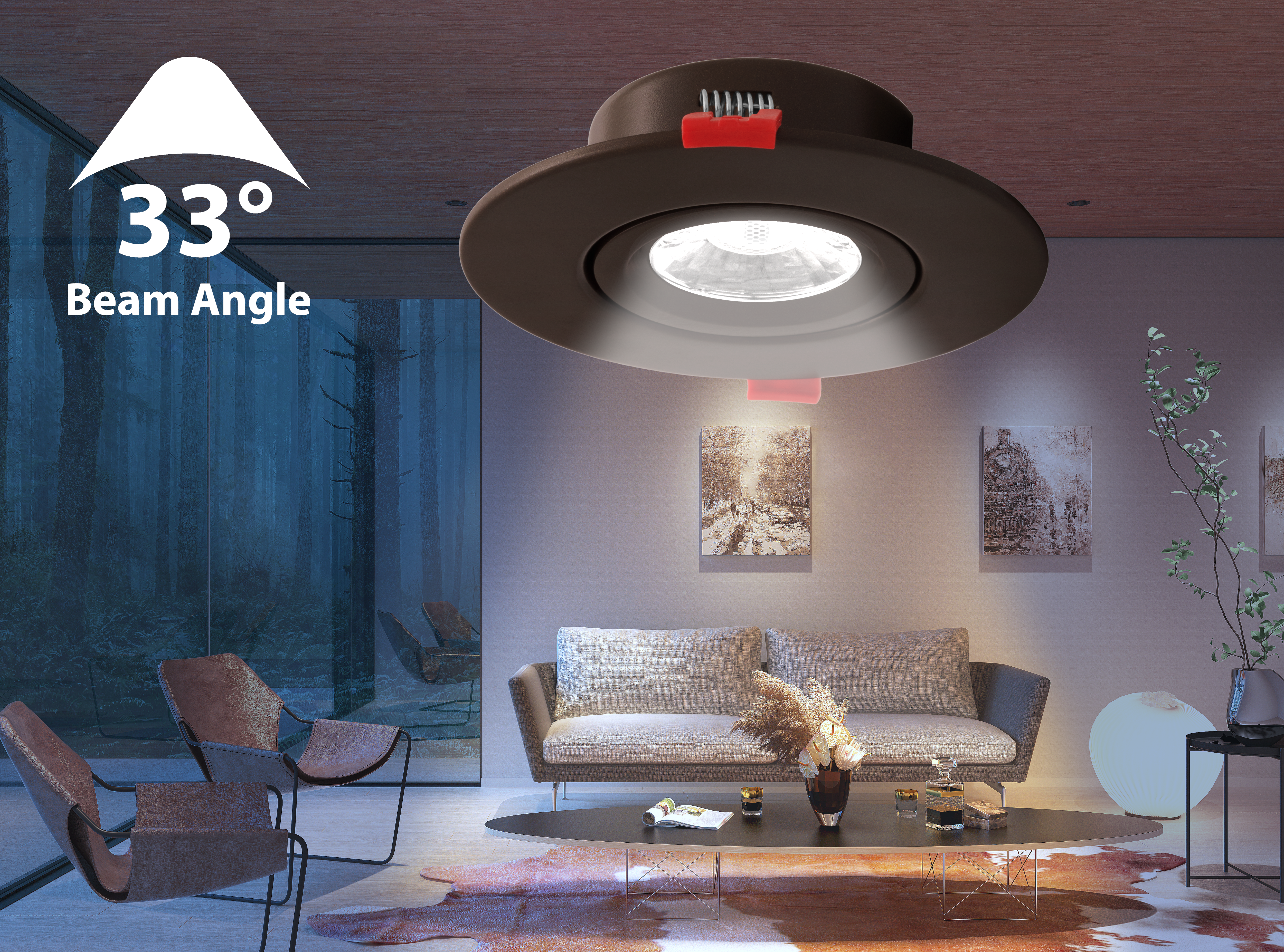

- TIR optic provides smooth, uniform light with a 33° beam angle

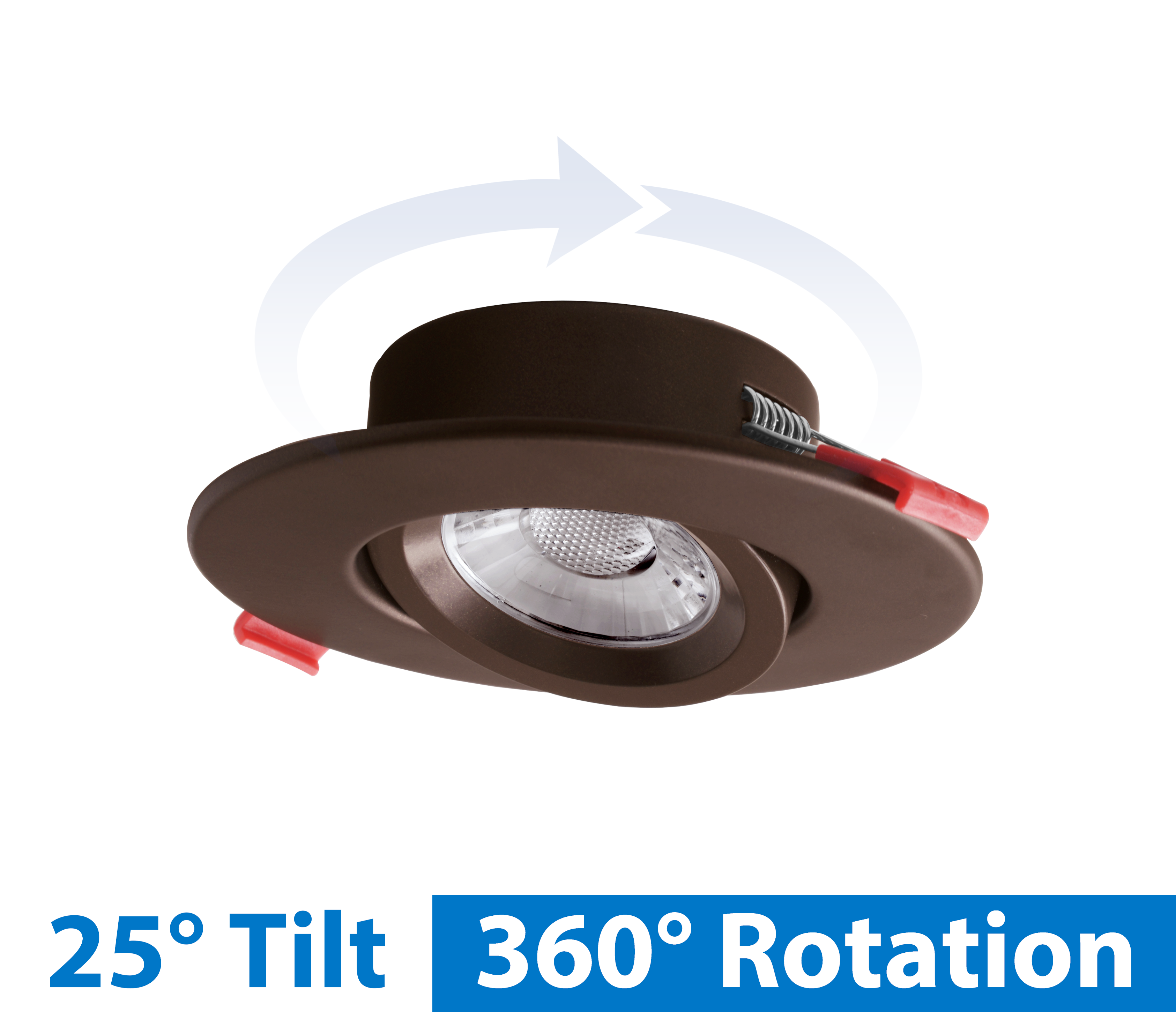

- 25° Tilt with 360° rotation of the housing
Electrical
- 120VAC 50/60Hz input to driver

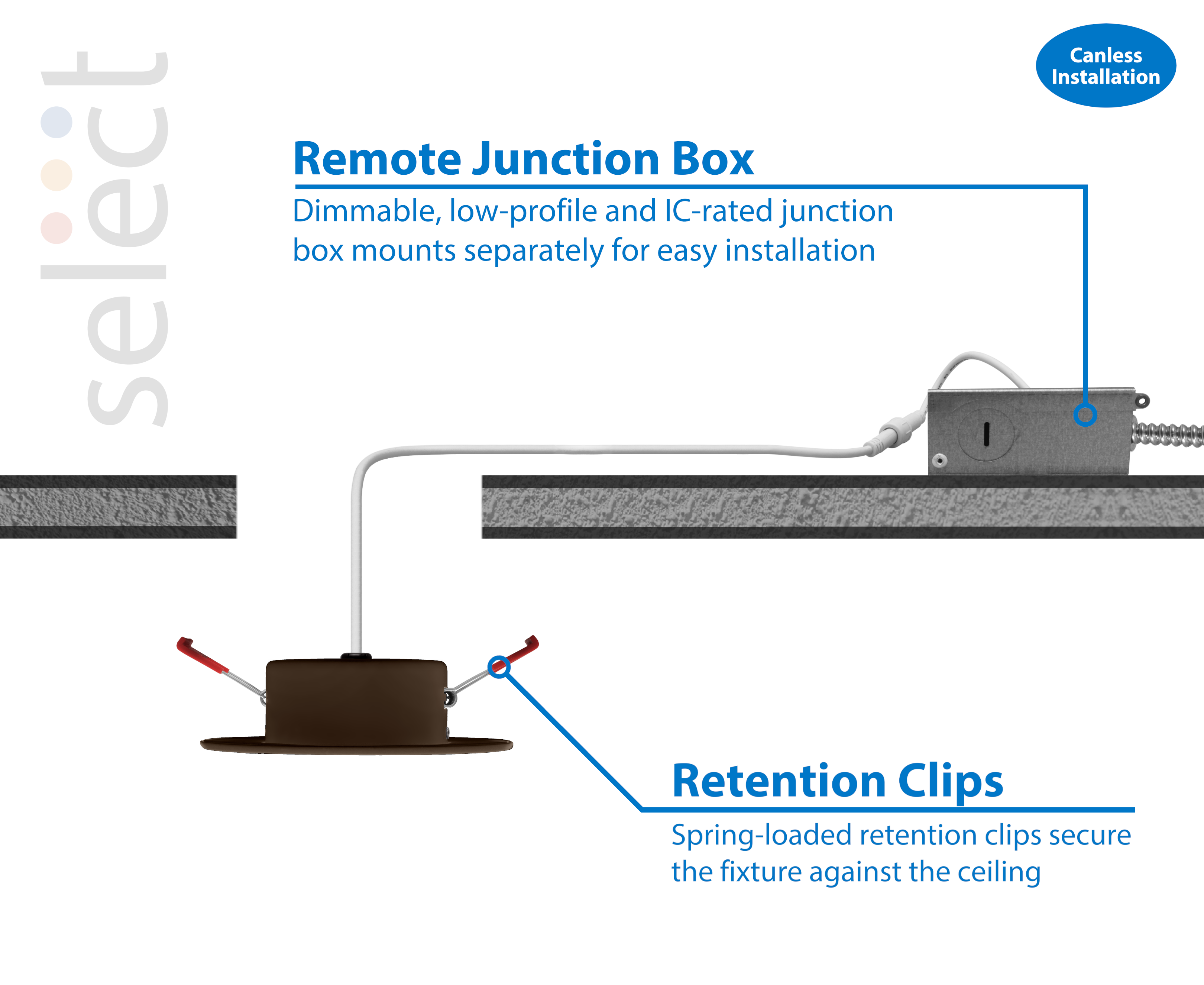

- Off-board driver/junction box includes three 1/2” KOs and three-port poke-in connectors
- Dimmable to less than 5% with compatible TRIAC dimmers
- Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
- L70 Lifetime rated for greater than 54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Installations

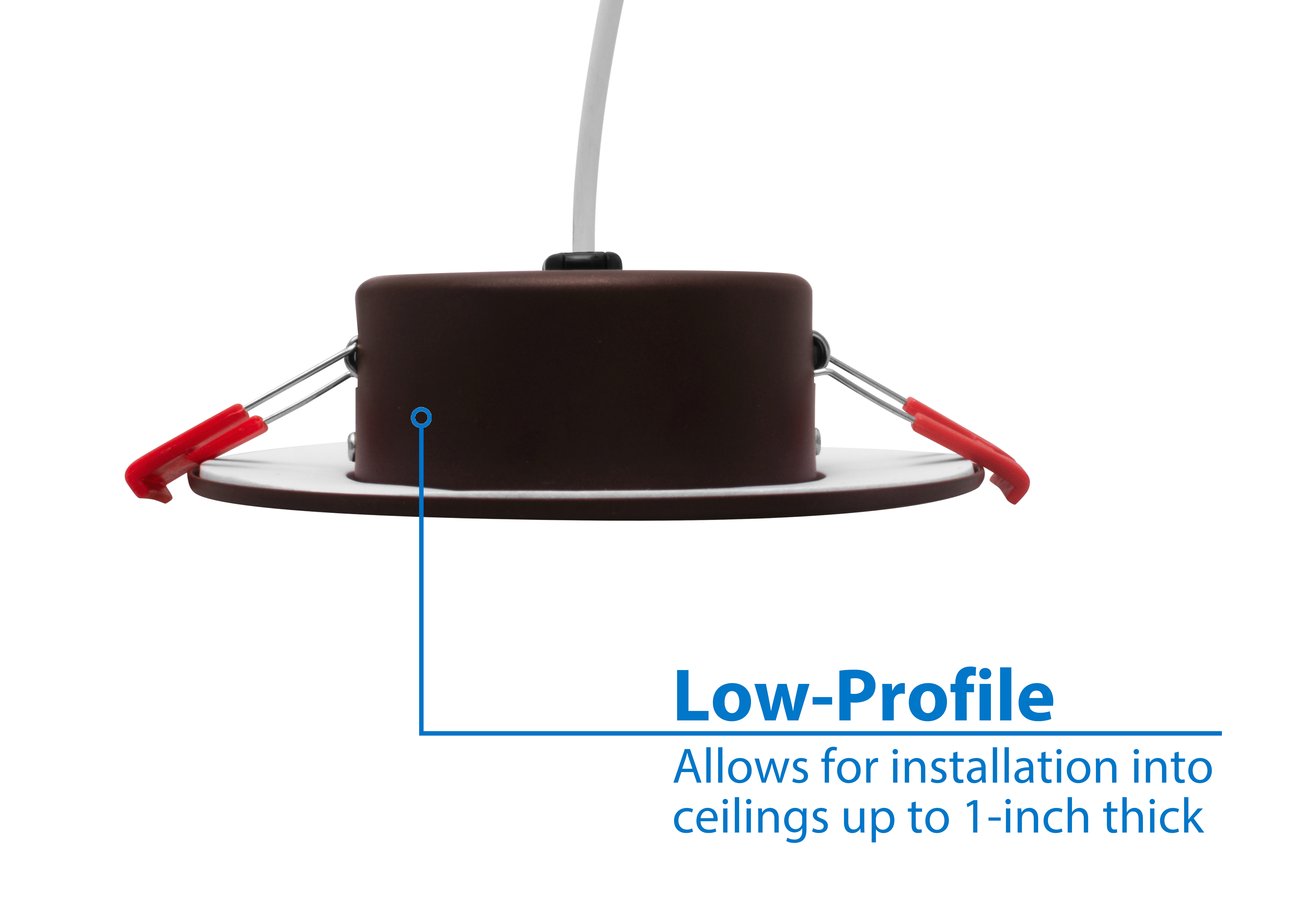

- Spring loaded retention arms allow for easy installation into ceilings up to 1” thick with no need for a recessed housing

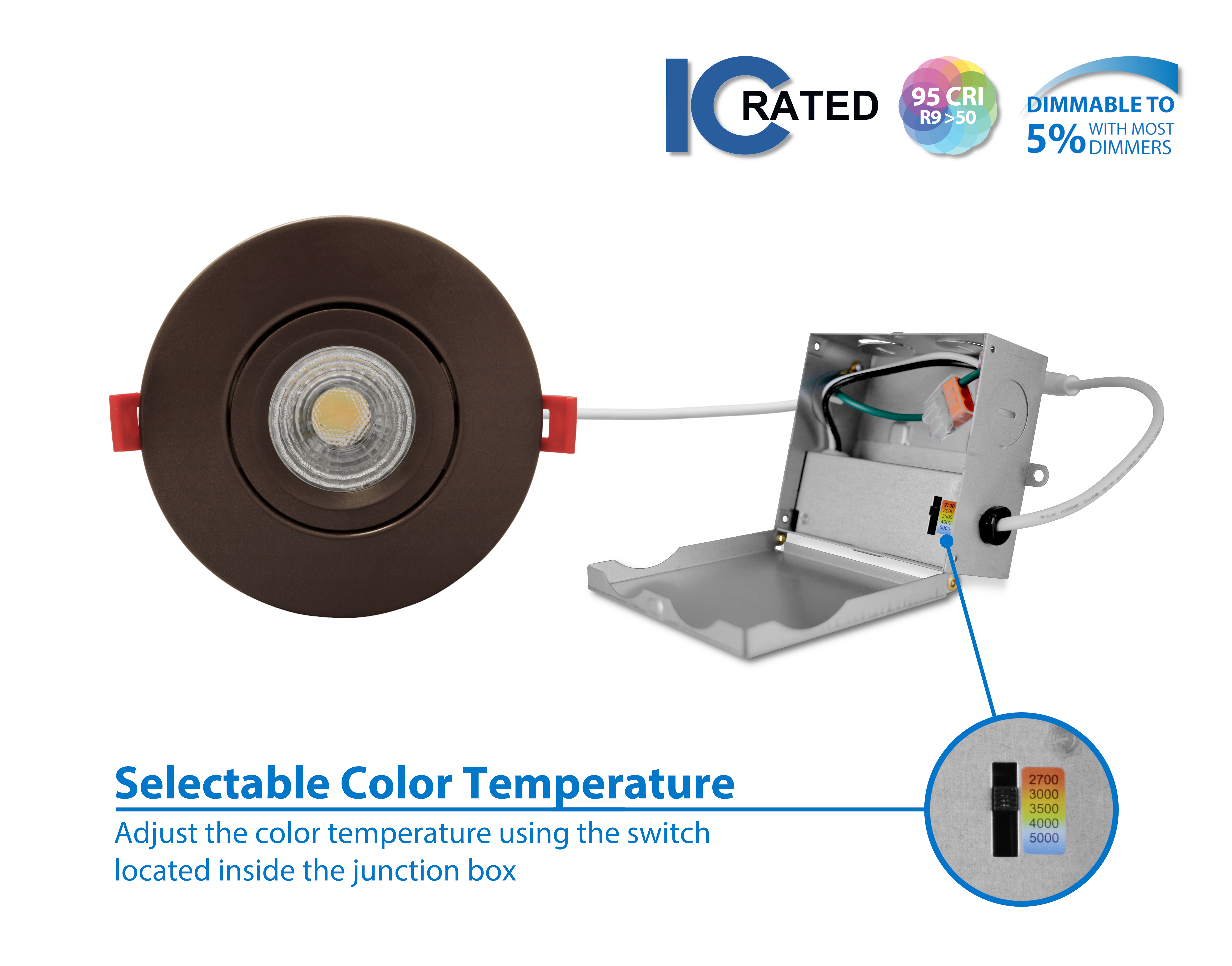

- CCT adjusted via switch on driver junction box
- Extension power cables (10’, 20’) available
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- UL/cUL1598 Listed for damp locations
- Certified Type IC for direct contact with insulation
- Airtight per ASTM E283
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>54,000 hrs
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
