GIMBAL RECESSED LED DOWNLIGHT

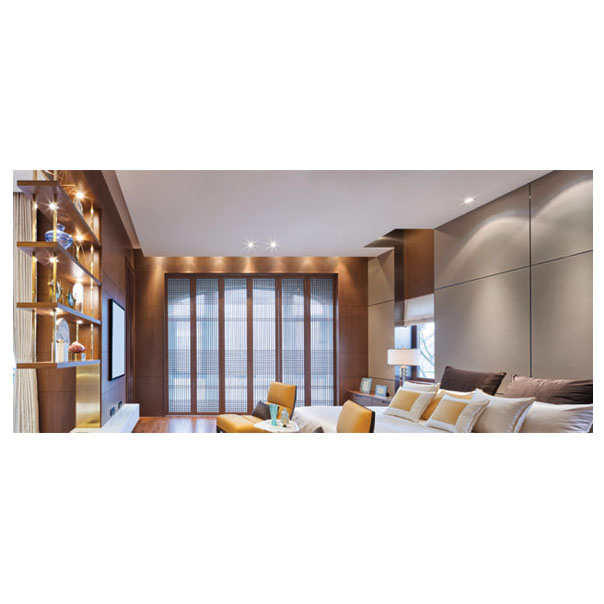

The DGD LED Downlight Gimbal Series offers a line of gimbal downlights that simplify installing tailored lighting in challenging locations. The high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The DGD fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding directional lighting for architectural accent in areas such as living rooms, hallways, stairways and corridors is now easier than ever.



^ Does not include DGD2    * Except 5000K

Specifications

  • Off-board driver minimizes installation height and maximizes fixture life through improved heat management
  • 120V input to driver
  • Dimmable to less than 5% with compatible TRIAC dimmers
  • Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
  • Lifetime rated for greater than 54,000 hours
  • LM-79, LM-80 testing performed in accordance with IESNA standards
  • Available in White, Black, Oil-Rubbed Bronze, and Nickel
DGD2
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

356
Lumens

366
Lumens

376
Lumens

384
Lumens

4.8
Input Watts

4.8
Input Watts

4.8
Input Watts

4.8
Input Watts

74.2
lm/W

76.3
lm/W

78.3
lm/W

80.0
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD211202K
 3000K:DGD211203K
 4000K:DGD211204K
 5000K:DGD211205K
DGD3
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

571
Lumens

588
Lumens

603
Lumens

616
Lumens

7.9
Input Watts

7.9
Input Watts

7.9
Input Watts

7.9
Input Watts

72.3
lm/W

74.4
lm/W

76.3
lm/W

78.0
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD311202K
 3000K:DGD311203K
 4000K:DGD311204K
 5000K:DGD311205K
DGD4
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

983
Lumens

1006
Lumens

1038
Lumens

1060
Lumens

11.6
Input Watts

11.6
Input Watts

11.6
Input Watts

11.6
Input Watts

84.7
lm/W

86.7
lm/W

89.5
lm/W

91.4
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD411202K
 3000K:DGD411203K
 4000K:DGD411204K
 5000K:DGD411205K
DGD2
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

356
Lumens

366
Lumens

376
Lumens

384
Lumens

4.8
Input Watts

4.8
Input Watts

4.8
Input Watts

4.8
Input Watts

74.2
lm/W

76.3
lm/W

78.3
lm/W

80.0
lm/W

90
CRI

90
CRI

90
CRI

90
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD211202K
 3000K:DGD211203K
 4000K:DGD211204K
 5000K:DGD211205K

DGD3
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

571
Lumens

588
Lumens

603
Lumens

616
Lumens

7.9
Input Watts

7.9
Input Watts

7.9
Input Watts

7.9
Input Watts

72.3
lm/W

74.4
lm/W

76.3
lm/W

78.0
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD311202K
 3000K:DGD311203K
 4000K:DGD311204K
 5000K:DGD311205K

DGD4
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

983
Lumens

1006
Lumens

1038
Lumens

1060
Lumens

11.6
Input Watts

11.6
Input Watts

11.6
Input Watts

11.6
Input Watts

84.7
lm/W

86.7
lm/W

89.5
lm/W

91.4
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DGD411202K
 3000K:DGD411203K
 4000K:DGD411204K
 5000K:DGD411205K
