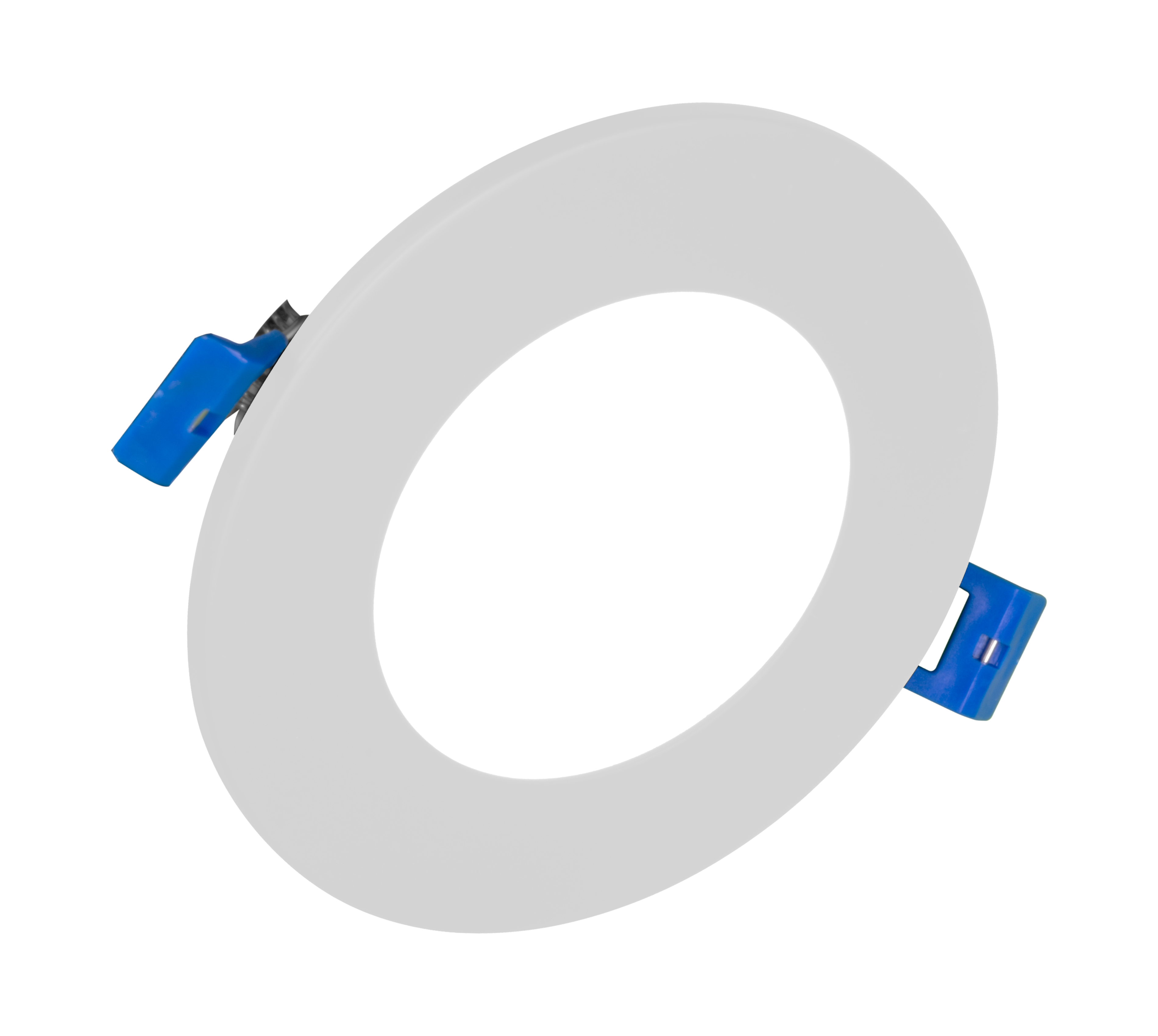

DLE4 Series 4-inch Round White Edge-Lit LED Downlight in 2700K
The DLE Edge Lit LED Downlight Series offers an attractive visual aesthetic with both round and square apertures. The edge lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it an effective and economical solution. The ultra-thin fixture depth and…

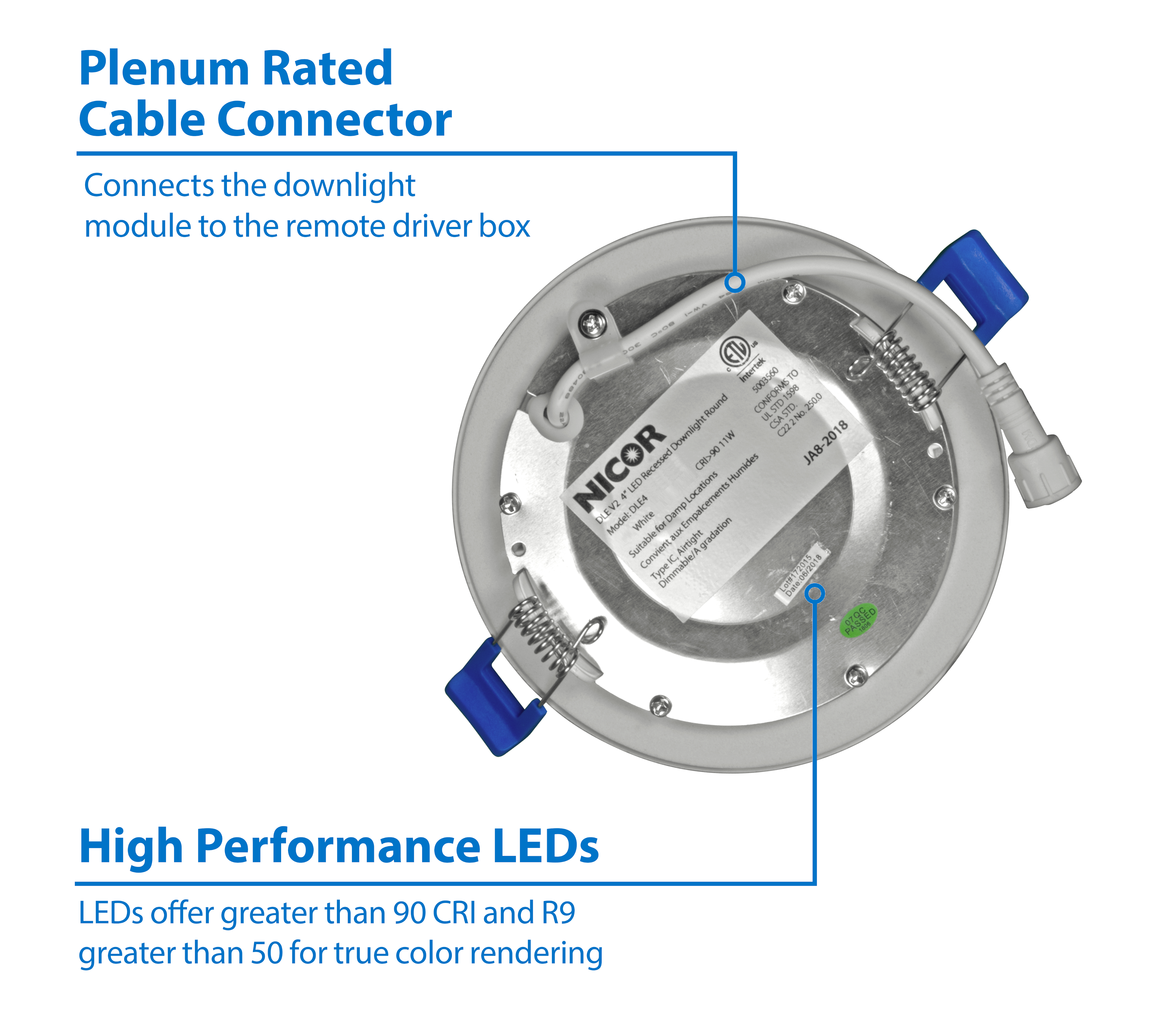

The DLE Edge Lit LED Downlight Series offers an attractive visual aesthetic with both round and square apertures. The edge lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it an effective and economical solution. The ultra-thin fixture depth and off-board driver allow for a more flexible installation and increased lifetime with improved thermal management. Eliminating the need for a J-box or recessed housing, the DLE fixture uses a plenumrated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring loaded retention tabs for a secure fit. Adding light in tight spaces such as hallways, bathrooms, basements, entry ways, porches, stairways, work areas, utility closets and corridors just got easier.
- Canless downlight system with off-board driver
- Available in round or square configurations
- Color temperature options: 2700K, 3000K, 4000K, or 5000K

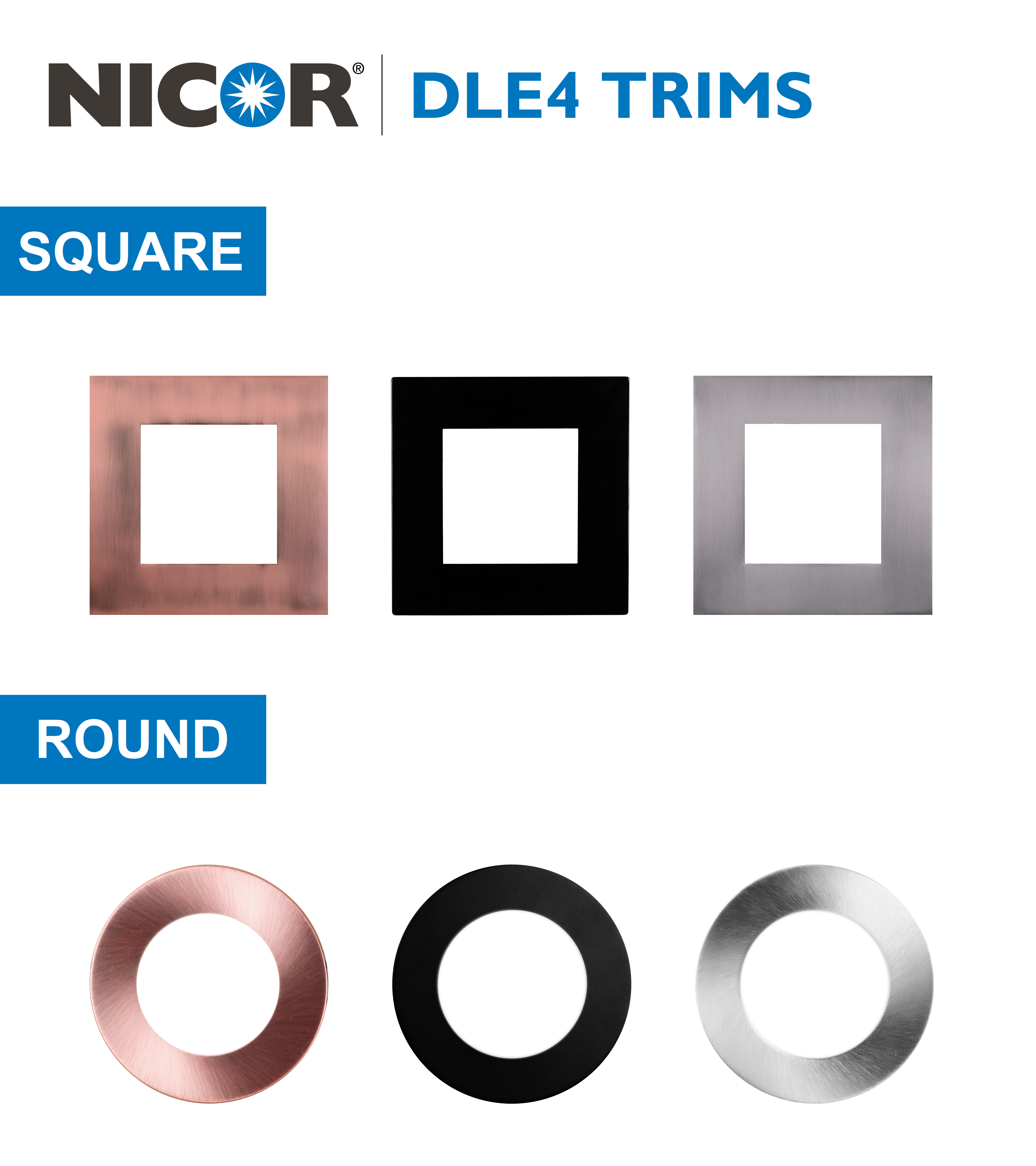

- Available faceplate trims in aged copper, black, or nickel finishes
- Meets Title 24 and JA8 complaince standards
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens710
-
Wattage11
Listings & certifications
- cETLus Intertek Listed
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- RoHS Compliant
- Damp-Location
Features
Construction

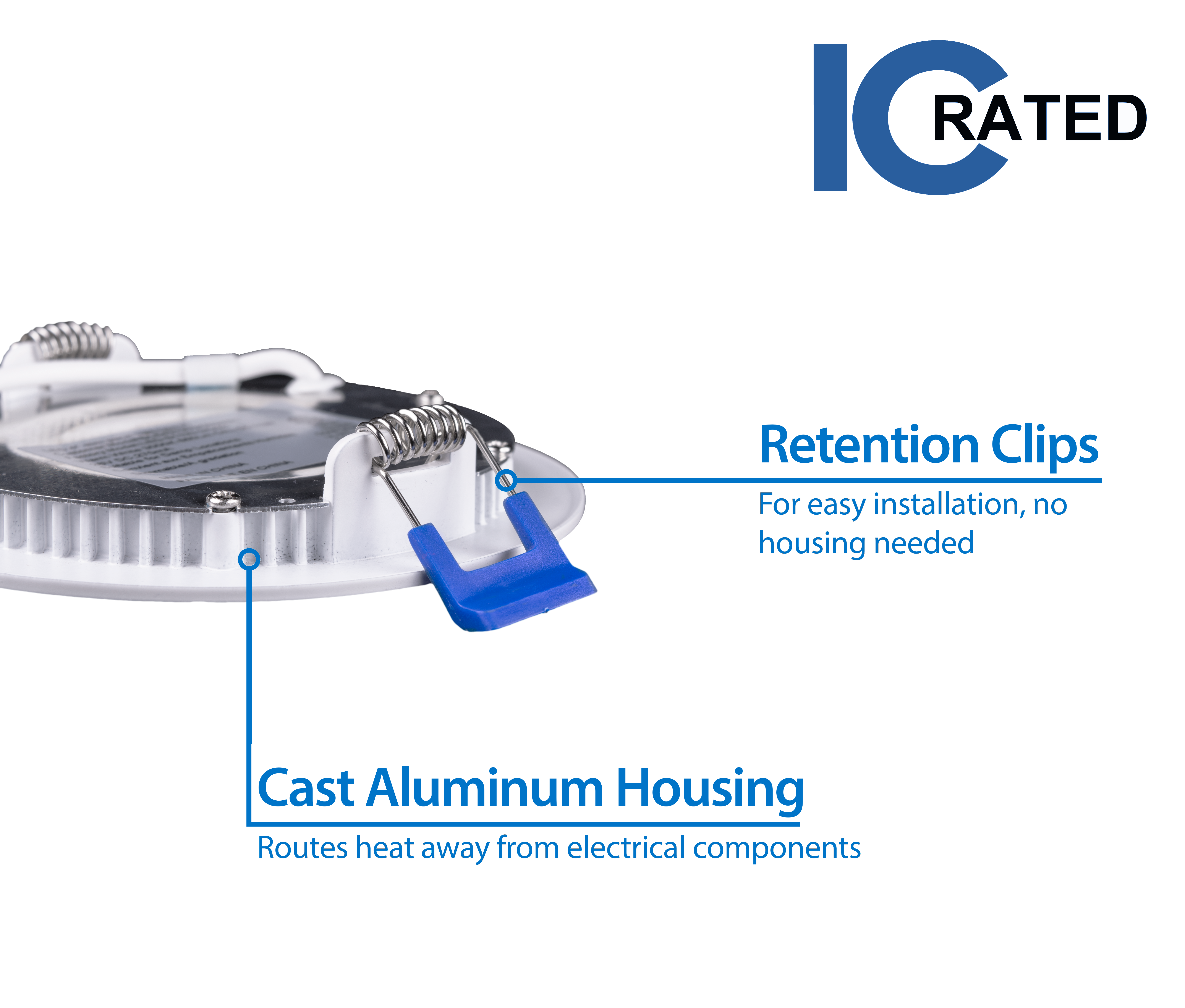

- Cast aluminum housing routes heat away from electrical components

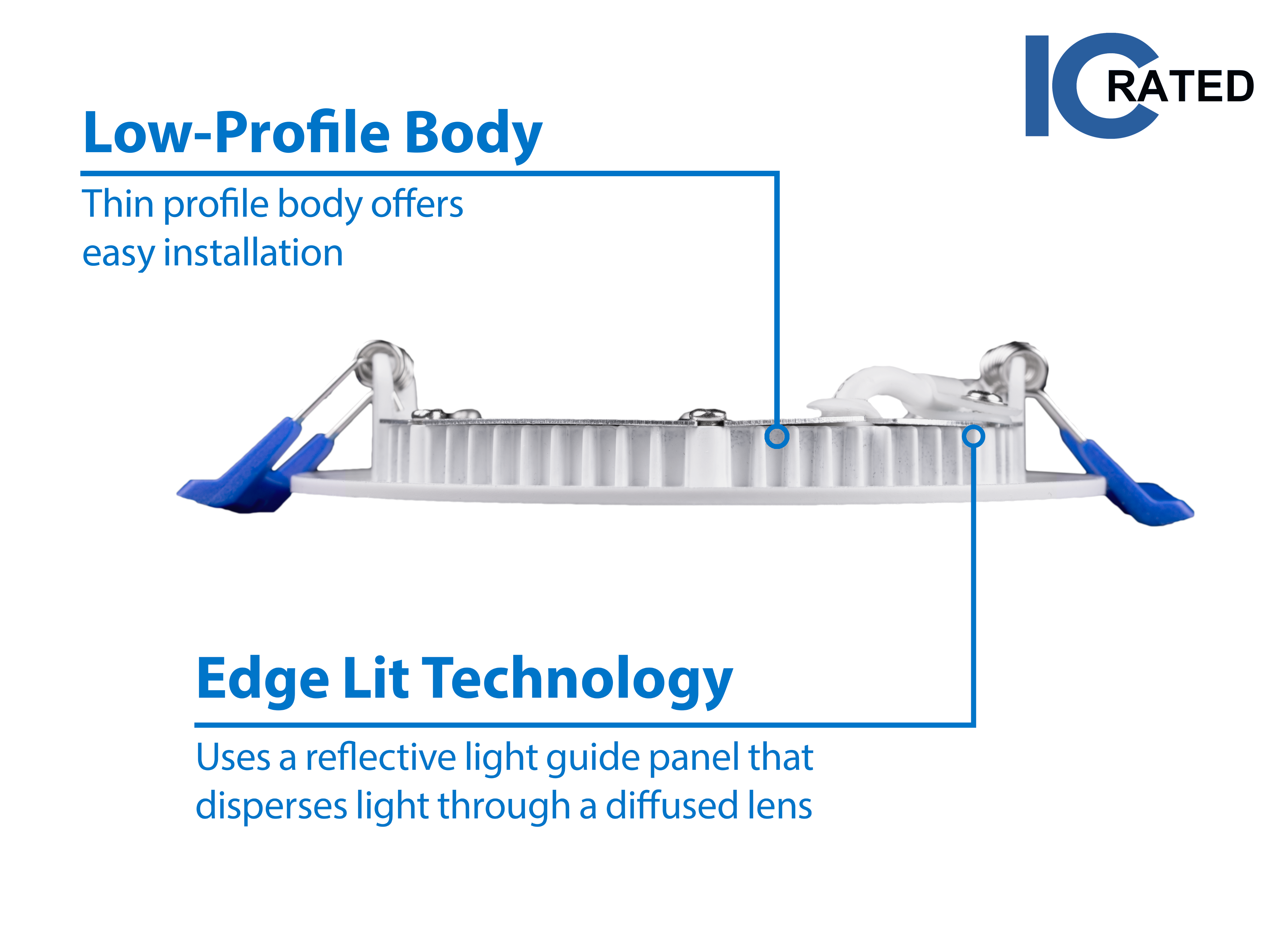

- Edge-Lit technology allows for extremely thin fixture depth
- Adjustable, spring loaded retention tabs ensure secure fixture retention
- Certified for direct contact with insulation
- Includes gasket to meet AirTight requirements
- Square fixture has round back for easier cut in with standard hole cutters
- White powder coat finish standard
- Color trims available in Black, Nickel and Aged Copper
- Available in round or square configurations
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- CCT offered at 2700K, 3000K, 4000K, 5000K

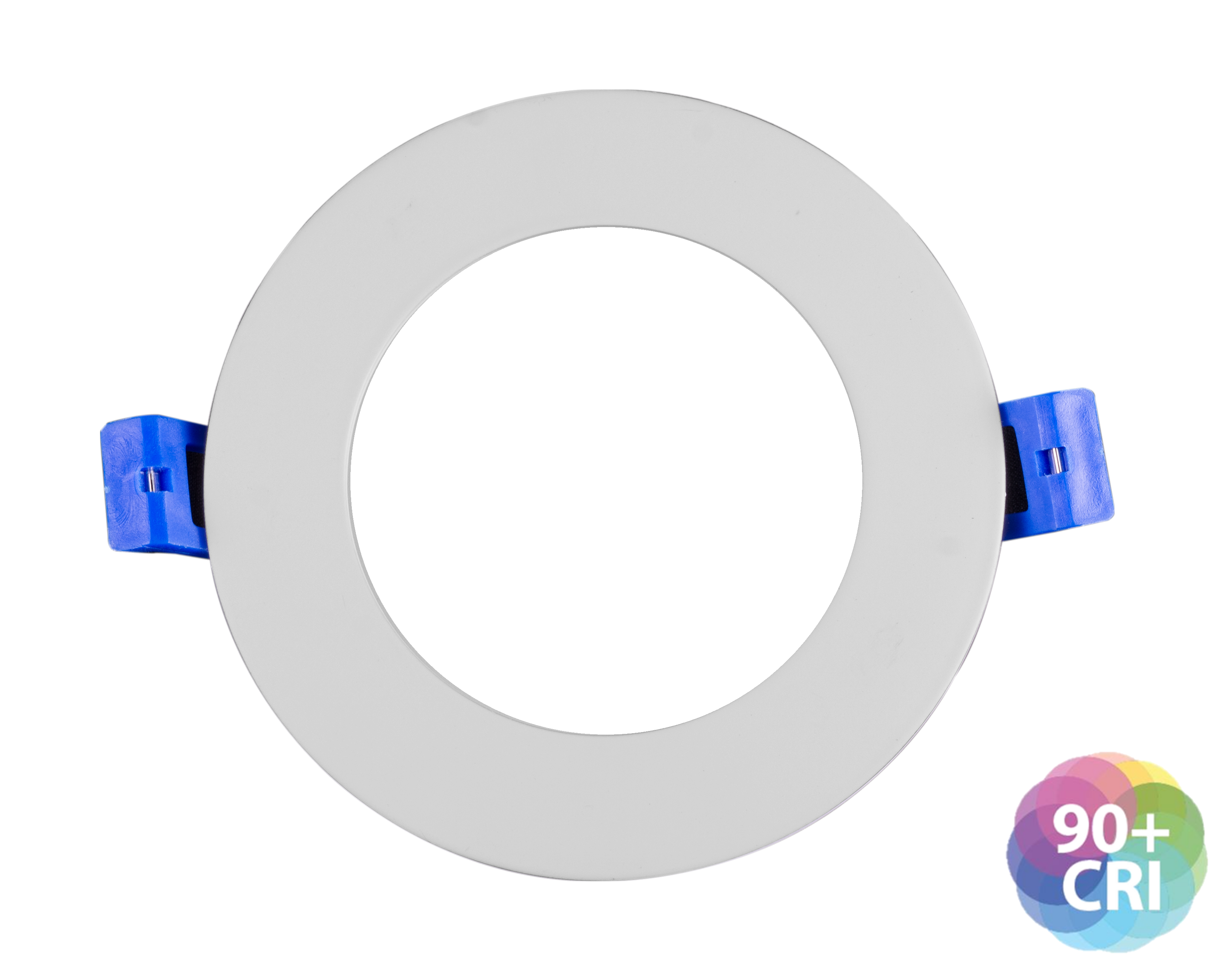

- Utilizes high performing LEDs with a greater than 90 CRI and an R9 greater than 50
Electrical

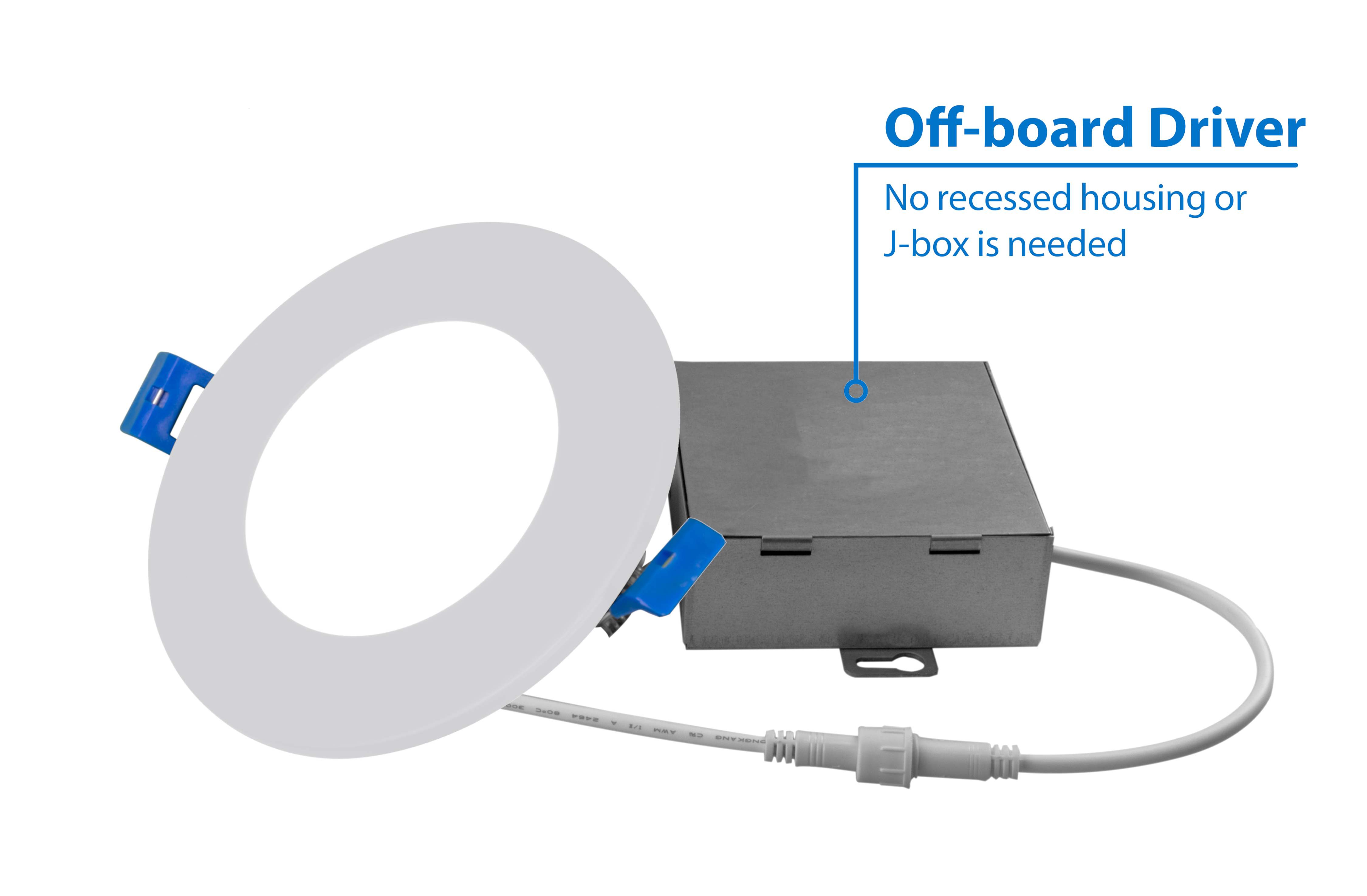

- Off-board driver minimizes installation height and maximizes fixture life through improved heat management
- Dimmable to less than 5% with compatible TRIAC dimmers
- Operating temperature of 0° to 120°F (-18°C to 49°C)
- Input voltage of 120VAC
- TM-21 Reported L70(9K) hours >54,000
Installations

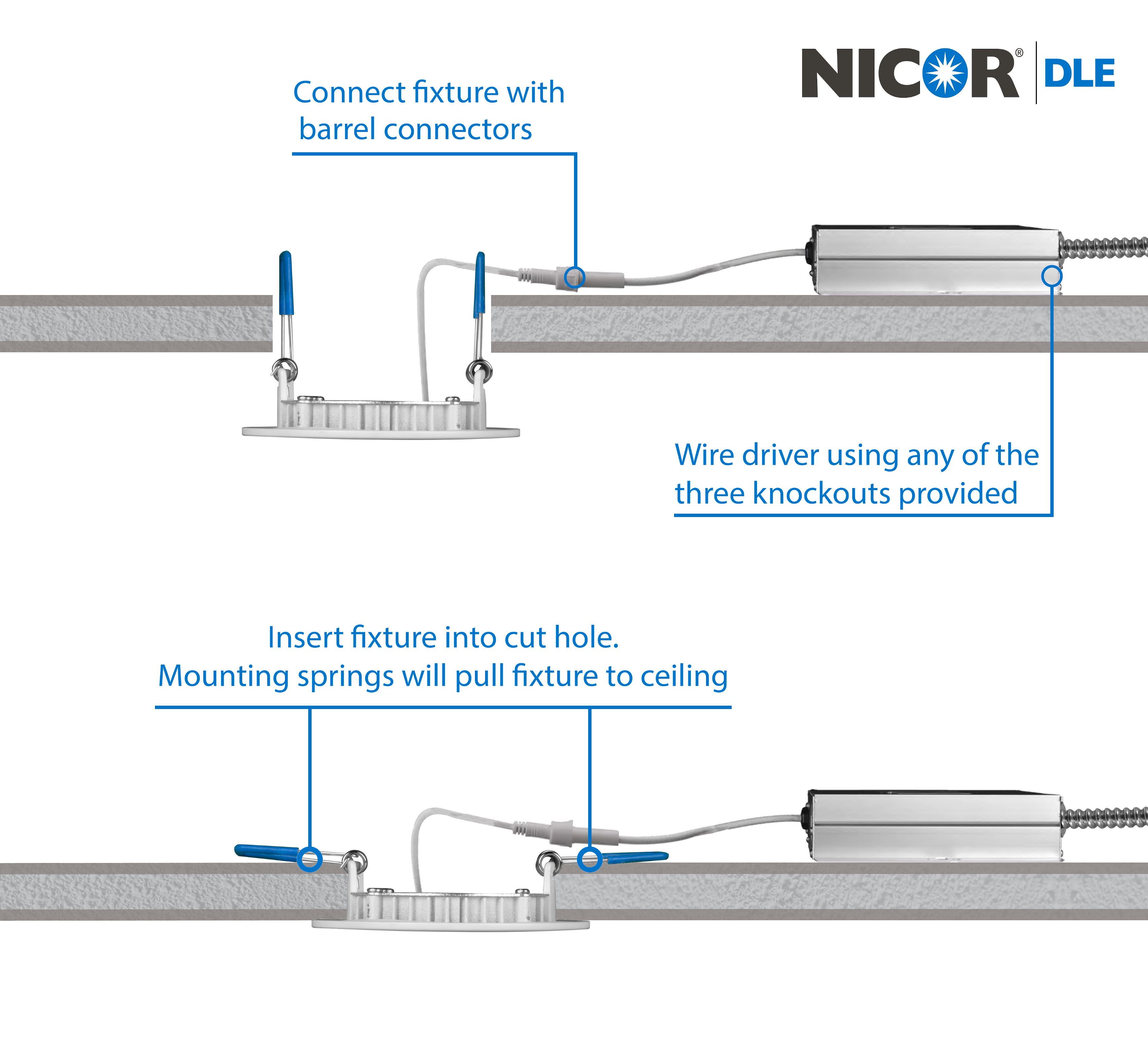

- Spring loaded retention tabs allow for easy installation into ceilings up to 3/4” (RD) or 1” (SQ) thick with no need for a recessed housing
- Off-board driver/junction box includes two 1/2” KOs and three-port poke-in connectors
- Included paper cutting template
- Metal rough in template available
- Extension power cables (10’, 20’) available
- Suitable for damp locations
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
