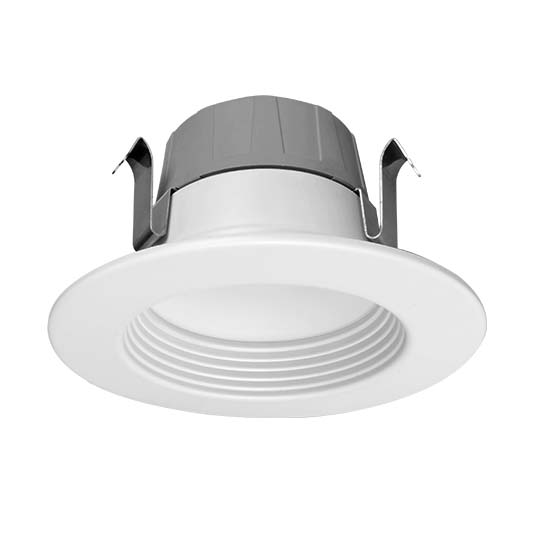

3″ RECESSED LED DOWNLIGHT

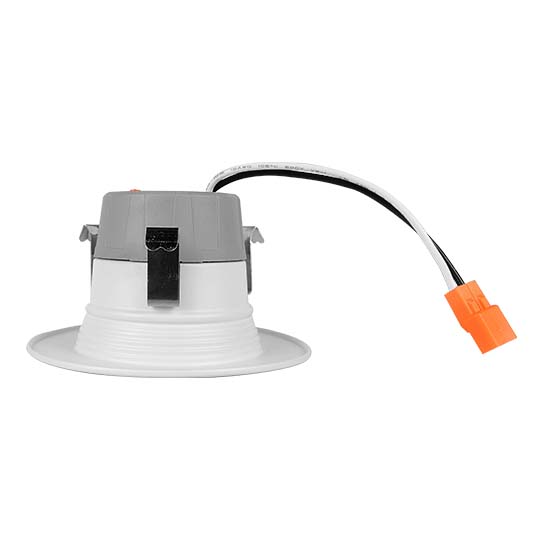

The DLR3 Select is a newly improved 3” recessed downlight offering higher lighting efficiency for residential and commercial settings. Its quick and easy installation with an IDEAL luminaire connector and friction fit mounting system, along with an Edison screw base adaptor are perfect for remodel construction, making it a breeze to replace outdated fixtures. With an impressive CRI rating of 90 and an RA value of 60, it delivers exceptional light quality, ensuring accurate color representation. Adjusting the mood settings with the 5CCT selectable switch offers options from warm 2700K to cool 5000K lighting.



Specifications

  • Polystyrene diffusers create uniform light distribution with reduced glare
  • 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • Beam angle of 84.8°
  • Utilizes high-performing LEDs with >90 CRI and an R9 ≥60
  • Polystyrene diffusers create uniform distribution without sacrificing lumen output
  • Increased trim depth provides lower glare and a quieter ceiling
  • Input voltage: 120 VAC, 60 Hz
  • Power factor: ≥0.97

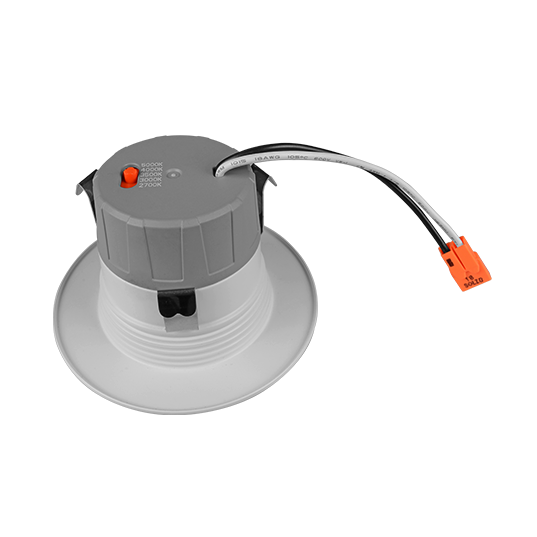

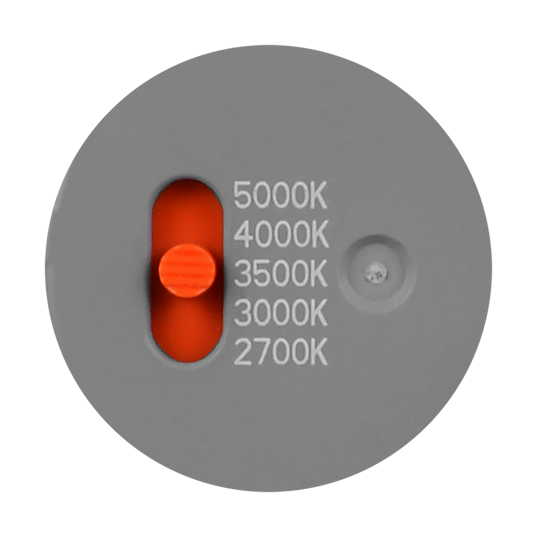

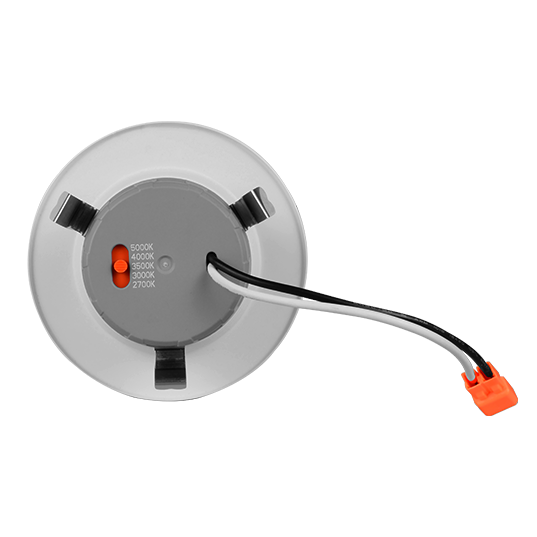

  • CCT selection switch on the back of the housing
  • Dimmable to 5% with compatible leading edge (TRIAC)
  • Operating temperature of -4°F to 104°F (-20°C to 40°C)
DLR 3" Select
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

778
Lumens

811
Lumens

840
Lumens

862
Lumens

837
Lumens

7.5
Input Watts

7.5
Input Watts

7.5
Input Watts

7.5
Input Watts

7.5
Input Watts

104
lm/W

108
lm/W

112
lm/W

115
lm/W

112
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Part Number:

 Select:DLR32120S9WHBF
