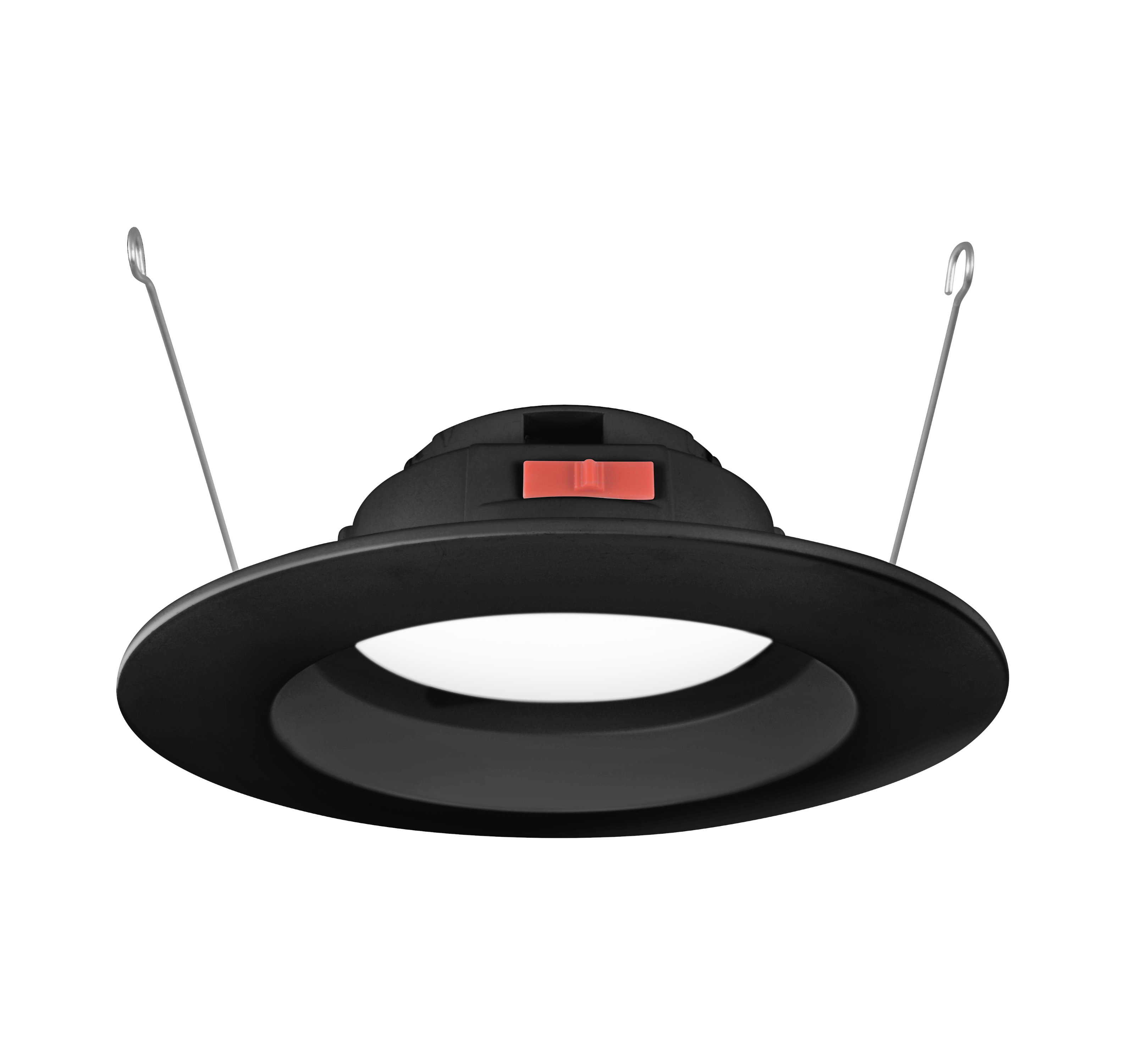

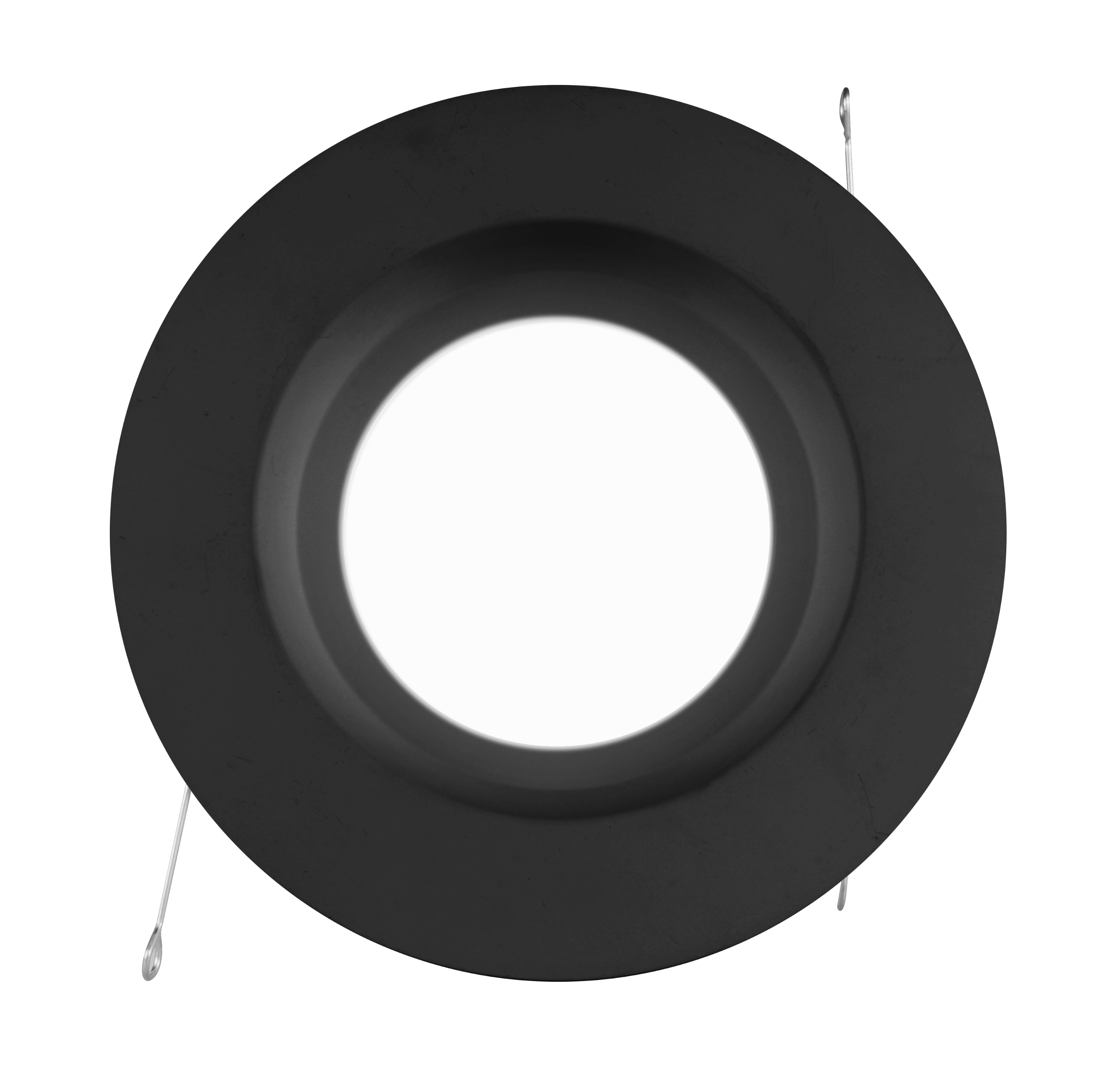

5/6-inch Black Recessed Selectable LED Downlight
The DLRv6P is the newest generation of NICOR retrofit downlights, available in Selectable CCT models. Designed for both new construction and retrofitting, the polymer trimmed DLRv6P is available in white or black and fits standard 5” or 6” housings and the patented new-construction frame. With an im…
The DLRv6P is the newest generation of NICOR retrofit downlights, available in Selectable CCT models. Designed for both new construction and retrofitting, the polymer trimmed DLRv6P is available in white or black and fits standard 5” or 6” housings and the patented new-construction frame. With an impressive output of over 90 LPW, 90+ CRI, and an R9 value greater than 50, it meets the latest certification standards. A switch on the driver cap allows for easy CCT adjustment to 2700, 3000, 3500, 4000, or 5000K. The DLRv6P system, when combined with the frame, offers an energy-efficient and cost-effective solution for high-quality lighting.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Polycarbonate diffuser creates uniform light distribution with reduced glare
- Utilizes high performing LEDs with >90 CRI and an R9 >50
- Durable anti-rust polymer body for corrosion resistance, reduced weight, low-maintenance, and improved efficiency
- Available in Black or White with Smooth or Baffle finishes
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens815 - 918 lm
-
Wattage9.2
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- Title 20
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- RoHS Compliant
- FCC Class B
- ICES-005 Compliant
- Wet-Location (ETL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Durable polymer body
- Fully captured V-springs
- Color options: Matte White or Matte Black
Optical System
- Polycarbonate diffuser creates uniform light distribution with reduced glare
- Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
Electrical
- Input voltage 120VAC, 60Hz
- CCT selection switch on back of housing
- Dimmable to 10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations

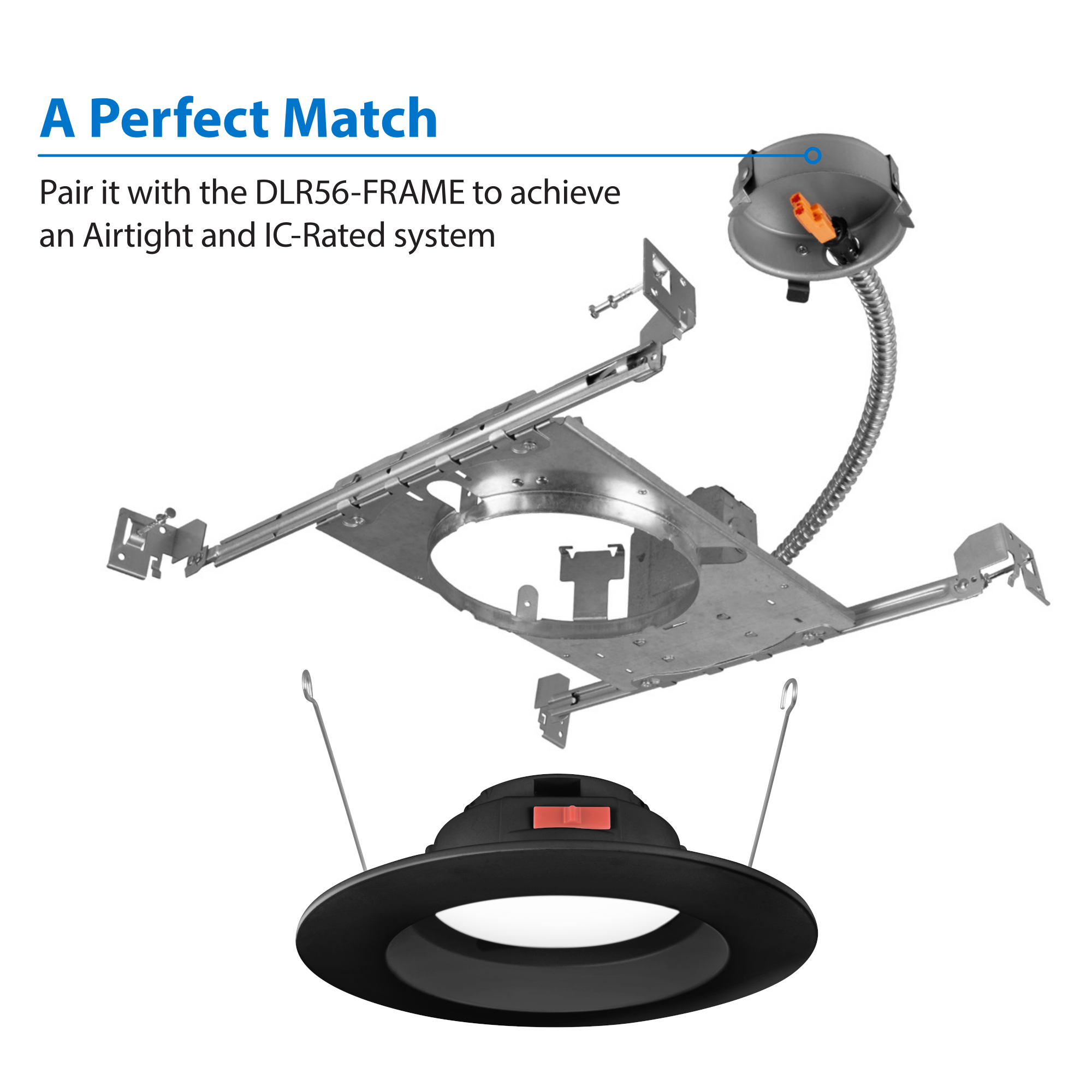

- Compatible with NICOR DLR56-FRAME
- Quick and easy installation with an IDEAL luminaire connector
- Compatible with most 5” & 6” recessed housings (socket string required)

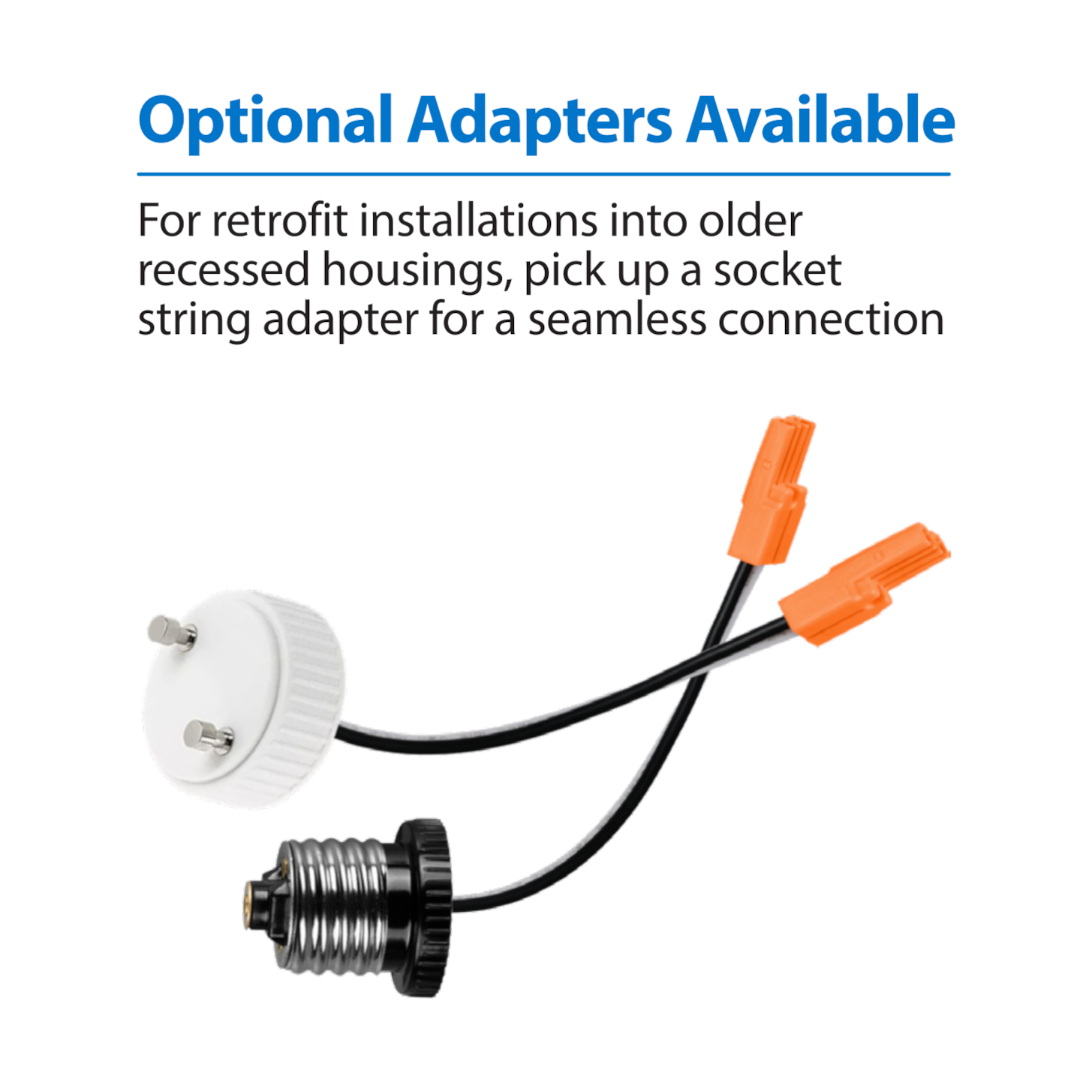

- Accessory socket strings available (E26 or GU24)
Full Listings
- cETLus 1598 Classified for wet locations
- ENERGY STAR Listed
- CA Title 24 compliant (JA8)
- Rated for Insulation Contact
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- IECES-005 Compliant
- LM-79, LM-80 testing performed in accordance with IESNA standards
- LED lumen maintenance: L70(9k)>50,000 hrs
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
