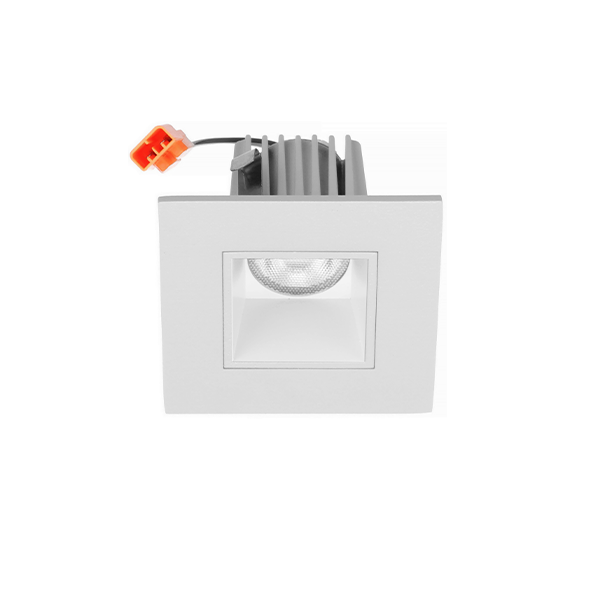

DQR Series 2-inch Square LED Downlight
NICOR’s D-Series luminaries offer a comprehensive family of LED downlight fixtures that complement one another no matter your design space needs. The new 2” family packs a punch with its small, elegant design along with its high lumen output. Not only does this family work perfect for accent and tas…
NICOR’s D-Series luminaries offer a comprehensive family of LED downlight fixtures that complement one another no matter your design space needs. The new 2” family packs a punch with its small, elegant design along with its high lumen output. Not only does this family work perfect for accent and task lighting, but the lighting output allows you to bring general ambient lighting into a space with a very small, architectural exposure. From LED color rendering and trim finishes to fixture performance, this series is a perfect choice for commercial, retail, institutional, and residential applications.
- 2-inch Square design with cast aluminum trim
- Requires a NICOR 2-inch Recessed Housing
- High Efficiency with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard triac dimmers
- Available in Black, Nickel, White, and Oil-Rubbed Bronze
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>35,000 -
Wattage8.9
Listings & certifications
- cULus Listed
- Title 24
- Wet-Location
Features
Construction
- Cast aluminum trim routes heat away from electrical components
- NICOR 2” LED housing required for use of DQR2
- Exterior white powder coat finish
- Also available in Black, Oil-Rubbed Bronze and Nickel
Optical System
- TIR optic provides smooth, uniform light
- 37° Beam spread
Electrical
- COB with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard triac dimmers
- Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
- Lifetime rated for greater than 35,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
- Fixture driver located on housing
- 120V input to driver

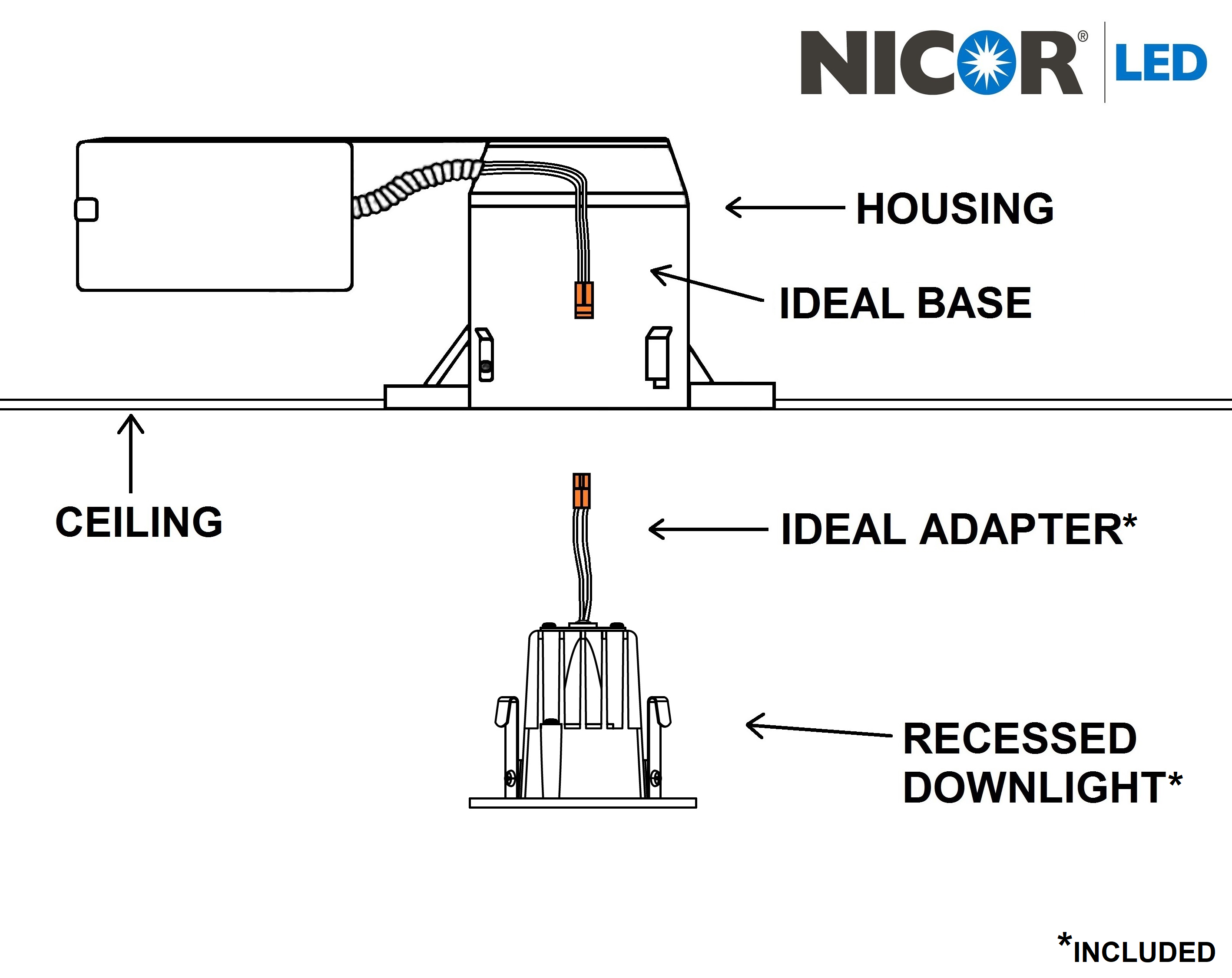

Installations

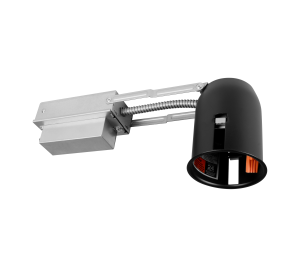

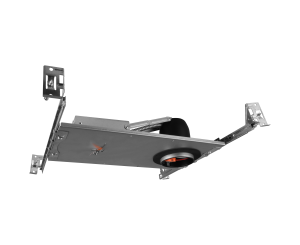

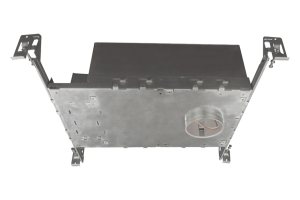

- NICOR’s 2” recessed housings required: Available in remodel, new construction, and IC/ Airtight new construction
- Quick and easy installation with a snap-in IDEAL connector and friction clip mounting system
Warranty
- 5-year limited system warranty standard
