EML81UNVWH Series

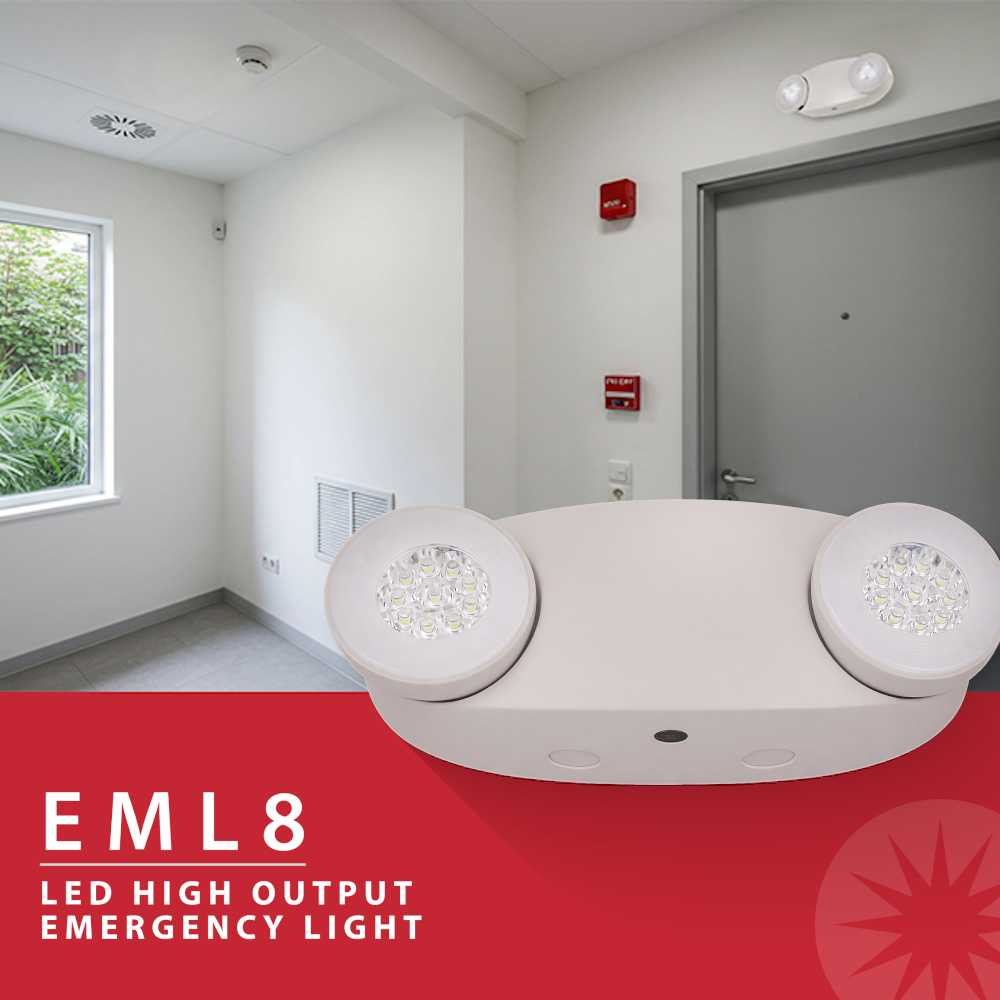

EML8 Super High-Output LED Emergency Backup Light
Product description

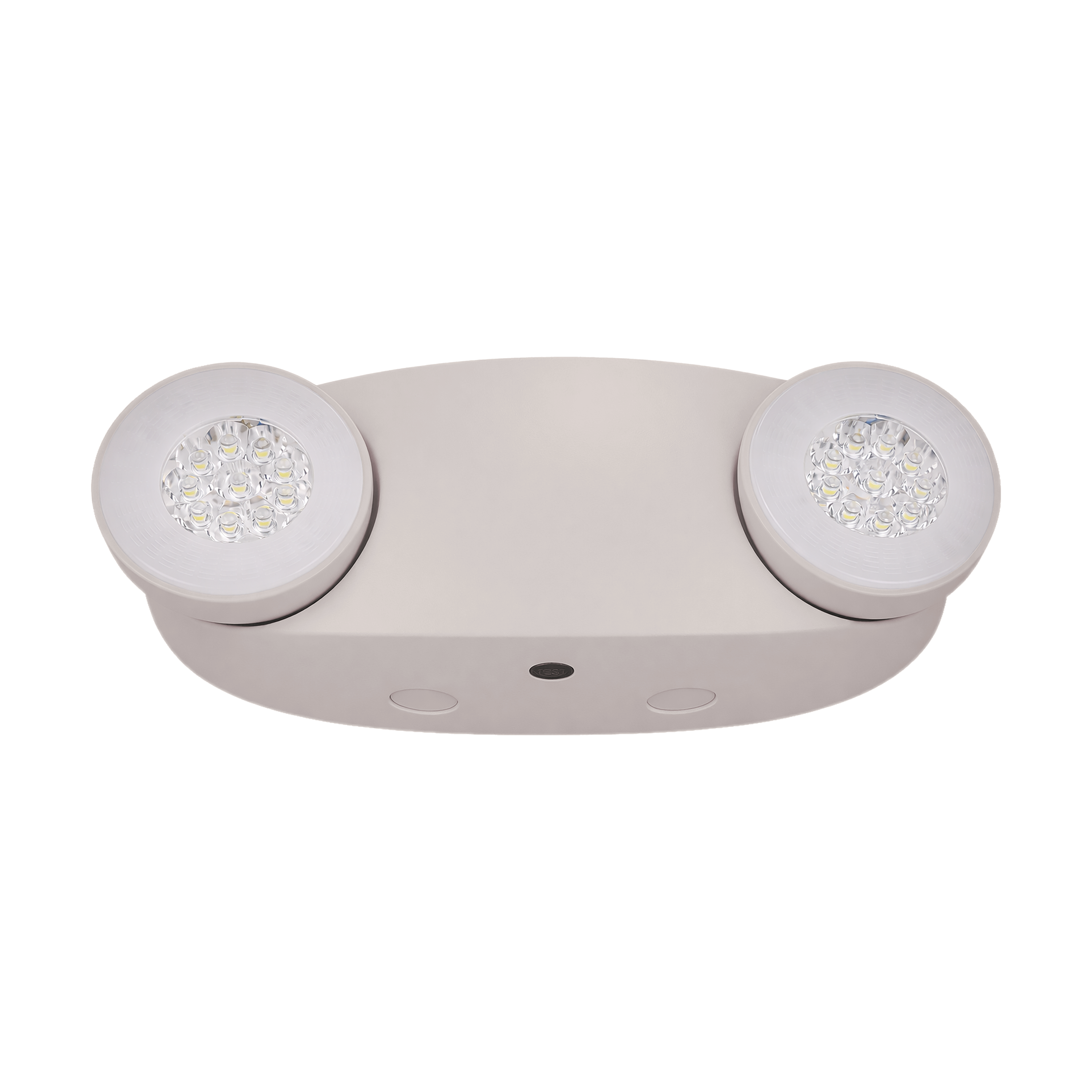

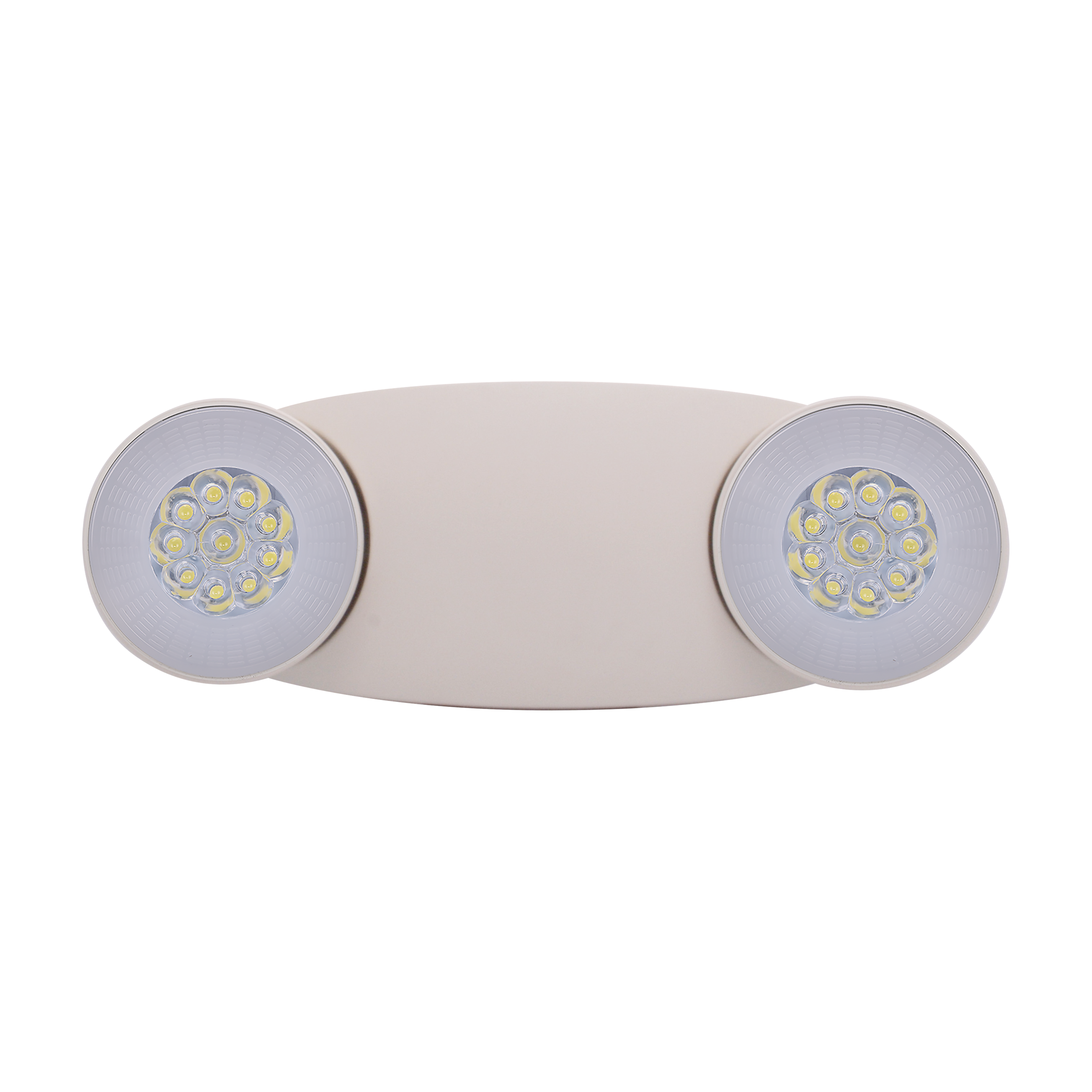

NICOR EML8 Series thermoplastic emergency lighting unit is a high output solution for higher mounting requirements. Designed with high output LEDs, the EML8 has exceptional light distribution and a maintenance-free battery for long life.

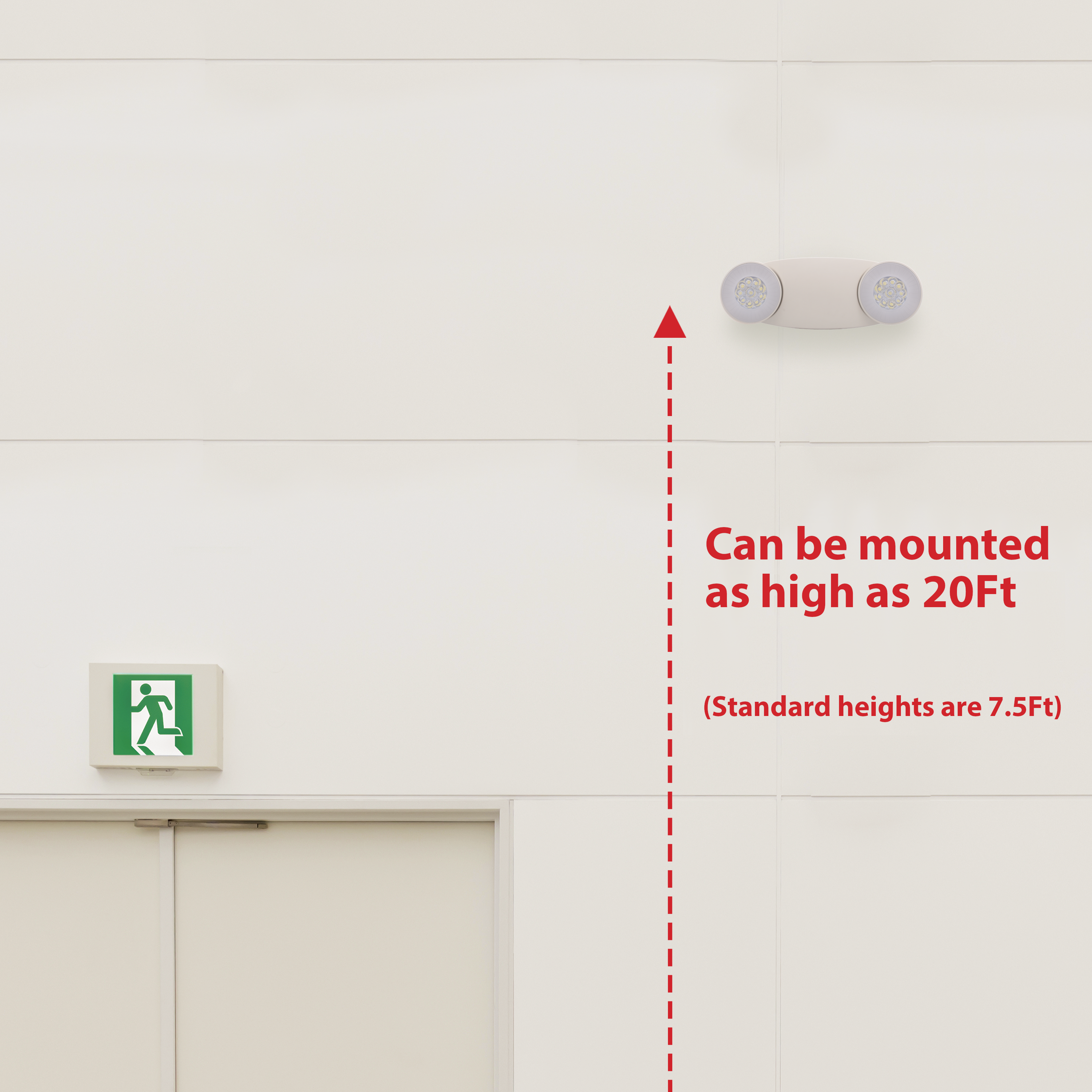

- High-output LED lighting delivers over 1,200 lumens for mounting heights up to 20Ft

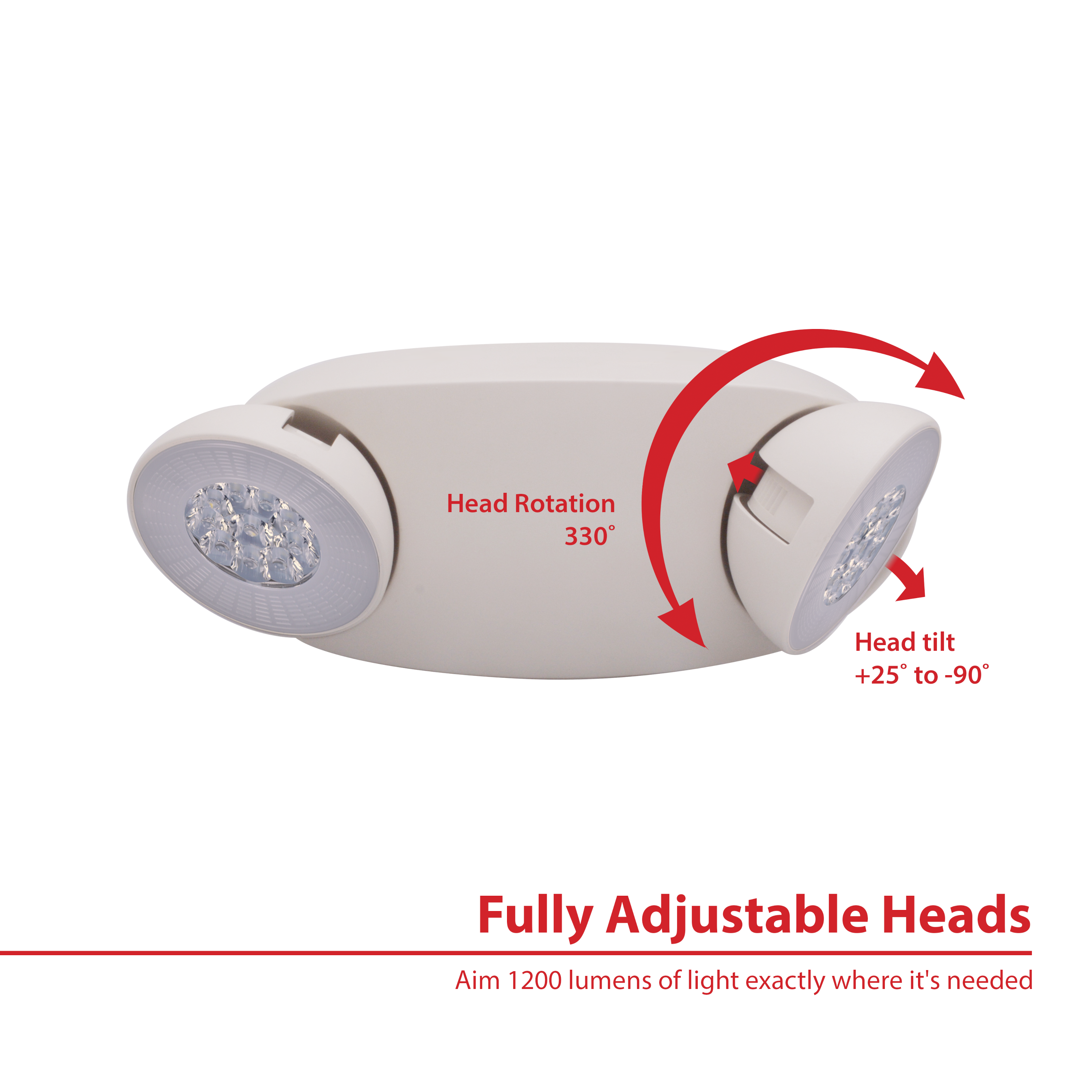

- Dual adjustable heads provide 330° rotation and +25° to -90° tilt
- 6V rechargeable battery provides 90 minutes of emergency operation
- Custom optical lenses deliver controlled illumination for higher mounting applications

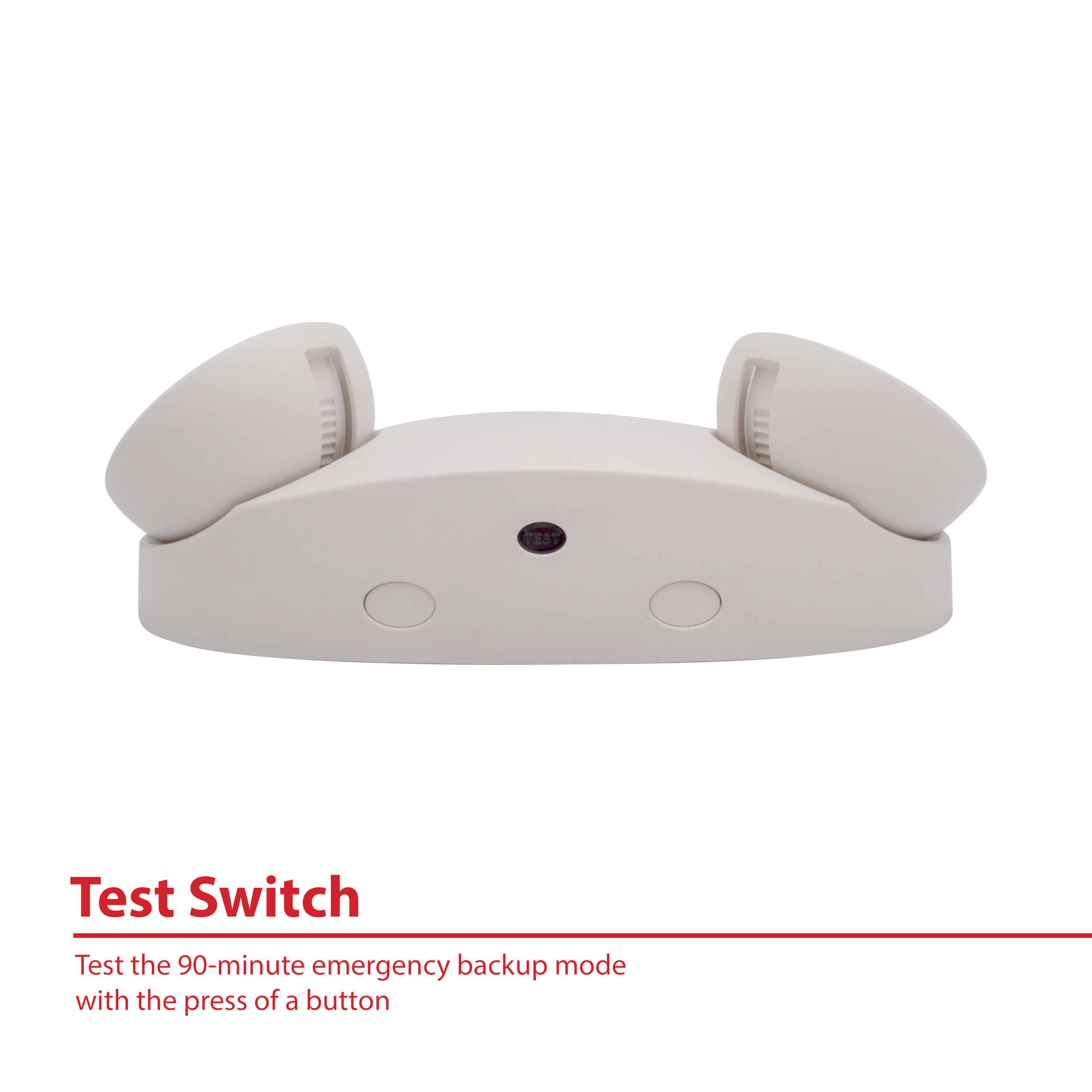

- Integrated LED status indicator and push-button test switch simplify maintenance
Color Options:
WhiteOrdering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens12000
-
Wattage4.14
Listings & certifications
Listings & Certifications
- UL Certified
- UL 924 (Emergency Lighting)
- UL 94 V-0 (Flame Resistance)
- Title 20
- Damp-Location
Features
Construction

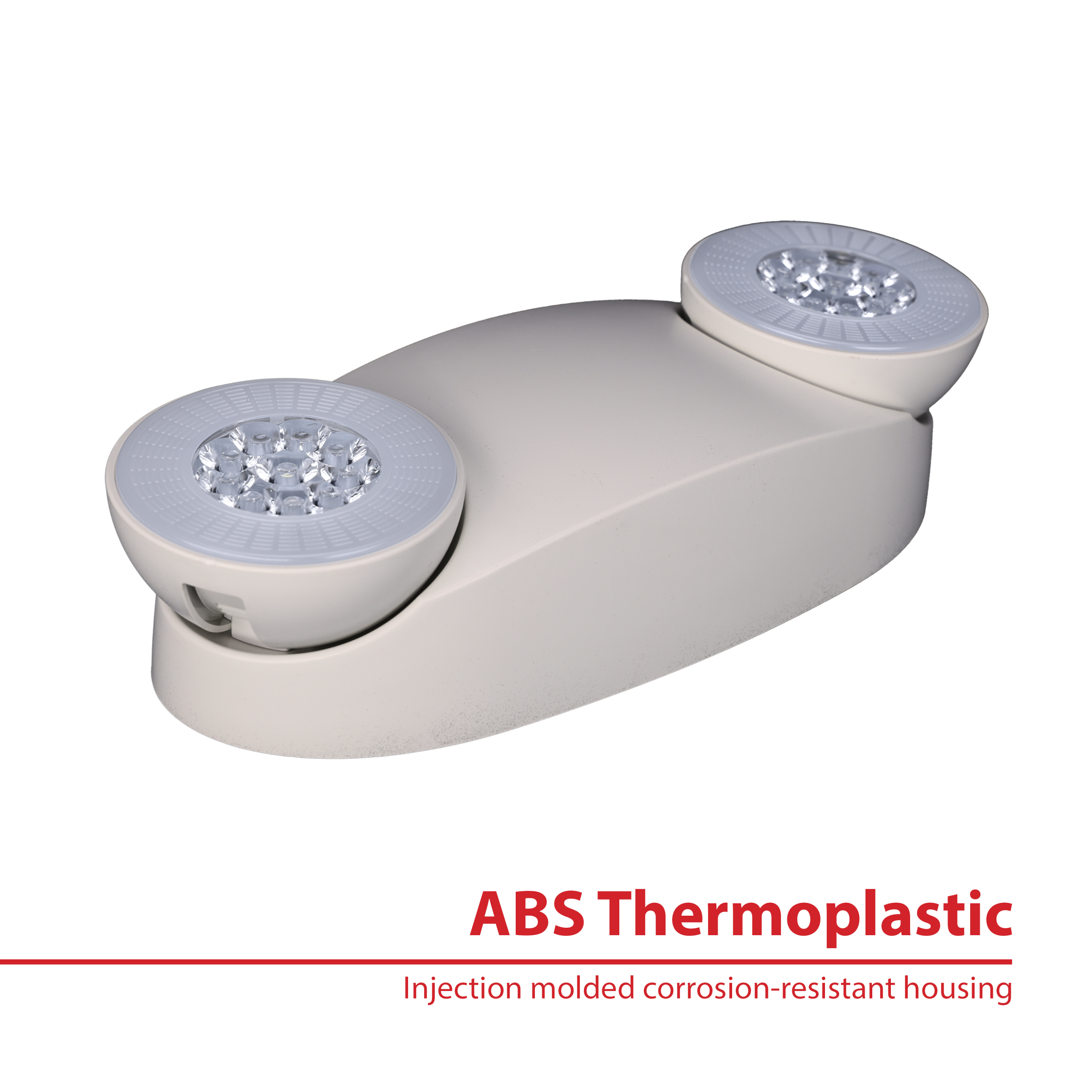

- Injection molded thermoplastic ABS housing
- Adjustable heads for aiming light where required
- Head tilt: +25°to -90°
- Head rotation: 330°
- White unpainted thermoplastic housing
Optical System
- Custom lensing for accurate lighting distribution and control
- Single CCT at 3000K
- 2x10pc LED lamps provide more than 1200 lumens
Electrical
- Operating temperature rating of 32°F to 104°F (0°C to 40°C)
- 6V, 4.5Ah Lead-Acid battery provides 90-minute emergency operation, recharges in 24 hours
- 120/277VAC Dual Voltage Operation, 60Hz input
- LED indicator light & self-test push button switch
Installations

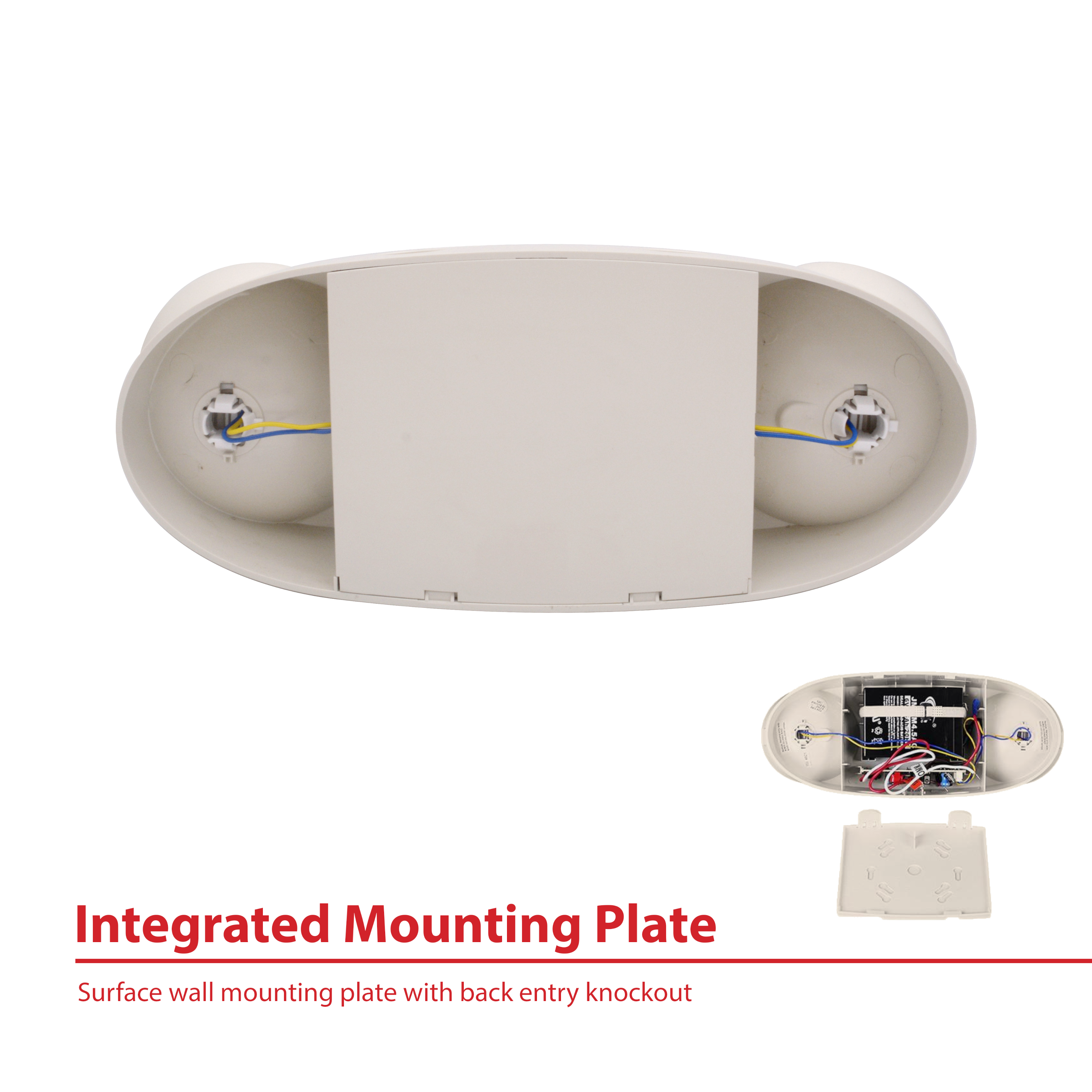

- Surface wall mounting plate with back entry knockout
Full Listings
- cULus Listed under UL 924
- UL-94-V-0 Flame rating
- LM-80 Reported L70 life >54,000 hours
Warranty
- 1-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
