ERHWP-SD Series

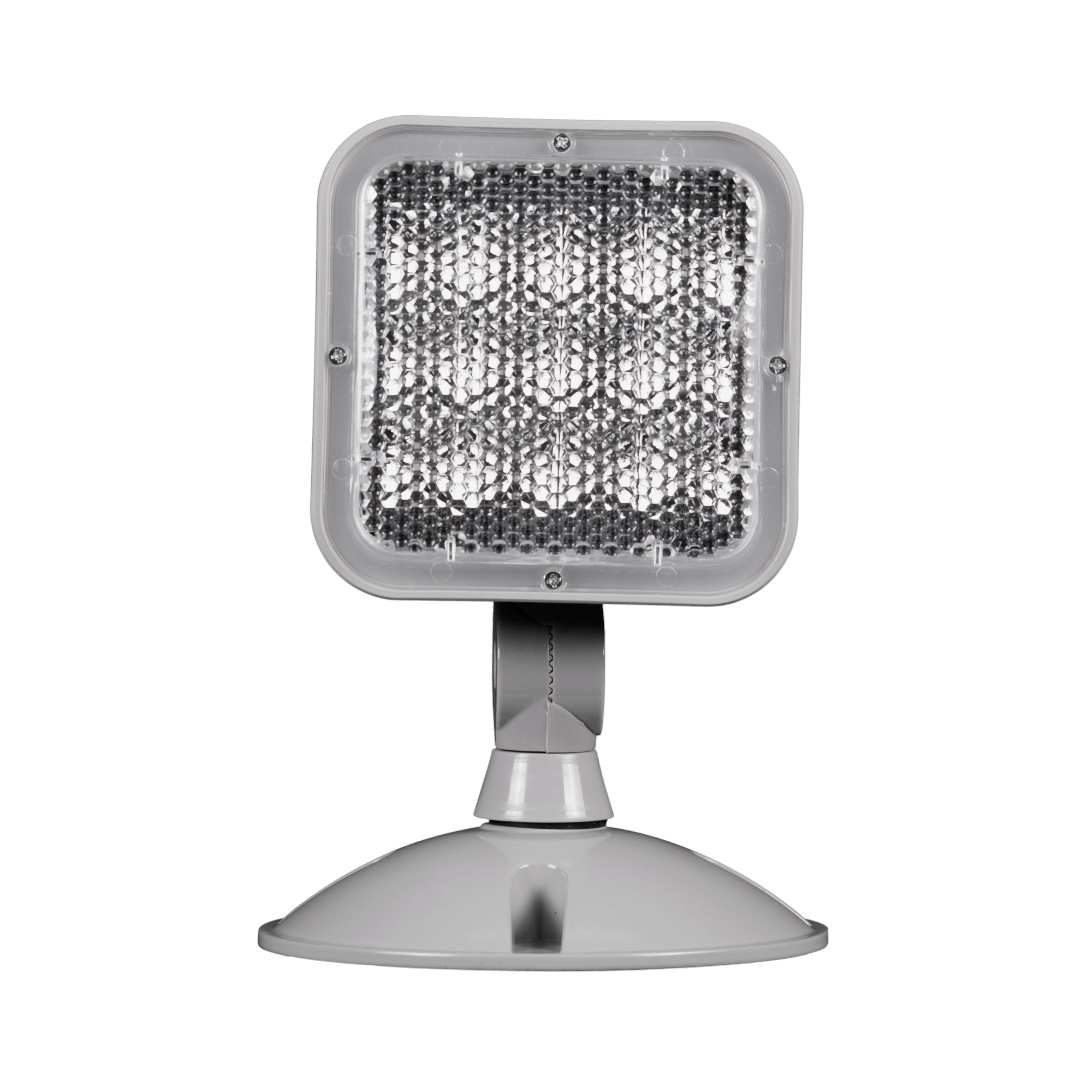

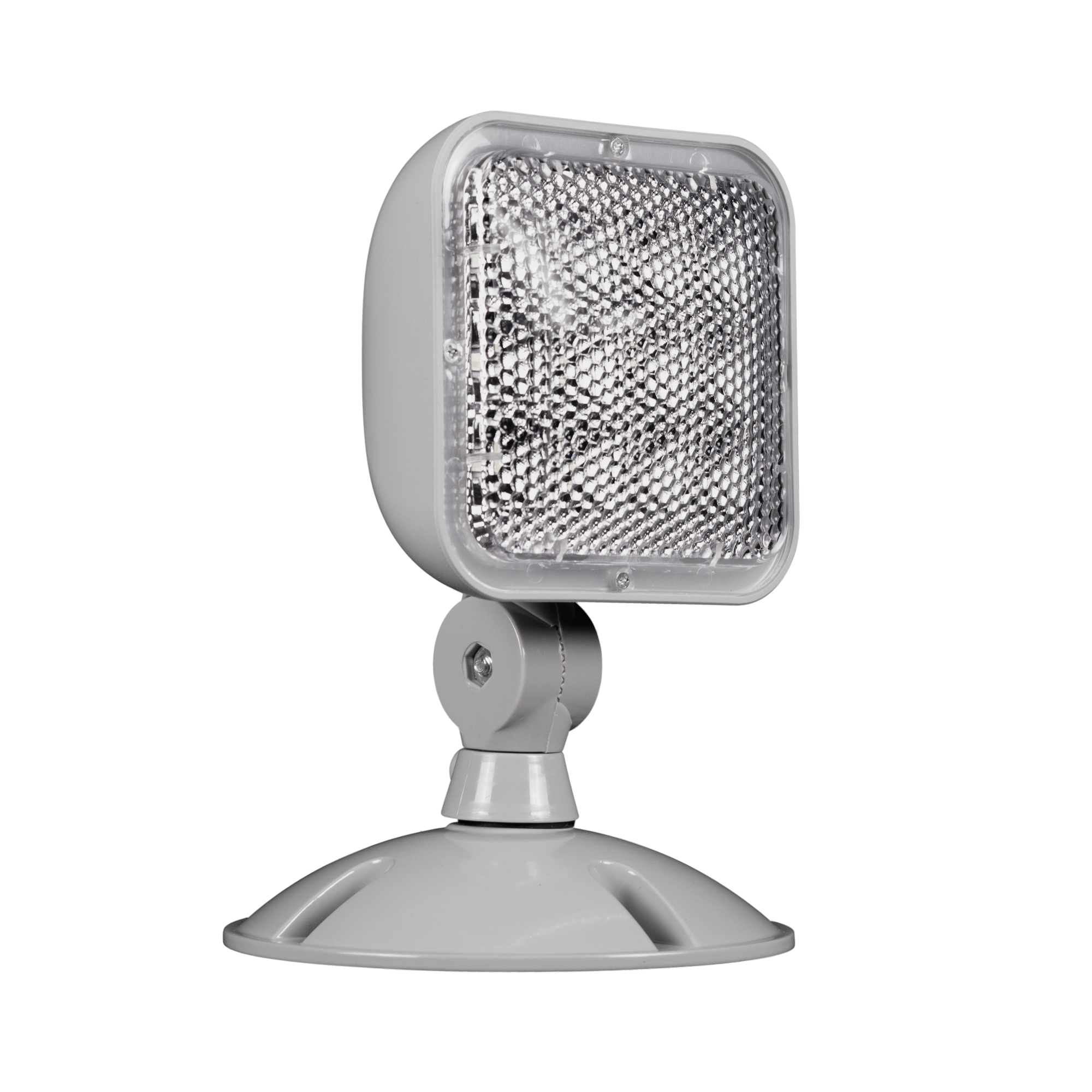

ERH Series Weather Resistant Emergency LED Self-Diagnostic Remote Light Fixture, Single Head
Product description
The ERHWP-SD Series LED Weather Resistant Remote lamps are designed to work with any of NICOR’s 3.6VDC self diagnostic LED Exit combos and emergency lighting units with remote capability. With a weather-resistant enclosure, this sleek, contemporary design offers fully adjustable heads that complemen…
The ERHWP-SD Series LED Weather Resistant Remote lamps are designed to work with any of NICOR’s 3.6VDC self diagnostic LED Exit combos and emergency lighting units with remote capability. With a weather-resistant enclosure, this sleek, contemporary design offers fully adjustable heads that complement any environment. The ERHWP Remote lamps are available in single or double head configurations.
- Weather-resistant remote head compatible with self-diagnostic units
- Works with the NICOR ECL3-SD and EML3-SD remote-capable models

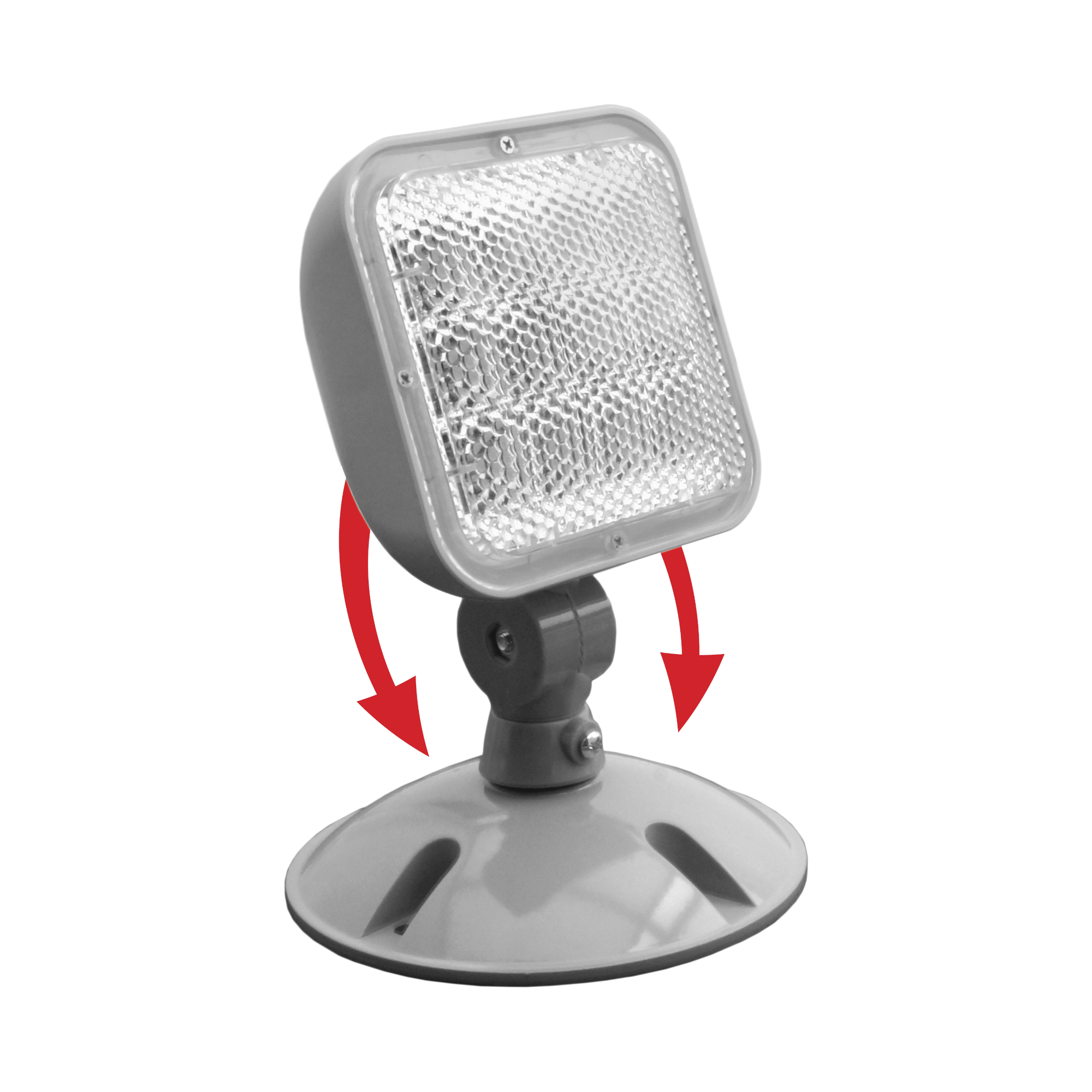

- Fully adjustable heads (±70° tilt, 360° rotation)
- Durable ABS housing with aluminum base for harsh environments
- Efficient LED output (up to ~256 lumens dual head)
Color Options:
Ordering information
Downloads
Specifications
-
Lumens128 -
Wattage1.3
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-0 (Flame Resistance)
- FCC Class A
- Wet-Location
Features
Construction
- Weather resistant injection molded thermoplastic ABS housing with powder coated die-cast aluminum base
- UL-94v-0 Flame rating - Flame Retardant
- Adjustable heads for aiming light where required
- Head tilt: ±70°
- Head rotation: 360°
- Gray unpainted ABS plastic
- Gray powder coated aluminum base
Optical System
- Precision engineered Prismatic Lens
Electrical
- Input voltage of 3.6VDC
- 1.3W max per head
Installations
- Easy installation into a standard junction box
Warranty
- 1-year limited system warranty standard
