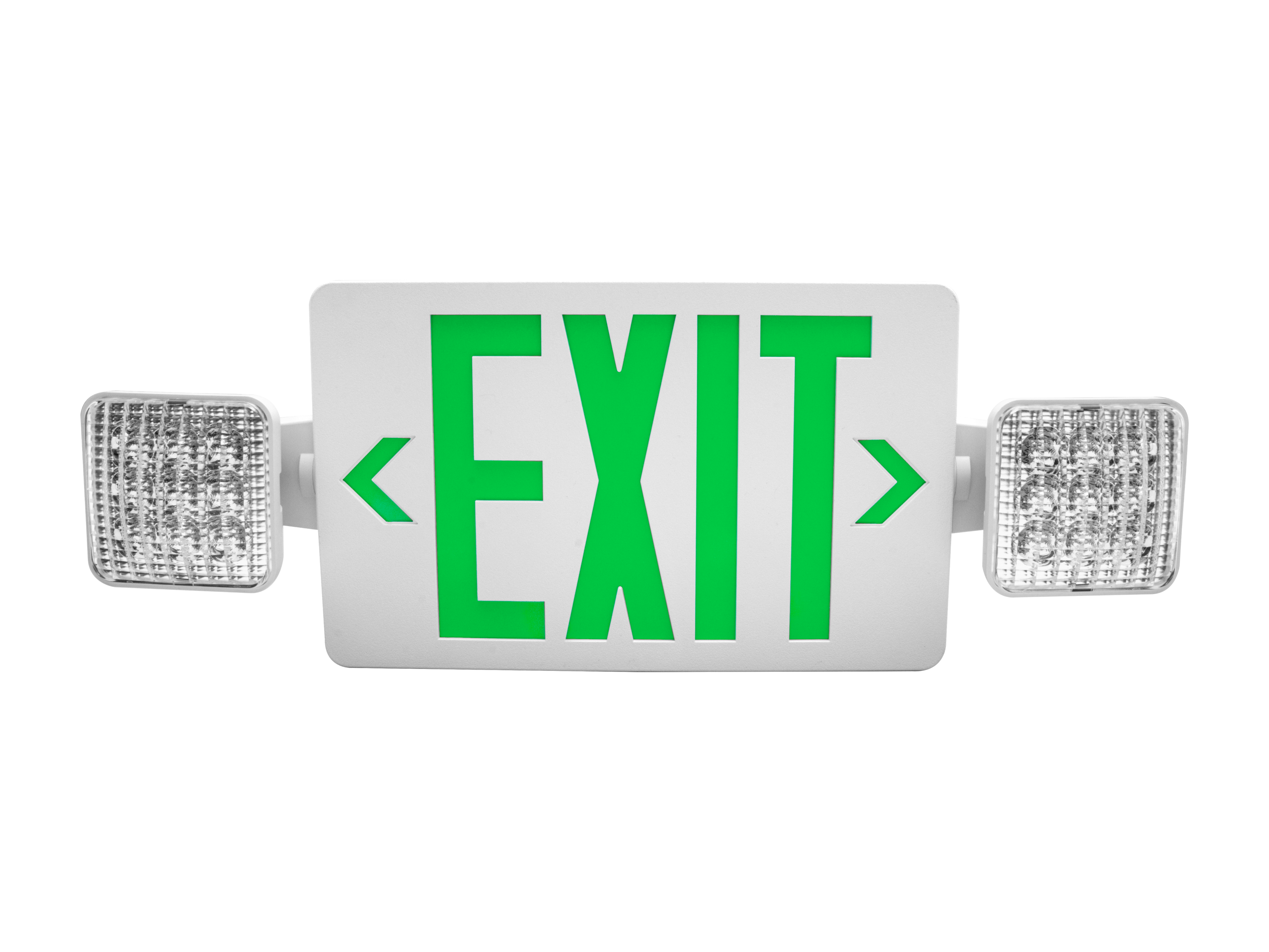

ECL3 Self-Diagnostic LED Emergency Exit Sign Combo, Remote Capable, Green Lettering
The NICOR ECL3 Series provides self-diagnostic testing and reporting in an Exit/Emergency combo. This UL924 code compliant solution for exit and emergency requirements offers high output and adjustable LED heads to deliver direct illumination for path of egress. The evenly illuminated exit sign is a…
The NICOR ECL3 Series provides self-diagnostic testing and reporting in an Exit/Emergency combo. This UL924 code compliant solution for exit and emergency requirements offers high output and adjustable LED heads to deliver direct illumination for path of egress. The evenly illuminated exit sign is available with red or green stencils. The ECL3 Series offers flexible installation for surface ceiling or wall mount options along with field removable chevrons for universal configuration based on your application’s directional needs. Supplied with two faces for single or double face installation.
- Self Diagnostic feature automatically tests and reports on fixture status
- Red/green exit legend with removable chevrons for single/double-face use
- Bright, uniform light with adjustable LED heads (330° tilt, 200° rotation)
- Durable ABS housing; UL 924/NFPA compliant; damp location rated
- Surface, ceiling, or wall mount with snap-in bracket and quick connect
Color Options:
Ordering information
Downloads
Specifications
-
Lumens203 -

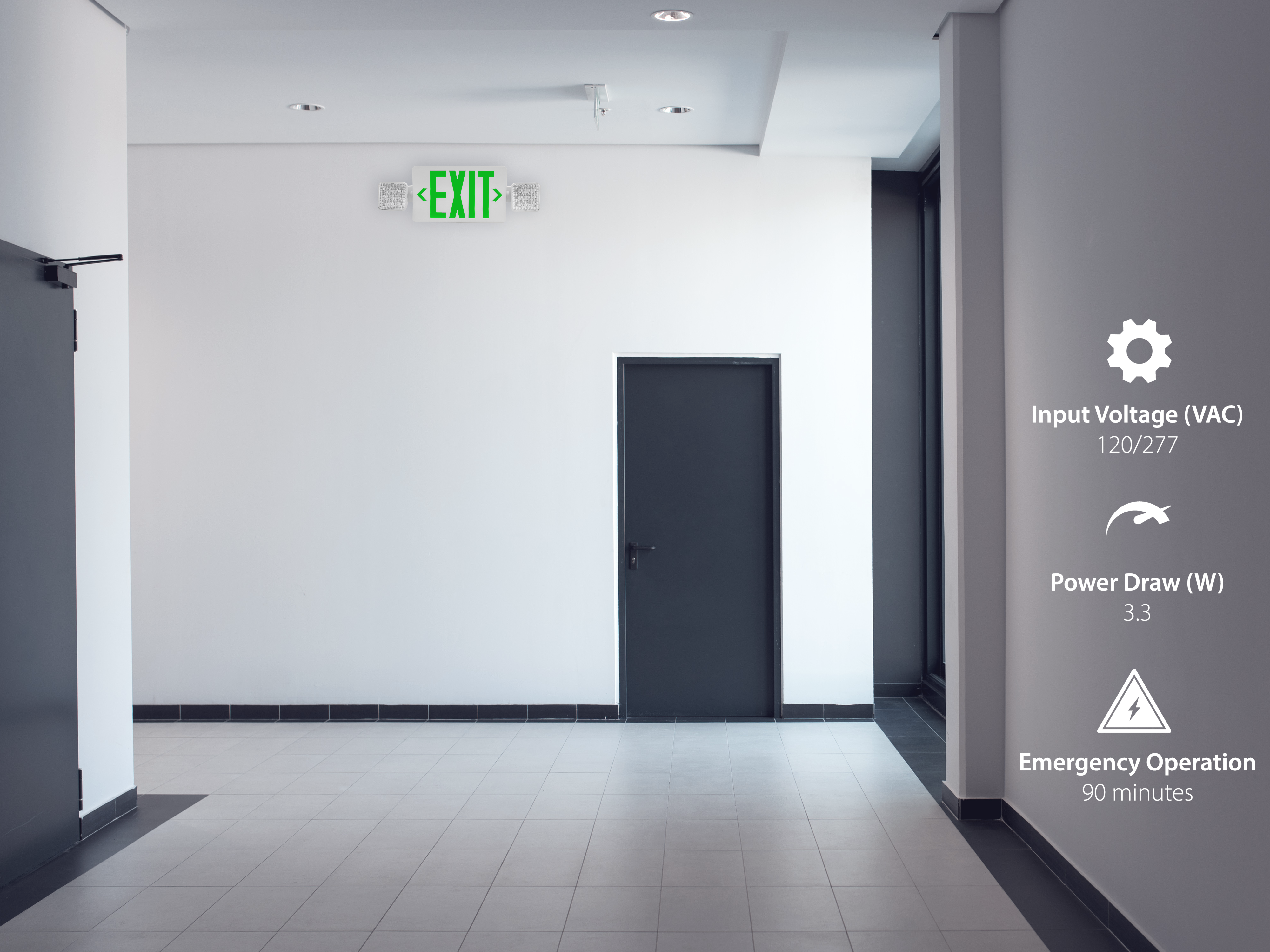

Wattage3.3
Listings & certifications
- UL Certified
- UL 94 5VA (Flame Resistance)
- UL 924 (Emergency Lighting)
- NFPA 70 Compliant
- NFPA 101 Compliant
- Damp-Location
Features
Construction

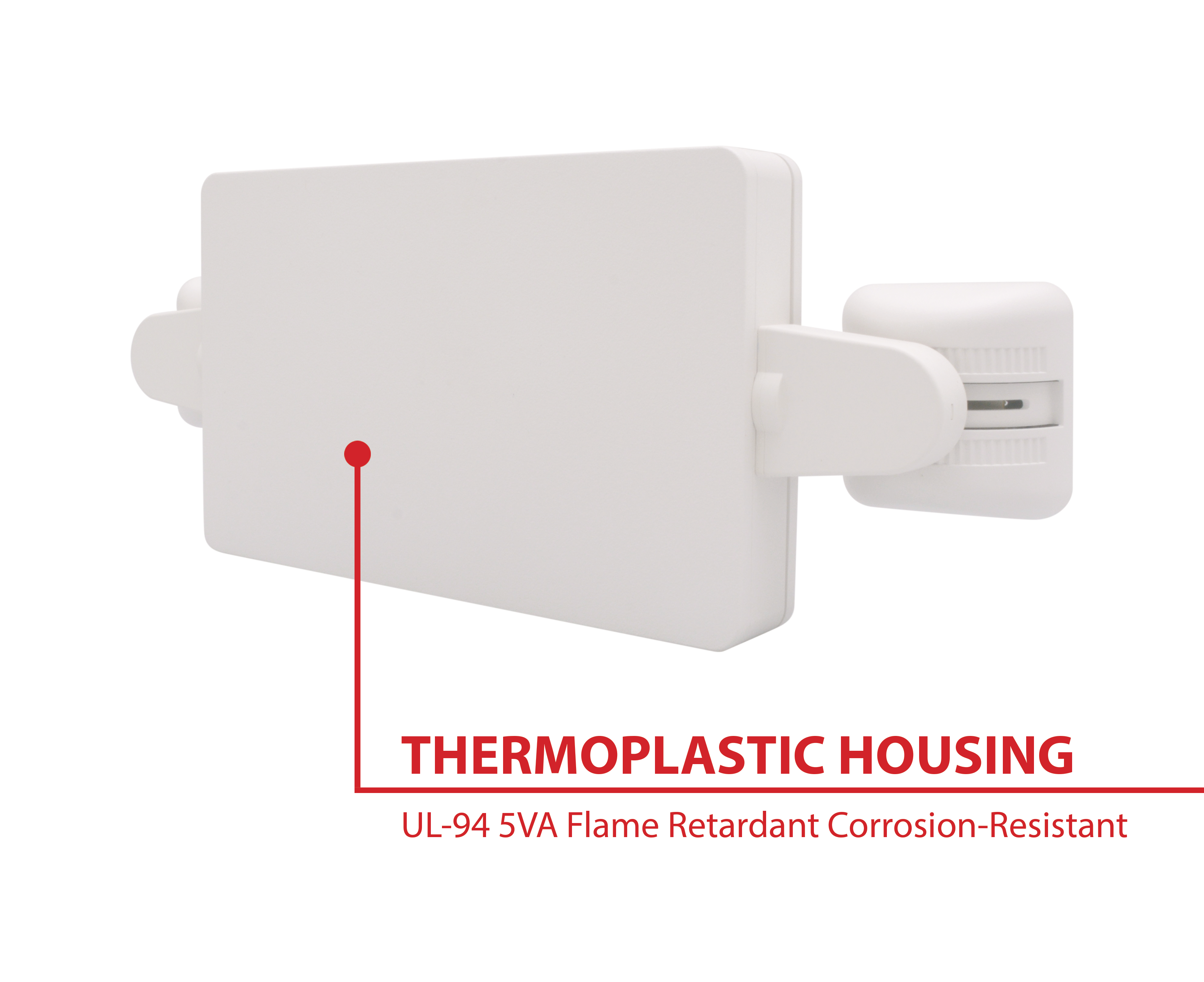

- Injection molded thermoplastic ABS housing
- UL-94 5VA Flame rating

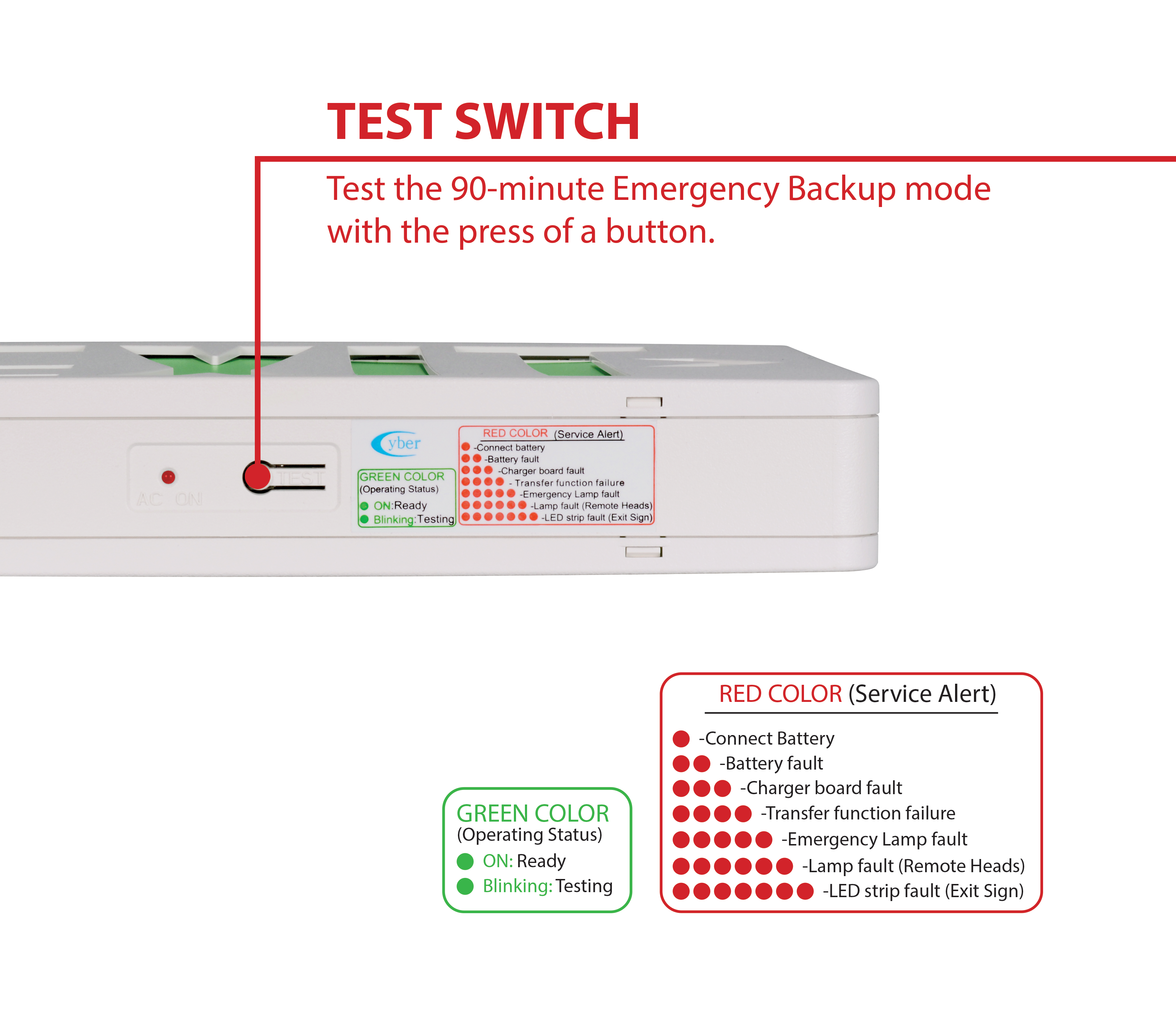

- Test switch and charge/status indicator

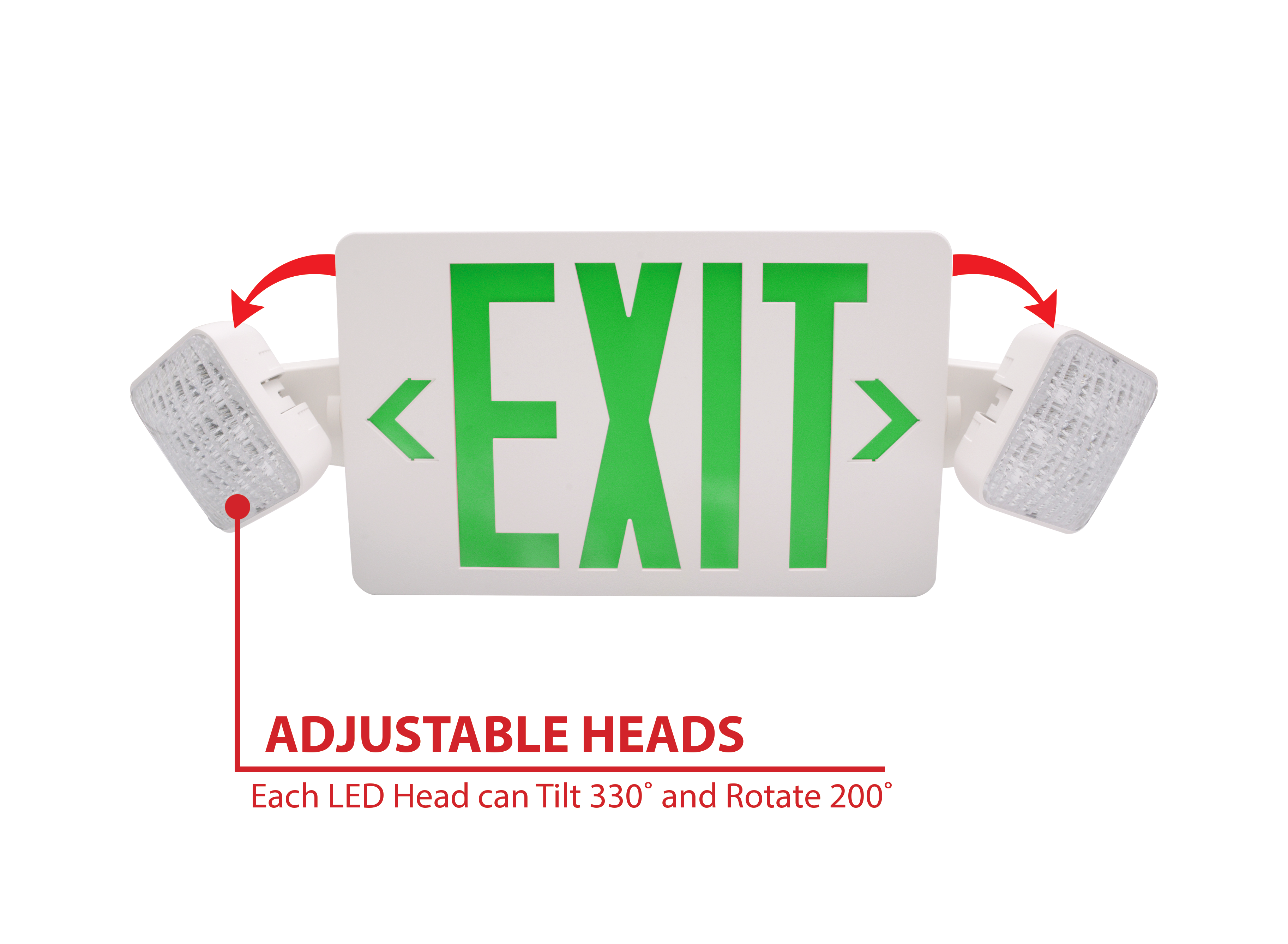

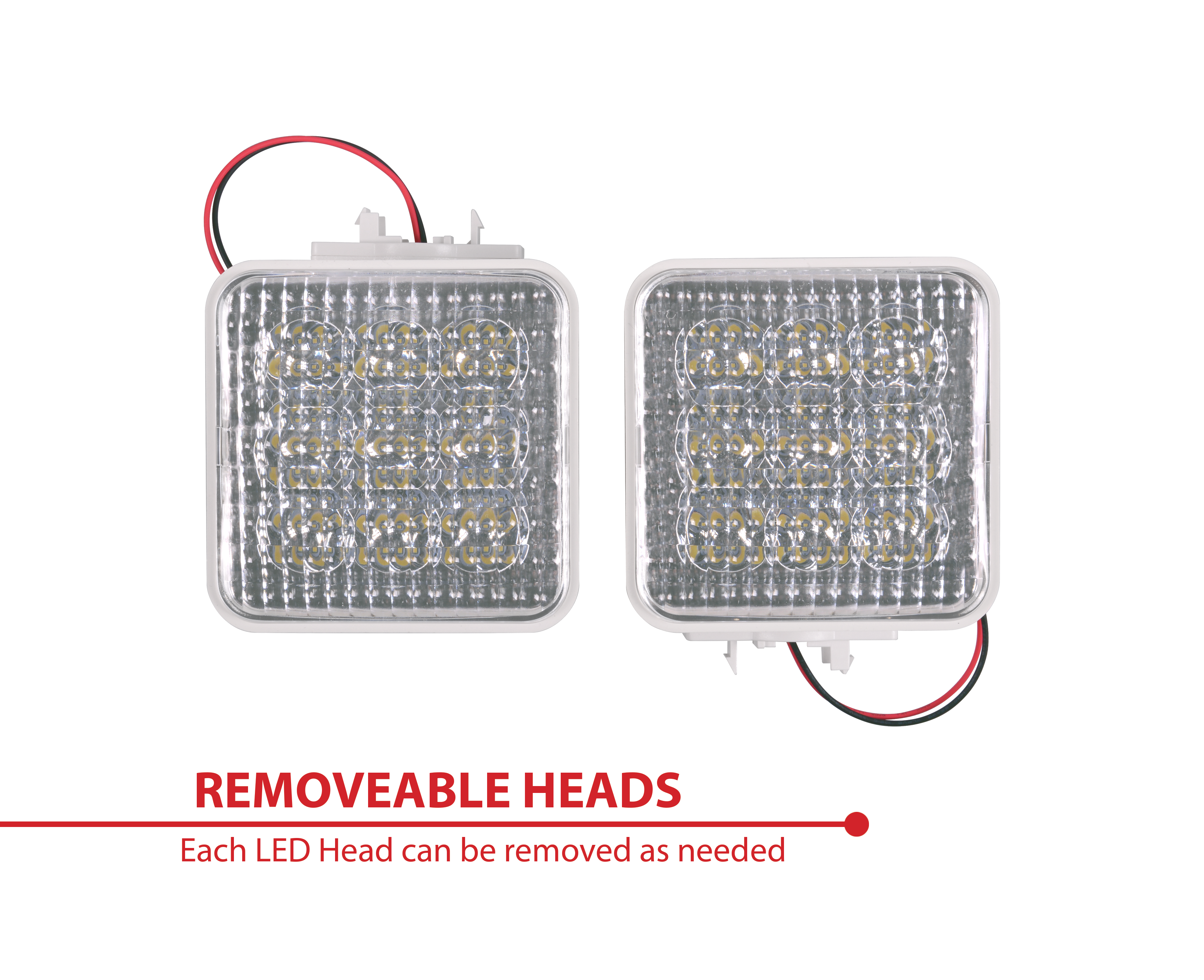

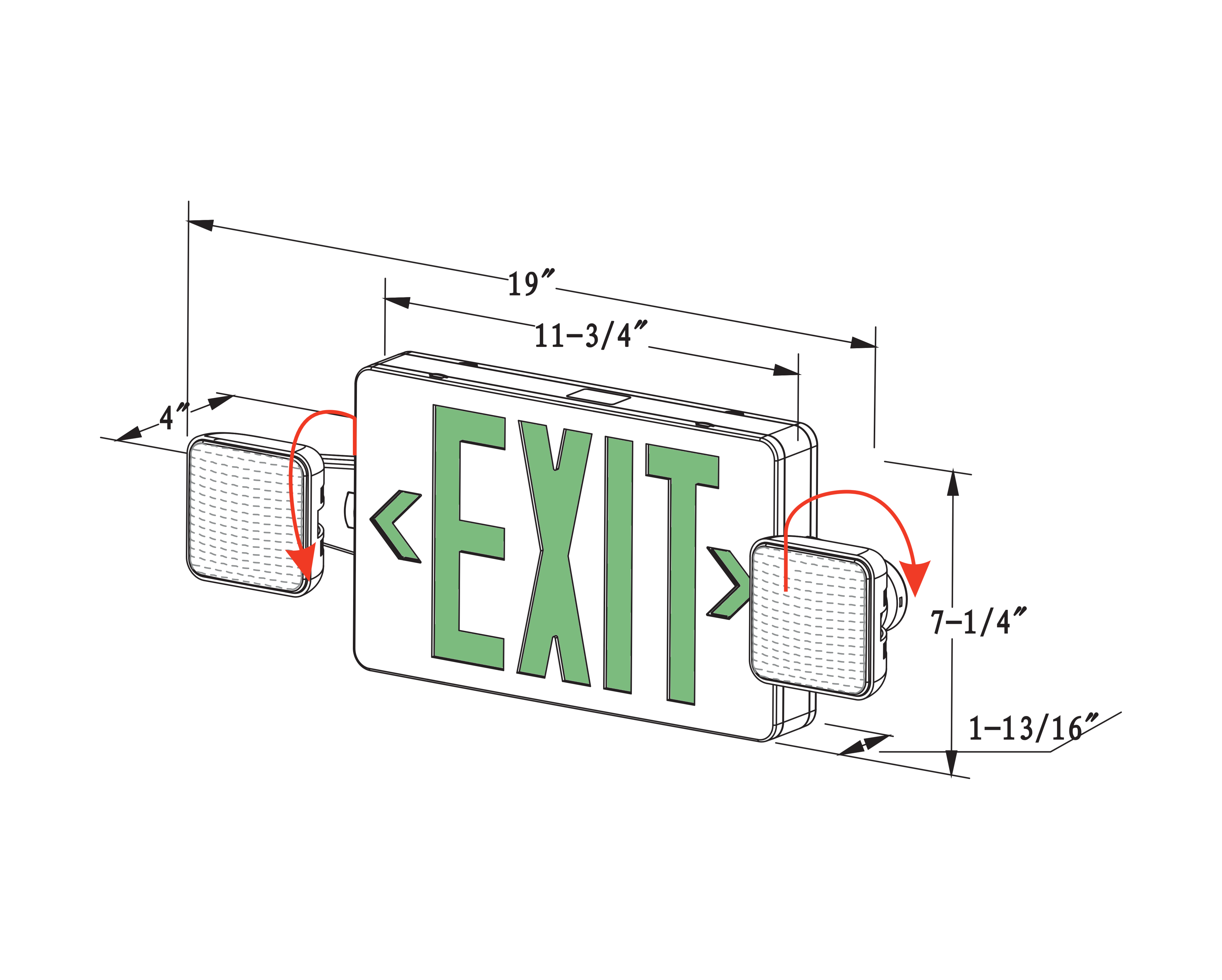

- Adjustable heads for aiming light where required:
- Vertical head tilt: 330°
- Horizontal head rotation: 200°
Optical System
- Uniform lighting with specially designed plastic diffuser to prevent shadowing
Electrical
- Operating temperature rating of 50°F to 104°F (10°C to 40°C)

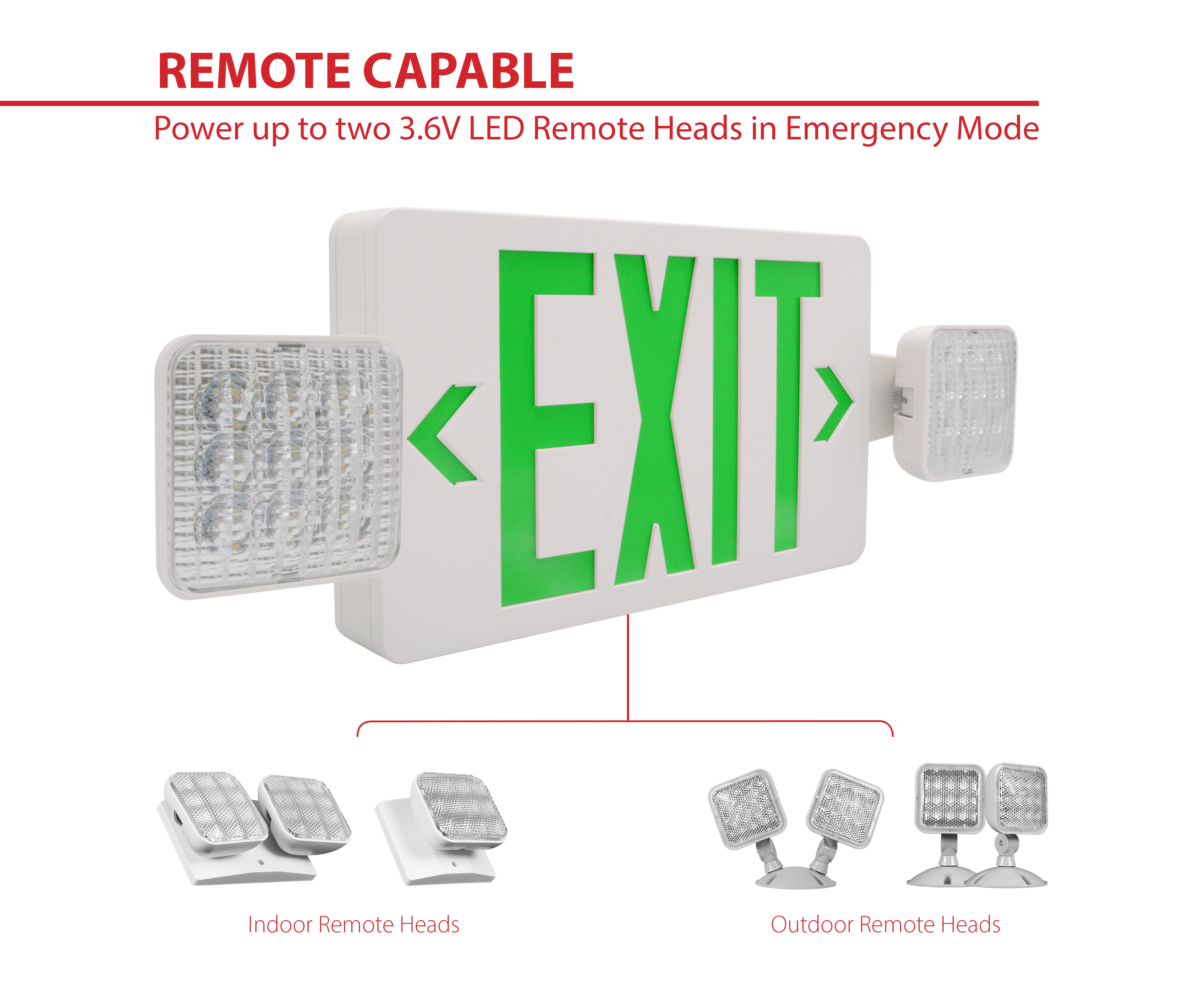

- Remote version supports up to two (2) 3.6VDC NICOR remote lamps (see compatibility chart)
- 90-minute capacity (including remote lamps)
- Fully illuminated 6” letter height with 3/4” stroke

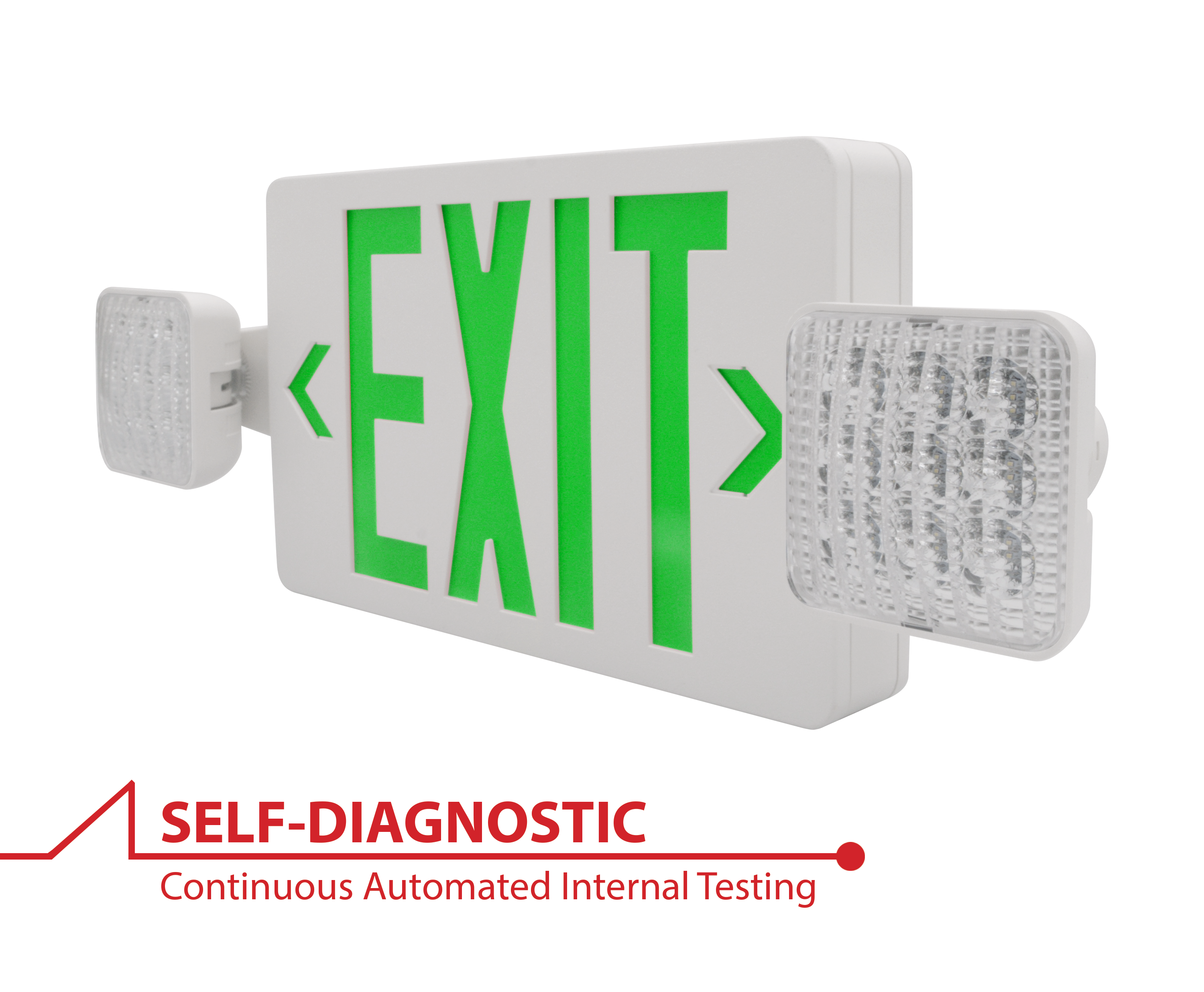

- Self Diagnostic feature automatically tests and reports on fixture status
- Light engine provides consistently bright and even EXIT legend illumination with red or green LEDs
Installations
- Surface, ceiling, or wall mount installation options

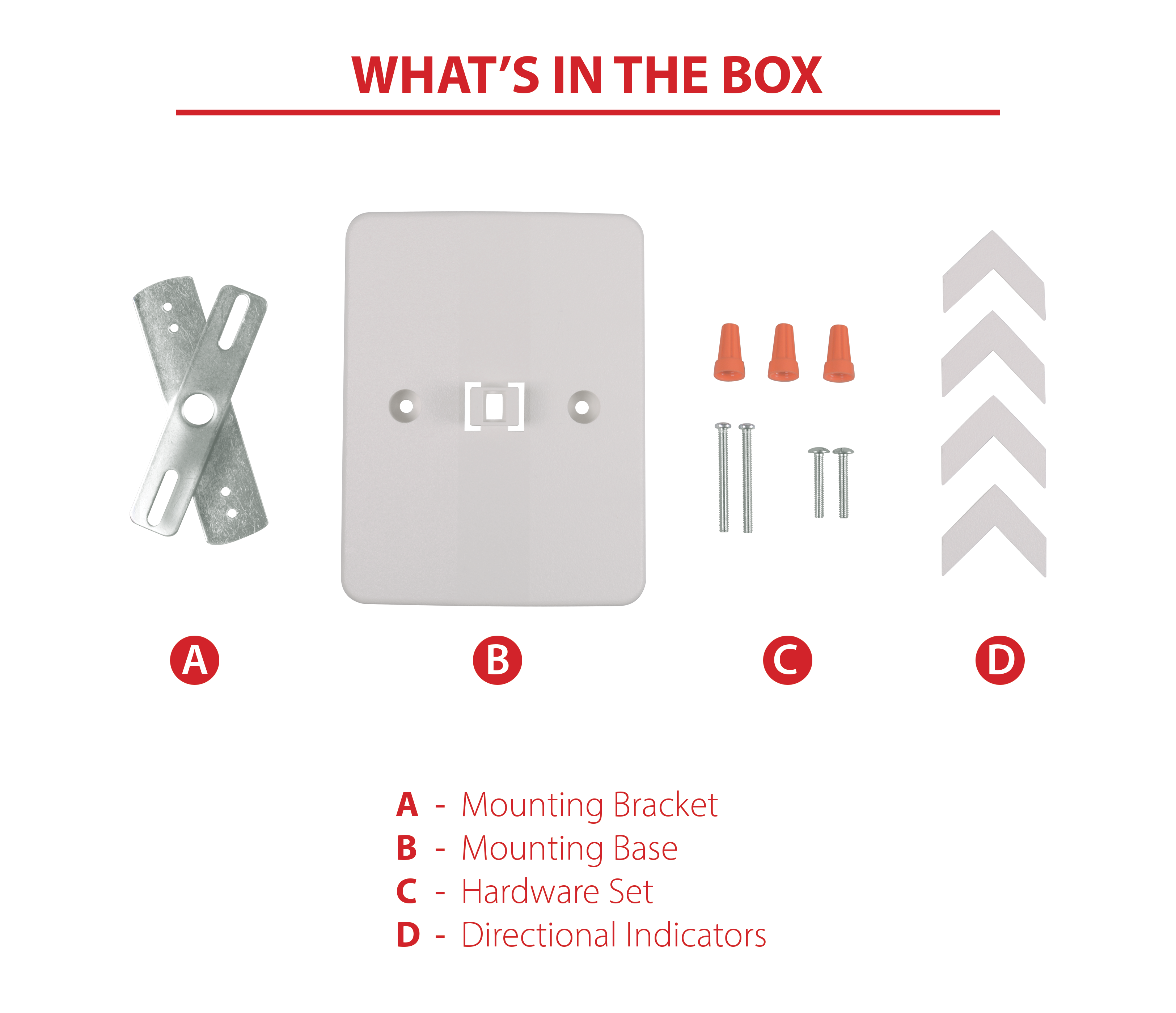

- Snap-in mounting bracket
- Universal mounting plate with EZ quick connect
- Universal knockout pattern provided on housing for surface mount install
- Field-installable, removable chevron directional indicators for all configurations

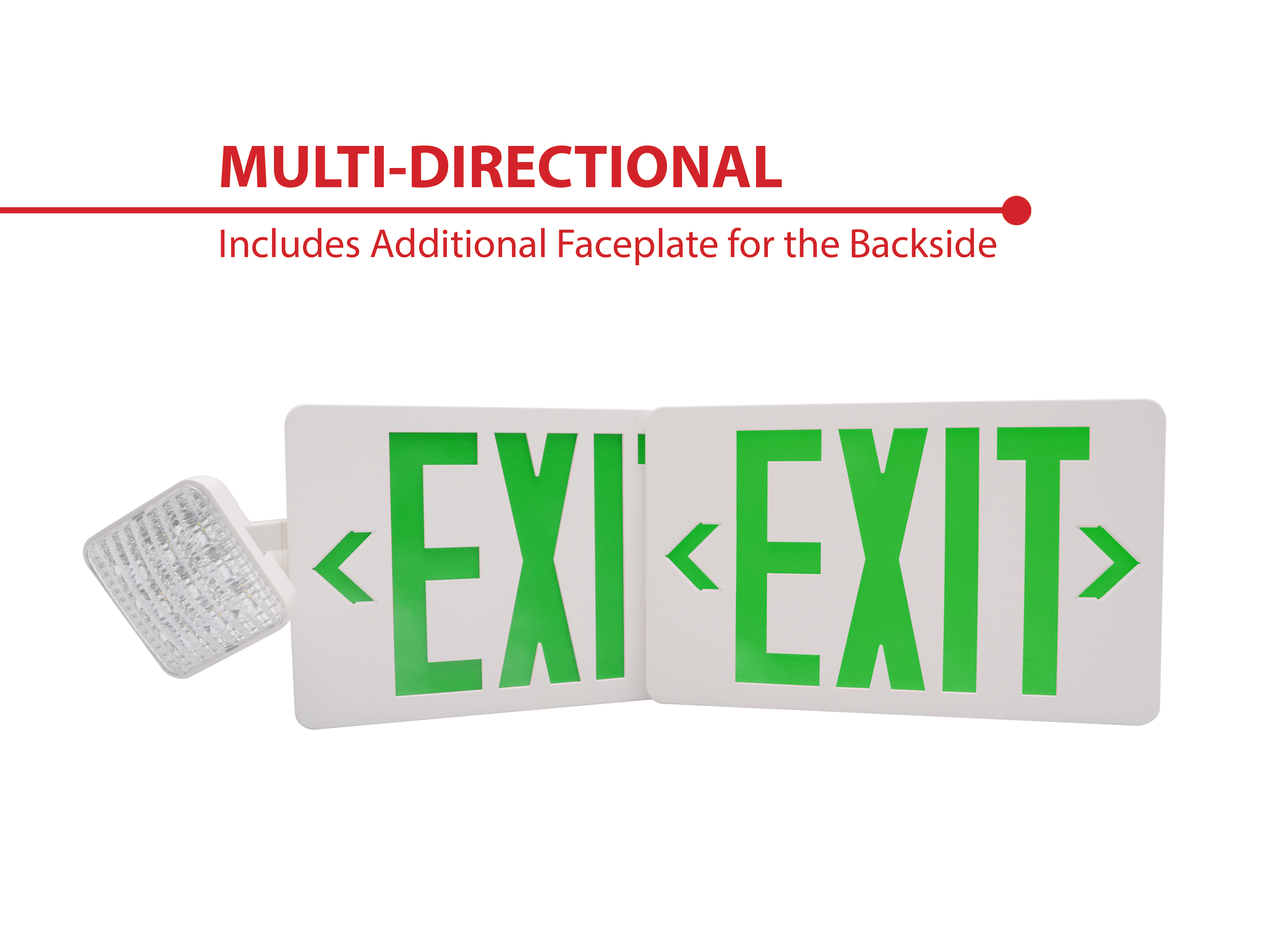

- Supplied with two faces for single or double face installation
Full Listings
- UL 924
- Meets NFPA 70 and 101 requirements
- Listed for damp locations
Warranty
- 1-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
